Introduction

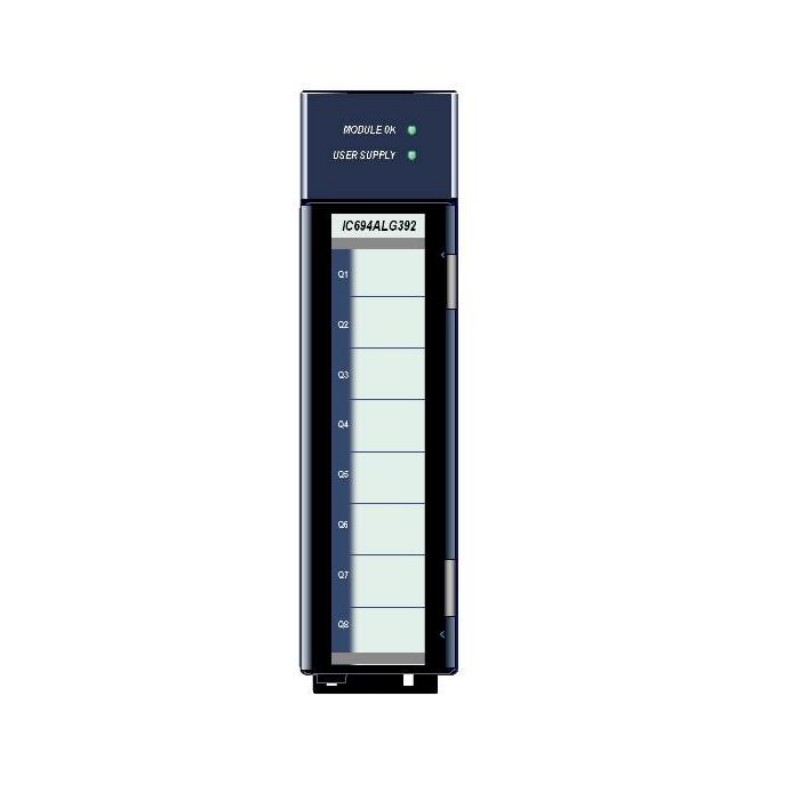

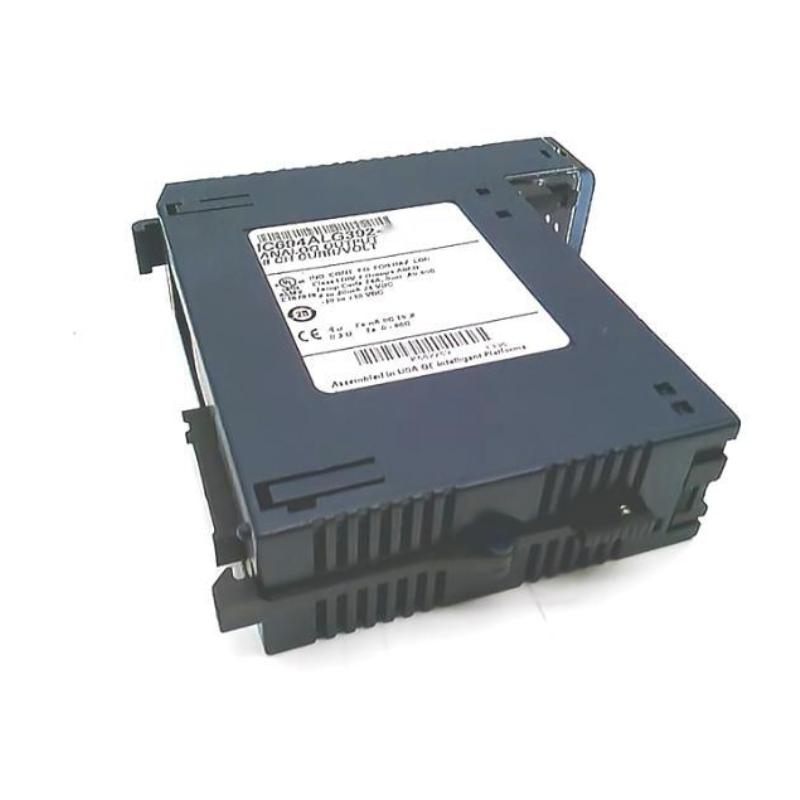

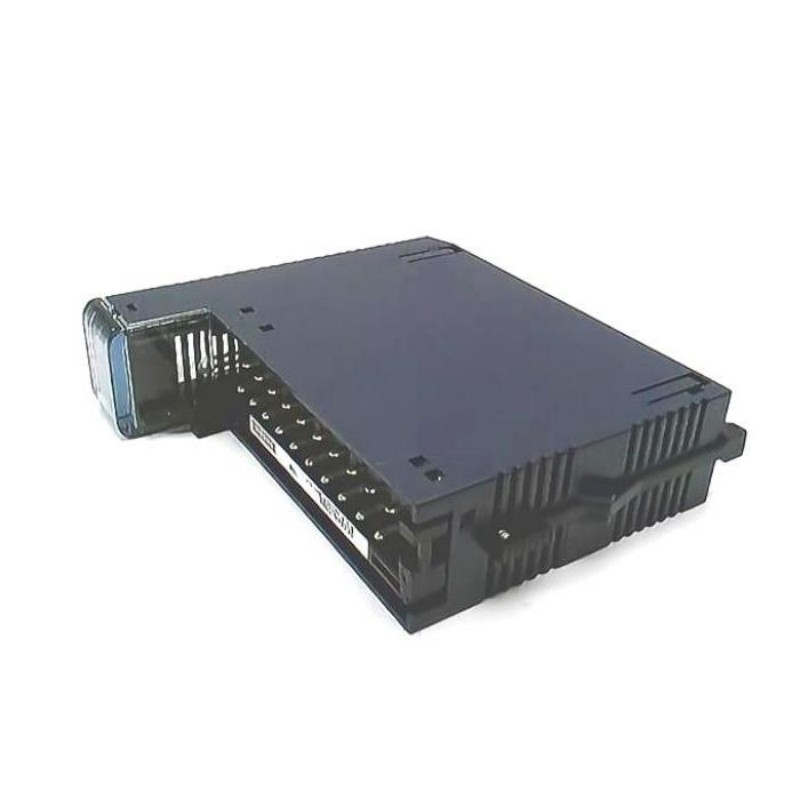

The IC694ALG392 Analog Output Module is a precision industrial interface designed to deliver reliable analog control signals from logic controllers to field equipment. Built for modular PLC systems, this module converts digital setpoints into high-accuracy analog outputs, enabling smooth and accurate control of actuators, valves, drives, and process devices in demanding industrial environments. With robust engineering and versatile performance, the IC694ALG392 is ideal for applications that require stable analog output under continuous operation.
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC694ALG392 |
| Module Type | Analog Output Module |
| Number of Outputs | 4 analog outputs |
| Output Signal Types | Voltage and Current |
| Output Ranges | 0–10 V, ±10 V, 0–20 mA, 4–20 mA |
| Resolution | 12-bit |
| Update Rate | Real-time output updating |
| Load Drive Capability | Standard industrial drive strength |
| Backplane Power Consumption | Low power design for efficient operation |
| Isolation | Channel-to-backplane isolation |
| Mounting | Slot-based installation in PLC rack |
Physical Dimensions & Weight
| Dimension | Value |
|---|---|
| Width | 101.6 mm (4.0 in) |
| Height | 133.35 mm (5.25 in) |
| Depth | 76.2 mm (3.0 in) |
| Weight | Approx. 0.45 kg (1.0 lb) |
