Introduction: Reliable Analog Voltage Output for RX3i Control Systems

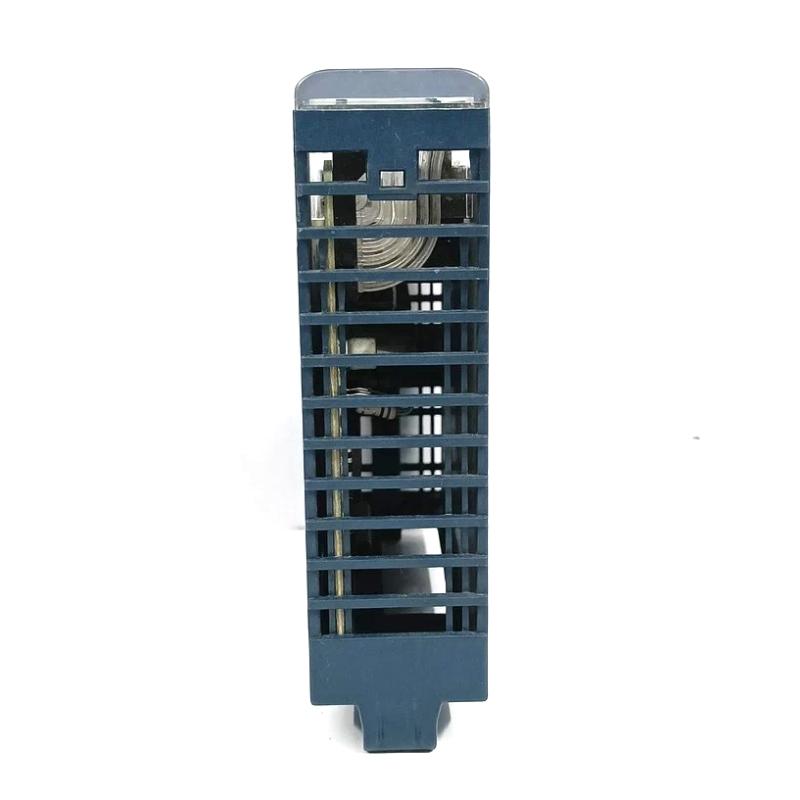

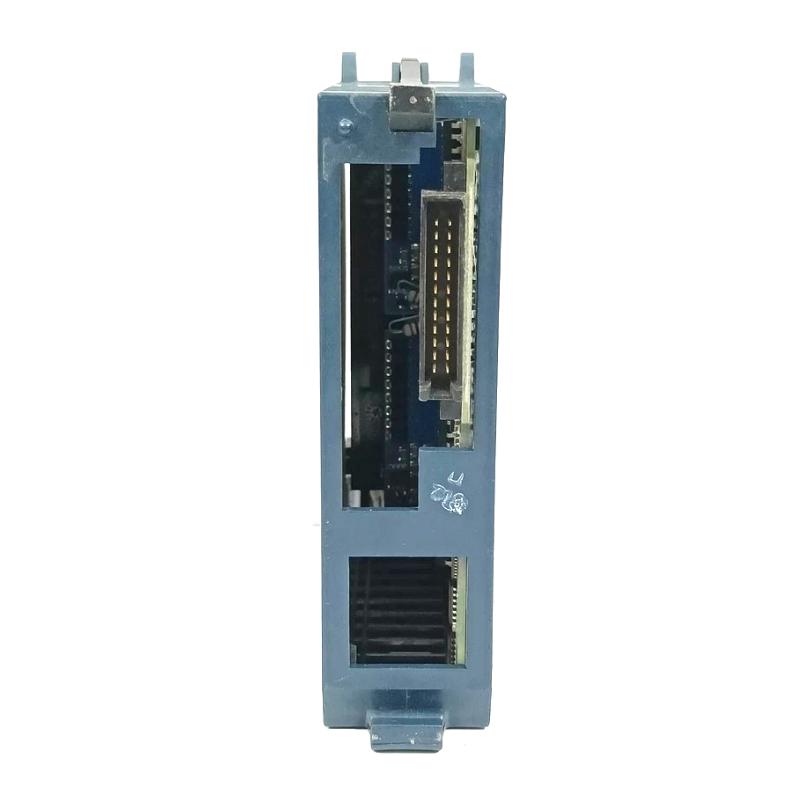

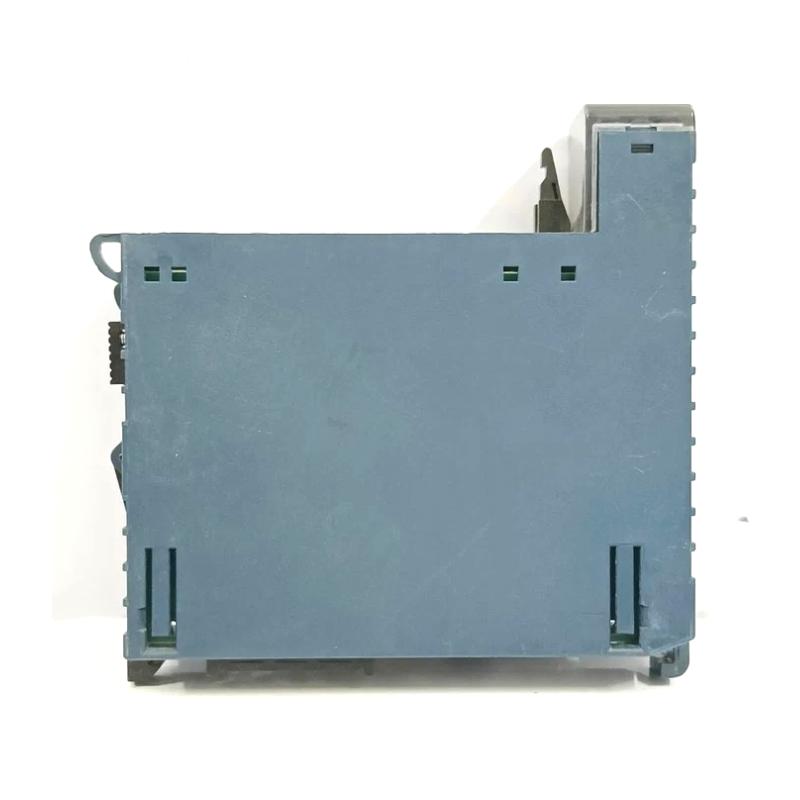

The GE Fanuc IC694MDL742 Voltage Output Module is a precision analog output device designed to provide dependable DC voltage control signals from GE Fanuc RX3i programmable logic controllers (PLCs). Engineered for industrial automation environments, this module delivers stable, high-integrity voltage outputs that drive actuators, valves, instrumentation, and other field equipment requiring analog control. Its integration within the RX3i architecture ensures tight synchronization with control logic and system diagnostics, supporting both continuous and batch process demands.
Technical Specifications: Precision Output Meets Industrial Robustness
| Specification | Details |
|---|
| Product Type | Voltage Output Module |
| Model Number | IC694MDL742 |
| Platform Compatibility | GE Fanuc RX3i PLC family |
| Output Channels | 4 analog voltage outputs |
| Output Range | 0–10 V DC per channel |
| Resolution | 12-bit or better (4096 distinct levels) |
| Typical Accuracy | ±0.5% of full scale |
| Output Drive Capability | Up to 2 mA per channel (typical) |
| Isolation | Channel-to-backplane isolation for noise resistance |
| Update Response | Deterministic update cycle aligned with scan time |
| Mounting | RX3i rack slot installation |
| Dimensions | Standard RX3i module footprint |
| Weight | approx. 0.25 kg |
| Operating Temperature Range | –10 °C to +60 °C |
| Humidity Tolerance | Typical industrial ambient levels |
This configuration ensures that each output channel provides accurate, repeatable voltage control signals suitable for a range of automation tasks.
Applications: Driving Analog Actuation and Control Signals
The IC694MDL742 module is widely used in applications that require precise voltage output to field devices. Typical use cases include:
-
Proportional Valve and Damper Control — Supplying 0–10 V command signals to positioners and actuators
-
Setpoint Distribution — Delivering analog setpoints for process variables such as temperature, pressure, or level
-
Continuous Process Control — Enabling smooth modulation of analog field devices
-
Batch and Recipe Execution — Providing controllable voltage outputs as part of sequential operations
-
Instrumentation Interfaces — Driving analog sensors or secondary devices that require voltage input
The module’s four independent channels allow consolidated control of multiple devices without additional hardware.
Advantages: Precision, Integration, and Field Reliability
-
Multi-Channel Voltage Outputs — Four independent channels reduce the need for multiple modules.
-
High Resolution and Accuracy — 12-bit resolution provides smooth and precise analog control.
-
Noise-Resistant Design — Channel-to-backplane isolation enhances signal fidelity in electrically noisy environments.
-
Seamless RX3i Integration — Designed for distribution and synchronization within GE Fanuc control racks.
-
Industrial-Ready Construction — Built for continuous operation under standard environmental conditions.
These advantages make the IC694MDL742 a dependable choice for engineers implementing analog control in rigorous industrial applications.
Technical FAQs: Practical Answers for Field Engineers
1. How many voltage outputs does the IC694MDL742 provide?
It offers 4 independent DC voltage output channels.
2. What is the standard output voltage range?
Each channel delivers 0–10 V DC.
3. What resolution does the module support?
It typically supports 12-bit resolution, equating to approximately 4096 discrete levels.
4. What is the accuracy of the outputs?
Typical accuracy is around ±0.5% of full scale.
5. How much load can each channel drive?
Each channel can typically drive up to 2 mA of load.
6. Does the module include noise protection?
Yes — channel-to-backplane isolation helps maintain signal quality in industrial environments.
7. What systems is it compatible with?
It integrates with the GE Fanuc RX3i PLC family.
8. Can this module be used for motion or speed control?
Yes — it can be used to supply analog command voltages in motion and speed control applications.
9. How is the module mounted?
It installs into a compatible RX3i rack slot.
10. Is configuration software required?
Yes — configuration and addressing are handled through the RX3i system’s engineering tools.
