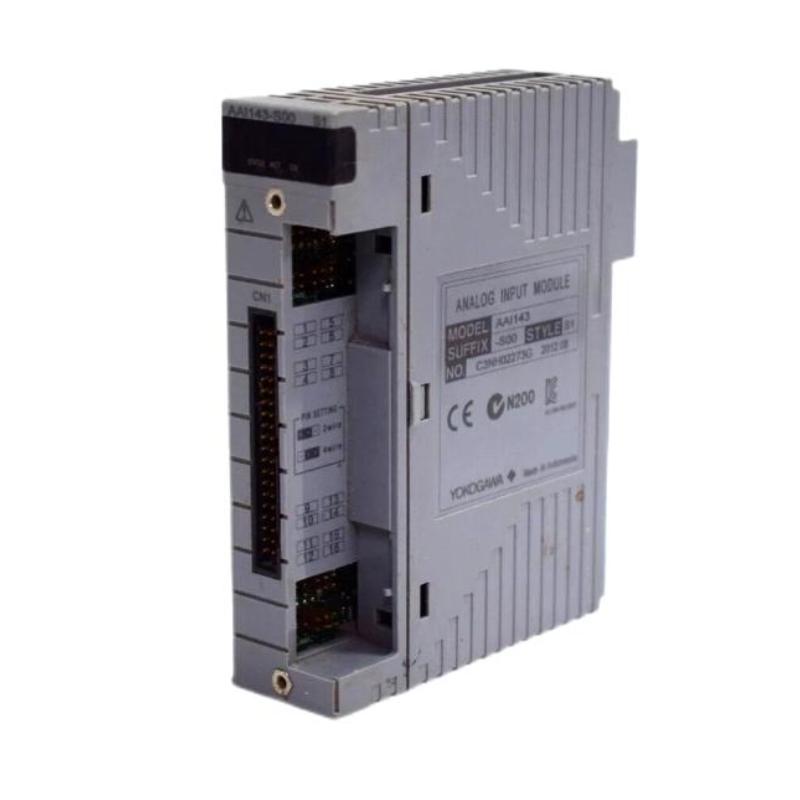

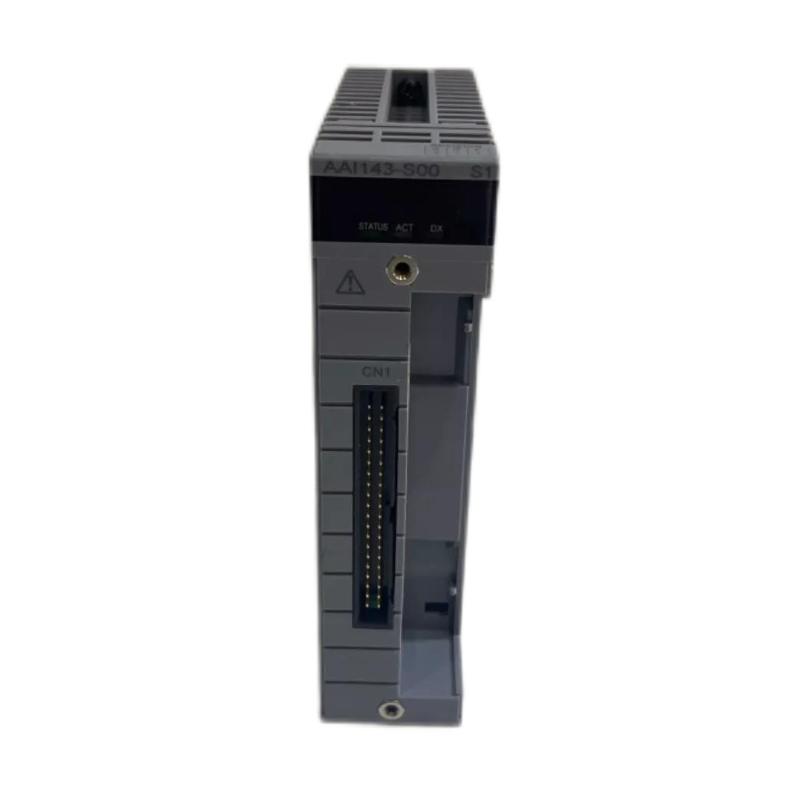

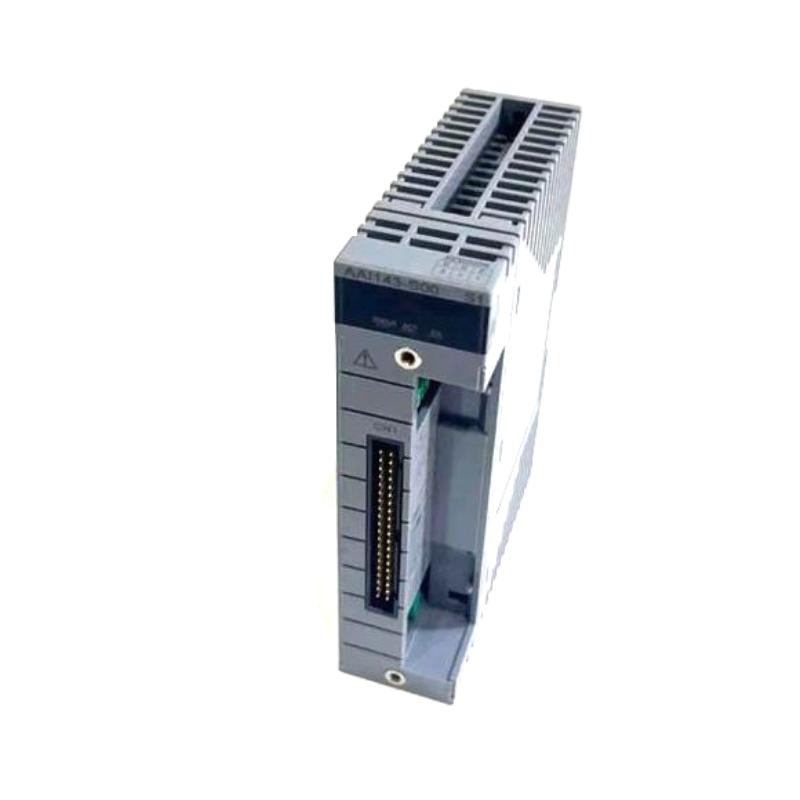

Yokogawa AAI143-S00 Analog Input Module

Name: Yokogawa AAI143-S00 Analog Input Module
Brand: Yokogawa Electric
SKU: 434
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:AAI143-S00
Product Origin:Japan
Product Dimensions:130 mm × 25 mm × 180 mm
Product Weight:0.3KG
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Yokogawa AAI143-S00 Analog Input Module

Introduction — Reliable Analog Input for Core Process Measurement

The Yokogawa AAI143-S00 Analog Input Module is engineered for stable and accurate process variable acquisition within the CENTUM distributed control system platform. Designed as a non-HART, high-reliability analog input solution, the S00 variant offers excellent precision, noise immunity, and long-term stability. With 8 isolated channels and robust signal filtering, this module is well-suited for essential monitoring tasks in industries where dependable measurement is the foundation of smooth operations.

Technical Specifications — Electrical & Physical Characteristics

Specification	Description
Module Type	8-Channel Isolated Analog Input Module
Input Signal	4–20 mA, 0–20 mA, ±10 V DC (varies by terminal configuration)
Number of Channels	8 isolated channels
Input Impedance	250 Ω (current), 10 MΩ (voltage)
Accuracy	±0.1% of span
Update Rate	Approx. 10 ms per channel
Isolation Voltage	1500 V AC (input-to-system)
Power Consumption	5 V DC @ ~200 mA, 24 V DC @ ~300 mA
Operating Temperature	–25°C to +70°C
Dimensions	130 mm × 25 mm × 180 mm
Weight	~0.28 kg
Communication	Standard analog (non-HART)
Terminal Style	Depends on assigned terminal block model (A4, K4, etc.)

Applications — Where It Performs Best

Standard process measurement in refineries, chemical plants, and power stations
Monitoring temperature, pressure, level, and flow transmitters using 4–20 mA or voltage signals
Expansion of existing non-HART analog input capacity
Industrial environments requiring strong isolation and EMI resistance
Redundant control architectures using multiple analog input layers
General-purpose DCS measurement tasks where stability and simplicity matter

Advantages — Why Choose the AAI143-S00

Consistent measurement accuracy for critical control loops
8 isolated channels reduce risk of interference and cross-talk
Plug-and-play integration with CENTUM control systems
Rugged industrial design ensures long service life
Flexible input options support both current and voltage signals
Fast update rate suitable for real-time control applications
Low maintenance, high uptime architecture ideal for continuous operations

Technical FAQs — 10 Common Questions

Does the AAI143-S00 support HART?
- No, this is a non-HART analog input module.
How many channels are included?
- 8 isolated analog input channels.
What signals can it receive?
- 4–20 mA, 0–20 mA, and ±10 V DC (terminal-dependent).
Is the module isolated?
- Yes, 1500 V AC input-to-system isolation.
What is the measurement accuracy?
- ±0.1% of span.
Can it operate in high-temperature environments?
- Yes, from –25°C to +70°C.
What is the module size?
- 130 mm × 25 mm × 180 mm.
What does the module weigh?
- Approximately 0.28 kg.
Is it suitable for redundant systems?
- Yes, widely used in mission-critical DCS redundancy layers.
What terminal block options can be used with the S00?
- A4, K4, and other Yokogawa standard terminal configurations.
