Introduction: Critical Ground Fault Protection for DC Control Systems

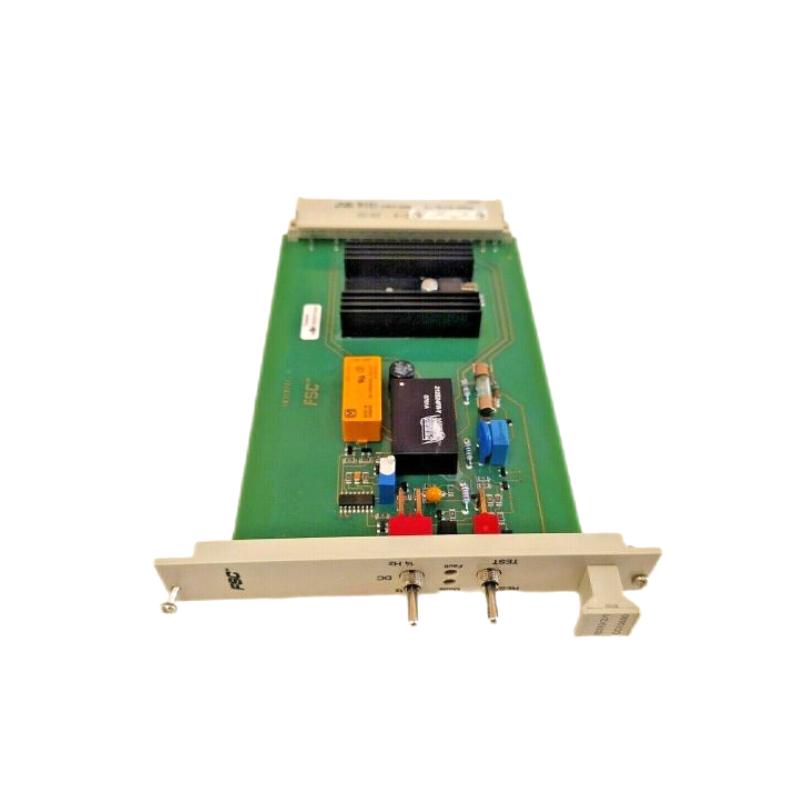

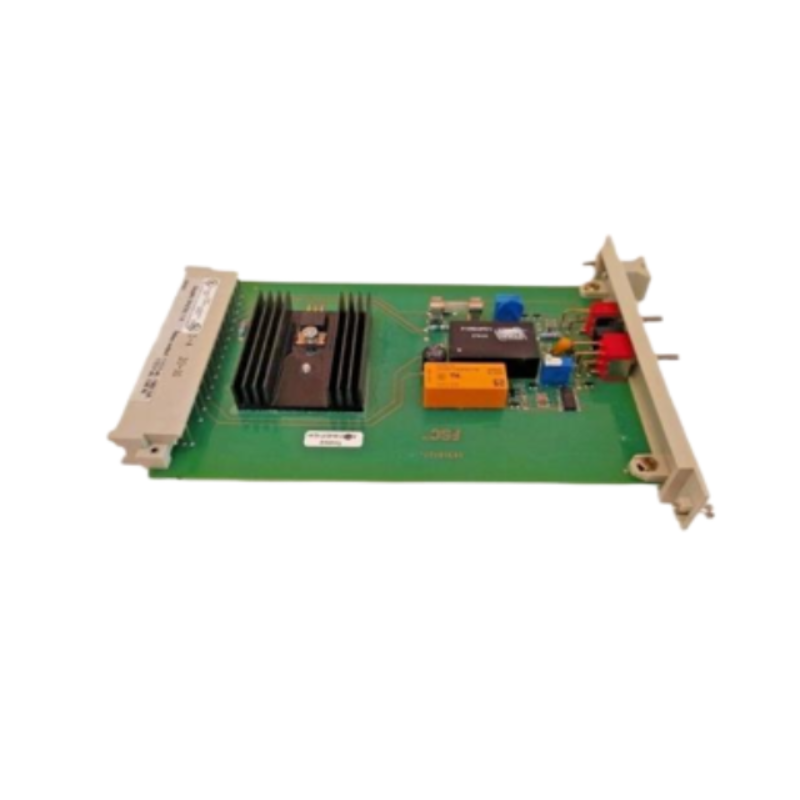

The Honeywell 10310/2/1 Leakage Detector is a dedicated earth leakage monitoring module designed to detect ground faults and leakage currents in industrial DC power networks. This Earth Leakage Detector (ELD) enhances electrical safety by continuously supervising insulation integrity and alerting control systems to abnormal currents before they escalate into hazardous conditions. Its compact and durable design makes it suitable for integration into automation panels, PLC/DCS systems, and safety circuits where early leakage detection is vital.
Technical Specifications: Reliable Detection and Compact Form
| Specification | Details |
|---|---|
| Product Type | Earth Leakage Detector (ELD) Module |
| Model Number | 10310/2/1 |
| Supply Voltage | 24 V DC nominal (max. 30 V DC) |
| Supply Current | Typically ≤ 60 mA |
| Leakage Detection Range | Monitors earth faults in 24 V, 48 V, 60 V, or 110 V DC systems |
| Output Type | Digital/relay output for fault signaling |
| Rated Output | Up to 1 A relay or logic output |
| Earth Fault Threshold | Active range for leakage detection across DC circuits |
| Response Time | Rapid detection mode with status indication |
| Mounting Style | Rack or panel mount compatible with control enclosures |
| Dimensions | approx. 150 × 80 × 35 mm |
| Weight | approx. 0.2 kg |
| Operating Temperature | Industrial range |
| Industrial Durability | Designed for continuous operation |
