Technical FAQs: Practical Answers for Engineers

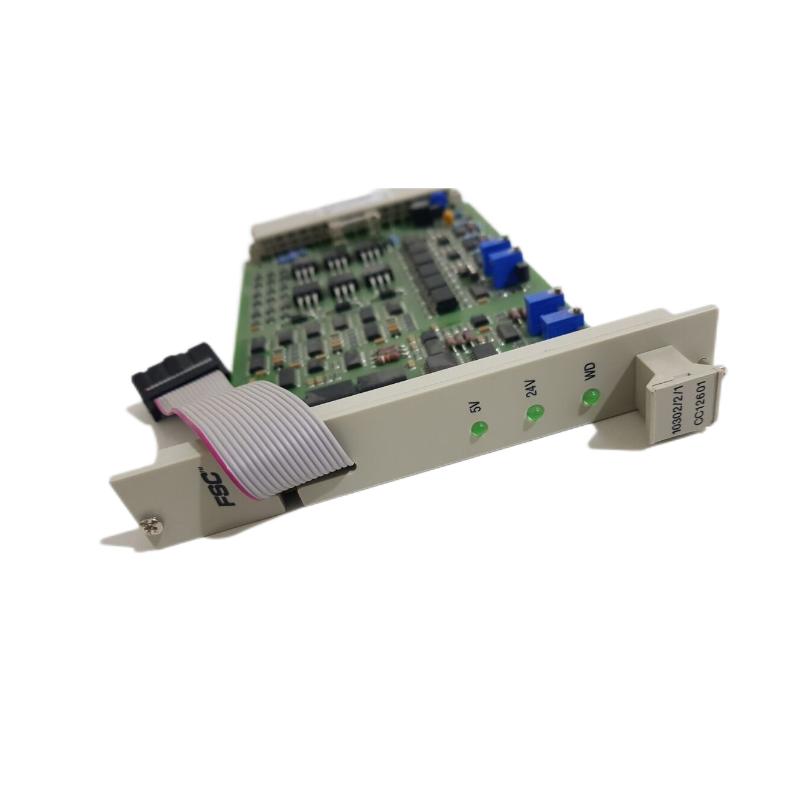

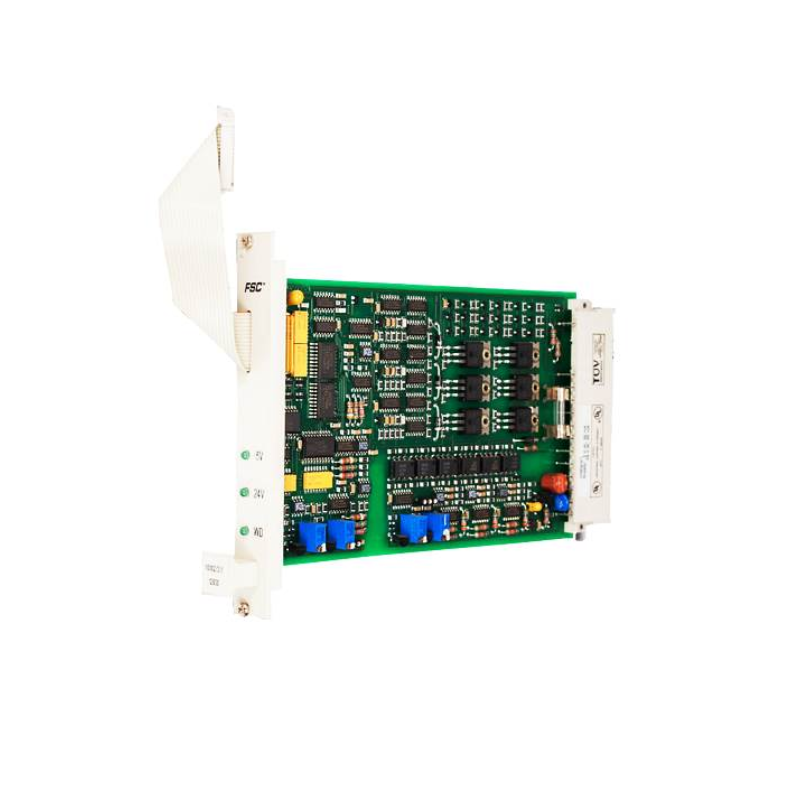

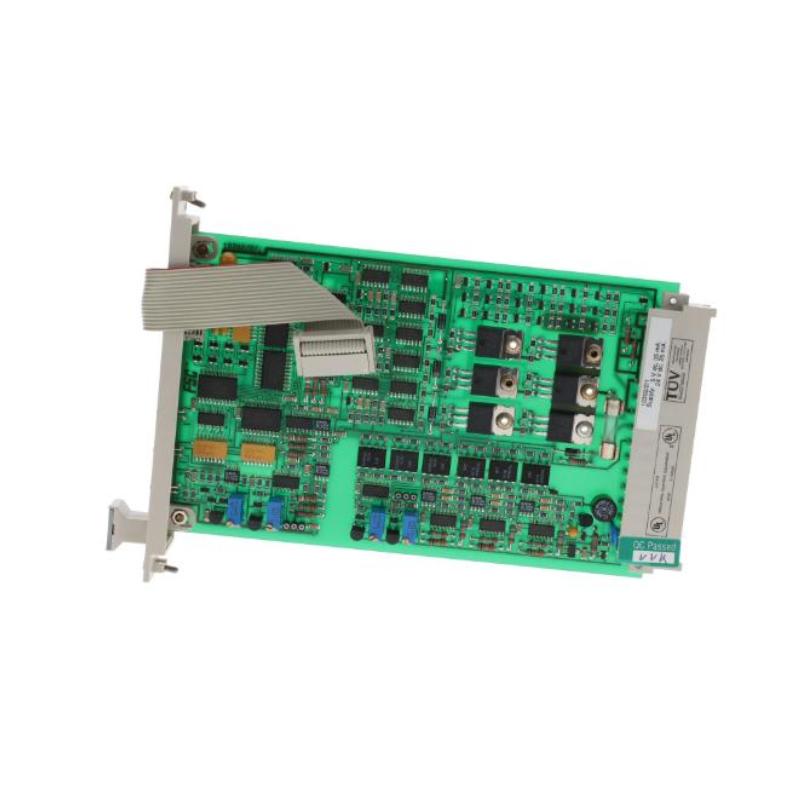

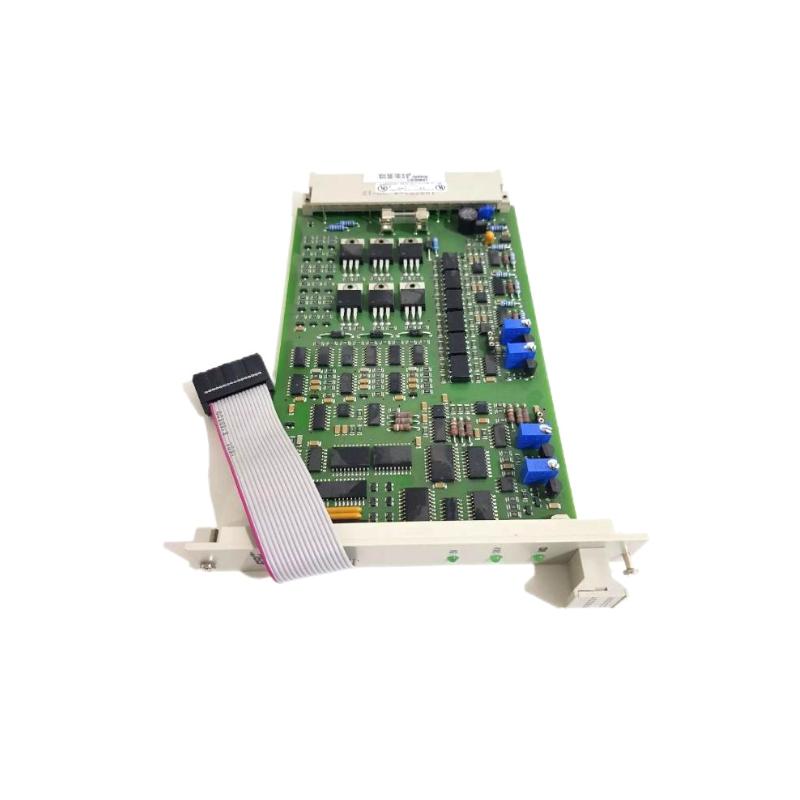

1. What is the main role of the 10302/2/1 module?
It monitors power supply voltages and provides watchdog signaling to support system health and fault detection.

2. Which voltages does it supervise?
The module checks both 5 V DC and 24 V DC power supplies to ensure stable operation.

3. Can it be used in redundant systems?
Yes — it is commonly used in configurations involving redundant and non-redundant elements.

4. What output current can it handle?
The watchdog output supports approximately up to 900 mA load capacity.

5. Is the module hot-swappable?
It may be exchanged while powered, but doing so can cause shutdowns in some system configurations.

6. What size does it occupy in the rack?
It requires 4 TE width and 3 HE height in a standard I/O rack.

7. What industrial environments can it withstand?
It is designed for typical automation cabinet temperature ranges and industrial noise conditions.

8. Does it require a specific software version?
Compatibility is generally aligned with system versions used in FSC architectures.

9. What happens if monitored voltage goes out of range?
The module’s watchdog logic triggers fault signaling, prompting the control system to take predefined safety actions.

10. Can it support high-availability system designs?
Yes — it helps maintain continuous operation by supporting power supervision and fault detection.
