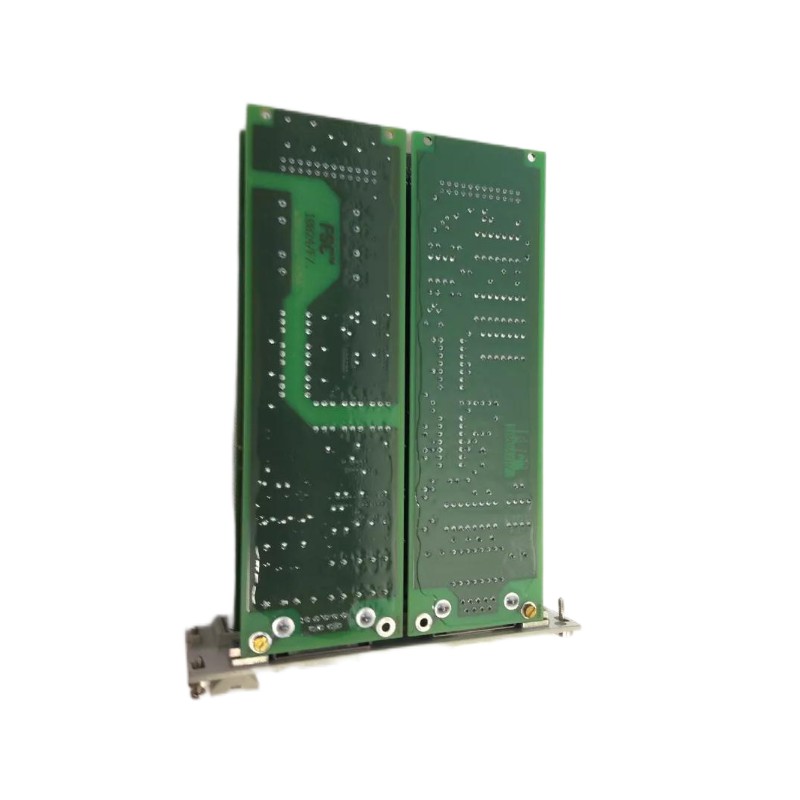

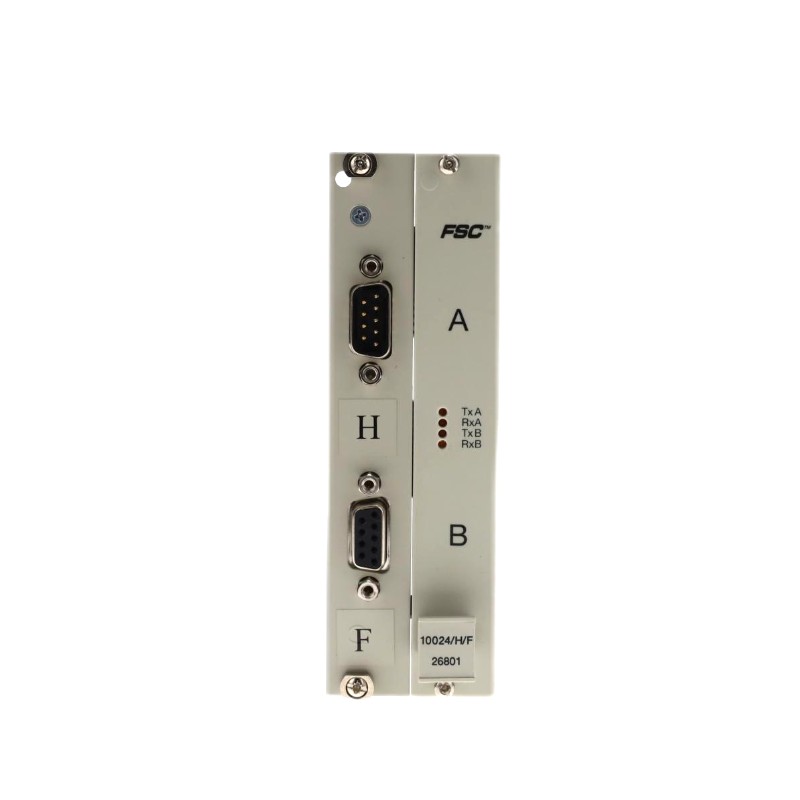

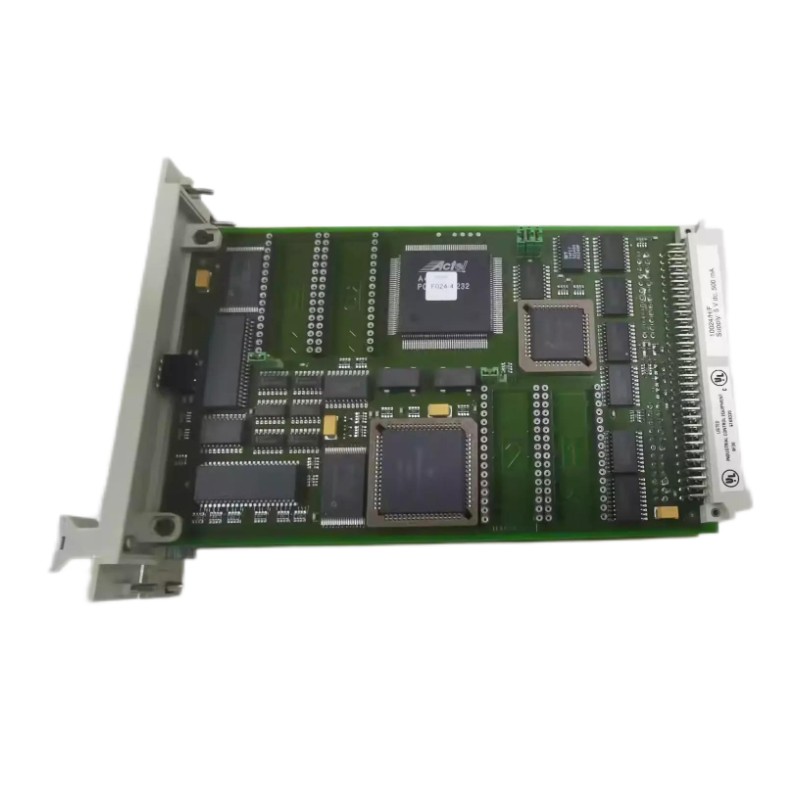

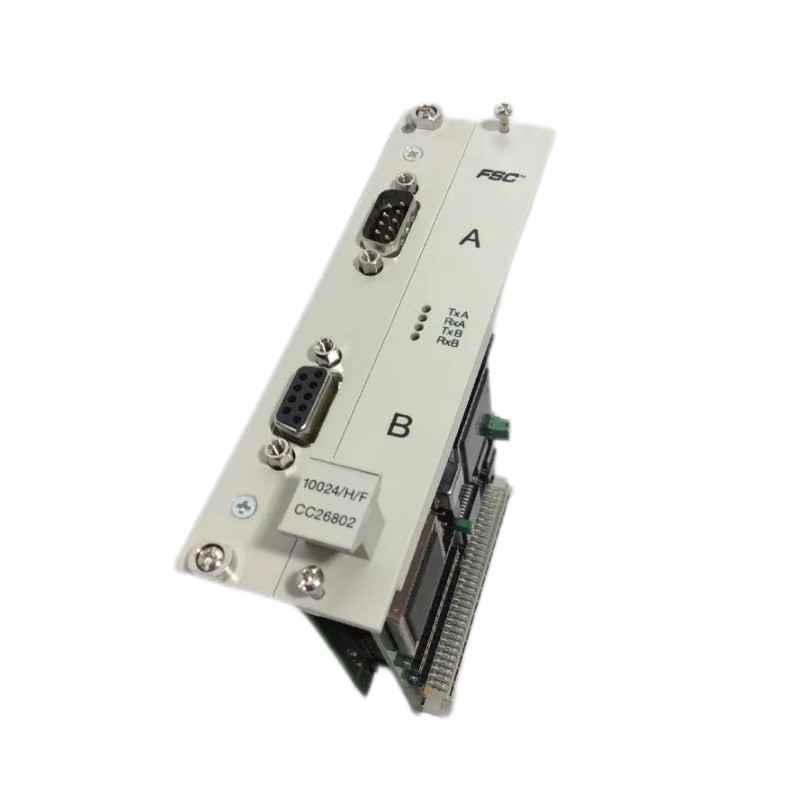

Honeywell 10024/H/F Enhanced Communication Module

Name: Honeywell 10024/H/F Enhanced Communication Module
Brand: Honeywell DCS
SKU: 4324
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Honeywell DCS
Item No.:10024/H/F
Product Origin:USA
Product Dimensions:172 × 102 × 41 mm
Product Weight:0.4kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction: Industrial-Grade Communication for Control Systems

The Honeywell 10024/H/F Enhanced Communication Module is a purpose-built communication interface designed to enable reliable and high-performance data exchange within Honeywell automation and control systems. This module plays a key role in linking primary controllers, redundant systems, operator workstations, and external devices, ensuring dependable communication paths in mission-critical industrial environments. It is part of Honeywell’s FSC series, historically used in distributed control and machine control applications.

Technical Specifications: Engineered for Connectivity

Specification	Details
Product Type	Enhanced Communication Module
Model Number	10024/H/F
Series	Honeywell FSC Series
Communication Interfaces	RS-422, RS-232C, RS-485, Current Loop, Fiber (varies by system configuration)
Supported Protocols	Serial communication protocols for industrial links
Typical Baud Rates	Up to 19.2 kbps (system dependent)
Mounting	Rack or chassis installation
Dimensions (L × W × H)	approx. 172 × 102 × 41 mm
Weight	approx. 0.3–0.5 kg
Operating Temperature Range	Typical industrial range
Power Supply	System backplane or 24 V DC depending on configuration
Isolation	Designed for industrial noise environments

Applications: Flexible Industrial Communication

The 10024/H/F is commonly deployed in industrial control systems where communication between controllers, operator stations, and external peripherals must be robust and reliable. Typical applications include process control in power generation, refining and petrochemicals, chemical plants, large-scale manufacturing systems, and distributed PLC networks. Its enhanced communication capabilities make it suitable for both point-to-point and multidrop configurations, facilitating extended reach and integrative system design.

Advantages: Reliable, Expandable, and System-Ready

Multi-interface support enables connectivity over RS-232, RS-422, RS-485, and other serial links.
Enhanced redundancy improves system uptime by supporting failover paths within communication networks.
Long-distance capability supports extended cable runs, suitable for large control rooms and field areas.
Integration with multiple devices simplifies linking controllers, operator consoles, printers, and third-party systems.
Rugged industrial design ensures stable operation in demanding environmental conditions.

Technical FAQs: Engineer-Focused Answers

1. What is the primary purpose of the 10024/H/F?
It provides enhanced serial communication between Honeywell system components and external devices.

2. Which industrial protocols does it support?
Protocols include standard serial communication through RS-422, RS-232C, RS-485, and other configurable link types.

3. Can it handle long communication distances?
Yes — the module supports extended cable lengths depending on interface and speed requirements.

4. Is it suitable for redundant system architectures?
Yes — it can be used in redundant control setups to maintain communication paths during failover.

5. What environments can it operate in?
It is designed for industrial temperature and noise conditions typical of automation control cabinets.

6. Does it require external power?
Module power is typically derived from the system backplane or 24 V DC, depending on configuration.

7. How fast can it communicate?
Standard speeds reach up to approximately 19.2 kbps; actual rates depend on system and network settings.

8. Which Honeywell systems is it compatible with?
It integrates with Honeywell FSC and other legacy control systems that utilize the enhanced communication architecture.

9. Does it support external peripheral connection?
Yes — operator terminals, printers, and third-party devices can be interfaced.

10. What form factor does it use?
It installs within a rack or module chassis typical of Honeywell industrial control systems.
