ABB DI 685 3BDS005833R1 Digital Input Module

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

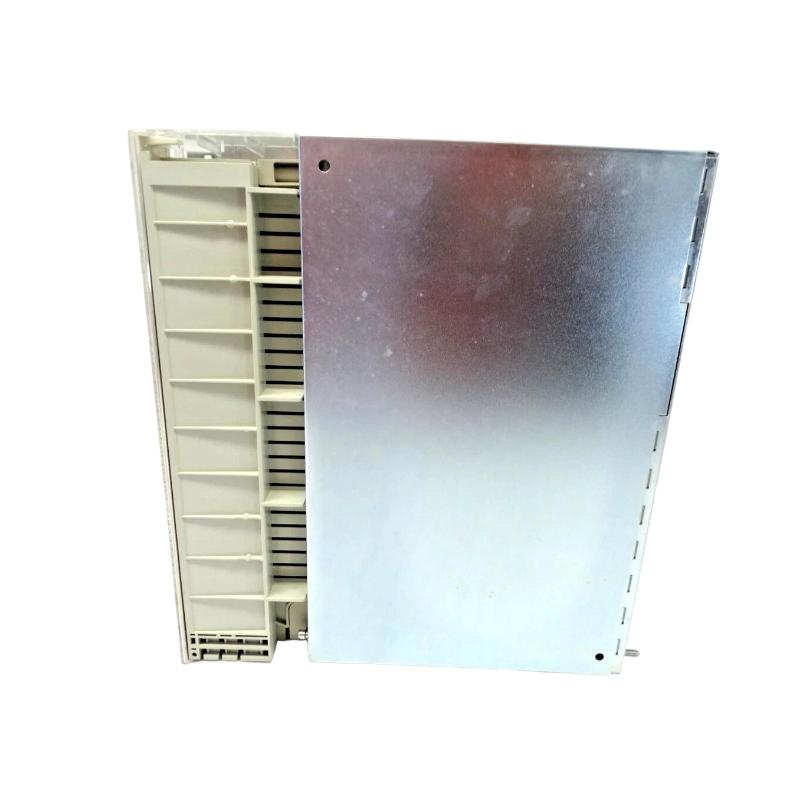

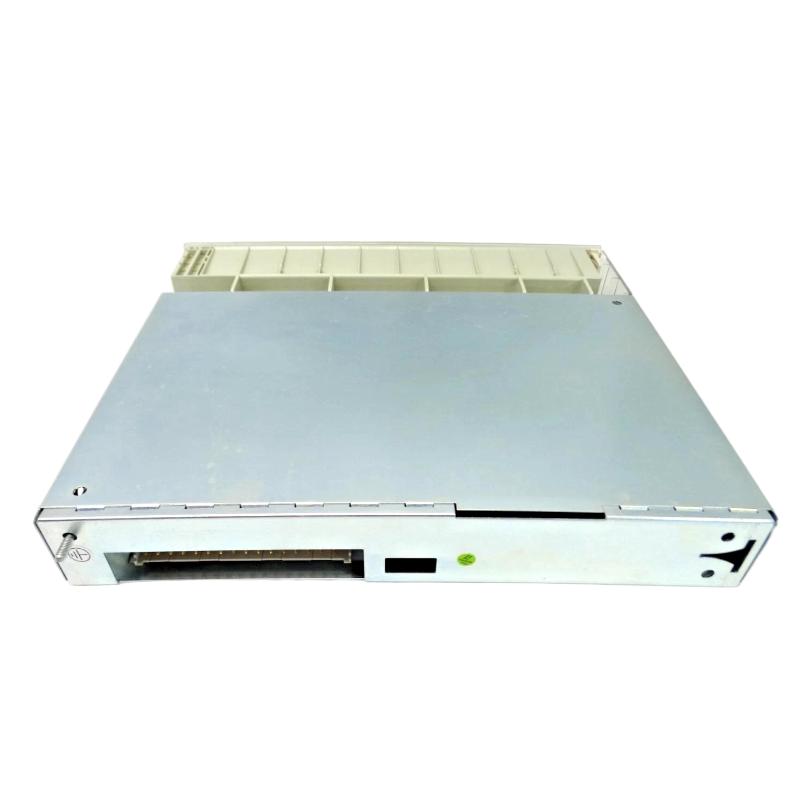

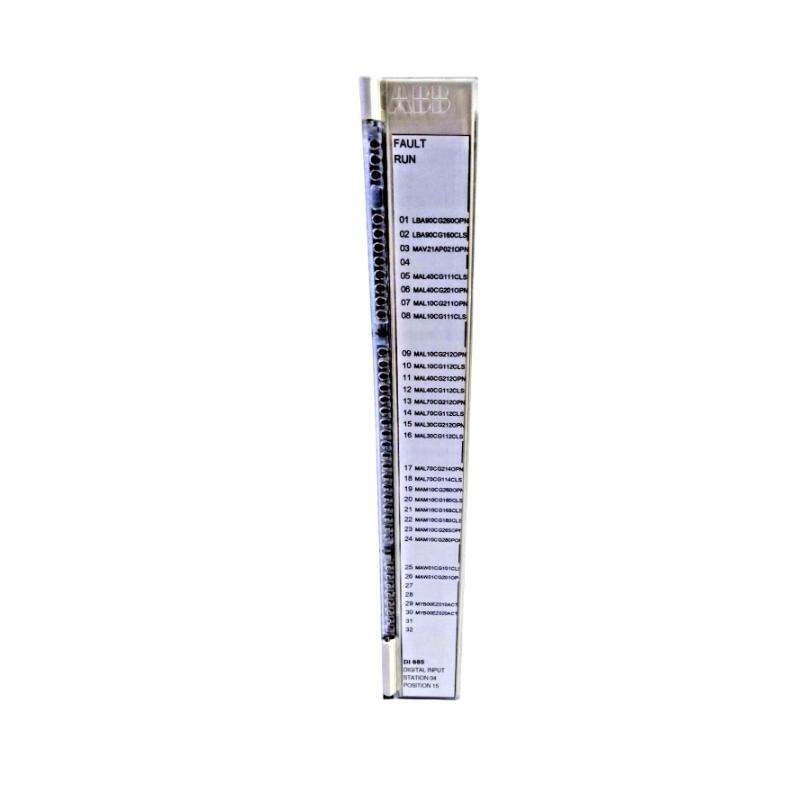

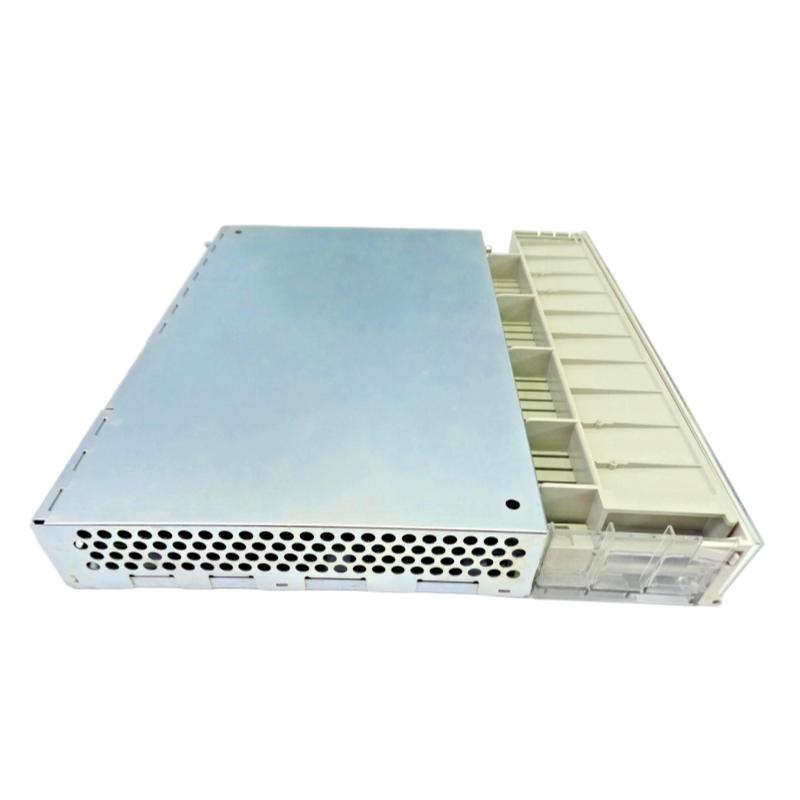

ABB DI 685 3BDS005833R1 Digital Input Module

Name: ABB DI 685 3BDS005833R1 Digital Input Module
Brand: ABB PLC
SKU: 4296
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:DI 685
Product Origin:Sweden (SE)
Product Dimensions:252 x 273 x 40 mm
Product Weight:1.24 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The ABB DI 685 3BDS005833R1 Digital Input Module is designed for accurate and reliable processing of digital input signals in industrial automation systems. This module is essential for connecting various field devices, such as limit switches, push buttons, and sensors, to the central control system. By converting binary signals into actionable data, it ensures smooth integration and operation within ABB's automation architecture, enhancing system performance and reliability.

Technical Specifications

Parameter	Value
Module Type	Digital Input Module
Model	DI 685 3BDS005833R1
Dimensions	252 × 273 × 40 mm
Weight	1.24 kg
Mounting Type	Panel Mount
Operating Voltage	24V DC
Current Rating	5A
Ambient Temperature	-20°C to +60°C
Protection Class	IP20
Certifications	UL, CE, RoHS

Applications

Signal Processing: The DI 685 module is used to process digital signals from field devices, ensuring that binary inputs such as on/off signals are accurately captured and transmitted.
Industrial Automation: It is widely used in automation systems to provide inputs from sensors and switches, supporting the control and monitoring of industrial machinery.
Safety Systems: Often utilized in safety applications to monitor emergency stop buttons and other critical safety signals, ensuring proper functioning and system protection.

Advantages

Reliable Input Handling: The DI 685 ensures consistent and precise handling of digital signals, contributing to the stability and reliability of automation systems.
Compact and Efficient: Its small size allows for easy integration into control panels with limited space, without compromising on performance.
Durable Design: Built to withstand challenging industrial environments, the module offers long-lasting performance with minimal maintenance.

Technical FAQs

What is the function of the ABB DI 685 Digital Input Module?
It processes digital input signals from field devices such as sensors and switches, integrating them into the automation system for control and monitoring.
What is the mounting type of the DI 685?
The DI 685 is designed for panel mounting, allowing easy installation in control panels.
What is the operating voltage of the DI 685?
The module operates at 24V DC.
What is the maximum current rating of the DI 685?
The DI 685 can handle up to 5A of current.
What temperature range can the DI 685 module operate in?
It operates within a temperature range of -20°C to +60°C.
What protection class does the DI 685 have?
The DI 685 has an IP20 rating, which offers protection against dust and accidental contact with internal components.
What certifications does the DI 685 have?
The DI 685 is UL, CE, and RoHS certified, ensuring compliance with international safety and environmental standards.
Can the DI 685 module be used in hazardous environments?
The module is suitable for use in general industrial environments but is not intrinsically safe for hazardous locations.
How does the DI 685 integrate with other ABB systems?
The DI 685 integrates easily with other ABB automation components, providing a seamless digital input interface for control systems.
Is the DI 685 easy to maintain?
Yes, the module is designed for easy installation and maintenance, minimizing downtime and ensuring system reliability.
