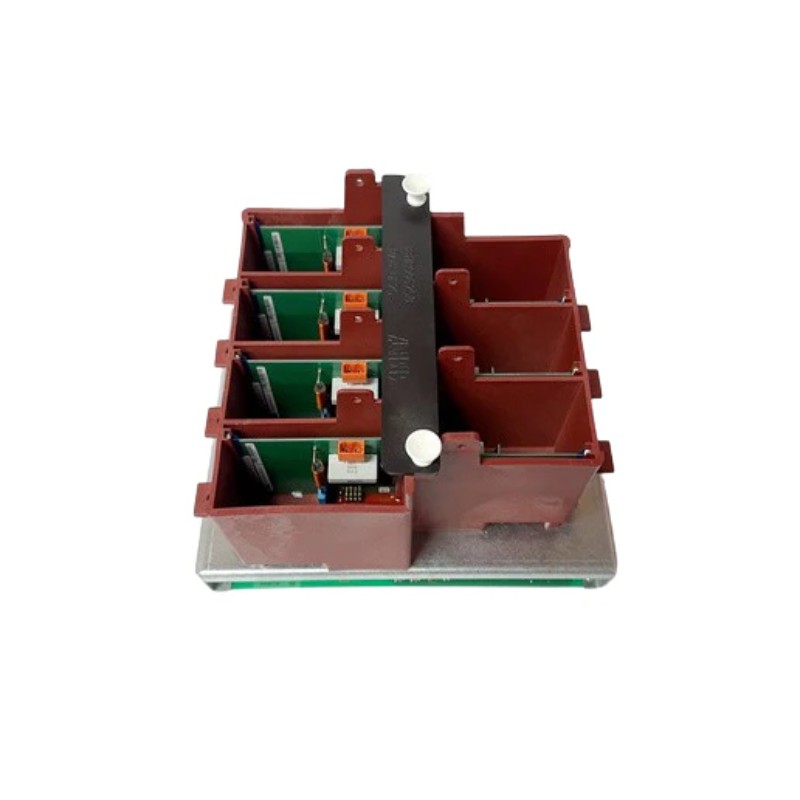

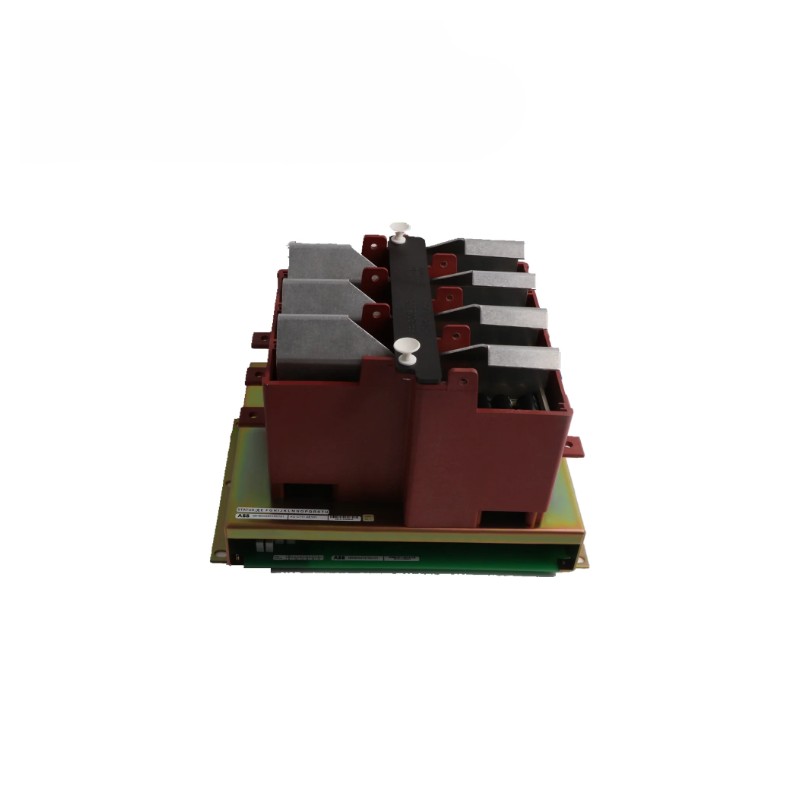

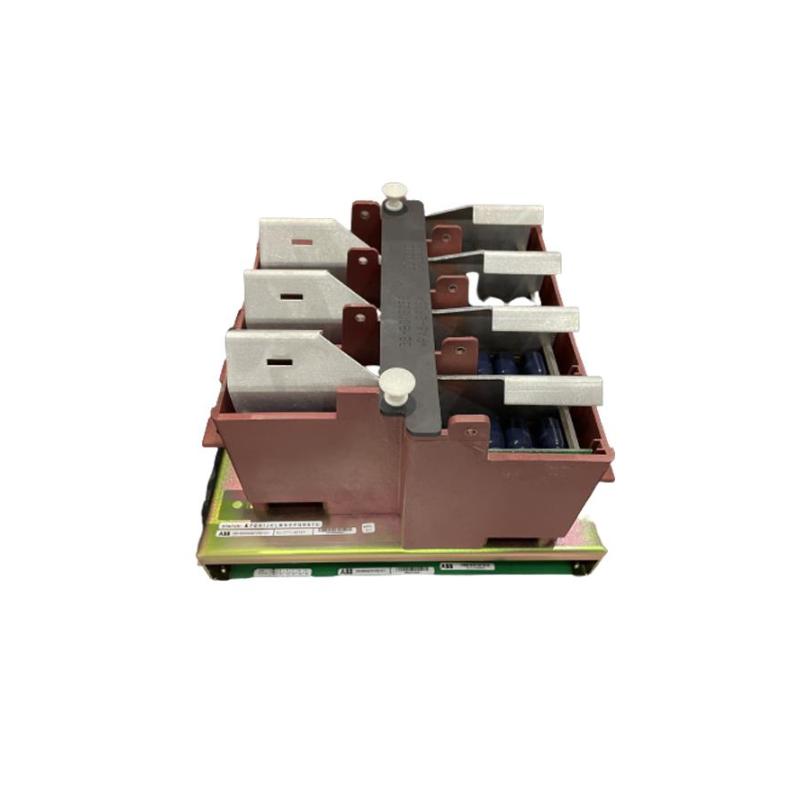

ABB KUC711AE101 3BHB004661R0101 Gate Unit Power Supply

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

ABB KUC711AE101 3BHB004661R0101 Gate Unit Power Supply

Name: ABB KUC711AE101 3BHB004661R0101 Gate Unit Power Supply
Brand: ABB PLC
SKU: 4250
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:KUC711AE101 3BHB004661R0101
Product Origin:Sweden
Product Dimensions:100 × 100 × 50 mm
Product Weight:1.5kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The ABB KUC711AE101 3BHB004661R0101 Gate Unit Power Supply is a purpose-built power module engineered to deliver stable, isolated DC power for gate driver units in medium-voltage drive systems. Designed for industrial reliability and long-term operation, this unit ensures precise power delivery to IGBT and thyristor gate circuits, which is essential for clean switching performance and consistent system uptime. Its rugged design and high current capacity make it ideal for heavy-duty applications such as power generation, mining, and industrial motor drives.

Technical Specifications

Specification	Details
Model	KUC711AE101
ABB Part Number	3BHB004661R0101
Module Type	Gate Unit Power Supply
Output Voltage	24 V DC
Maximum Output Current	Up to 100 A
Input Voltage Range	85–264 VAC
Protection Features	Overvoltage, undervoltage, short-circuit, thermal overload protection
Operating Temperature	-20 °C to +60 °C
Storage Temperature	-40 °C to +70 °C
Humidity Tolerance	≤ 95% non-condensing
Mounting Style	Panel or cabinet mounting
Dimensions (W × H × D)	approx. 100 × 100 × 50 mm
Weight	approx. 1.5 kg

Applications

The ABB KUC711AE101 Gate Unit Power Supply is widely used in industrial power electronics systems where reliable gate control power is required, including:

Medium-voltage drive systems for motors and compressors
Power conversion and excitation systems
Heavy industrial processes such as steel, mining, and pulp & paper
Energy generation and distribution equipment
Large pump and turbine drive installations

Its stable output and robust protection make it suitable for high-noise electrical environments and continuous duty cycles.

Advantages

Stable and Isolated Output: Ensures consistent 24 V DC power for gate units, improving switching reliability.
High Current Capability: Supports demanding gate drive loads with up to 100 A output.
Built-in Protection: Comprehensive safeguards against overvoltage, undervoltage, short circuits, and overheating.
Industrial Durability: Designed for harsh environments with wide temperature and humidity tolerance.
Compact Integration: Small footprint fits neatly into drive cabinets and control panels.

Technical FAQs (10)

What is the primary purpose of the KUC711AE101?
It provides regulated and isolated 24 V DC power for gate driver units in industrial drives.
What input voltage range does it accept?
The unit accepts a wide AC input range of 85–264 VAC.
How much current can the power supply deliver?
It can support output currents up to 100 A.
Is the output isolated?
Yes, the module is designed to provide isolated power for gate circuitry.
What protections are included?
It includes overvoltage, undervoltage, short-circuit, and thermal overload protection.
What operating temperatures are supported?
The module operates reliably from -20 °C to +60 °C.
Can it be used in harsh industrial environments?
Yes, it is built for industrial conditions with high humidity tolerance and robust construction.
How is it typically installed?
It is mounted inside drive cabinets or control panels using standard mounting methods.
Is it suitable for medium-voltage drive systems?
Yes, it is commonly used in medium-voltage drives and power conversion systems.
Is it a common spare part for maintenance?
Yes, it is frequently stocked as a replacement component for drive service and repair.
