Introduction

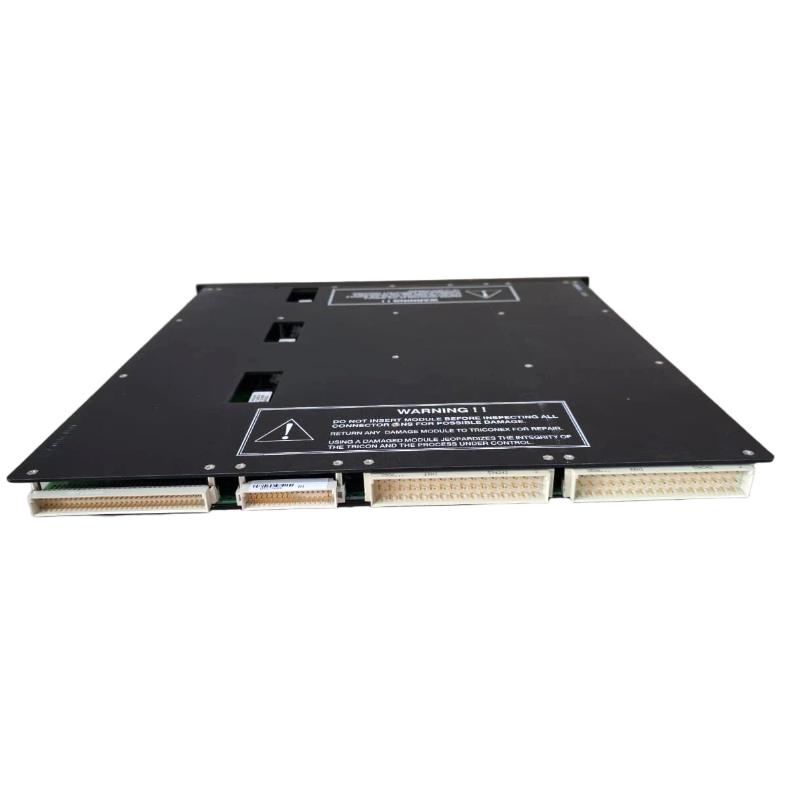

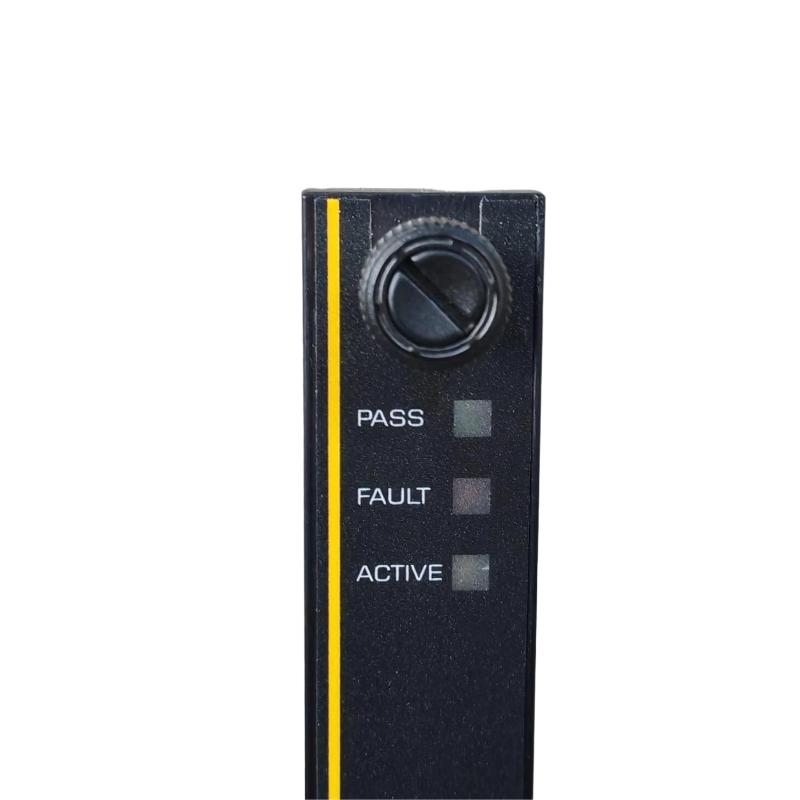

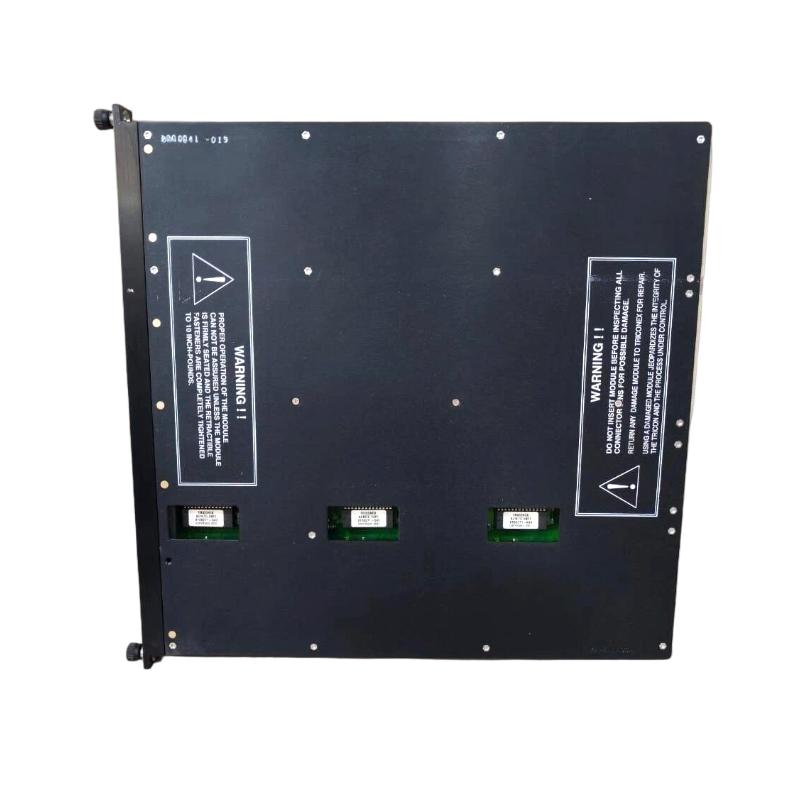

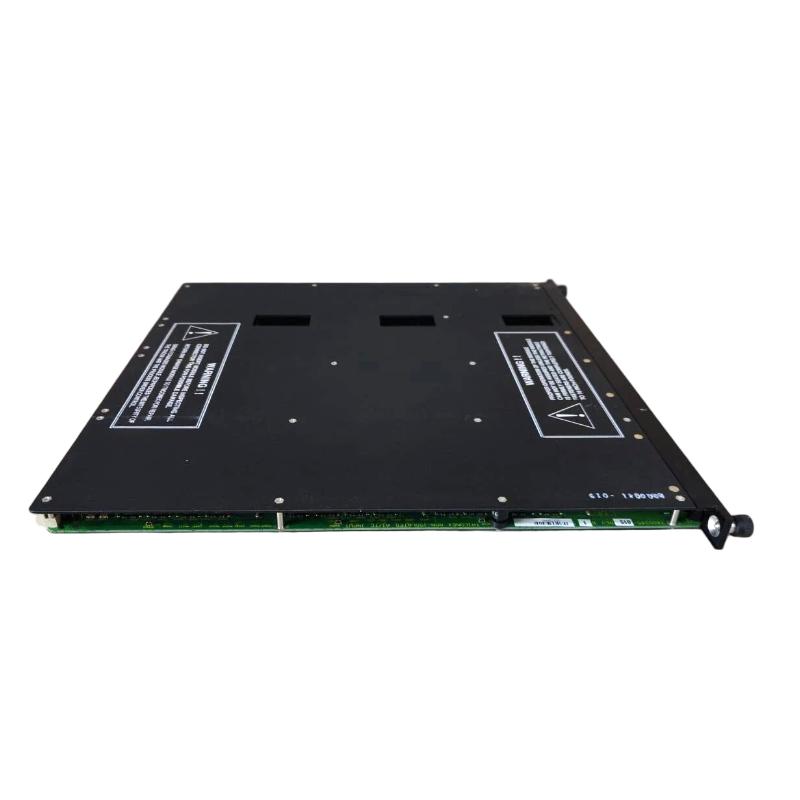

The Triconex 3700A Analog Input Module is a vital component of the Tricon™ Safety System, providing reliable and accurate analog input signal processing for safety-critical applications. It is designed to measure and monitor a wide range of analog signals, including temperature, pressure, flow, and level, ensuring precise data acquisition and enabling real-time decision-making in critical control processes. The 3700A module is equipped with fault-tolerant features and redundant configurations, ensuring that safety functions are maintained even in the event of a module failure, which is crucial for mission-critical systems in industries such as oil and gas, chemical processing, and nuclear power. With its rugged design and high accuracy, the 3700A is an essential tool for maintaining system integrity and safety in harsh industrial environments.
Technical Specifications
|
Specification |
Details |
|
Model Number |
3700A |
|
Dimensions (L × W × H) |
400 × 200 × 150 mm |
|
Weight |
1.869 kg |
|
Type |
Analog Input Module |
|
Input Channels |
16 Analog Input Channels |
|
Power Supply |
24 V DC |
|
Operating Temperature |
-10°C to 60°C |
|
Compliance |
UL Listed, CE Certified |
Applications
The Triconex 3700A Analog Input Module is used across a variety of industrial sectors where precise and reliable analog input measurement is required:
-
Oil & Gas: In upstream and downstream oil and gas operations, the 3700A module is used to monitor pressure, temperature, and flow sensors, ensuring the safe and efficient extraction, transportation, and refining of oil and gas.
-
Chemical Processing: In chemical plants, the 3700A is deployed to monitor a wide range of process variables such as temperature, pH, and flow, helping operators to maintain safe operating conditions and prevent accidents.
-
Nuclear Power: The 3700A is critical in nuclear power plants, where it monitors temperature and pressure levels in the reactor and cooling systems, ensuring that the plant operates within safety limits.
-
Power Generation: In power plants, the 3700A module measures critical variables such as steam pressure and generator temperature, enabling operators to maintain the efficiency and safety of power production systems.
-
Pharmaceutical Manufacturing: The 3700A module ensures the precise control and monitoring of process conditions in pharmaceutical manufacturing, ensuring compliance with safety standards and maintaining quality throughout production.
Advantages
The Triconex 3700A Analog Input Module offers a range of advantages that make it a reliable and efficient choice for safety-critical applications:
-
Accurate Analog Signal Processing: The 3700A provides high-accuracy analog signal processing, ensuring that measurements of critical process variables are precise and reliable.
-
Fault-Tolerant Design: The module is designed with redundant configurations and fault-tolerant features, ensuring continuous operation even in the event of a module failure, which is essential for maintaining system safety.
-
Real-Time Monitoring: The 3700A enables real-time monitoring of analog signals, allowing operators to make immediate adjustments to critical systems and respond quickly to safety concerns.
-
Wide Operating Temperature Range: With an operating temperature range of -10°C to 60°C, the 3700A is suitable for use in a variety of harsh industrial environments, from extreme cold to high-temperature conditions.
-
Scalable Integration: The 3700A is easily integrated into existing safety and control systems and can handle 16 analog input channels, making it highly scalable for larger systems.
-
Industry Certifications: The 3700A is UL Listed and CE Certified, ensuring that it meets rigorous global standards for safety and performance in critical applications.
