Introduction

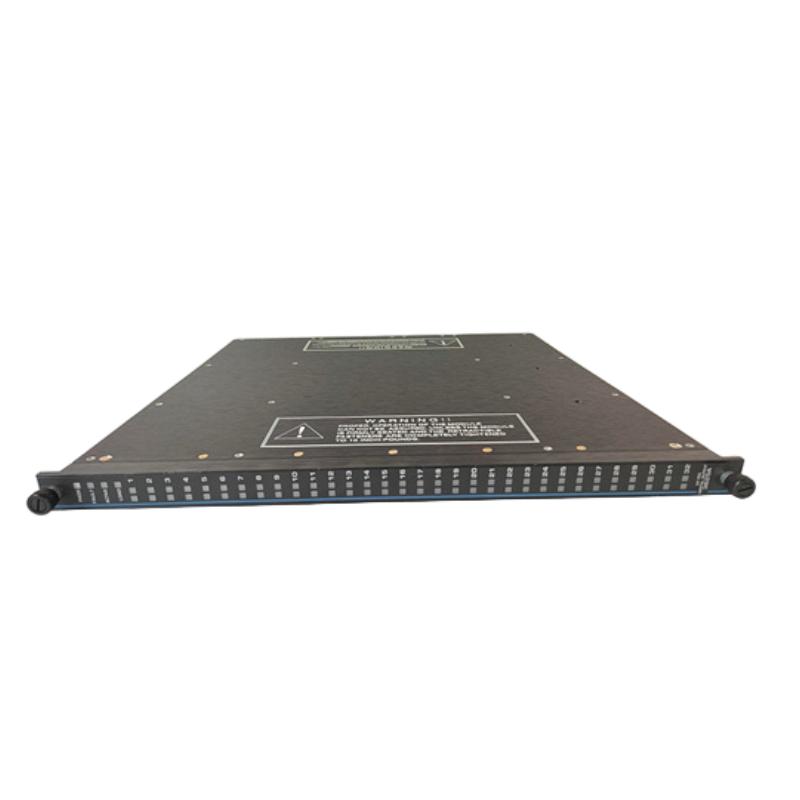

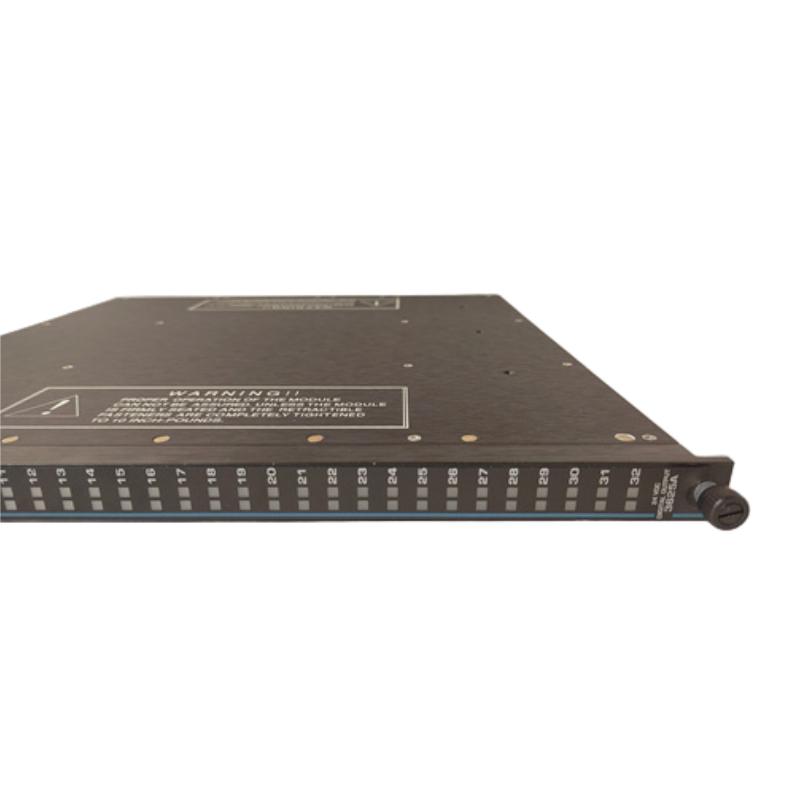

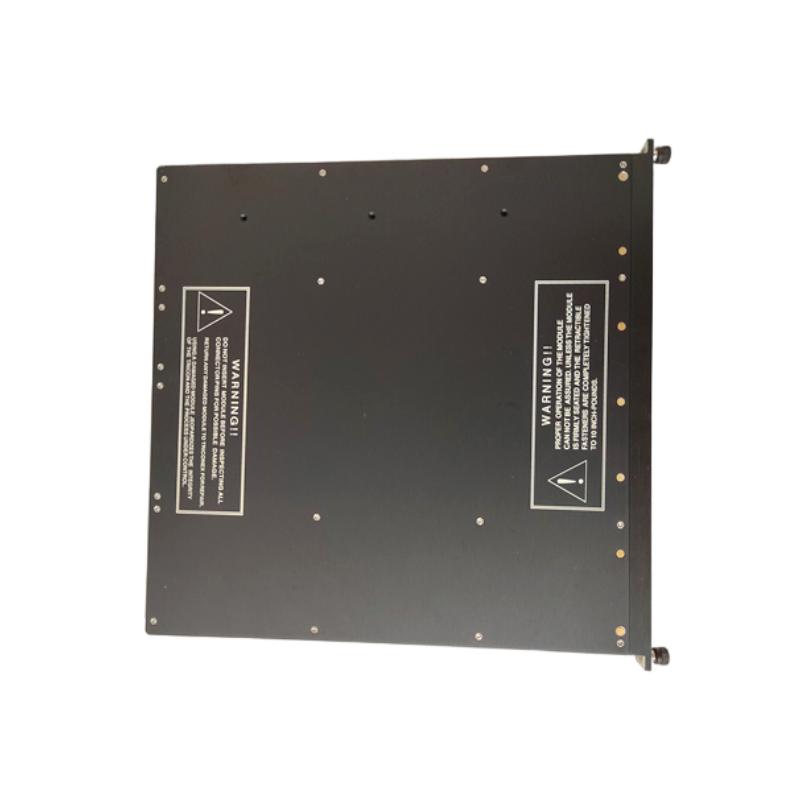

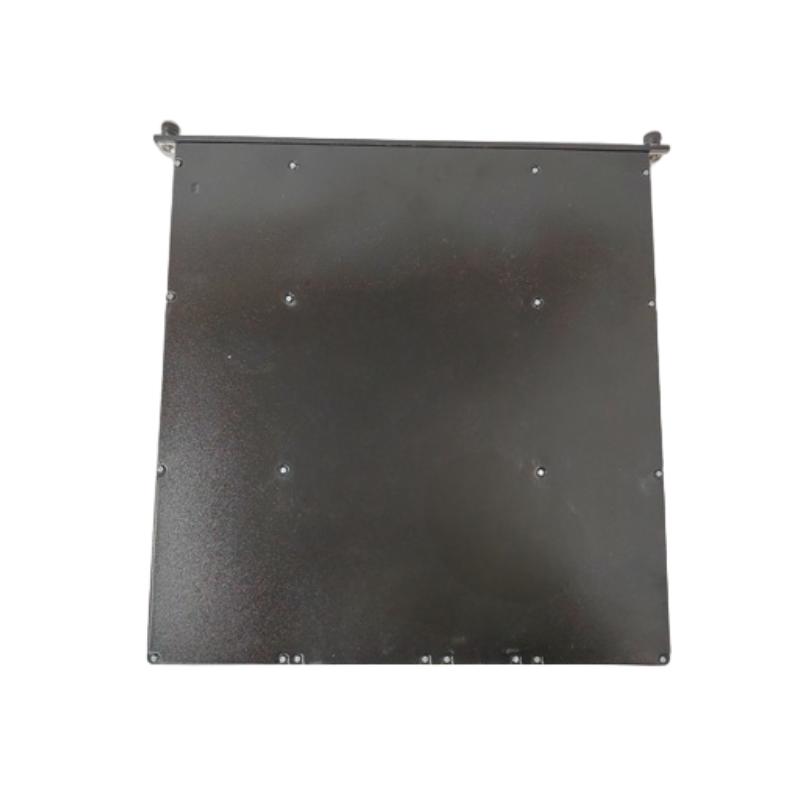

The Triconex 3625A Digital Output Module is an integral part of the Tricon™ Safety System, designed to efficiently manage digital output signals in safety-critical applications. This module plays a key role in controlling a wide range of output devices, such as actuators, valves, and relays, ensuring that safety and process control systems are responsive to real-time conditions. Built with redundant configurations and fault-tolerant features, the 3625A ensures continuous and reliable operation, even in the event of module failure, making it suitable for use in demanding industrial environments. The module is widely deployed in industries where safety and system integrity are crucial, including oil & gas, chemical processing, and power generation.
Technical Specifications
|
Specification |
Details |
|
Model Number |
3625A |
|
Dimensions (L × W × H) |
22 × 408 × 400 mm |
|
Weight |
2.06 kg |
|
Type |
Digital Output Module |
|
Output Channels |
16 Digital Output Channels |
|
Power Supply |
24 V DC |
|
Operating Temperature |
-10°C to 60°C |
|
Compliance |
UL Listed, CE Certified |
Applications
The Triconex 3625A Digital Output Module is designed for a broad range of industrial applications, ensuring reliable control of output devices in critical safety systems:
-
Oil & Gas: In oil and gas operations, the 3625A is used to manage the operation of valves and actuators for controlling fluid flow, while ensuring that emergency shutdown systems are activated when necessary.
-
Chemical Processing: The 3625A is utilized in chemical plants to manage digital output devices such as pumps, relays, and motors, maintaining safe and efficient operation of chemical processes.
-
Nuclear Power: In nuclear power plants, the module controls safety-critical output devices such as control rods and shutdown mechanisms, ensuring the plant operates within safety limits.
-
Power Generation: In power plants, the 3625A controls devices such as circuit breakers, turbines, and emergency systems, helping to ensure the integrity and stability of the power generation process.
-
Pharmaceutical Manufacturing: The 3625A module is used to control output devices in pharmaceutical manufacturing, ensuring compliance with stringent safety and regulatory standards while maintaining smooth operational flow.
Advantages
The Triconex 3625A Digital Output Module offers several key advantages, making it an ideal solution for safety-critical industrial applications:
-
High-Speed Digital Control: The 3625A provides rapid and precise control of digital output devices, ensuring quick responses to changing system conditions and maintaining operational safety.
-
Fault-Tolerant Design: The 3625A is equipped with redundant configurations and fault-tolerant features, guaranteeing continued operation even in the event of module failure, enhancing system reliability and safety.
-
Wide Operating Temperature Range: The module operates effectively in environments with temperatures ranging from -10°C to 60°C, making it adaptable to various industrial environments with fluctuating conditions.
-
Seamless Integration: The 3625A module is designed for easy integration into existing control systems, allowing for the smooth addition of new channels and devices as systems scale.
-
Scalability: The 3625A supports 16 digital output channels, making it suitable for large-scale safety systems that require numerous output controls.
-
Industry Certifications: The 3625A is UL Listed and CE Certified, ensuring it meets rigorous international standards for safety and quality in critical applications.
