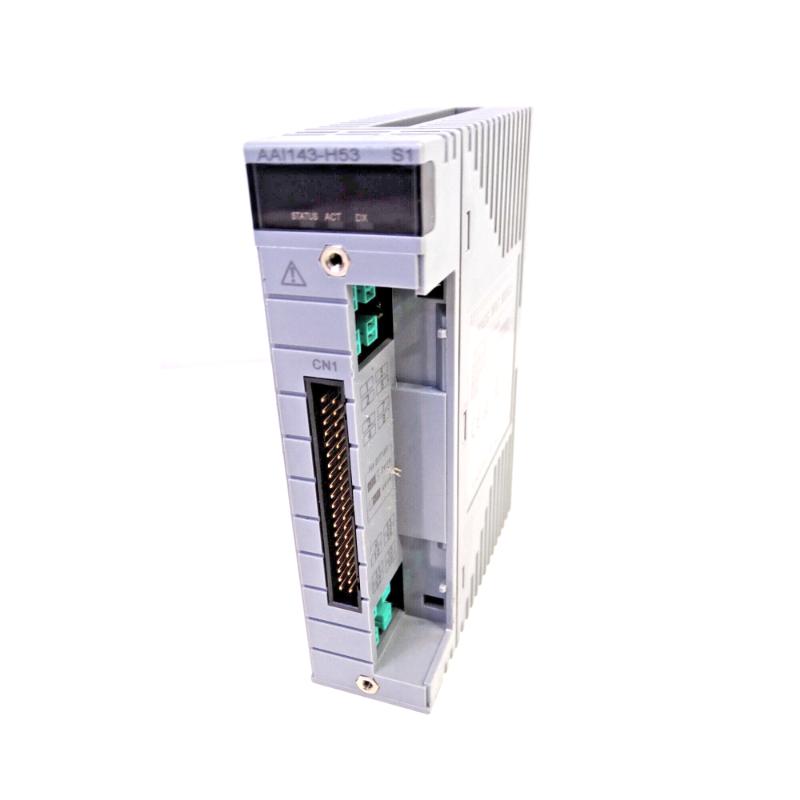

Yokogawa AAI143-H53 S1 Analog Input Module

Name: Yokogawa AAI143-H53 S1 Analog Input Module
Brand: Yokogawa Electric
SKU: 421
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:AAI143-H53 S1
Product Origin:
Product Dimensions:130 mm × 25 mm × 180 mm
Product Weight:0.35KG
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Yokogawa AAI143-H53 S1 Analog Input Module

Introduction — Smart HART Analog Input for Mission-Critical Systems

The Yokogawa AAI143-H53 S1 Analog Input Module is a high-performance, HART-enabled solution for distributed control systems (DCS). Designed for precise measurement of process variables, this S1 variant enhances diagnostics, configuration, and monitoring capabilities. With 8 isolated input channels, the module delivers reliable 4–20 mA, 0–20 mA, and ±10 V DC signals, making it ideal for applications where precision, smart communication, and system reliability are paramount.

Technical Specifications — Input Performance & Physical Profile

Specification	Description
Module Type	8-channel Isolated Analog Input Module (HART-enabled, S1 variant)
Input Signal	4–20 mA, 0–20 mA, ±10 V DC
Number of Channels	8 isolated inputs
Input Impedance	250 Ω (current), 10 MΩ (voltage)
Accuracy	±0.1% of span
Update Rate	10 ms per channel
Isolation Voltage	1500 V AC (input-to-system)
Power Supply	24 V DC nominal
Operating Temperature	–25°C to +70°C
Dimensions	130 mm × 25 mm × 180 mm
Weight	~0.32 kg
Communication Protocol	HART (two-way digital communication over analog signals)

Applications — Optimal Use Cases

Measuring process variables such as temperature, pressure, flow, and level in chemical, petrochemical, and power plants
HART-enabled remote diagnostics and parameter tuning for predictive maintenance
Integration with DCS systems for real-time process control and automation
Supporting redundant input channels in mission-critical operations
Upgrading legacy analog inputs to smart instrumentation with HART communication
Ensuring stable and reliable measurement in electrically noisy environments

Advantages — Key Benefits

HART-enabled inputs for two-way communication, remote diagnostics, and configuration
High precision (±0.1% of span) ensures accurate process data
8 isolated channels minimize cross-channel interference
Fast update rate (~10 ms per channel) supports real-time control loops
Reliable isolation protects against electrical noise and surges
Compact and durable design suitable for industrial environments
Enhanced S1 features enable advanced monitoring and diagnostics

Technical FAQs — 10 Common Questions

What signals does the AAI143-H53 S1 support?
- 4–20 mA, 0–20 mA, and ±10 V DC inputs.
How many input channels are included?
- 8 isolated channels.
What is the input impedance?
- 250 Ω for current, 10 MΩ for voltage.
What is the accuracy of the module?
- ±0.1% of span.
Does it support HART communication?
- Yes, full two-way HART support per channel.
Can it be used in redundant input configurations?
- Yes, for critical system reliability.
What is the update rate per channel?
- Approximately 10 ms.
What power supply does it require?
- 24 V DC nominal.
Is it suitable for harsh industrial environments?
- Yes, with 1500 V AC isolation and –25°C to +70°C operating range.
What are the advantages of the S1 variant?
- Enhanced configuration, diagnostics, and monitoring capabilities for smarter process control.
