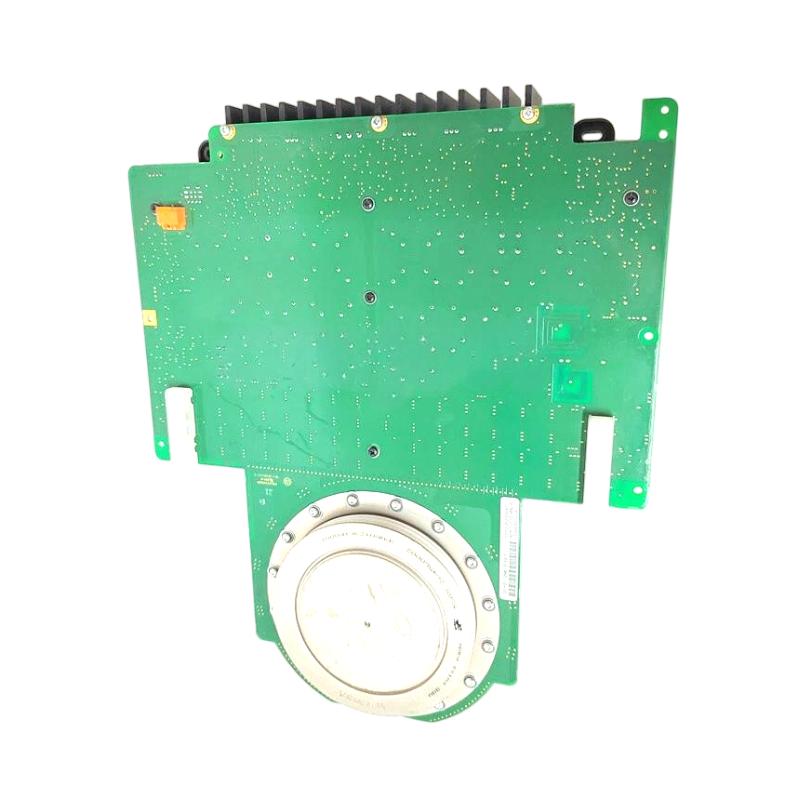

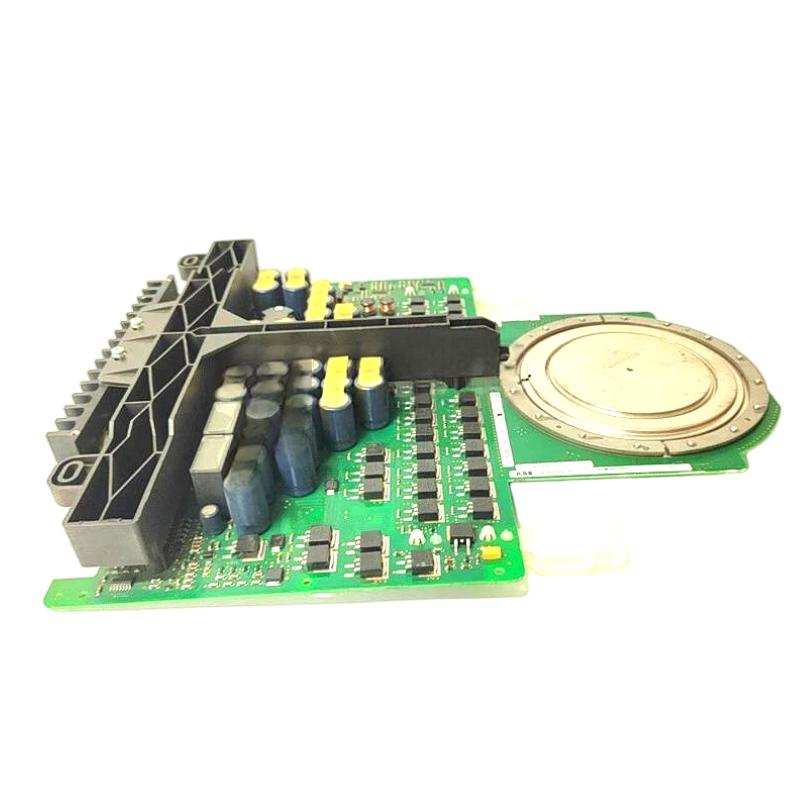

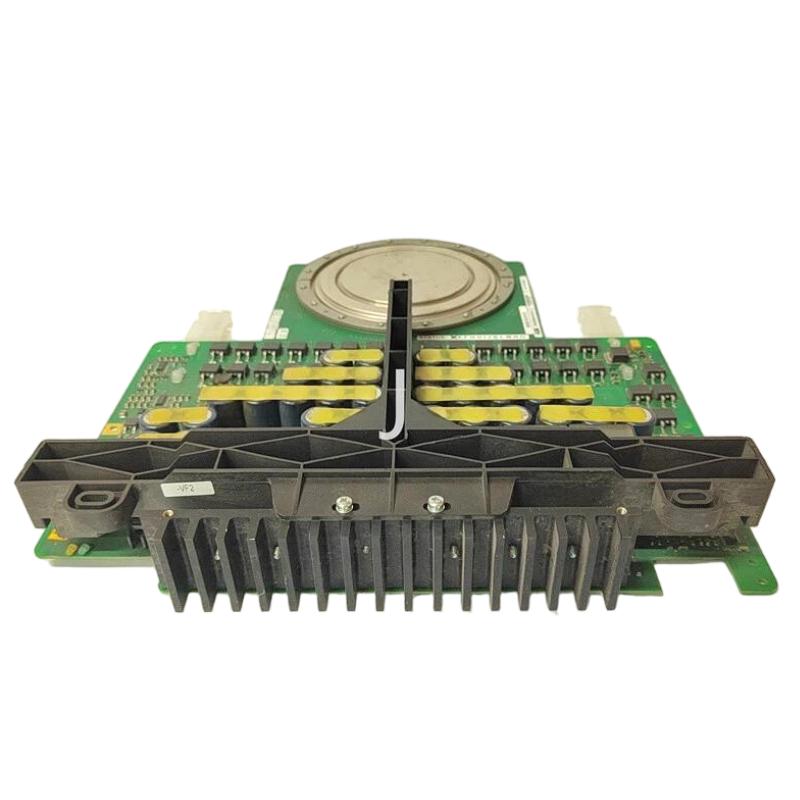

ABB 5SHX2645L0002 3BHB012961R0002 High-Power Thyristor Switch Module

Name: ABB 5SHX2645L0002 3BHB012961R0002 High-Power Thyristor Switch Module
Brand: ABB PLC
SKU: 4206
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:5SHX2645L0002
Product Origin:Sweden (SE)
Product Dimensions:200 × 150 × 50 mm
Product Weight:1.32 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The ABB 5SHX2645L0002 3BHB012961R0002 High-Power Thyristor Switch Module is designed for high-efficiency, reliable operation in demanding industrial power systems. This module offers superior performance for applications requiring precise power control, such as inverters, motor drives, and power conversion systems. With its advanced thyristor technology, the module delivers stable and fast switching, essential for maintaining system efficiency and reliability in high-power environments.

Technical Specifications

Specification	Details
Model Number	5SHX2645L0002 3BHB012961R0002
Dimensions	200 × 150 × 50 mm
Weight	1.32 kg
Technology	High-Power Thyristor
Voltage Rating	4000V
Current Rating	2600A
Switching Frequency	Up to 50 kHz
Power Loss	Low power dissipation
Mounting	Standard module mounting

Applications

Motor Control: Used in motor drives for industrial applications, allowing for efficient motor speed regulation and performance.
Power Conversion Systems: Ideal for use in inverters, rectifiers, and other power conversion systems to ensure stable and efficient operation.
HVDC Transmission: Suitable for high-voltage direct current (HVDC) systems, enabling long-distance power transmission with minimal energy loss.
Renewable Energy Systems: Effective in solar and wind power systems for efficient power conversion and management.

Advantages

High-Voltage and High-Current Capability: Rated for 4000V and 2600A, the module can handle high-power demands, ensuring robust performance in heavy-duty applications.
Fast Switching Performance: With a switching frequency of up to 50 kHz, the module ensures high-speed switching, making it ideal for applications requiring quick response times.
Low Power Loss: The module is designed for low power dissipation, enhancing energy efficiency and reducing thermal management requirements in power systems.

Technical FAQs

What voltage rating does the ABB 5SHX2645L0002 module support?
The module supports a voltage rating of up to 4000V, enabling it to handle high-power applications with ease.
How much current can the module handle?
The ABB 5SHX2645L0002 module can handle currents up to 2600A, ensuring reliable operation in high-power systems.
What is the maximum switching frequency of the module?
The module supports a switching frequency of up to 50 kHz, providing fast and responsive switching for power systems.
What type of technology is used in this module?
The module utilizes high-power thyristor technology for efficient and reliable switching in industrial power applications.
What types of systems is the module most suitable for?
It is ideal for motor control, power conversion systems, HVDC transmission, and renewable energy systems, ensuring efficient power management.
How does the module contribute to system efficiency?
The low power dissipation and fast switching speed of the module enhance energy efficiency and reduce thermal load on the system.
Can this module be used in renewable energy systems?
Yes, the ABB 5SHX2645L0002 is highly effective in renewable energy applications, such as solar and wind power systems, for power conversion and grid integration.
What benefits does this module offer for motor control systems?
The module provides precise control and regulation of motor speed, ensuring reliable operation and energy efficiency in motor-driven systems.
How does the module support HVDC systems?
The module’s high voltage and current capabilities make it ideal for use in HVDC systems, allowing for long-distance, efficient power transmission.
What makes this thyristor switch module reliable in high-power applications?
The combination of high-voltage and high-current ratings, fast switching, and low power loss ensures the module’s reliable performance in demanding power systems.
