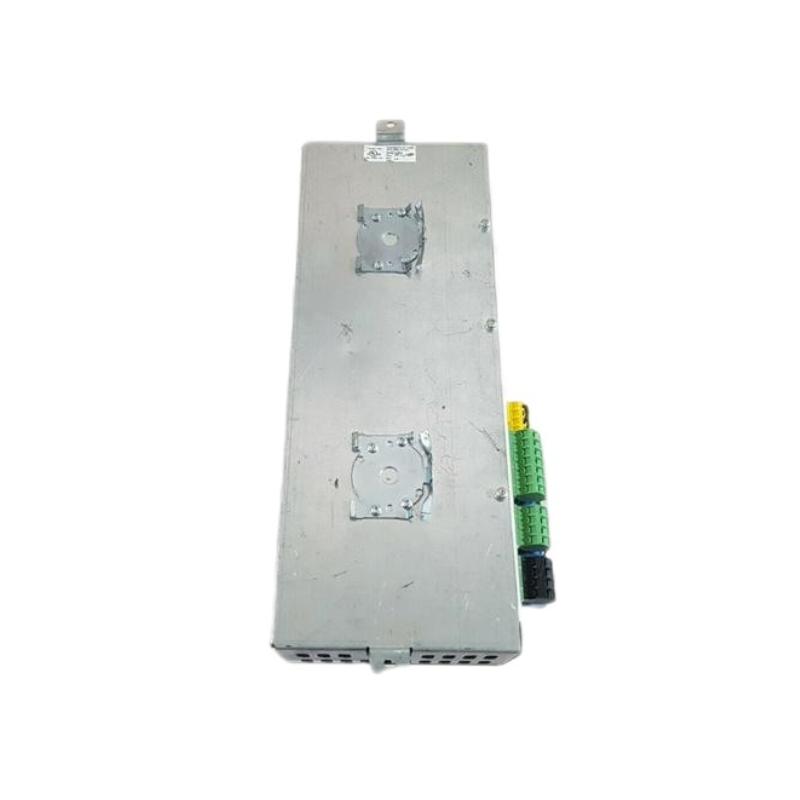

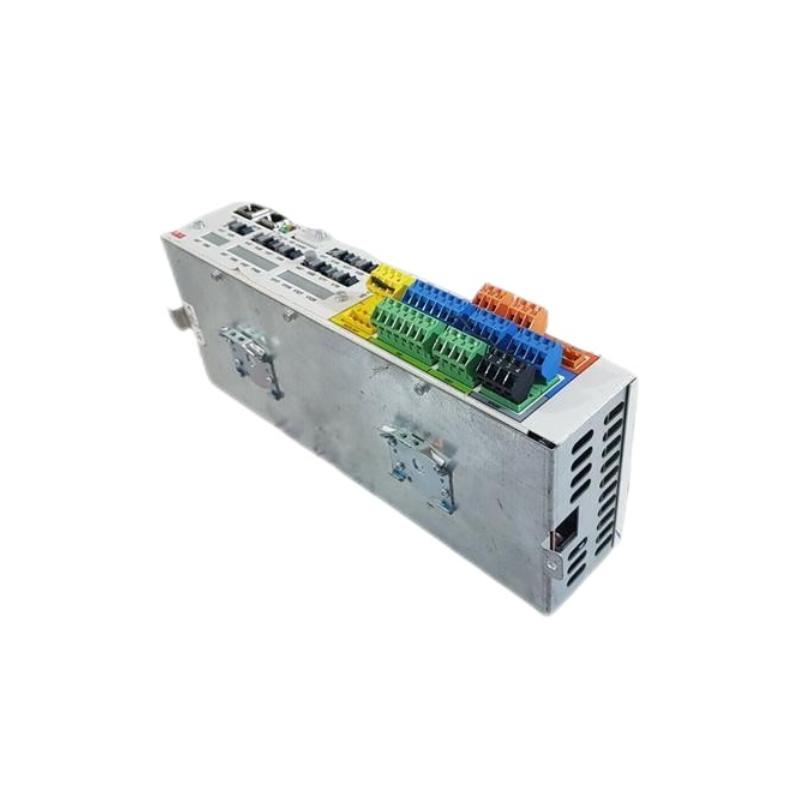

ABB BCU-22 3AUA0000110431 Control Unit Inverter Accessories

Brand:ABB PLC
Item No.:BCU-22 3AUA0000110431
Product Origin:Sweden
Product Dimensions:178 × 132 × 100 mm
Product Weight:1kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

BCU-22 3AUA0000110431 2BCU-22 3AUA0000110431 4BCU-22 3AUA0000110431 1BCU-22 3AUA0000110431 3

Product Introduction

The ABB BCU-22 3AUA0000110431 Control Unit is a high-performance drive controller designed for ABB modular inverter systems. As the central processing and communication hub, it coordinates power conversion modules, handles fieldbus and I/O integration, and provides diagnostic support for reliable motor control. This control unit is engineered to deliver consistent operation in demanding industrial environments, helping you keep processes running smoothly and reducing downtime.

Technical Specifications (Including Dimensions & Weight)

SpecificationDescription
Product TypeControl Unit / Drive Controller
BrandABB
Model NumberBCU-22 3AUA0000110431
CategoryInverter Accessory / Control Module
Core FunctionCentral drive control, coordination, diagnostics
Compatible SystemsABB modular drive platforms using BCU-series units
Power SupplyExternal 24 V DC
CommunicationEthernet for tools, optional fieldbus adapters
ExpansionSlots for I/O, encoder, and fieldbus modules
MemoryRemovable memory for parameter retention
MountingControl cabinet or inverter rack installation
EnvironmentIndustrial automation conditions
Dimensions (Approx.)178 × 132 × 100 mm
Weight (Approx.)1.0–1.8 kg
ProtectionIndustrial-grade housing


Applications

The BCU-22 control unit is ideal for applications that demand high reliability, strong integration, and precise motor control. Common scenarios include:

  • Modular inverter systems for pumps, fans, and compressors

  • Manufacturing automation and process control

  • Material handling and conveyor systems

  • HVAC systems requiring variable speed drives

  • Projects that need rapid diagnostics and reduced downtime

This unit delivers stable performance for complex systems where uptime and control accuracy are essential.


Advantages

  • Centralized Drive Intelligence: Acts as the brain of the inverter system for coordinated control.

  • Flexible Expansion: Supports optional I/O and communication modules to match system needs.

  • Parameter Retention: Removable memory allows quick replacement without reprogramming.

  • Strong Diagnostic Support: Helps identify faults and streamline maintenance.

  • Industrial Reliability: Built for continuous operation in demanding environments.

  • Easy Integration: Designed to work smoothly within ABB modular drive ecosystems.


Technical FAQs

  1. What is the main function of the BCU-22 control unit?
    It serves as the central control and logic processor for ABB modular inverter systems.

  2. Which systems is it compatible with?
    It is used with ABB modular drive platforms that support BCU-series control units.

  3. What power supply does it require?
    The unit requires an external 24 V DC supply.

  4. Does it support communication modules?
    Yes — it supports Ethernet tools and optional fieldbus adapters.

  5. Can I add more I/O channels?
    Yes — it supports expansion slots for I/O and encoder modules.

  6. Is there a way to keep parameters when replacing the unit?
    Yes — the removable memory allows parameter transfer to a new unit.

  7. Is it suitable for harsh industrial environments?
    Yes — it is designed for reliable operation inside control cabinets.

  8. Does it support diagnostics?
    Yes — integrated data acquisition helps with fault tracing and maintenance.

  9. How does it improve uptime?
    By enabling fast replacement and parameter transfer, reducing downtime.

  10. Can it handle multiple drive modules?
    Yes — the BCU-22 supports higher capacity configurations compared to smaller variants.
