Introduction

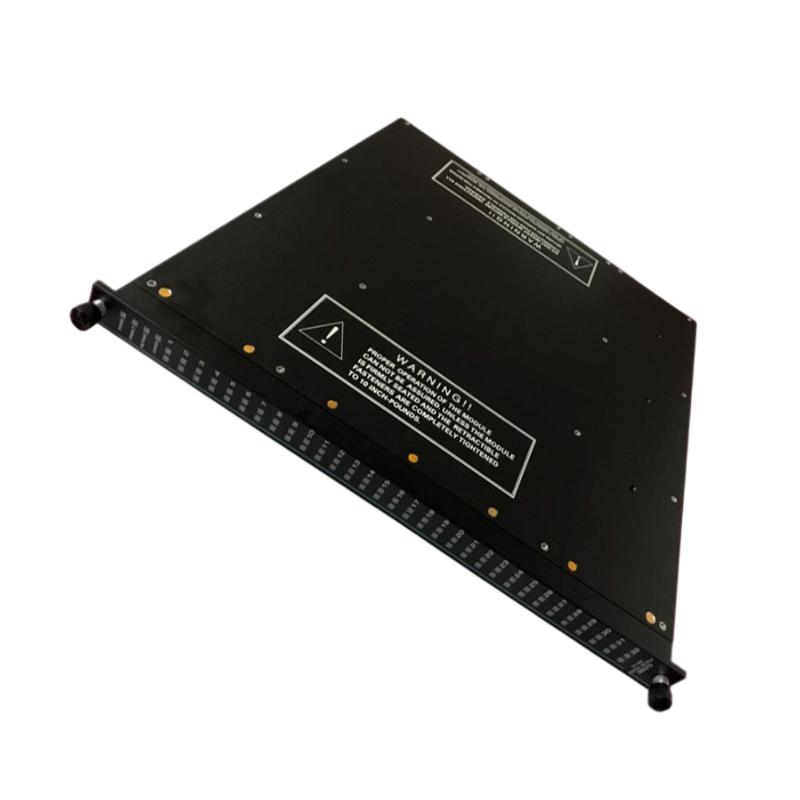

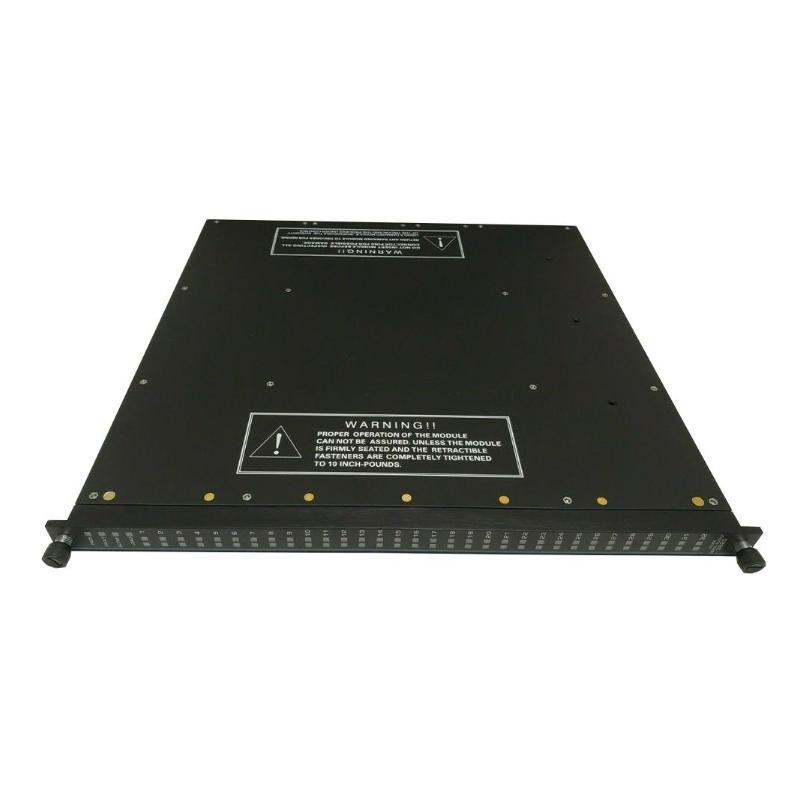

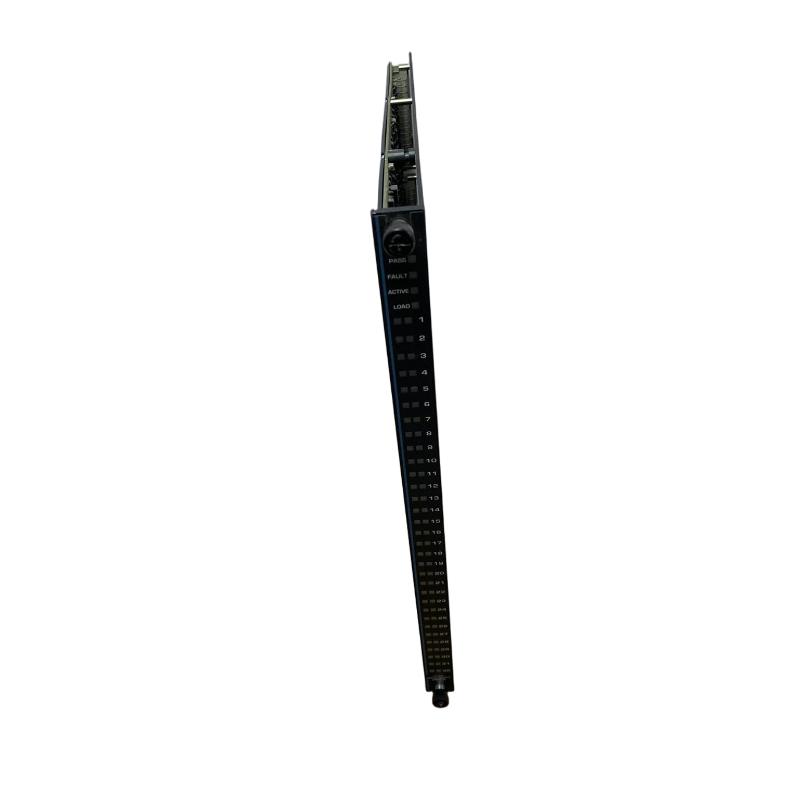

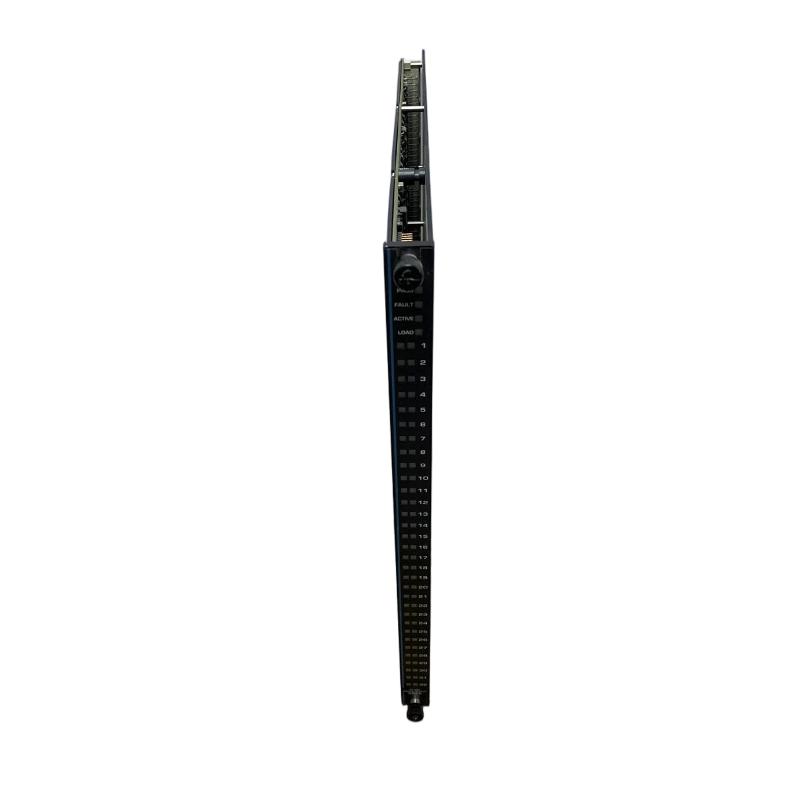

The Triconex 3625 Digital Output Module is a critical component in the Tricon™ Safety System, designed for the safe and reliable management of digital output signals in industrial automation and safety-critical applications. It is used to control a variety of output devices, including valves, actuators, and relays, ensuring that safety functions are carried out effectively in response to real-time system conditions. The 3625 module is known for its fault-tolerant design, ensuring continuous and reliable operation in demanding environments. With its high-speed digital processing, it enables precise and fast control of safety systems, making it an essential module in industries where safety, efficiency, and system integrity are paramount.
Technical Specifications
|
Specification |
Details |
|
Model Number |
3625 |
|
Dimensions (L × W × H) |
115 × 230 × 50 mm |
|
Weight |
0.8 kg |
|
Type |
Digital Output Module |
|
Output Channels |
16 Digital Output Channels |
|
Power Supply |
24 V DC |
|
Operating Temperature |
-10°C to 60°C |
|
Compliance |
UL Listed, CE Certified |
Applications
The Triconex 3625 Digital Output Module plays a vital role in various industrial applications where the reliable control of output devices is required for safety and operational efficiency:
-
Oil & Gas: In oil and gas production, the 3625 module is used to control valves, actuators, and shutdown systems to ensure safe operations in critical areas.
-
Chemical Processing: Used to control output devices such as relays, valves, and motors in chemical plants, ensuring proper operation and quick responses to hazardous situations.
-
Nuclear Power: In nuclear plants, the 3625 controls safety-critical devices like control rods and emergency shutdown systems, ensuring safety measures are triggered in time to prevent disasters.
-
Power Generation: The 3625 module is used in power plants to manage digital outputs for controlling circuit breakers, turbines, and other essential equipment, maintaining the safety and stability of the power grid.
-
Pharmaceutical Manufacturing: In pharmaceutical manufacturing, the 3625 ensures the safe and precise control of production processes, monitoring and controlling safety functions to prevent accidents and maintain regulatory compliance.
Advantages
The Triconex 3625 Digital Output Module offers several advantages, making it a highly reliable choice for industrial safety applications:
-
High-Speed Digital Control: The 3625 provides fast and accurate control of digital output devices, ensuring quick response to system conditions and safety events.
-
Fault-Tolerant Design: With its redundant configurations and fault-tolerant features, the 3625 ensures that safety functions are continuously executed, even if a module fails.
-
Wide Operating Temperature Range: The 3625 operates efficiently in environments with temperatures ranging from -10°C to 60°C, making it suitable for use in a variety of industrial conditions.
-
Flexible Integration: The 3625 is designed for easy integration into existing safety and control systems, providing the flexibility to expand as the system grows.
-
Scalability: The 3625 is scalable and can handle additional output channels, making it suitable for both small and large safety systems.
-
Industry Certifications: The 3625 is UL Listed and CE Certified, meeting global standards for safety and performance in critical applications.
