ABB CP604 A0 1SAP504100R0001 Touch Screen

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

ABB CP604 A0 1SAP504100R0001 Touch Screen

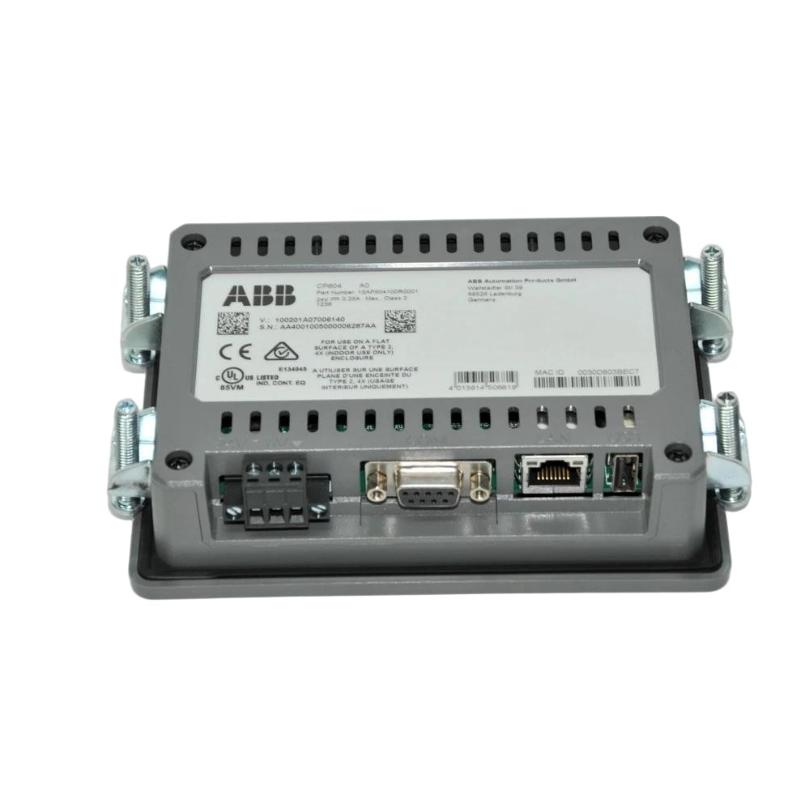

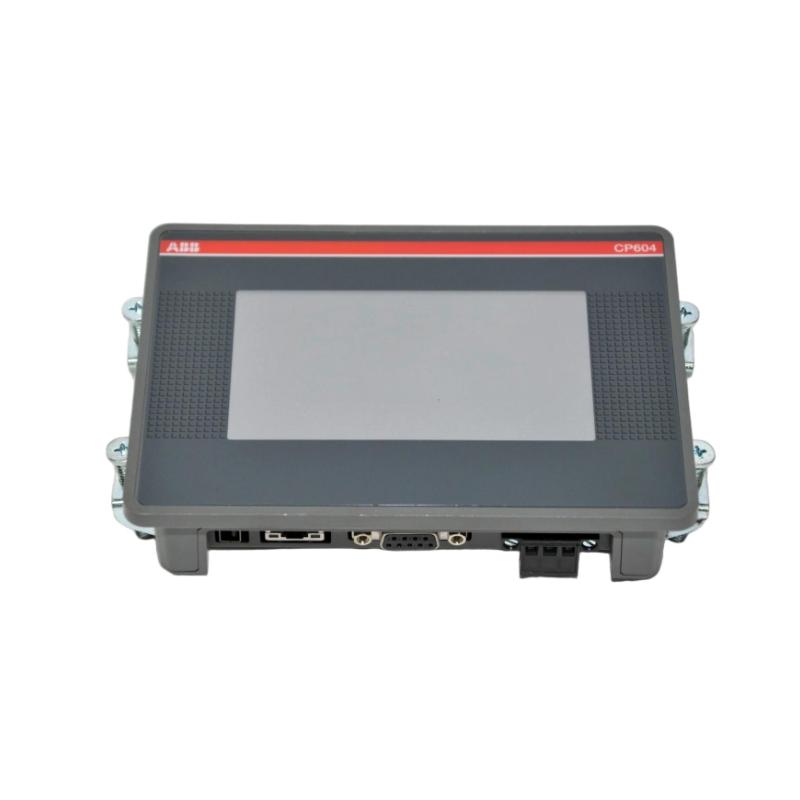

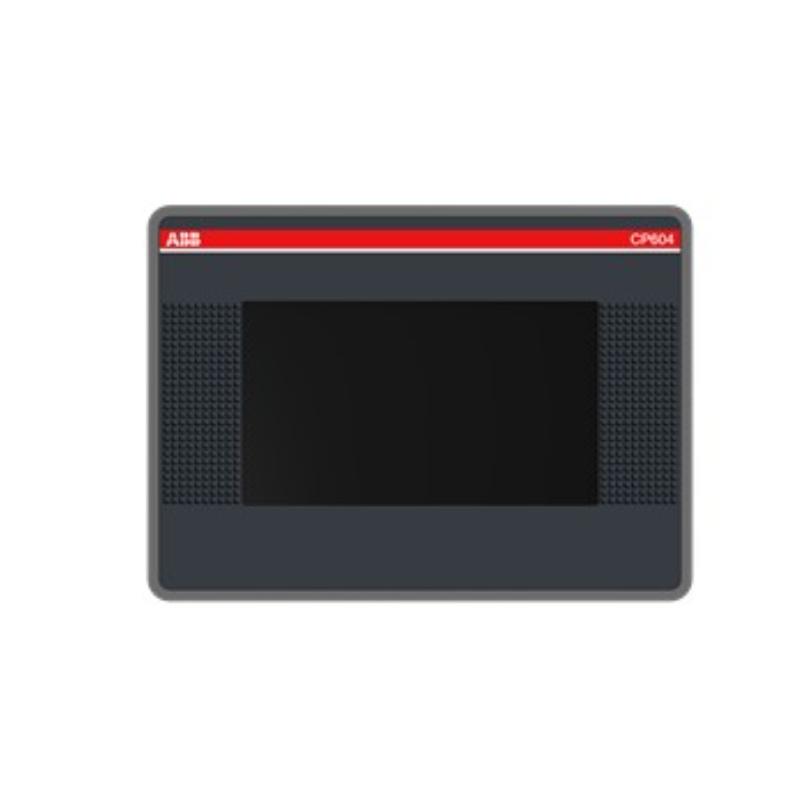

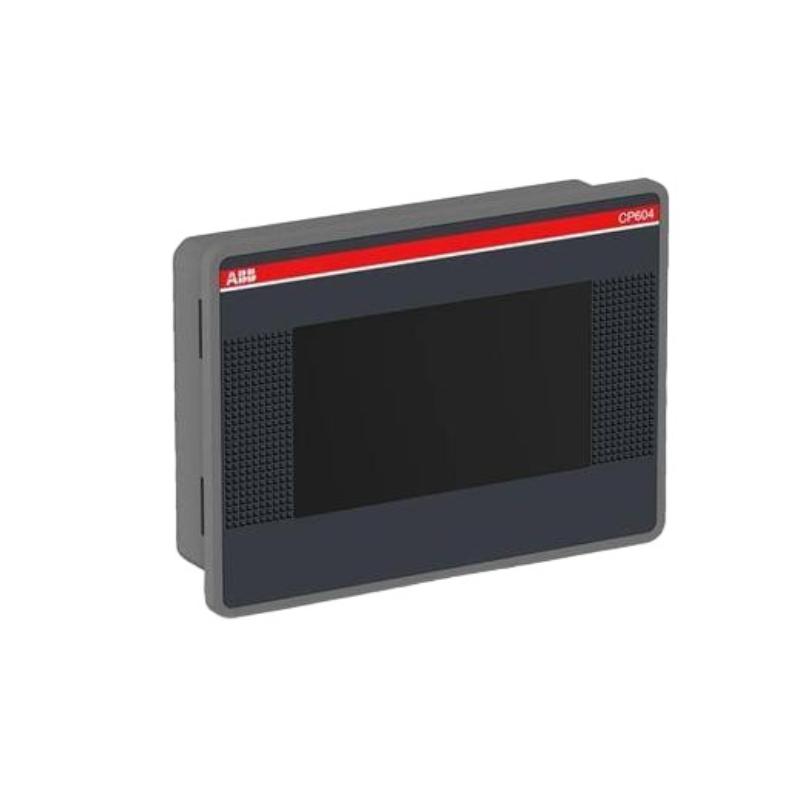

Name: ABB CP604 A0 1SAP504100R0001 Touch Screen
Brand: ABB PLC
SKU: 4099
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:CP604 A0 1SAP504100R0001
Product Origin:Sweden
Product Dimensions:240 × 182 × 65 mm
Product Weight:1.15kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Product Introduction

The ABB CP604 A0 1SAP504100R0001 Touch Screen is an industrial human-machine interface (HMI) designed to enhance control and visualization for automated systems. Featuring a large, high-resolution touchscreen display, this operator panel provides clear data visualization, intuitive interaction, and flexible control capabilities. Engineered for reliability in industrial environments, it supports real-time monitoring, alarm visualization, and operator input for a wide range of applications, from machine control to process management.

Technical Specifications (Including Size & Weight)

Specification	Description
Product Type	Touch Screen / Operator Panel
Brand	ABB
Model Number	CP604 A0 1SAP504100R0001
Series	CP600 Operator Panels
Display Size	6.5 inches
Display Type	Color TFT Touchscreen
Resolution	640 × 480 pixels
Communication Interfaces	Ethernet, Serial communication (protocol dependent)
Networking	Ethernet for fast data exchange
Function Keys	Programmable soft keys
Power Supply	24 V DC
Mounting Style	Front panel mount
Operating Temp. Range	0 °C to +50 °C
Storage Temp. Range	–20 °C to +70 °C
Dimensions (W × H × D)	Approx. 240 × 182 × 65 mm
Weight	Approx. 1.15 kg

Typical Applications

The CP604 A0 Touch Screen is well suited for industrial automation environments that require an intuitive graphical interface for machine and process interaction. Typical applications include:

Factory floor control and process visualization
Machine operation panels with real-time data feedback
Alarm and event monitoring for production systems
Integration with PLCs and distributed control systems
Operator input panels for packaging, conveyors, and automated lines

Key Advantages

Large color TFT touchscreen for enhanced visibility
Intuitive operation with programmable soft keys
Ethernet support for networked communication and remote access
Designed for industrial control panel mounting
Supports real-time process visualization and data interaction
Sturdy construction suited for demanding environments

Technical FAQs

What display size does the CP604 A0 use?
It features a 6.5-inch color TFT touchscreen with 640 × 480 resolution.
Is Ethernet supported?
Yes — the panel supports Ethernet communication for data exchange.
What power supply does the unit require?
It operates on a 24 V DC industrial power supply.
Can it connect to PLCs?
Yes — the panel integrates with a range of PLCs and control systems via Ethernet and serial interfaces.
What temperatures can it withstand?
It operates between 0 °C and +50 °C and is rated for storage from –20 °C to +70 °C.
Can it display alarms and trends?
Yes — the interface supports alarm lists, event histories, and trend visualization.
Is front panel mounting supported?
Yes — designed for installation in control cabinets and operator consoles.
Are the function keys programmable?
Yes — soft keys can be assigned to user functions and screens.
Can it be used for remote monitoring?
With Ethernet connectivity and system configuration, remote monitoring is feasible.
Is it suitable for continuous industrial use?
Yes — built for reliable 24/7 operation in automation environments.
