Product Snapshot

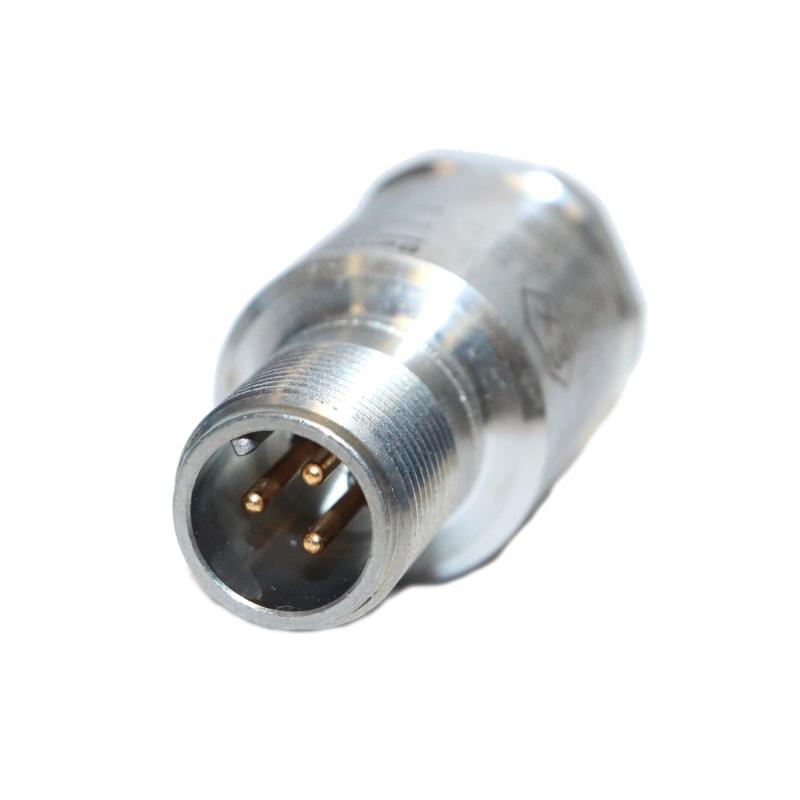

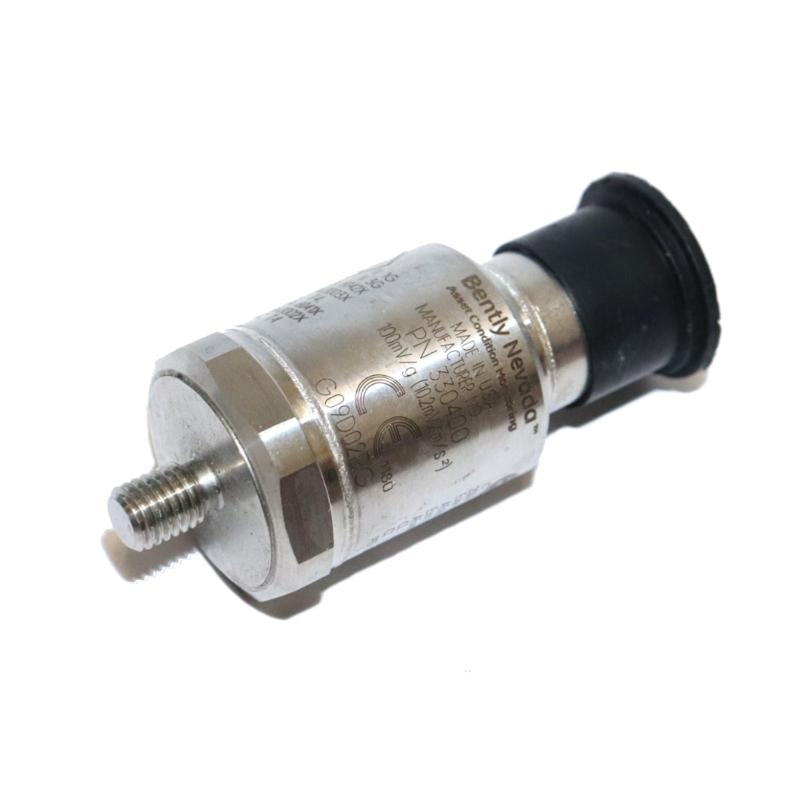

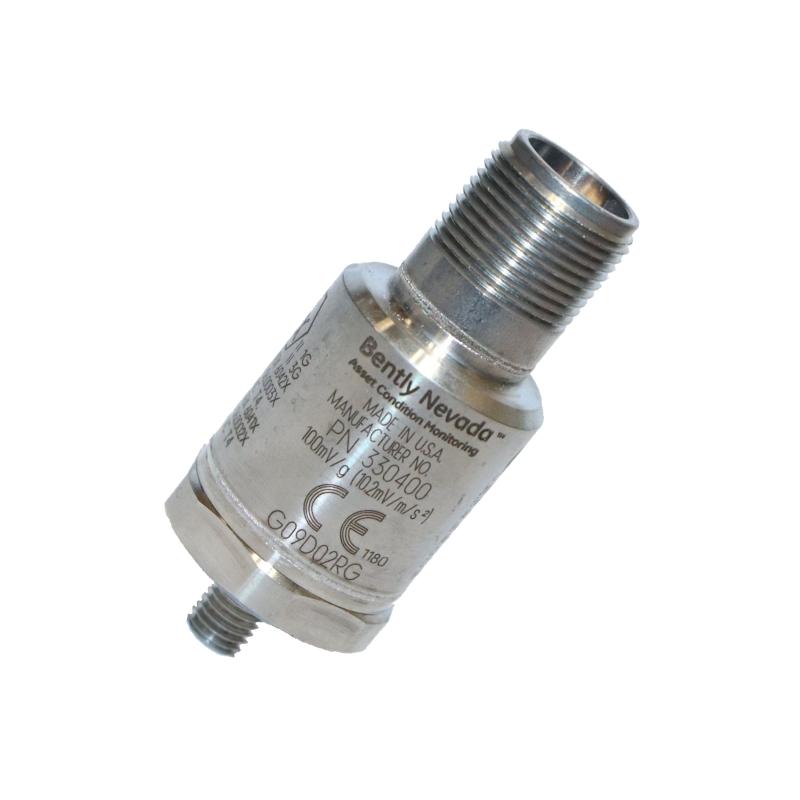

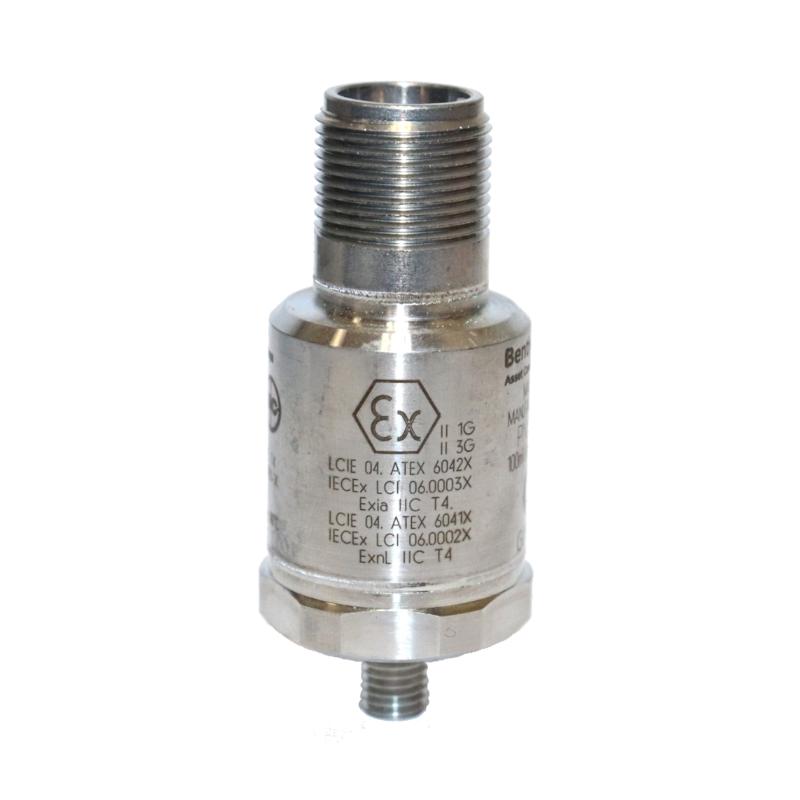

The Bently Nevada 330400-01-05 accelerometer is a high-performance industrial vibration sensor engineered for continuous monitoringof critical rotating machinery. Built to meet rigorous international standards, this piezoelectric accelerometer delivers accurate casing vibration data that enhances predictive maintenance, reduces unplanned downtime, and supports advanced condition monitoring strategies in demanding industrial environments. Its robust construction and API 670 compliance make it a trusted choice for turbine, compressor, and pump applications globally.
Detailed Technical Specifications (Size & Weight Included)
| Specification | Description |
|---|---|
| Product Type | Accelerometer / Acceleration Transducer |
| Brand | Bently Nevada |
| Model Number | 330400-01-05 |
| Sensor Technology | Piezoelectric acceleration sensing |
| Sensitivity | 100 mV/g ±5% |
| Acceleration Range | ±490 m/s² (±50 g) peak within 10 Hz–15 kHz |
| Frequency Response | 10 Hz–15 kHz (±3 dB) |
| Noise Floor | 0.039 m/s² RMS (0.004 g) broadband |
| Transverse Sensitivity | <5% of axial |
| Resonant Frequency | >30 kHz |
| Mounting Thread | ¼-28 UNF integral stud |
| Environmental Protection | Equivalent to IP68 (sensor only) |
| Operating Temp. | –55 °C to +121 °C |
| Dimensions | approx. 59 mm (height) × 23 mm (diameter) |
| Weight | approx. 99–450 g (varies by assembly/cable) |
