ABB DSTD 110A 57160001-TZ Digital Output Board Connection Unit

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

ABB DSTD 110A 57160001-TZ Digital Output Board Connection Unit

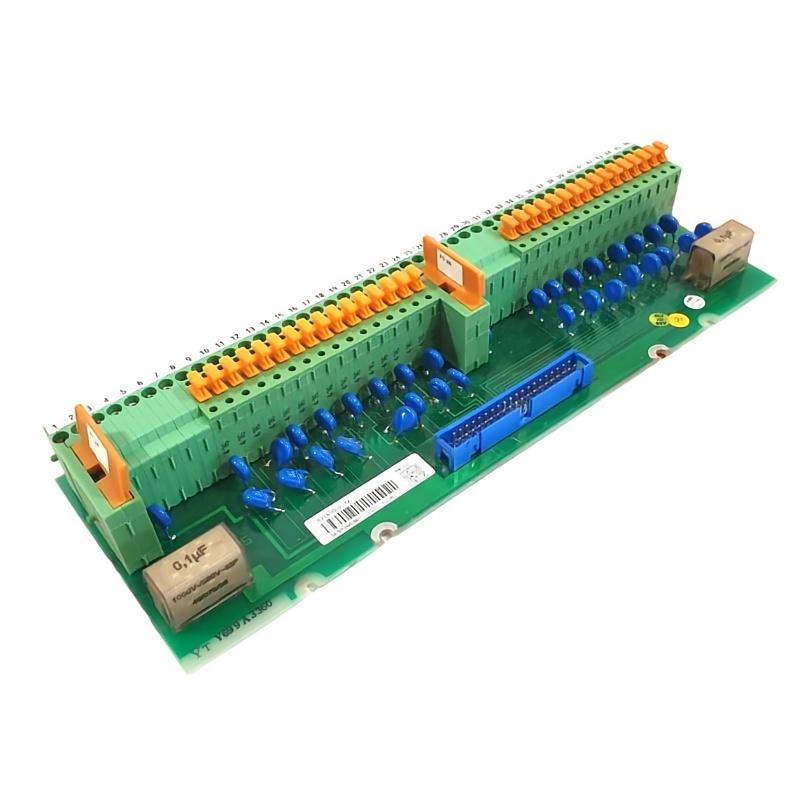

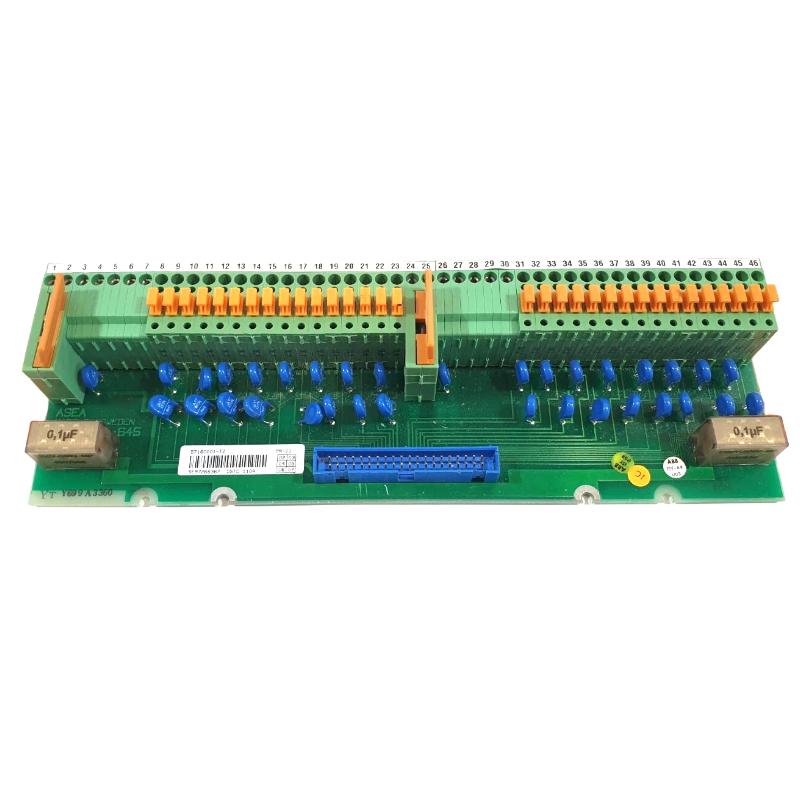

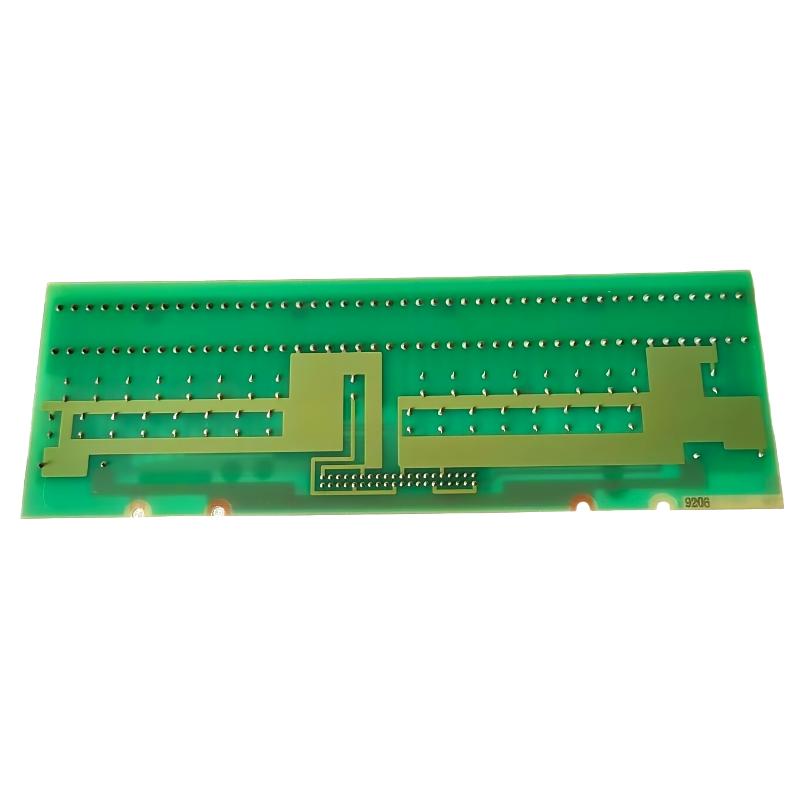

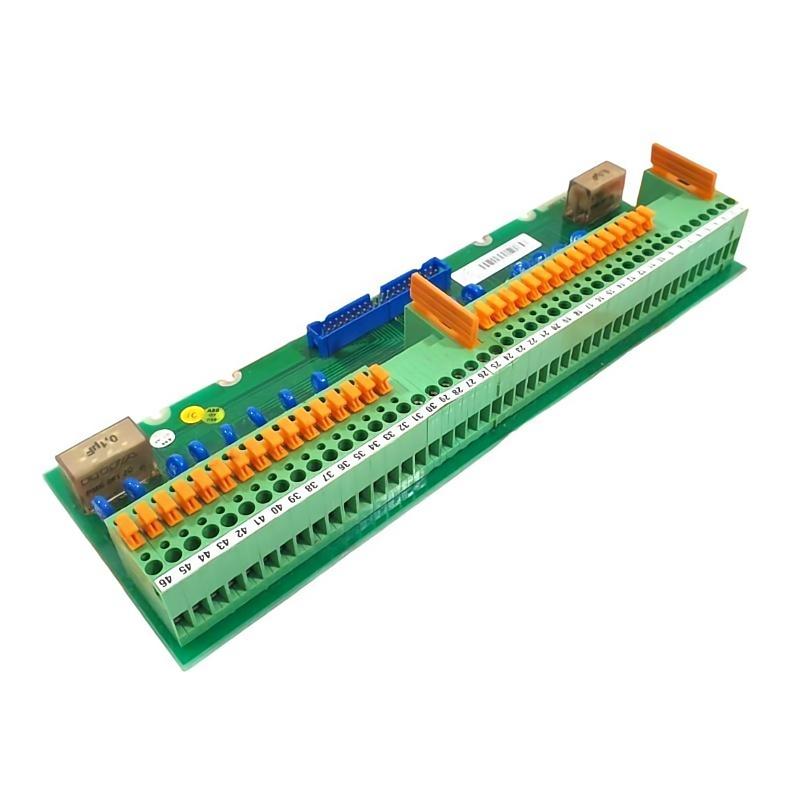

Name: ABB DSTD 110A 57160001-TZ Digital Output Board Connection Unit
Brand: ABB PLC
SKU: 4068
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:DSTD 110A
Product Origin:Sweden (SE)
Product Dimensions:324 x 54 x 157.5 mm
Product Weight:0.365 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The ABB DSTD 110A 57160001-TZ Digital Output Board Connection Unit is designed to connect and manage digital output signals in industrial automation systems. This unit facilitates the reliable transfer of control system data to external devices that require binary signals for operation. It is ideal for applications that require precise and real-time switching, offering seamless integration with various output boards to control actuators, relays, and other industrial devices. With its robust design and efficient performance, it ensures reliable operation in demanding environments.

Technical Specifications

Feature	Specification
Part Number	DSTD 110A 57160001-TZ
Module Type	Digital Output Board Connection Unit
Dimensions	324 x 54 x 157.5 mm
Weight	0.365 kg
Input Voltage	24 V DC
Output Channels	16 Digital Outputs
Output Current	0.5 A per channel
Response Time	< 5 ms
Operating Temperature	-20°C to 60°C
Enclosure Rating	IP20
Mounting Type	DIN Rail Mount
Certification	CE, UL

Applications

Industrial Automation Systems
The DSTD 110A unit is crucial for industrial automation, enabling the reliable connection of output signals from control systems to connected devices that require digital outputs.
Control of Actuators and Relays
It is commonly used in controlling actuators, solenoids, relays, and motors, providing precise and timely output signals for efficient machine operation.
Process Control Systems
The unit plays an important role in process control, where fast and accurate switching of outputs is necessary for smooth and uninterrupted system operations.

Advantages

Fast Switching Performance
The unit features a response time of less than 5 milliseconds, ensuring high-speed switching for time-sensitive automation tasks.
Flexible Output Handling
With 16 digital output channels, the unit provides flexibility for controlling multiple devices simultaneously.
Durable and Reliable Design
The IP20-rated enclosure offers protection against dust and environmental factors, ensuring the unit remains operational in challenging industrial environments.

Technical FAQs

What input voltage is required for the ABB DSTD 110A unit?
The unit operates with a 24 V DC input voltage.
How many digital output channels does this unit provide?
The unit supports 16 digital output channels.
What is the output current capacity per channel?
Each channel can handle up to 0.5 A of output current.
What is the response time of the unit?
The response time is less than 5 milliseconds.
What is the operating temperature range for the unit?
The module operates in the temperature range of -20°C to 60°C.
How is the unit mounted?
It is designed for DIN rail mounting, which is a standard installation method in industrial automation systems.
What is the enclosure rating for the ABB DSTD 110A module?
The module has an IP20-rated enclosure, providing protection against dust and environmental contaminants.
Can this module be used in industrial automation systems?
Yes, it is ideal for use in industrial automation, where it connects control systems to devices requiring digital output signals.
What certifications does the ABB DSTD 110A module have?
The unit is CE and UL certified, ensuring compliance with international standards for safety and quality.
Is the DSTD 110A suitable for use in process control systems?
Yes, it is designed for use in process control systems, where accurate and timely switching of digital outputs is essential.
