Introduction

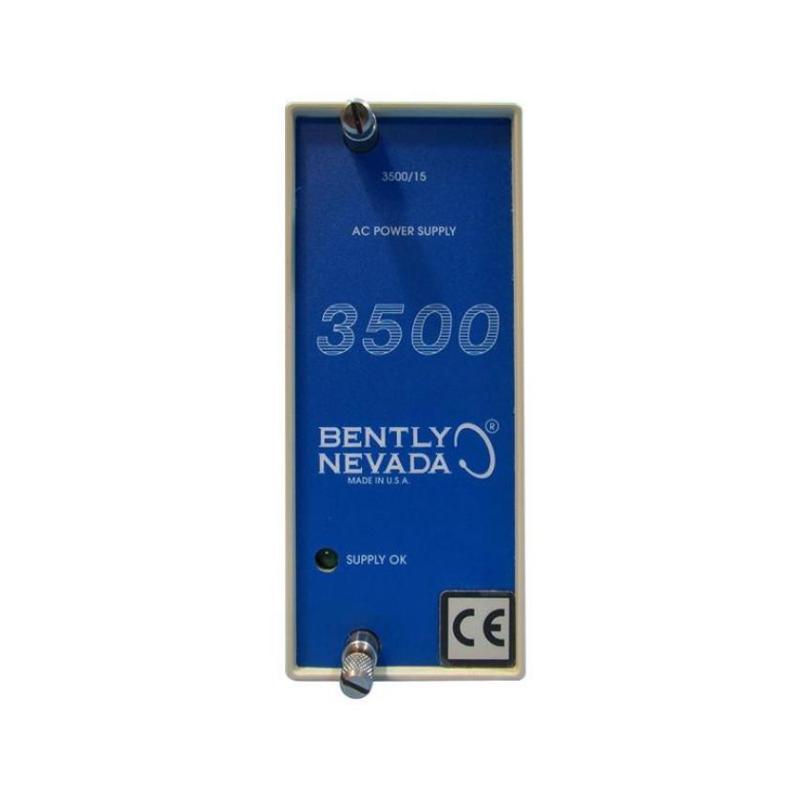

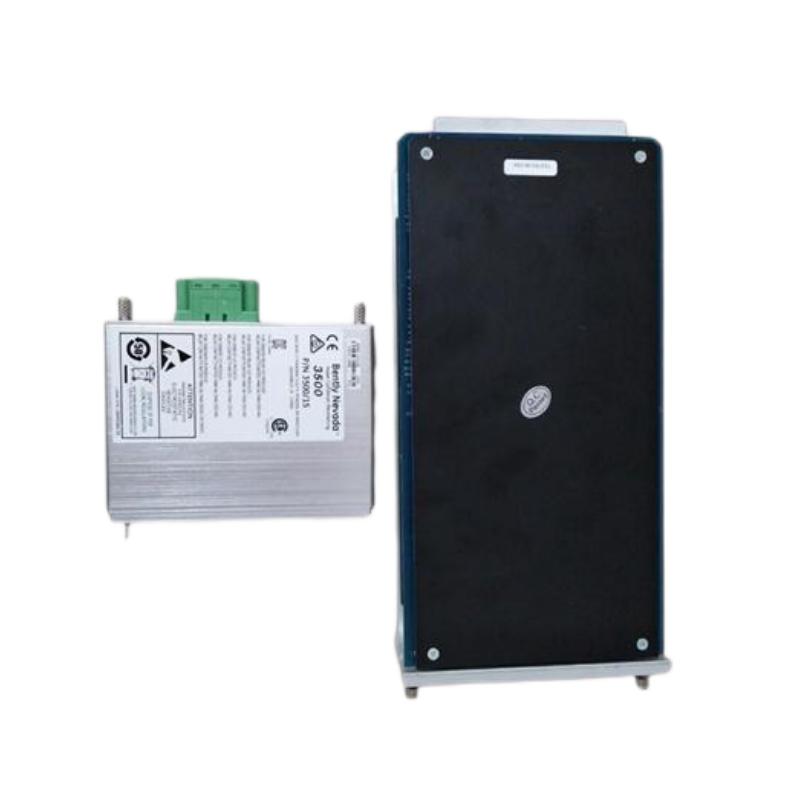

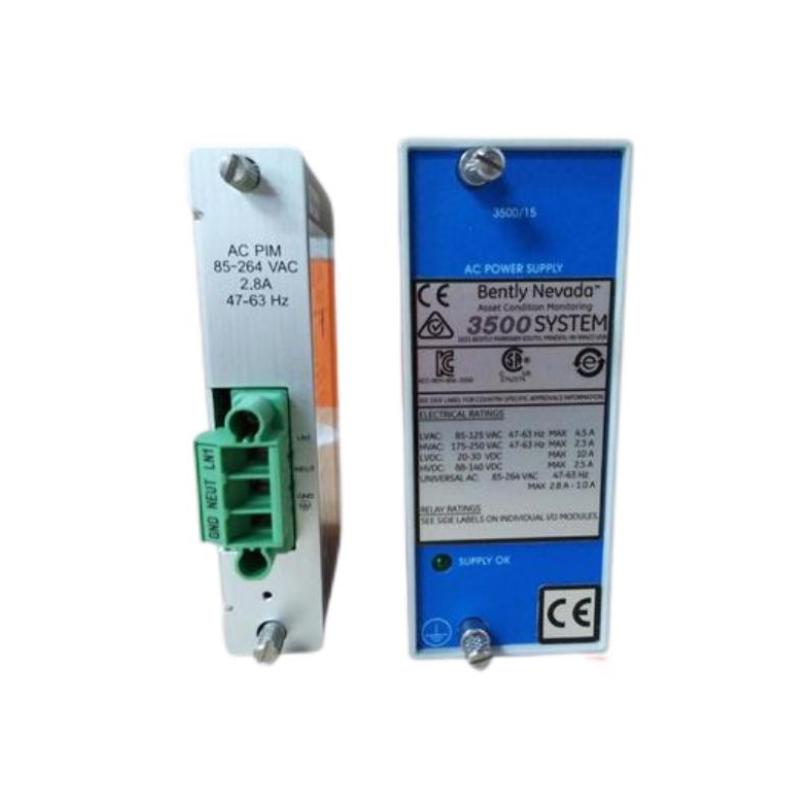

The Bently Nevada 3500/15-02-02 Power Supply Modules are engineered to deliver stable, regulated power to the 3500 Series Machinery Protection System. Built for continuous industrial operation, these modules provide dependable power to the monitoring rack, supporting both protection and condition monitoring modules. With a design focused on reliability and longevity, they are ideal for mission-critical installations where uptime and system integrity are essential. Whether used as a single power source or in a redundant configuration, these modules help maintain consistent performance in demanding environments.
Technical Specifications
| Attribute | Details |
|---|---|
| Model Family | 3500/15-02-02 |
| Product Type | Power Supply Module (Half-height) |
| Input Voltage Range | Universal AC: 85–264 VAC RMS (nominal 220 VAC) |
| Input Frequency Range | 47–63 Hz |
| Output | Regulated DC power for 3500 rack modules |
| Redundancy Support | Dual module setup (primary + backup) |
| Operating Temperature Range | –30 °C to +65 °C |
| Storage Temperature Range | –40 °C to +85 °C |
| Humidity Tolerance | Up to 95% non-condensing |
| Dimensions (Module) | ~120.7 mm × 50.8 mm × 251.5 mm |
| Weight | Approx. 1.2–1.4 kg depending on variant |
| Form Factor | Half-height rack module |
