Introduction

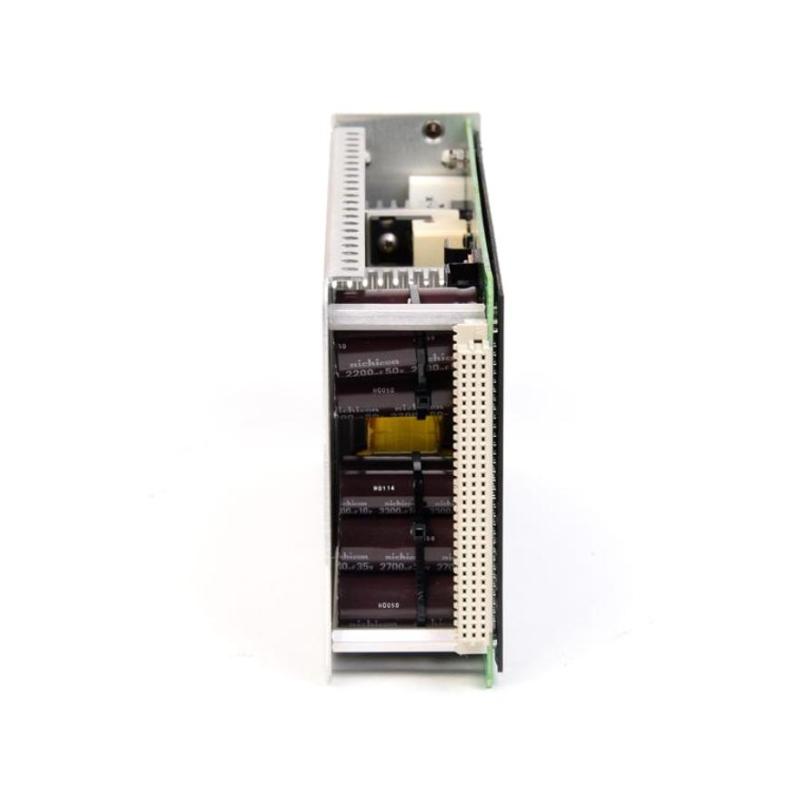

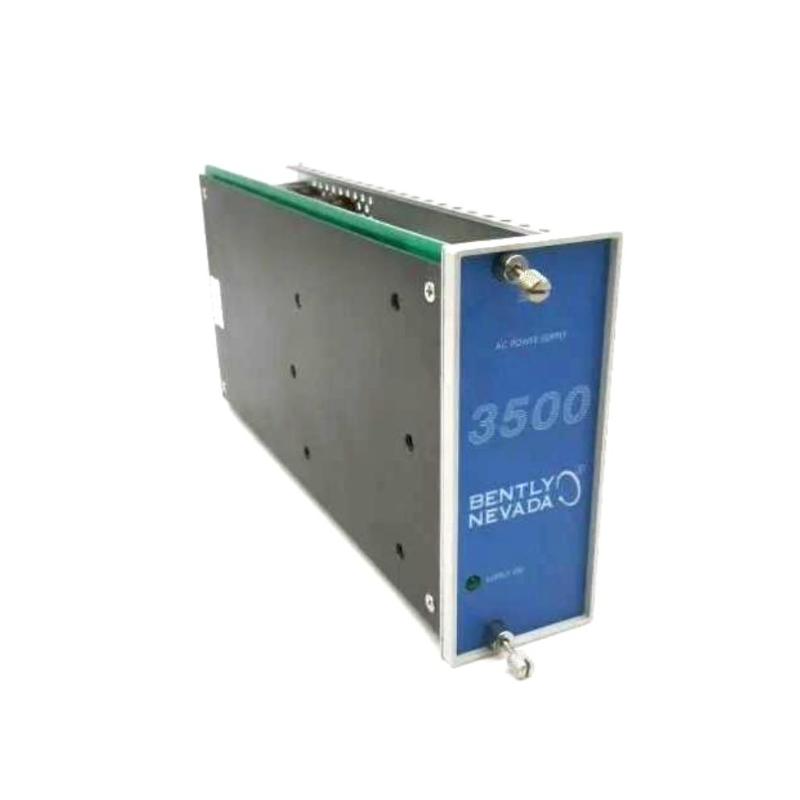

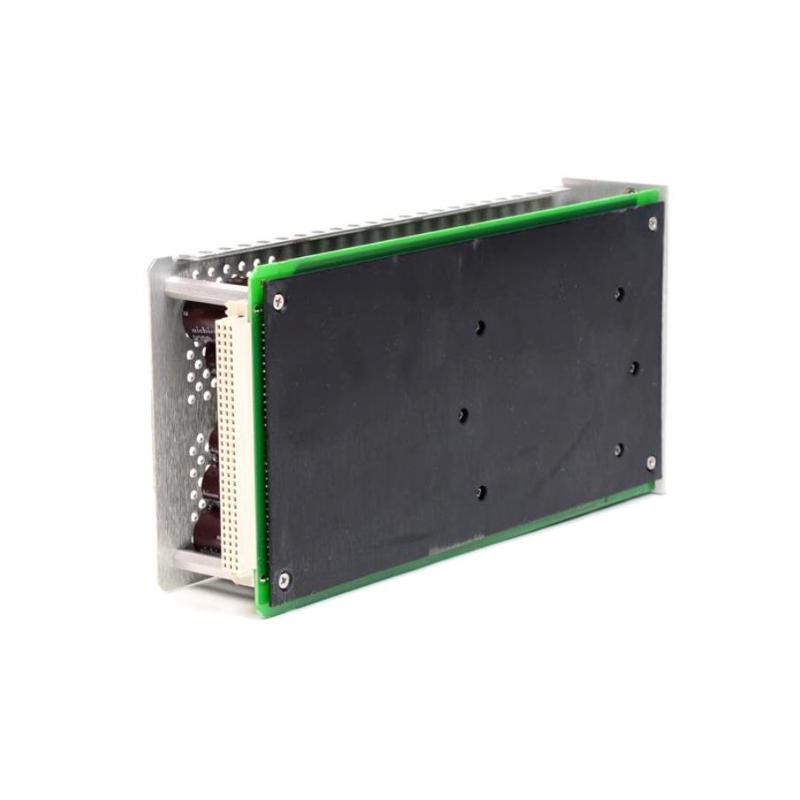

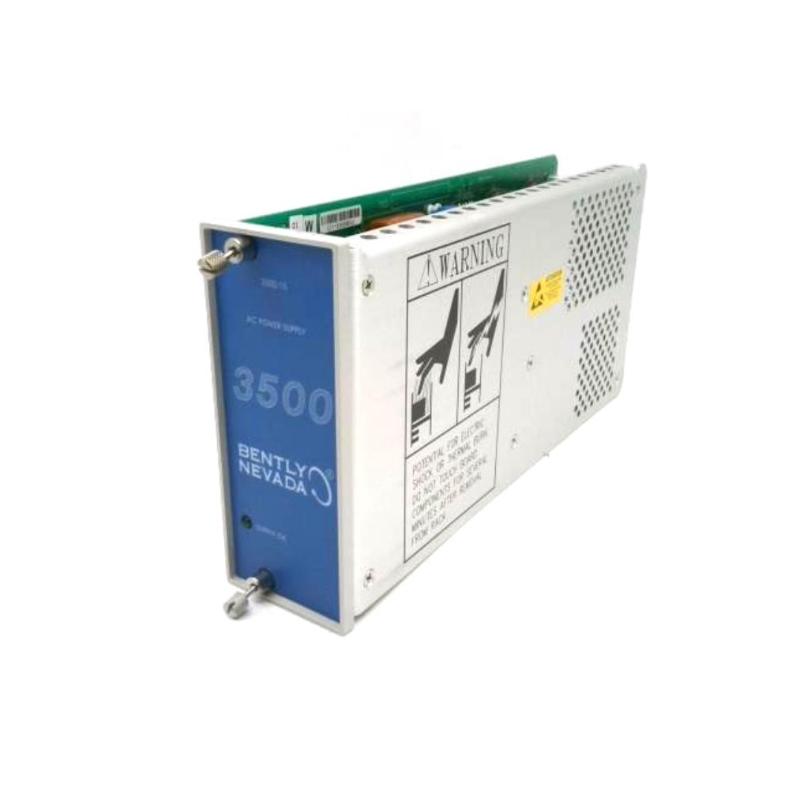

The Bently Nevada 3500/15-02-00-00 Power Module is a rugged, industrial-grade power supply designed specifically for the 3500 Series Machinery Protection System. Engineered to deliver stable high-voltage AC power to the monitoring rack, it ensures continuous operation of protection and condition monitoring modules. This module is built for mission-critical environments where uptime is non-negotiable, offering dependable power delivery even under challenging industrial conditions. Its robust design and reliable performance make it an ideal choice for long-term asset protection strategies.
Technical Specifications
| Attribute | Details |
|---|---|
| Model | 3500/15-02-00-00 |
| Product Type | Power Module (High Voltage AC Input) |
| Input Voltage Range | 175–264 VAC RMS (220 VAC nominal) |
| Input Frequency | 47–63 Hz |
| Power Consumption | Up to 2.3 A RMS |
| Operating Temperature Range | –30 °C to +65 °C |
| Storage Temperature Range | –40 °C to +85 °C |
| Humidity | Up to 95% non-condensing |
| Dimensions (Module) | 120.7 mm × 50.8 mm × 251.5 mm |
| Weight | Approx. 1.39 kg |
| Form Factor | Half-height rack module |
