Introduction — Precision Proximity Sensing for Rotating Machinery

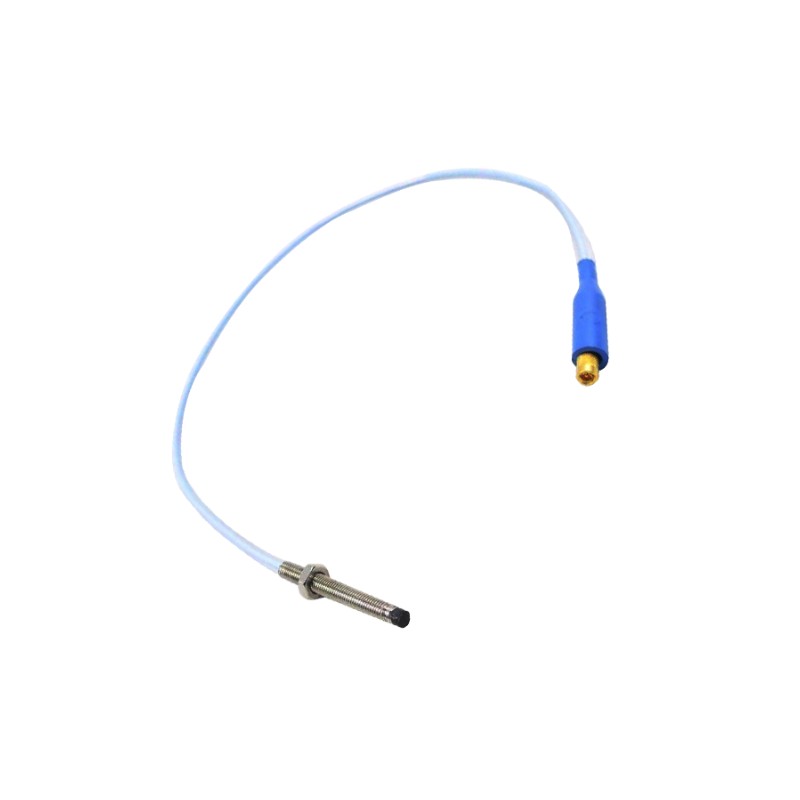

The Bently Nevada 330901-00-10-10-02-05 3300 NSv Proximity Sensor is a rugged, high-precision eddy-current displacement sensor engineered for industrial condition monitoring and machinery protection systems. As a core element of rotor position and vibration measurement loops, this sensor delivers dependable, high-resolution displacement signals under demanding service conditions. Its robust build quality ensures long-term performance in harsh environments such as power plants, oil & gas facilities, and heavy manufacturing, helping maintain machine health and avoid unplanned downtime.
Technical Specifications — Sensor Performance & Physical Profile
| Specification | Description |
|---|---|
| Product Type | Proximity (Displacement) Sensor |
| Model / Part Number | 330901-00-10-10-02-05 / 3300 NSv |
| Sensing Principle | Eddy-current displacement measurement |
| Target Measurement | Shaft/rotor position and vibration |
| Probe Tip Type | Hardened, wear-resistant sensing tip |
| Measurement Range | Standard 0–1 mm (typical industrial range) |
| Output Signal | Differential AC signal proportional to gap change |
| Temperature Rating | Extreme industrial temperatures |
| Environmental Rating | IP67 (dust tight, immersion protected) |
| Housing Material | Stainless steel / rugged industrial alloy |
| Cable Length | Customer-specific (standard lengths available) |
| Static Weight (Sensor Only) | ~0.25 kg |
| Overall Length | ~110 mm (sensor body) |
| Diameter | ~12 mm |
| Mounting Adapter | M12 threaded housing or custom bracket option |
The 3300 NSv sensor is built to withstand heat, contamination, and mechanical stress while providing accurate, noise-free proximity signals tailored for high-speed rotating machinery.
