Introduction

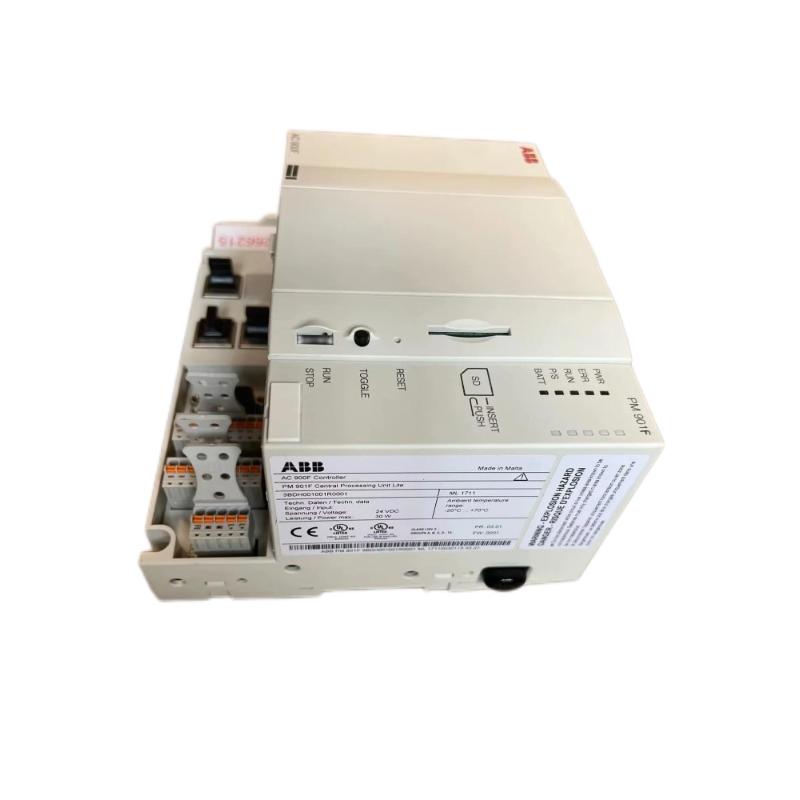

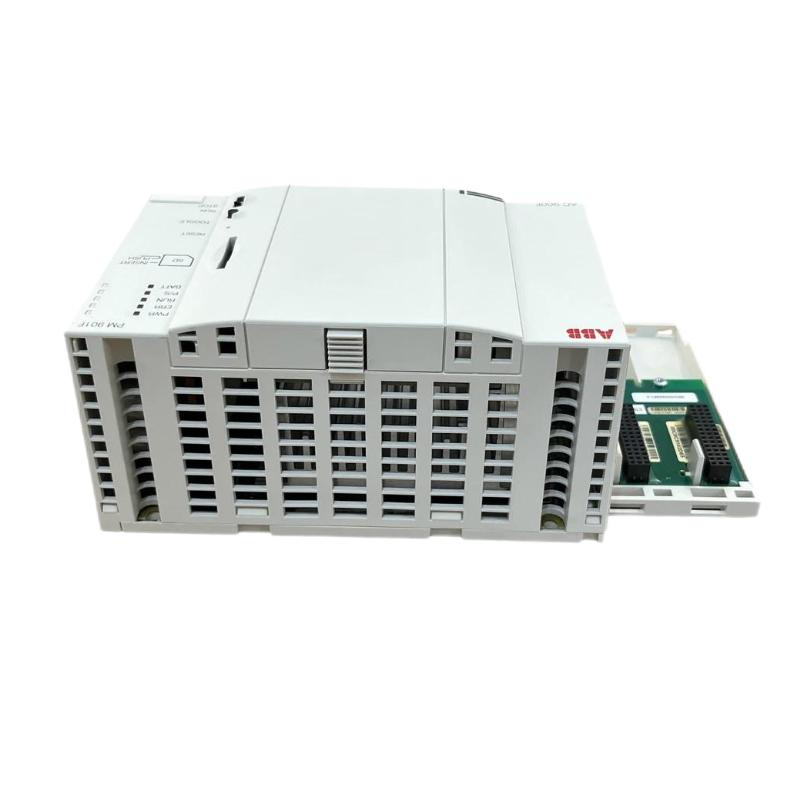

The ABB PM903F Central Processing Unit is a powerful and versatile CPU designed for modern industrial automation systems. As the heart of ABB’s modular control platforms, it combines robust processing capability with extensive communication support, enabling efficient execution of control logic, real-time data handling, and seamless integration with distributed I/O and supervisory systems. The PM903F is engineered to meet the demanding requirements of manufacturing, process, and utility automation environments.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | ABB |
| Model | PM903F |
| Module Type | Central Processing Unit (CPU) |
| Platform Compatibility | ABB modular PLC families (e.g., AC500/AC500-eCo or similar) |
| Processor | Industrial embedded CPU |
| Program Memory | High-capacity non-volatile memory |
| Data Memory | Ample RAM for data and system variables |
| Communication Interfaces | Integrated Ethernet; serial ports; fieldbus support (system-dependent) |
| I/O Support | Modular expansion via local racks and networked I/O systems |
| Supply Voltage | 24 V DC (typical industrial control supply) |
| Power Consumption | System-dependent (typical low-to-mid range) |
| Operating Temperature | Industrial ambient range |
| Mounting | DIN rail or rack installation within control cabinet |
| Dimensions (approx.) | 90 × 140 × 75 mm (varies by implementation) |
| Weight (approx.) | 0.3–0.5 kg |
| Environmental Rating | IP20 (designed for enclosed control cabinet use) |
This CPU module is optimized for continuous industrial operation and integrates with ABB automation engineering environments for configuration, programming, and diagnostics.
