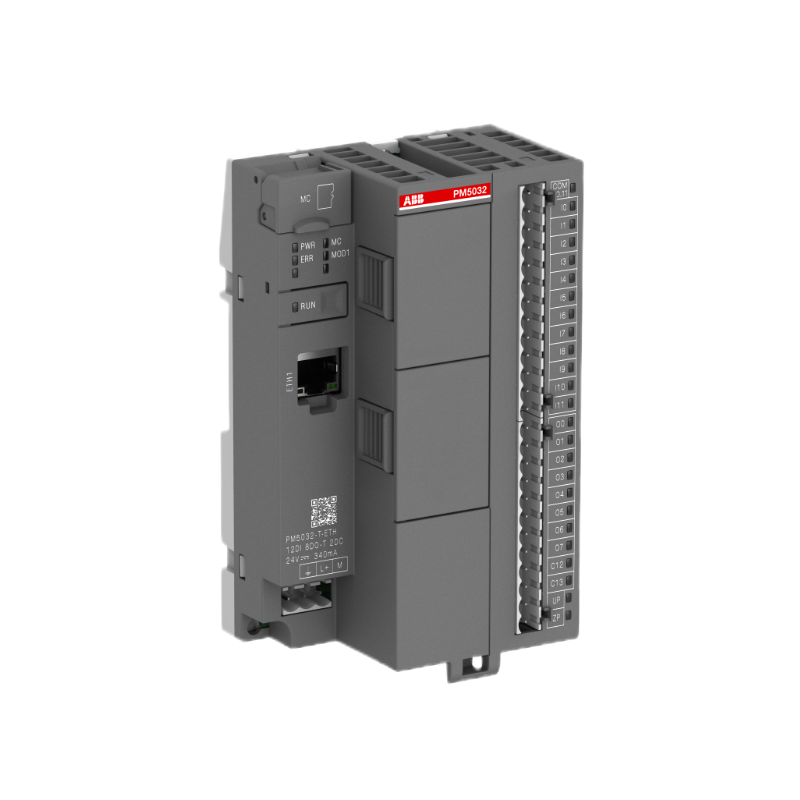

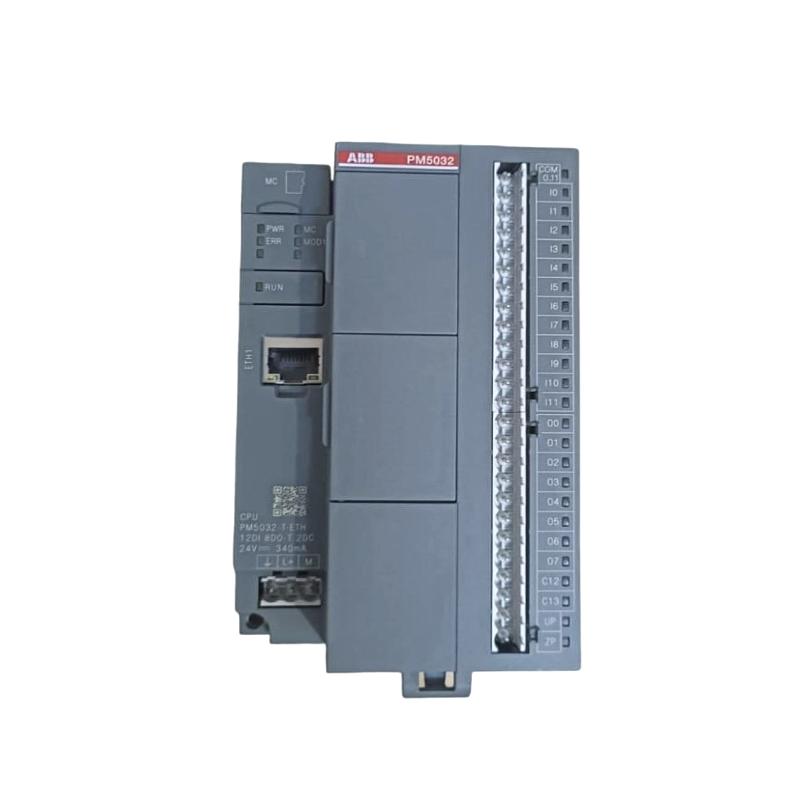

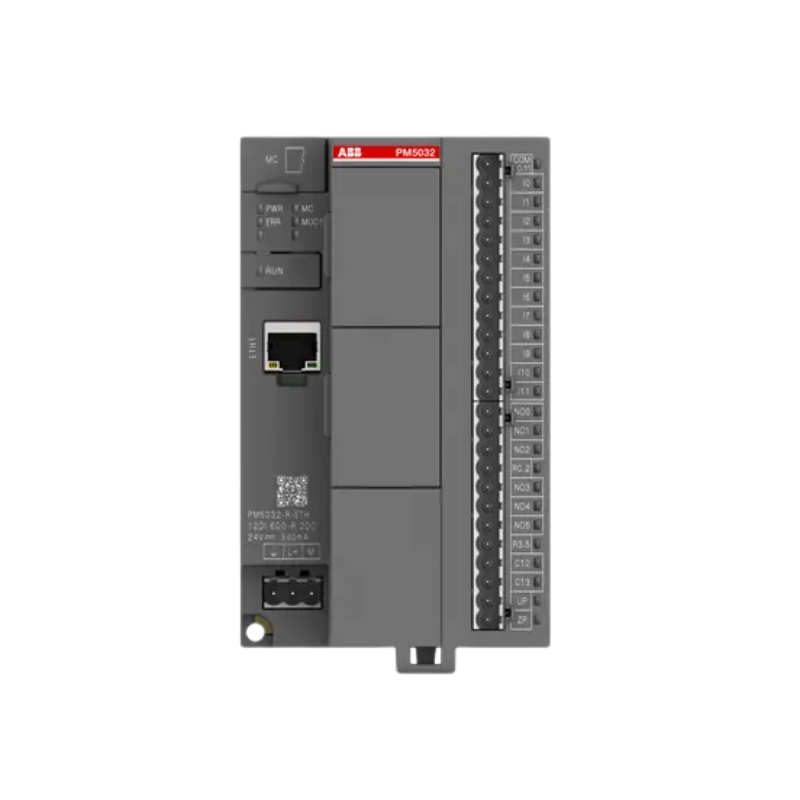

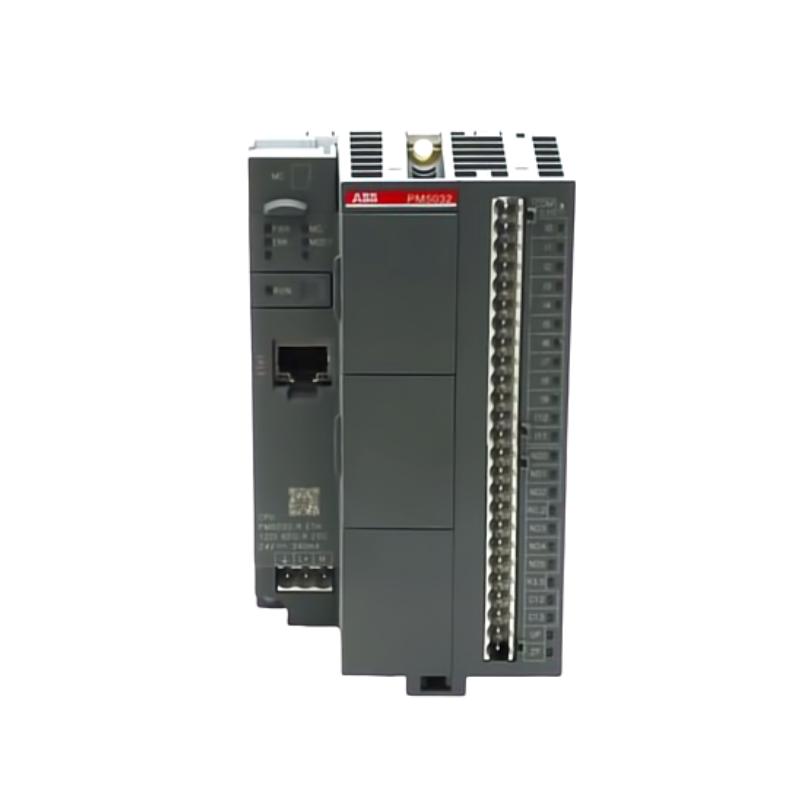

ABB PM5032-T-ETH 1SAP123400R0072 CPU Programmable Logic Controller

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

ABB PM5032-T-ETH 1SAP123400R0072 CPU Programmable Logic Controller

Name: ABB PM5032-T-ETH 1SAP123400R0072 CPU Programmable Logic Controller
Brand: ABB PLC
SKU: 4027
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:PM5032-T-ETH 1SAP123400R0072
Product Origin:Sweden
Product Dimensions:82 × 135 × 74 mm
Product Weight:0.25kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The ABB PM5032-T-ETH CPU Programmable Logic Controller is a compact yet capable control processor from the ABB AC500-eCo series, designed for cost-effective automation without sacrificing performance or reliability. With integrated Ethernet communication and onboard digital I/O, this CPU is well suited for machine builders and system integrators who need flexible control in space-constrained panels. Its balanced architecture supports fast logic execution, easy system expansion, and stable operation in everyday industrial environments.

Technical Specifications

Item	Specification
Manufacturer	ABB
Model	PM5032-T-ETH
Order Number	1SAP123400R0072
Module Type	CPU Programmable Logic Controller
Series	AC500-eCo
Program Memory	Approx. 2 MB
Onboard Digital Inputs	12 × 24 V DC
Onboard Digital Outputs	8 × 24 V DC transistor outputs
Configurable Channels	2 × DI/DO
Communication Interface	Integrated Industrial Ethernet
Expansion	2 front option slots
Supply Voltage	20.4–28.8 V DC
Protection Class	IP20
Mounting	DIN rail
Dimensions (W × H × D)	Approx. 82 × 135 × 74 mm
Weight	Approx. 0.25 kg

Applications

The PM5032-T-ETH CPU is suitable for a wide range of industrial automation tasks, including:

Machine control in discrete manufacturing and material handling
Process control in water treatment, food & beverage, and utilities
Packaging and assembly lines requiring flexible logic and modular I/O
OEM systems where compact PLC solutions streamline control architecture
Network-connected automation with Ethernet-based supervisory integration

Its balanced mix of onboard I/O and expansion flexibility supports tailored solutions for evolving production demands.

Advantages

Integrated Ethernet port for seamless network connection
Ample onboard I/O reduces the need for external modules
Expandable architecture via option slots for analog, serial, or other interfaces
Industrial durability designed for long duty cycles in control cabinets
Scalable control platform that grows with application complexity

These strengths make the PM5032-T-ETH an efficient and reliable CPU choice for automation systems that require both performance and expandability.

Technical FAQs

Which automation platform does this CPU belong to?
It is part of the ABB AC500-eCo PLC family.
Does the CPU include onboard I/O?
Yes, it includes digital inputs and transistor outputs built into the CPU.
Is Ethernet communication included?
Yes, an industrial Ethernet port is integrated as standard.
Can additional functions be added?
Yes, two front option slots allow expansion with communication or I/O options.
What type of applications is it best suited for?
Small to mid-sized machine and process automation systems.
What power supply does it require?
A 24 V DC control power supply within the specified voltage range.
Is it suitable for harsh environments?
It is designed for industrial control cabinets with IP20 protection.
Can it replace older AC500-eCo CPUs?
Yes, it is commonly used as a functional replacement within the same platform.
Does it support IEC programming standards?
Yes, it supports IEC-61131-3 programming languages.
Is the CPU easy to install?
Yes, DIN-rail mounting and integrated I/O simplify installation and commissioning.
