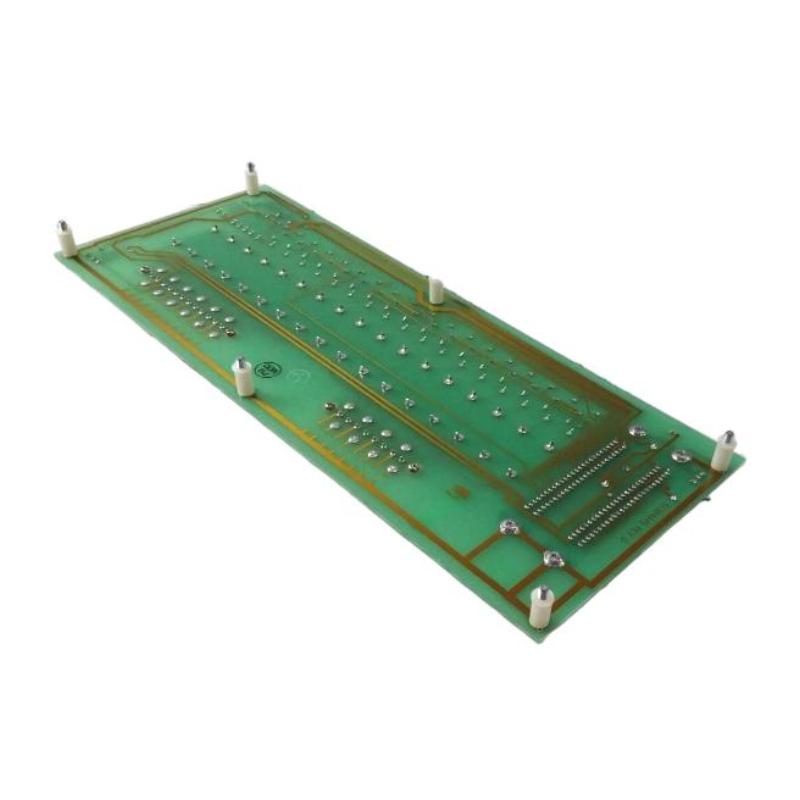

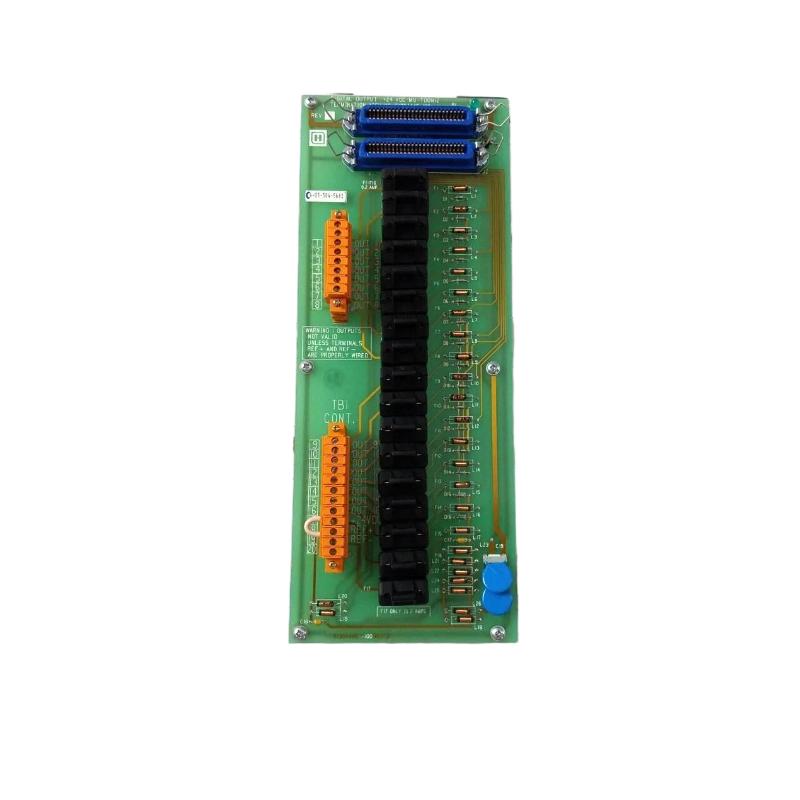

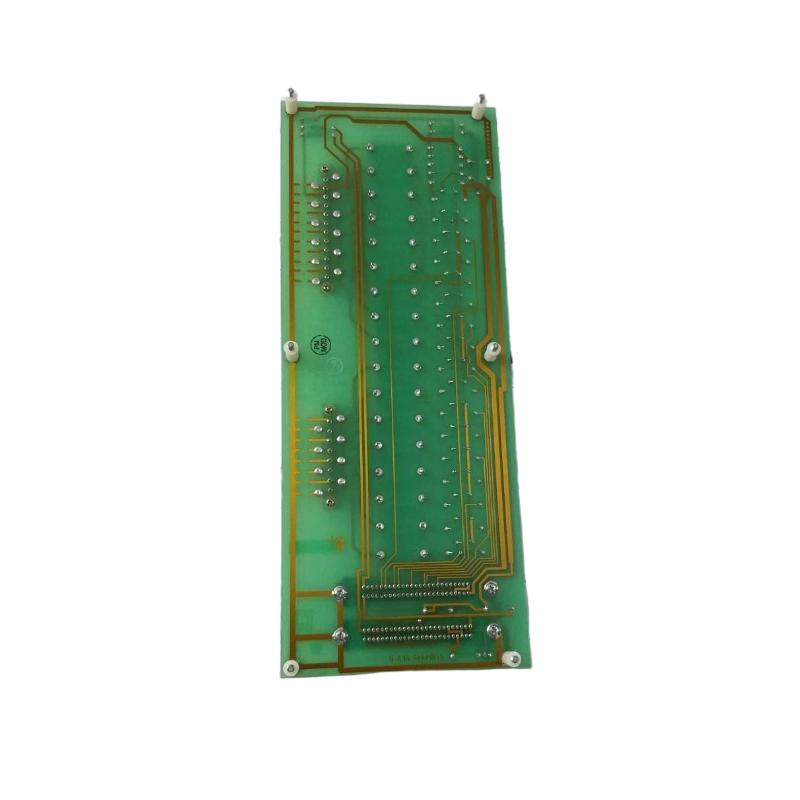

Honeywell MC-TDIA22 51304431-175 Isolated Digital Input Module

Brand:Honeywell DCS
Item No.:MC-TDIA22
Product Origin:USA
Product Dimensions:230 x 123 x 20 mm
Product Weight:0.6 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction
The Honeywell MC-TDIA22 51304431-175 Isolated Digital Input Module is designed to provide reliable and precise digital input signal isolation in industrial control systems. This module is equipped with advanced isolation technology that protects sensitive components from electrical surges and disturbances, which is crucial in harsh industrial environments. The MC-TDIA22 is ideal for systems that require isolation between the control system and field devices, such as sensors and actuators, ensuring the integrity of data transmission. With its compact design and robust performance, this module is well-suited for a wide range of applications, including automation systems, manufacturing, and power generation.

Technical Specifications

Specification Details
Model Number MC-TDIA22 51304431-175
Dimensions (L × W × H) 230 × 123 × 20 mm
Weight 0.6 kg
Type Isolated Digital Input Module
Input Channels 16 Channels
Isolation Type Digital Isolation
Power Supply 24 V DC
Operating Temperature -20°C to 60°C
Compliance UL Listed, CE Certified

Applications
The Honeywell MC-TDIA22 Isolated Digital Input Module serves a variety of functions in industrial settings, particularly where signal isolation is needed:

  • Automation Systems: Used in automated control systems to protect the system from electrical noise and voltage spikes.

  • Manufacturing: Ensures reliable data acquisition in manufacturing lines by isolating field sensors from the central control unit.

  • Power Generation: Ideal for power plants where electrical isolation is crucial to protect sensitive equipment and ensure reliable monitoring of inputs.

  • Oil & Gas: Used in oil and gas facilities to safely monitor and control equipment, ensuring that input signals are properly isolated from the main control system.

  • Industrial Equipment: Essential for industrial equipment monitoring where high voltage and electrical disturbances may affect system performance.


Advantages
The Honeywell MC-TDIA22 Isolated Digital Input Module provides several key advantages for industrial control systems:

  • Signal Isolation: The digital isolation technology ensures that electrical disturbances, such as surges or ground loops, do not affect the control system, ensuring signal integrity.

  • High-Channel Capacity: With 16 input channels, the MC-TDIA22 enables the monitoring of multiple signals simultaneously, improving efficiency and reducing the need for additional modules.

  • Compact Design: Despite its powerful functionality, the device features a compact form factor, allowing it to be easily integrated into tight spaces in industrial control panels.

  • Wide Operating Range: The module operates in a wide temperature range of -20°C to 60°C, making it suitable for demanding industrial environments.

  • Reliable Performance: Built to operate under challenging conditions, the MC-TDIA22 ensures continuous and reliable operation over long periods.

  • Power Efficient: The 24 V DC power supply ensures minimal energy consumption while providing reliable performance.


Technical FAQs

  1. What is the primary purpose of the MC-TDIA22 Isolated Digital Input Module?
    The MC-TDIA22 is designed to provide signal isolation for digital inputs in industrial control systems, ensuring that electrical disturbances do not affect the system’s performance.

  2. How many input channels does the MC-TDIA22 support?
    The MC-TDIA22 supports 16 input channels, enabling users to monitor multiple digital inputs simultaneously in a compact module.

  3. What type of isolation does the MC-TDIA22 provide?
    The MC-TDIA22 offers digital isolation, which protects the control system from electrical noise, voltage surges, and other disturbances that could compromise signal integrity.

  4. What is the power supply requirement for the MC-TDIA22?
    The module operates on a 24 V DC power supply, which is standard for many industrial control systems.

  5. What is the operating temperature range of the MC-TDIA22?
    The MC-TDIA22 functions within a temperature range of -20°C to 60°C, making it suitable for use in harsh industrial environments.

  6. Can the MC-TDIA22 be used in hazardous environments?
    While the MC-TDIA22 is built for demanding environments, additional certifications may be required for use in hazardous locations.

  7. How does the MC-TDIA22 improve system reliability?
    By providing digital isolation, the MC-TDIA22 ensures that external electrical noise or disturbances do not interfere with the system, leading to more stable and reliable performance.

  8. What industries benefit from the MC-TDIA22?
    The MC-TDIA22 is suitable for industries like power generation, oil and gas, manufacturing, and automation, where signal isolation is crucial for protecting equipment and ensuring accurate data collection.

  9. Is the MC-TDIA22 easy to integrate into existing systems?
    Yes, the MC-TDIA22 is designed to be easily integrated into existing control systems, expanding their input capacity while ensuring signal integrity.

  10. What are the main benefits of using the MC-TDIA22 in industrial control systems?
    The MC-TDIA22 offers enhanced signal protection, high channel capacity, reliable performance, and easy integration, making it a valuable addition to any industrial control system that requires robust digital input capabilities.
