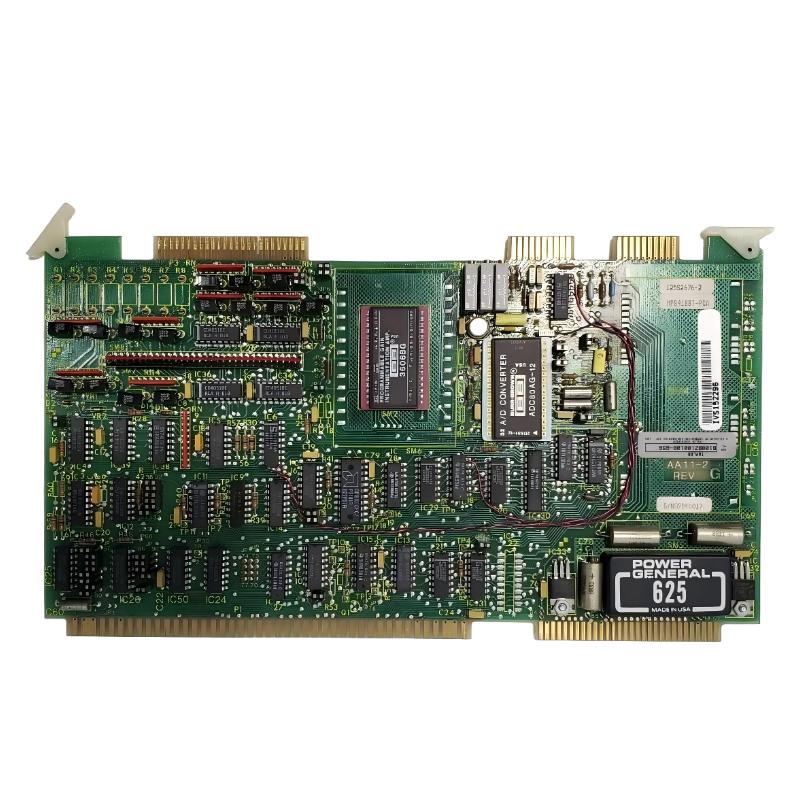

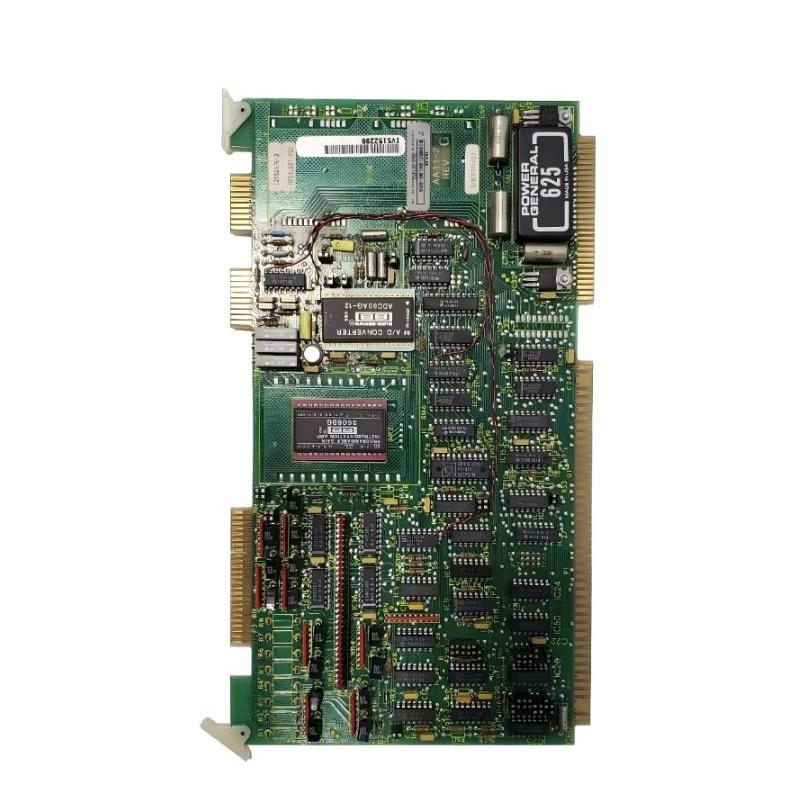

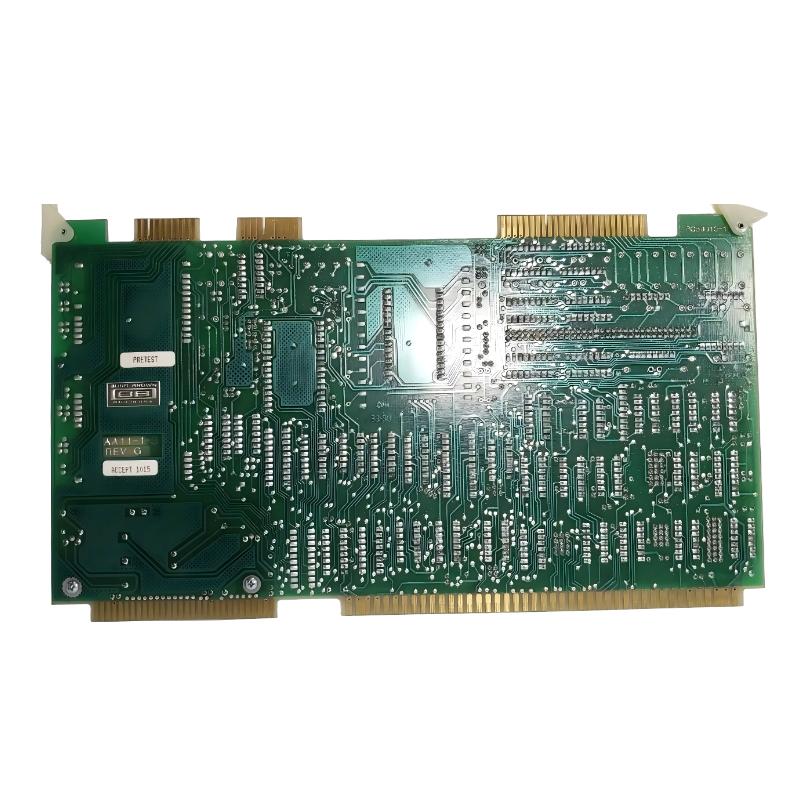

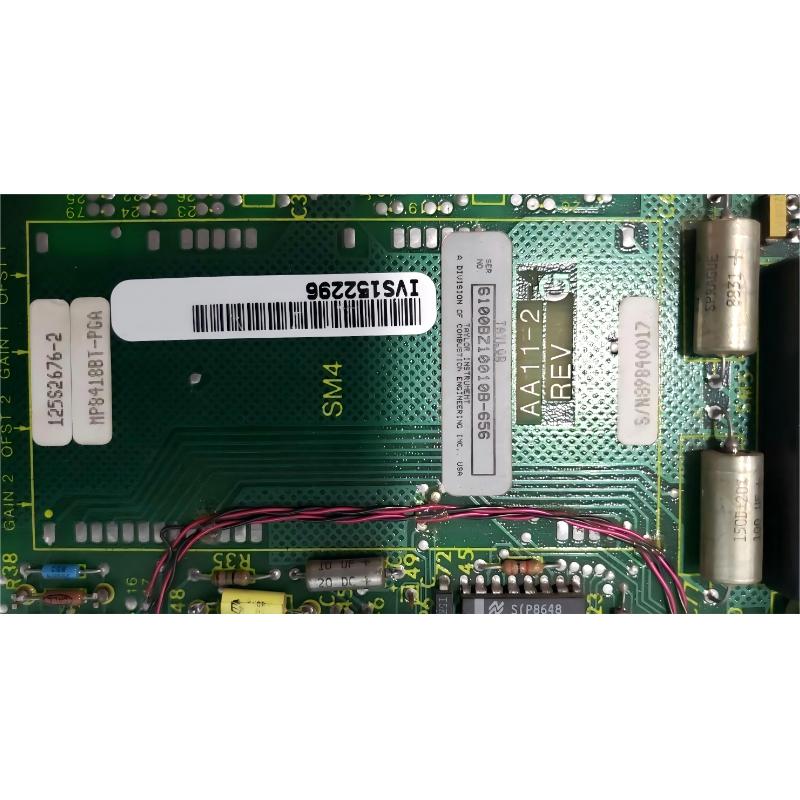

ABB 6100BZ10010B Analog Input Expansion Board

Name: ABB 6100BZ10010B Analog Input Expansion Board
Brand: ABB PLC
SKU: 3966
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:6100BZ10010B
Product Origin:Sweden (SE)
Product Dimensions:200 × 100 × 35 mm
Product Weight:0.45 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The ABB 6100BZ10010B Analog Input Expansion Board is an essential component designed to extend the analog input capabilities of ABB control systems. It allows for the integration of multiple analog sensors into automated systems, enabling precise data acquisition and real-time monitoring. With its reliable performance and seamless integration into existing control setups, this expansion board supports a wide range of industrial applications, ensuring accurate measurements and effective system operation.

Technical Specifications

Specification	Details
Model	6100BZ10010B
Power Input	24V DC
Input Type	4-20 mA, 0-10V
Dimensions	200 × 100 × 35 mm
Weight	0.45 kg
Operating Temperature	-10°C to 60°C
Storage Temperature	-20°C to 70°C
Connector Type	37-pin D-sub

Applications

The ABB 6100BZ10010B Analog Input Expansion Board is used in various industries where the need for precise analog signal acquisition and processing is critical:

Industrial Automation
It enables precise control and monitoring of sensors in automated machinery and systems, contributing to high operational efficiency.
Process Control
In industries such as oil and gas or chemical manufacturing, it provides reliable data collection for monitoring and controlling complex processes.
Building Management Systems
The board is integral to HVAC and other building management systems, enabling the accurate monitoring of environmental factors such as temperature, humidity, and air quality.

Advantages

The ABB 6100BZ10010B Analog Input Expansion Board offers several advantages that make it an invaluable tool for analog signal integration in control systems:

High Accuracy
The board supports both 4-20 mA and 0-10V inputs, ensuring highly accurate data acquisition from various sensors for precise measurements.
Seamless Integration
It easily integrates into existing ABB control systems, extending their capabilities without requiring significant reconfiguration or additional hardware.
Temperature Resilience
Designed to operate in environments ranging from -10°C to 60°C, it ensures reliable performance even in harsh industrial conditions.

Technical FAQs

What is the input voltage requirement for the 6100BZ10010B?
The board operates on a 24V DC power input.
What input types does the 6100BZ10010B support?
It supports both 4-20 mA and 0-10V analog input signals.
Is the 6100BZ10010B compatible with other ABB systems?
Yes, it integrates seamlessly with other ABB control and automation systems.
What is the temperature range for operating the 6100BZ10010B?
The board operates within a temperature range of -10°C to 60°C.
What connector does the 6100BZ10010B use?
It uses a 37-pin D-sub connector for signal transmission.
Can the 6100BZ10010B be used for continuous operation?
Yes, it is designed for continuous operation, ensuring long-term reliability in industrial environments.
What industries benefit from the 6100BZ10010B?
It is widely used in industrial automation, process control, and building management systems.
How accurate is the 6100BZ10010B in acquiring data from sensors?
The board supports high-accuracy data acquisition, offering precise monitoring of analog signals from sensors.
Does the 6100BZ10010B offer protection against environmental factors?
Yes, it is designed to withstand harsh industrial conditions, with a broad operating temperature range and durable construction.
Can the 6100BZ10010B be easily integrated into existing systems?
Yes, it is designed to integrate easily into existing ABB control systems, requiring minimal configuration.
