Honeywell 8C‑TPOX01 51307022‑175 Wireless Module Backplane

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

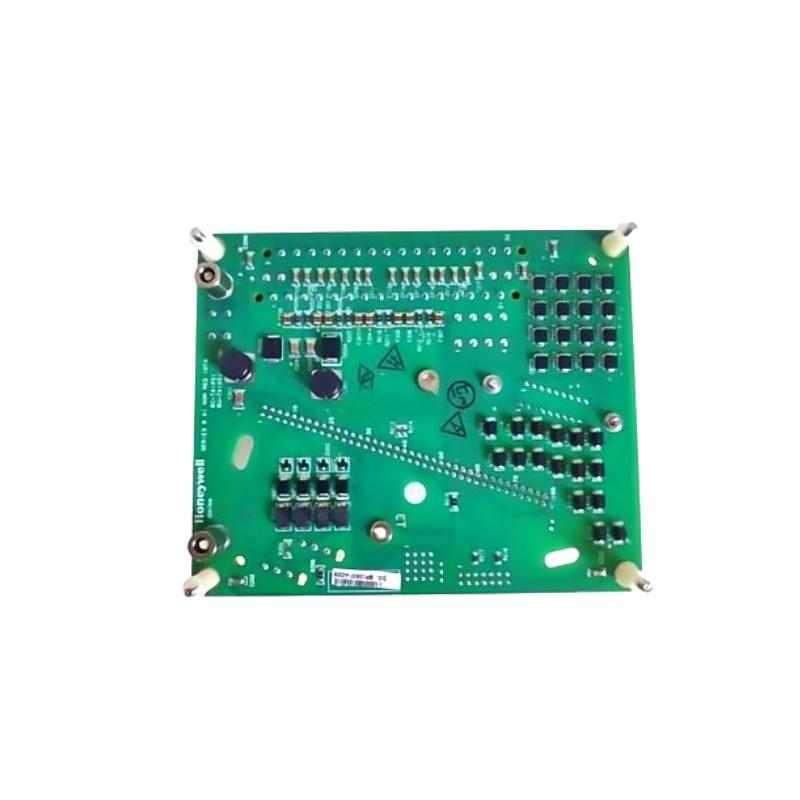

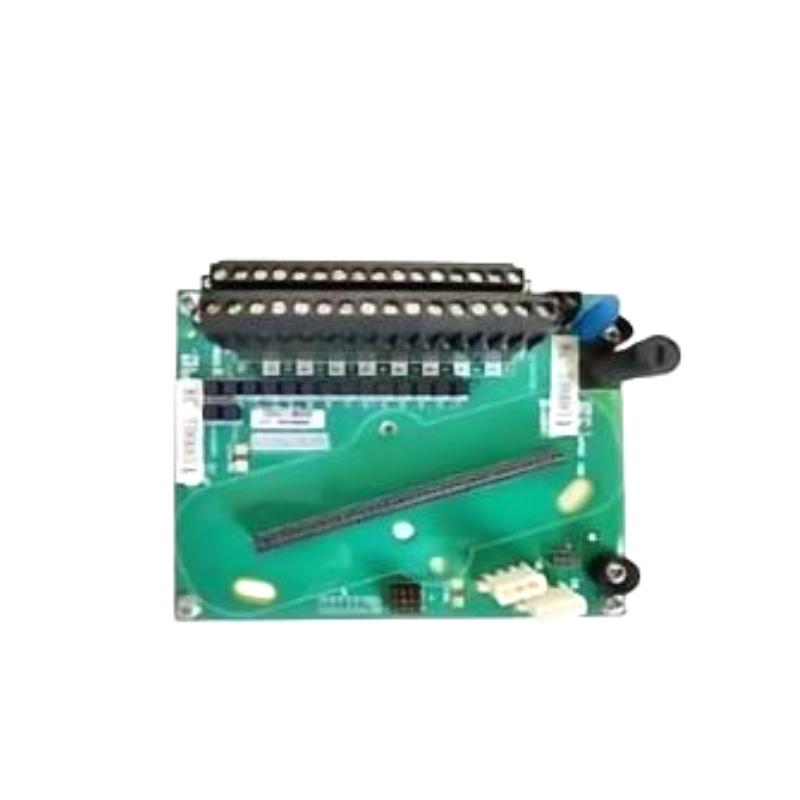

Honeywell 8C‑TPOX01 51307022‑175 Wireless Module Backplane

Name: Honeywell 8C‑TPOX01 51307022‑175 Wireless Module Backplane
Brand: Honeywell DCS
SKU: 395
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Honeywell DCS
Item No.:8C-TPOX01 51307022-175
Product Origin:USA
Product Dimensions:260 × 140 × 45 mm
Product Weight:0.5 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Honeywell 8C‑TPOX01 is a wireless module backplane designed for integration into Honeywell Series‑8 / Experion‑C300 distributed control systems. It provides a robust platform for wireless communication modules, enabling secure and reliable data transmission between the control system and wireless field devices. This backplane simplifies installation, ensures proper power distribution, and maintains signal integrity, making it ideal for industrial environments that require wireless monitoring or control without extensive cabling.

Technical Specifications

Parameter	Specification
Module Type	Wireless Module Backplane
Model Number	8C‑TPOX01 (51307022‑175)
Function	Provides physical and electrical interface for wireless modules
Supported Modules	Compatible with Honeywell wireless communication modules designed for Series‑8 systems
Power Supply	24 V DC via Series‑8 backplane
Mounting	Rack-based insertion (Series‑8 I/O chassis)
Isolation	Channel-to-channel and system isolation for reliable operation
Communication Interface	Supports wireless module data exchange with Series‑8 control system
Environmental Suitability	Industrial control cabinet conditions; standard temperature and humidity ranges
Approximate Dimensions	260 × 140 × 45 mm (H × W × D)
Approximate Weight	0.5 kg

Applications

Integration of wireless field devices into Series‑8 control systems
Remote process monitoring and control in areas where cabling is limited or impractical
Expansion of existing Series‑8 I/O racks to include wireless data collection
Wireless sensor networks for temperature, pressure, flow, or level measurement
Industrial environments where modular and scalable wireless communication is required

Advantages

Provides a standardized platform for wireless modules, simplifying installation and replacement
Ensures reliable power distribution and signal integrity to connected wireless devices
Reduces the need for extensive cabling, saving installation time and cost
Rack-based modular design allows easy integration into existing Series‑8 I/O systems
Supports secure and stable wireless communication within industrial process control networks

Technical FAQs

What is the primary function of the 8C‑TPOX01?
It serves as a backplane to support wireless communication modules within Series‑8 systems.
Does it supply power to connected wireless modules?
Yes — power is provided via the Series‑8 backplane.
Is it compatible with all Series‑8 I/O racks?
Yes — designed for standard Series‑8 / Experion‑C300 racks.
Can it handle multiple wireless modules simultaneously?
Yes — supports multiple compatible wireless modules as defined by system configuration.
Is the module isolated to protect the control system?
Yes — channel-to-channel and system isolation are provided.
Can it be used in industrial environments with electrical noise?
Yes — engineered for robust operation in typical control cabinet conditions.
Does it support wireless data exchange with field devices?
Yes — facilitates secure communication between wireless sensors/actuators and the Series‑8 system.
Is the backplane hot-swappable?
Replacement or insertion should follow system maintenance procedures to ensure safe operation.
What are the module’s approximate dimensions and weight?
Dimensions: 260 × 140 × 45 mm (H × W × D), Weight: ~0.5 kg.
Can it be retrofitted into existing I/O racks?
Yes — compatible with existing Series‑8 racks for wireless integration without major modifications.
