Technical FAQs

1. What is the purpose of the IEMMU01?

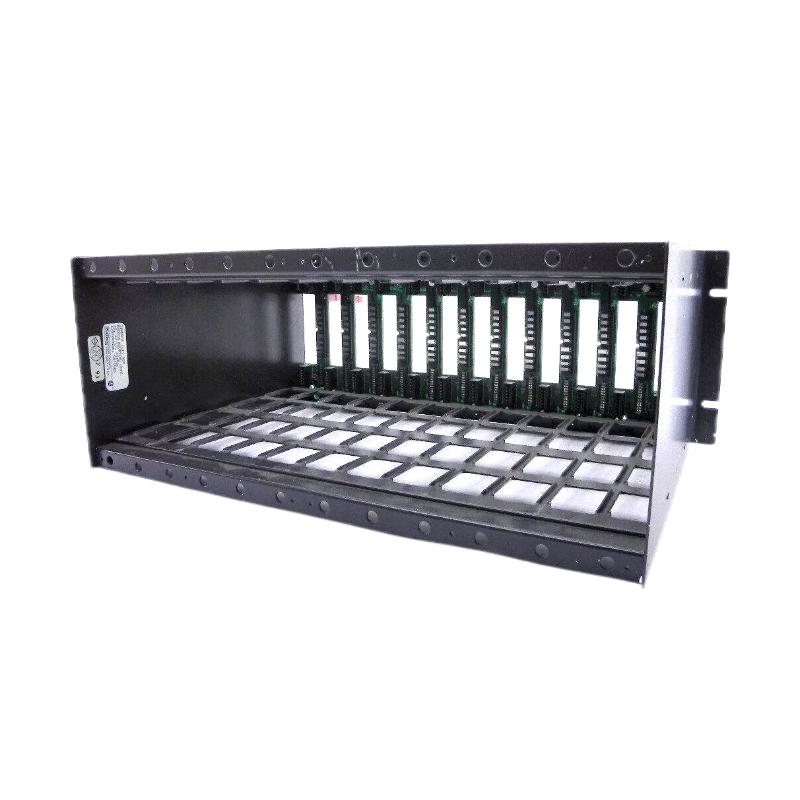

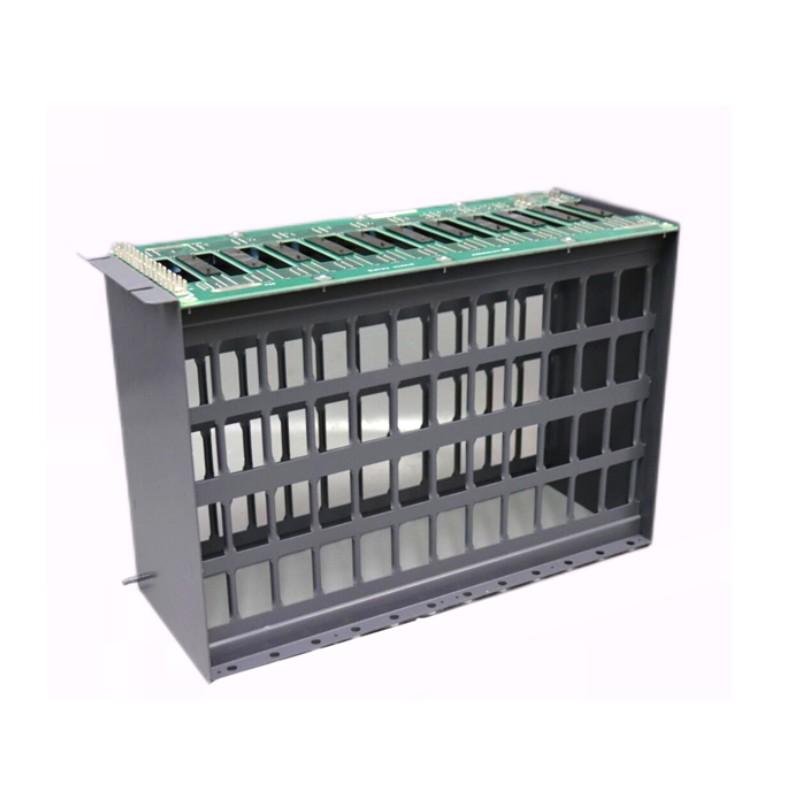

   It acts as the mounting chassis and backplane for ABB Bailey Infi 90 control, I/O, and communications modules.

2. How many modules can it accommodate?
   Up to 12 standard modules; if two large power modules are installed, total module count is typically 10.

3. What power inputs does it accept?
   Accepts AC or DC primary inputs (120/240 VAC or 24/48 VDC) depending on system design.

4. What regulated outputs does it provide to modules?
   Standard outputs include +5 VDC, ±15 VDC, and +24 VDC for compatible modules.

5. Where is this unit mounted?
   It is designed to mount within a standard 19‑inch (483 mm) control cabinet.

6. Can modules be hot‑swapped?
   Hot‑swapping depends on individual module support; typically, power is removed during insertion/removal unless system design allows live change.

7. Is it compatible with modern ABB control systems?
   It is primarily designed for use with ABB Bailey Infi 90; integration with newer systems may require adapters or conversion interfaces.

8. What environments is it rated for?
   Operating in industrial environments with temperatures from 0 °C to 70 °C and wide humidity tolerance.

9. Does it include backplane communications?

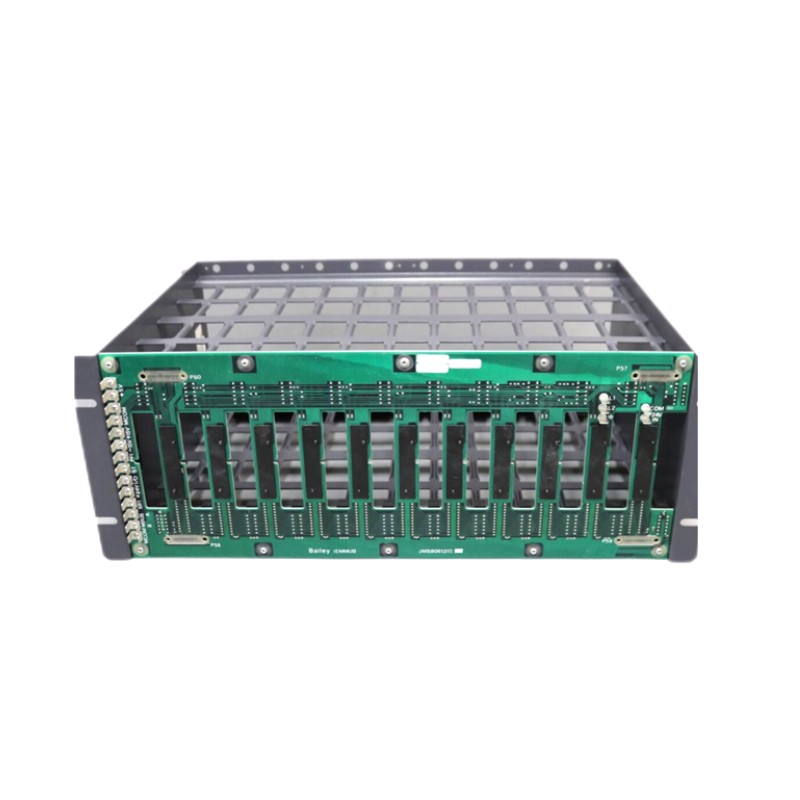

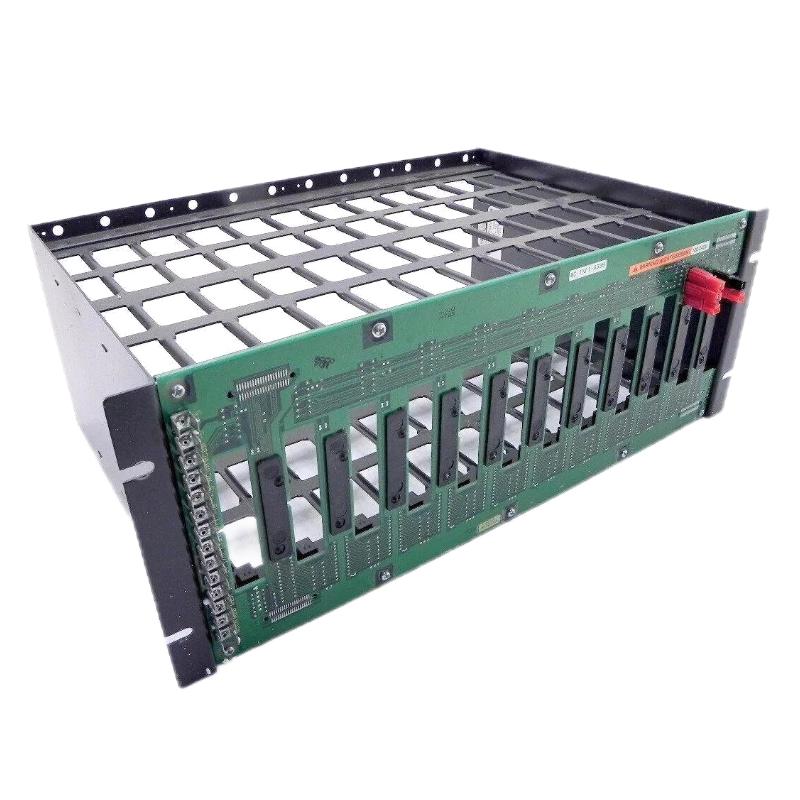

   Yes — the printed circuit backplane provides intermodule communication pathways and power distribution.

10. What maintenance is typically needed?
    Visual inspection and dust control are recommended; no routine mechanical servicing is generally required.
