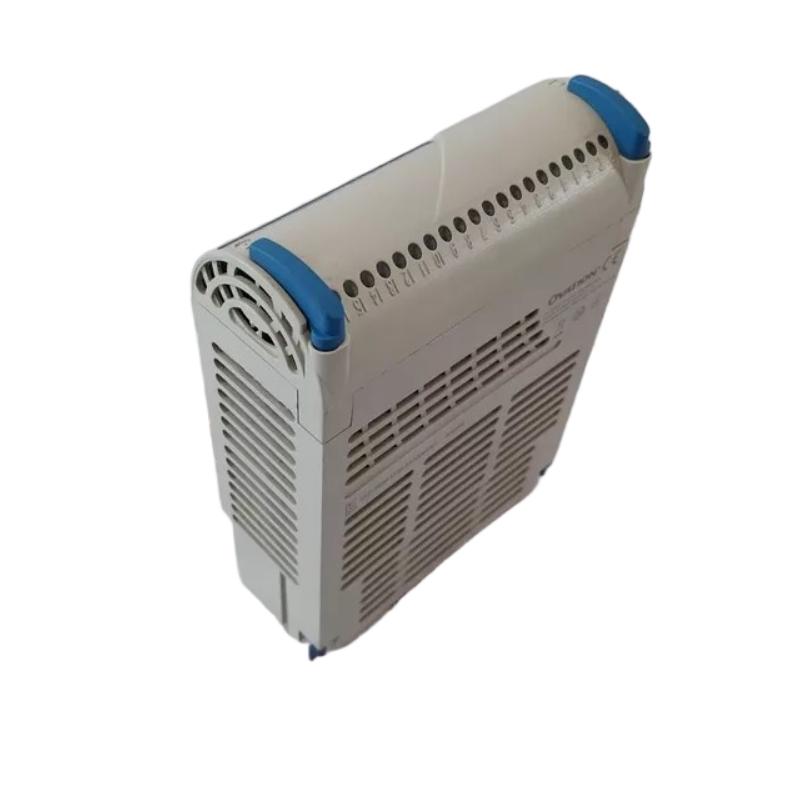

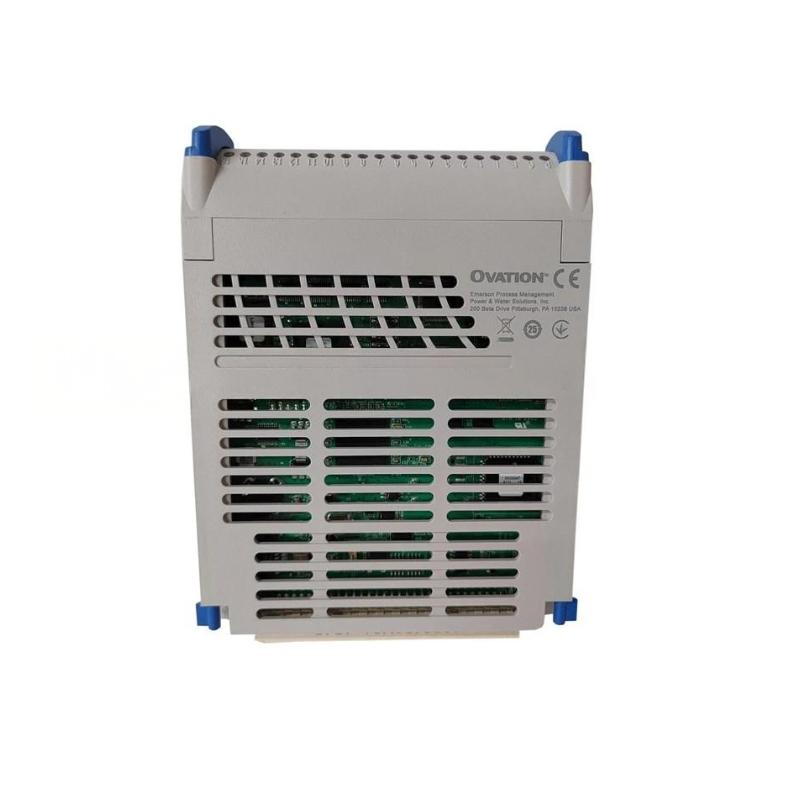

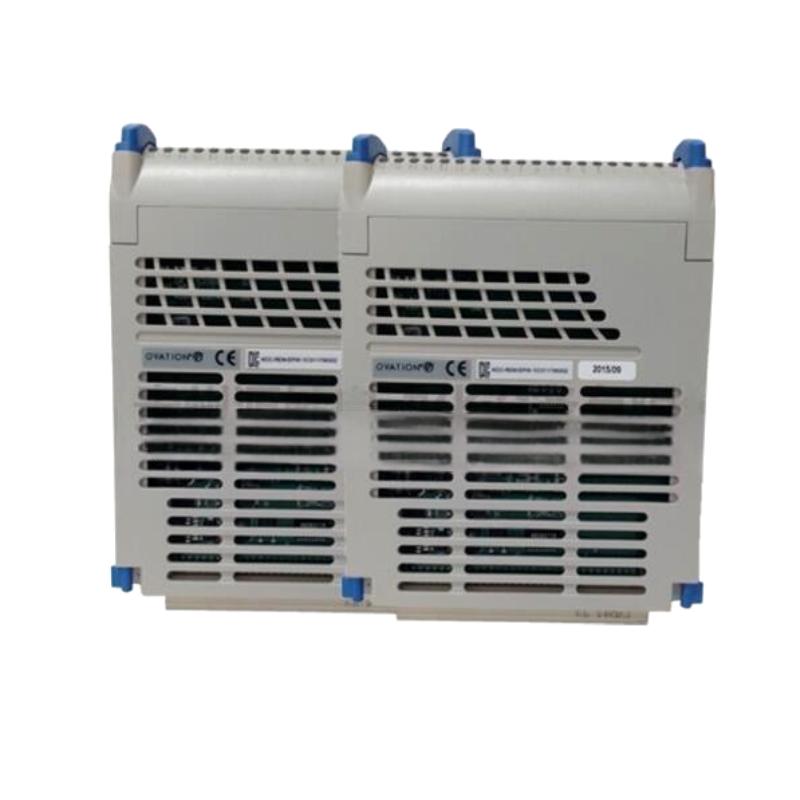

OVATION 1X00690H01 Single-Ended Digital Input

Brand:Ovation DCS
Item No.:1X00690H01
Product Origin:USA
Product Dimensions:130 × 25 × 150 mm
Product Weight:0.35 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact


Introduction

The OVATION 1X00690H01 Single-Ended Digital Input module is engineered to reliably interface discrete field signals with the OVATION control system. It converts on/off signals from switches, sensors, and contact closures into logic-level inputs for process monitoring and automation control. This module emphasizes signal integrity, noise immunity, and easy integration, making it ideal for industrial environments where precise digital signal acquisition is critical for system accuracy and operational stability.

Technical Specifications

SpecificationDetails
Model1X00690H01
Module TypeSingle-Ended Digital Input
Input Signal TypeDiscrete On/Off
Input Voltage Range24 V DC (typical)
Number of ChannelsMultiple discrete inputs
IsolationChannel-to-system isolation
Signal ConditioningFiltering and debouncing included
Dimensions130 × 25 × 150 mm (H x W x D)
Weight0.35 kg
MountingPanel or rack-mounted
Operating EnvironmentIndustrial control cabinets


Applications

  • Monitoring status of field switches, relays, and sensors

  • Integrating discrete signals into OVATION process control systems

  • Safety and permissive logic in industrial automation

  • Distributed control system input expansion

  • Industrial process monitoring and control loops


Advantages

  • Reliable Digital Signal Acquisition: Ensures accurate representation of field signals.

  • Noise Immunity: Integrated filtering and isolation prevent false triggering.

  • System Compatibility: Fully compatible with OVATION control architectures.

  • Compact Design: Small footprint allows efficient panel integration.

  • Ease of Installation: Straightforward wiring and mounting reduce commissioning time.

  • Maintenance-Friendly: Organized design simplifies troubleshooting.

  • Scalable Integration: Supports system expansion without architectural changes.

  • Stable Long-Term Operation: Provides predictable input behavior for process logic.

  • Reduced Wiring Errors: Clear channel designation minimizes installation mistakes.

  • Engineering Confidence: Reliable input processing enhances overall system performance.


Technical FAQs

  1. What type of signals does this module process?
    Discrete on/off signals from field devices such as switches and sensors.

  2. Is the module isolated from the system?
    Yes, it features channel-to-system isolation for protection and noise immunity.

  3. Can it be mounted in a panel or rack?
    Yes, both panel and rack mounting are supported.

  4. Does it support filtering and signal conditioning?
    Yes, it includes built-in filtering and debouncing to improve reliability.

  5. Is it compatible with OVATION systems?
    Yes, it is designed specifically for OVATION architectures.

  6. Can multiple modules be installed together?
    Yes, multiple modules can be used for expanded digital input capacity.

  7. Is it suitable for industrial environments?
    Yes, it is designed for control cabinet and process environments.

  8. Does it require special configuration software?
    No, basic channel wiring integrates directly into the control system.

  9. Can it be used in safety interlocks?
    Yes, it can be used for permissive or interlock logic.

  10. Who benefits most from this module?
    Engineers and technicians needing reliable digital signal acquisition for OVATION systems.
