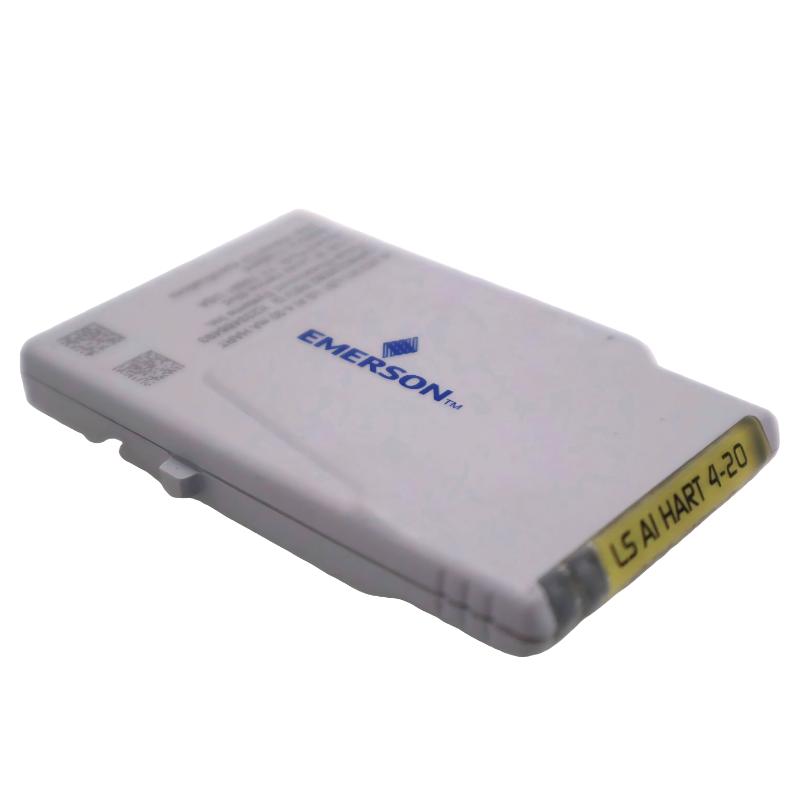

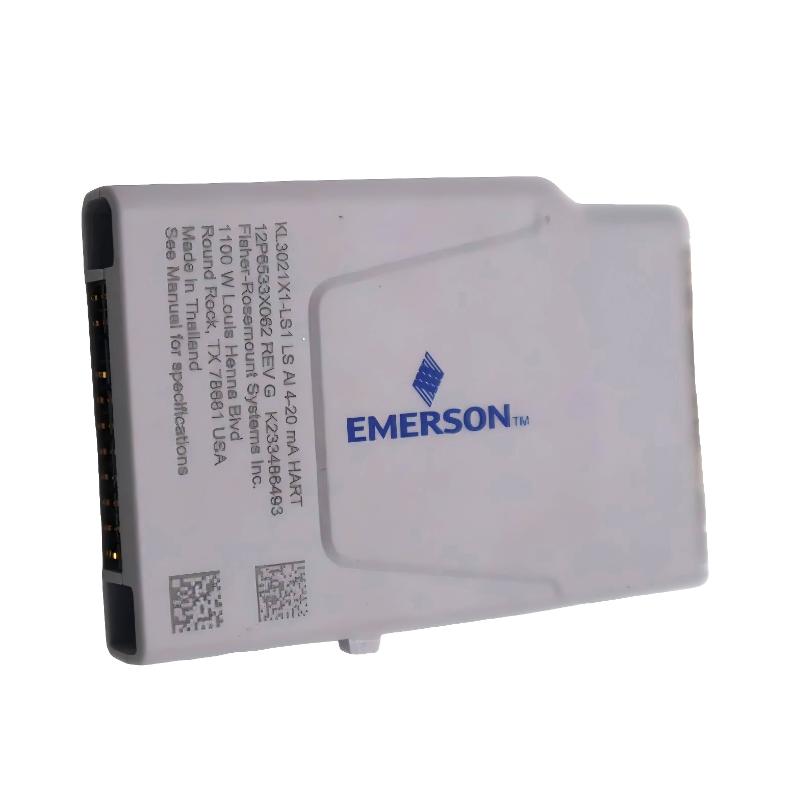

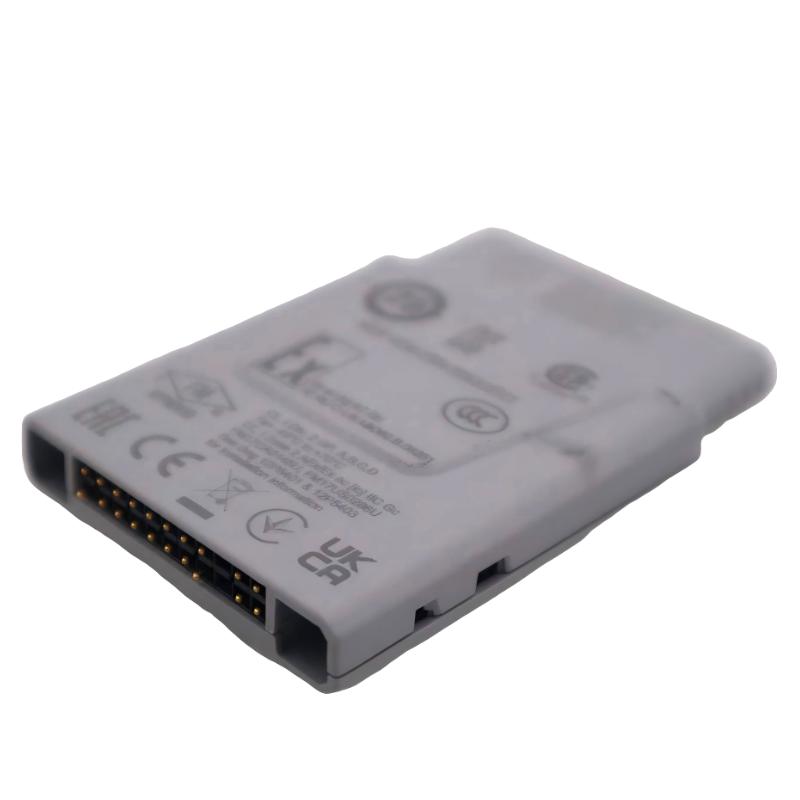

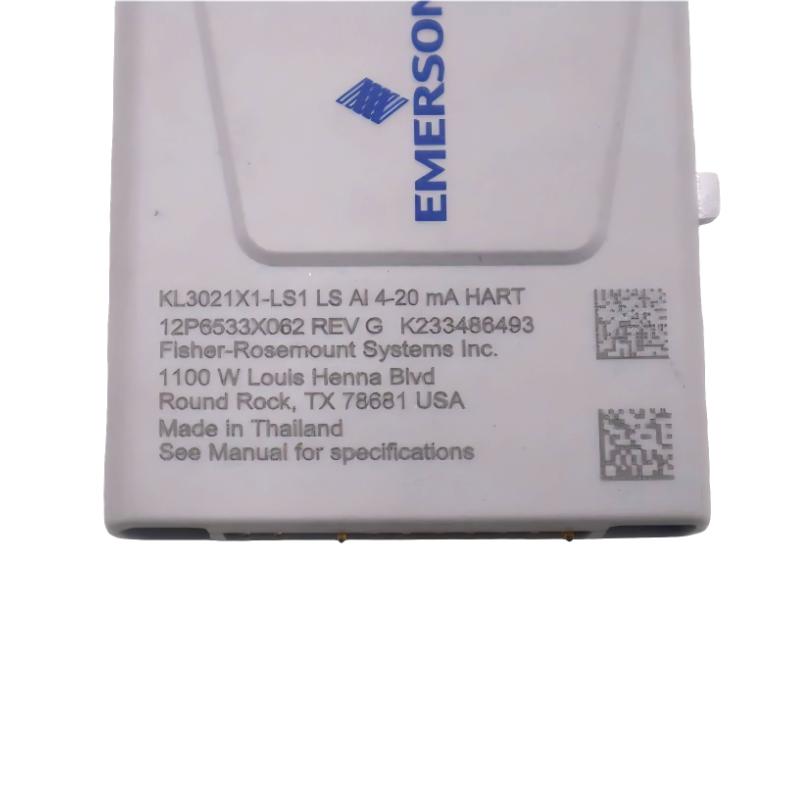

Emerson KL3002X1-LS1 CHARM Terminal Blocks

Name: Emerson KL3002X1-LS1 CHARM Terminal Blocks
Brand: Emerson Module
SKU: 3916
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Emerson Module
Item No.:KL3002X1-LS1
Product Origin:USA
Product Dimensions:150 x 100 x 50mm
Product Weight:1.2 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The Emerson KL3002X1-LS1 CHARM Terminal Blocks are designed to provide a flexible and highly organized interface between field wiring and control system I/O. Built around the CHARM (Characterization Module) concept, these terminal blocks allow late-stage I/O configuration while maintaining a clean and structured wiring approach. From an engineering standpoint, they simplify system design, reduce installation errors, and support scalable automation architectures where adaptability and long-term maintainability are key priorities.

Technical Specifications

Specification	Details
Model	KL3002X1-LS1
Module Type	CHARM Terminal Blocks
Primary Function	Field wiring termination and I/O interface
Supported I/O Concept	CHARM-based I/O architecture
Wiring Method	Screw or spring-clamp terminals
System Compatibility	Emerson CHARM I/O systems
Dimensions	150 × 100 × 50 mm (H x W x D)
Weight	1.2 kg
Mounting	Panel-mounted
Construction	Industrial-grade insulated materials
Operating Environment	Industrial control cabinets

Applications

Field wiring termination for CHARM I/O systems
Late-stage I/O assignment in process automation projects
Control cabinet wiring standardization
Large-scale distributed control systems
System expansions and modernization projects

Advantages

Flexible I/O Assignment: Supports late binding of I/O types without rewiring.
Clean Wiring Layout: Improves organization and reduces clutter in control panels.
Reduced Installation Errors: Clear terminal structure minimizes wiring mistakes.
Scalable Architecture: Easily supports system growth and reconfiguration.
Industrial Reliability: Built for long-term use in demanding environments.
Maintenance Efficiency: Simplifies troubleshooting and signal tracing.
System Compatibility: Designed specifically for Emerson CHARM architectures.
Improved Project Scheduling: Allows wiring to proceed before final I/O decisions.
Professional Panel Design: Enhances cabinet quality and consistency.
Long-Term Adaptability: Accommodates future system changes with minimal effort.

Technical FAQs

What is the purpose of CHARM terminal blocks?
They provide a flexible interface between field wiring and CHARM-based I/O systems.
What does “late-stage I/O configuration” mean?
I/O types can be assigned after wiring is completed.
Are these terminal blocks suitable for large systems?
Yes, they are commonly used in large distributed control systems.
Do they reduce commissioning time?
Yes, structured wiring and late binding simplify commissioning.
Are they compatible with standard Emerson CHARM modules?
Yes, they are designed for direct integration with CHARM architectures.
Do they require special tools for installation?
Standard panel wiring tools are sufficient.
Are they intended for permanent installation?
Yes, they are designed for long-term use in control cabinets.
Can they help with future system modifications?
Yes, their flexible design supports easy reconfiguration.
Do they improve maintenance workflows?
Yes, organized terminals make troubleshooting faster and clearer.
Who benefits most from using CHARM terminal blocks?
Engineers and technicians managing complex or evolving automation systems.
