Introduction

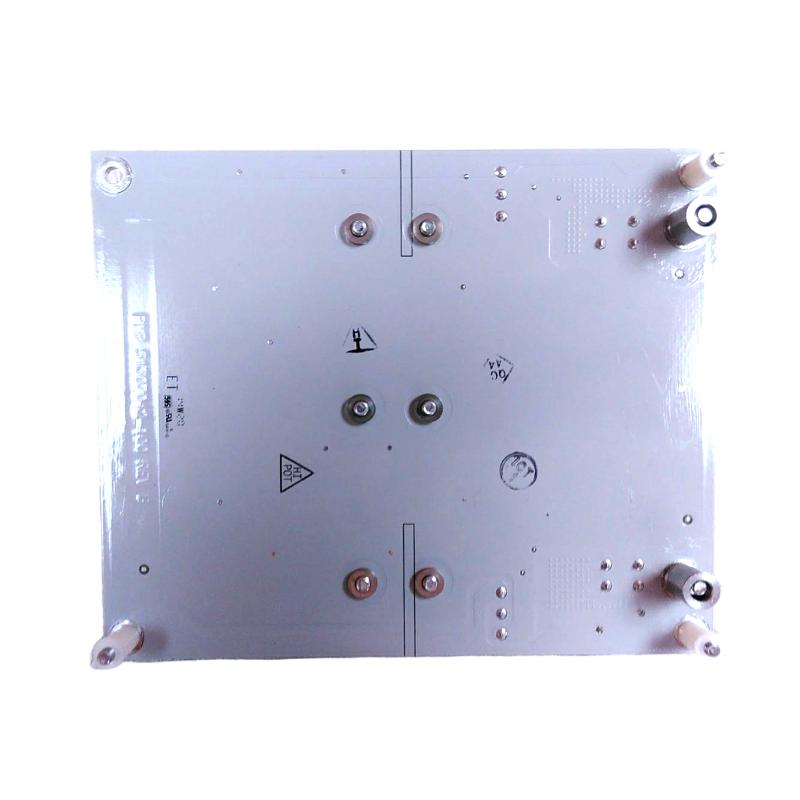

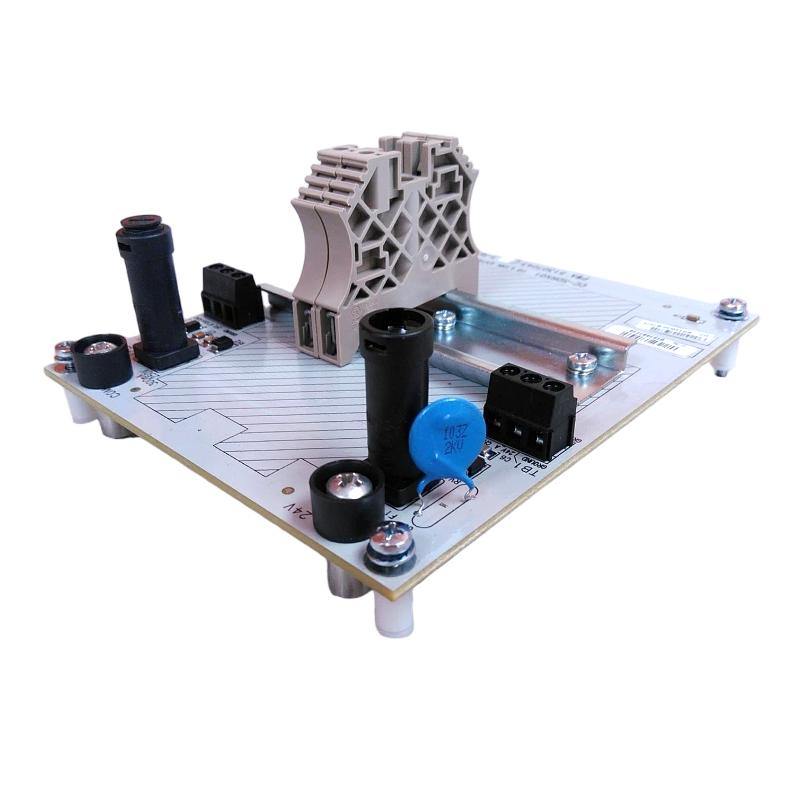

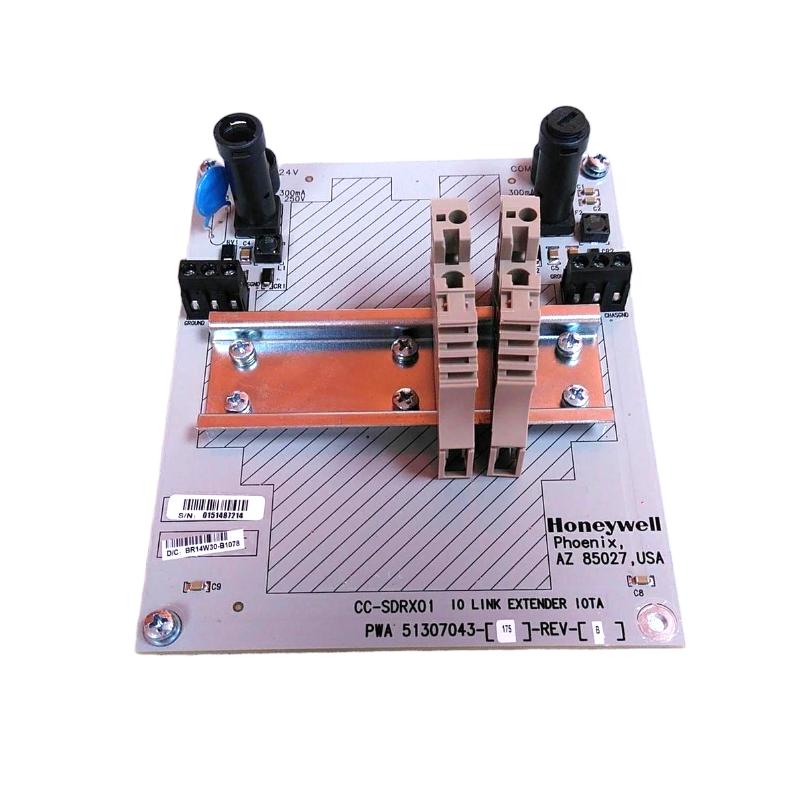

The Honeywell CC-SDRX01 51307043-175 Baseplate I/O Link Expander is an integral component designed to expand the I/O capabilities of Honeywell’s industrial control systems. As a baseplate I/O link expander, it enables seamless integration of additional I/O modules into the system, providing enhanced flexibility and scalability. This device is crucial for systems that require a high number of input/output connections, offering reliable data transmission between I/O devices and the central control unit. The CC-SDRX01 supports I/O Link communication for easy configuration and fast signal processing. It is especially effective in industries like process control, automated manufacturing, and power generation, where precise, scalable, and real-time data transfer is vital for maintaining efficient operations.
Technical Specifications
|
Specification |
Details |
|
Model Number |
CC-SDRX01 51307043-175 |
|
Dimensions (L × W × H) |
126 × 116 × 20 mm |
|
Weight |
0.45 kg |
|
Type |
Baseplate I/O Link Expander |
|
Application |
I/O Expansion, Control Systems |
|
Communication Protocol |
I/O Link Communication |
|
Power Supply |
24 V DC |
|
Operating Temperature |
-20°C to 60°C |
|
Humidity |
5% to 95% (Non-condensing) |
|
Compliance |
UL Listed, CE Certified |
Applications
The Honeywell CC-SDRX01 Baseplate I/O Link Expander is versatile and widely used in various industrial applications:
-
Industrial Automation: Expands I/O connectivity for automated systems, allowing integration of more sensors and actuators.
-
Process Control: Helps in increasing the I/O capacity of systems for monitoring and controlling complex processes.
-
Power Generation: Enables the addition of more I/O points for better monitoring and controlling of power generation equipment.
-
Oil & Gas: Suitable for remote monitoring and control, where expanding the I/O network is critical for safety and operational efficiency.
-
Manufacturing: Ideal for automated production systems, helping scale operations by adding new I/O devices without major modifications to existing infrastructure.
Advantages
The Honeywell CC-SDRX01 Baseplate I/O Link Expander offers several advantages for industrial control systems:
-
Flexible I/O Expansion: Easily expands the system’s I/O capabilities without the need for complex reconfiguration, allowing quick adaptation to changing process requirements.
-
Seamless Integration: Designed to integrate smoothly with Honeywell’s existing systems, ensuring minimal setup time and reducing operational disruption.
-
Reliable Communication: Provides high-performance I/O Link communication, ensuring stable and continuous data exchange across connected devices.
-
Compact Design: Despite offering extensive expansion capabilities, the expander maintains a compact form factor, making it ideal for systems with limited space.
-
Durability: Built to withstand demanding industrial environments, with operating temperatures ranging from -20°C to 60°C.
-
Energy Efficiency: Operates on a 24 V DC power supply, providing reliable performance with minimal energy consumption.
