Introduction

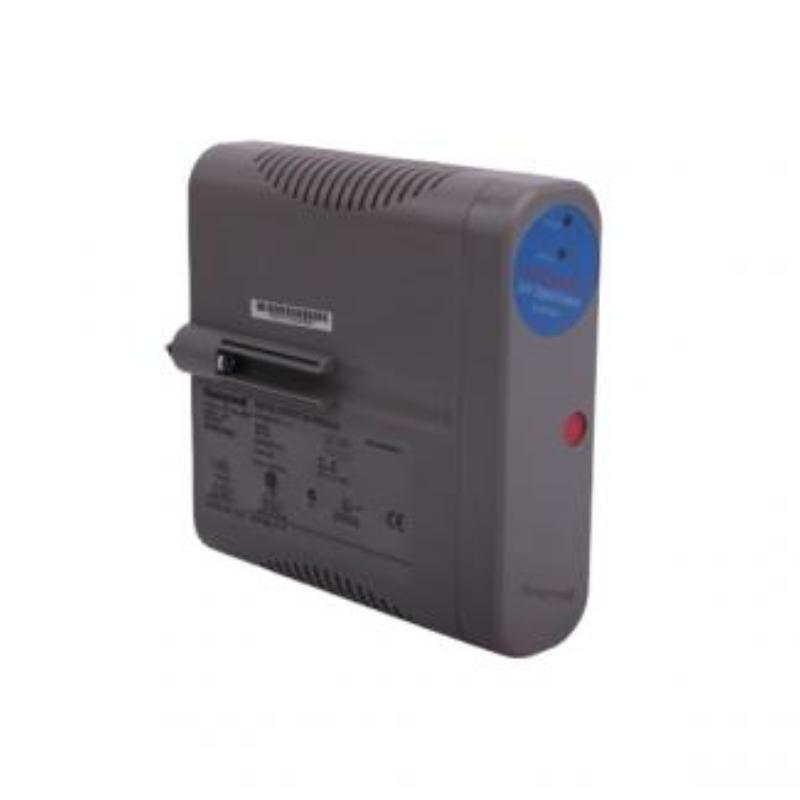

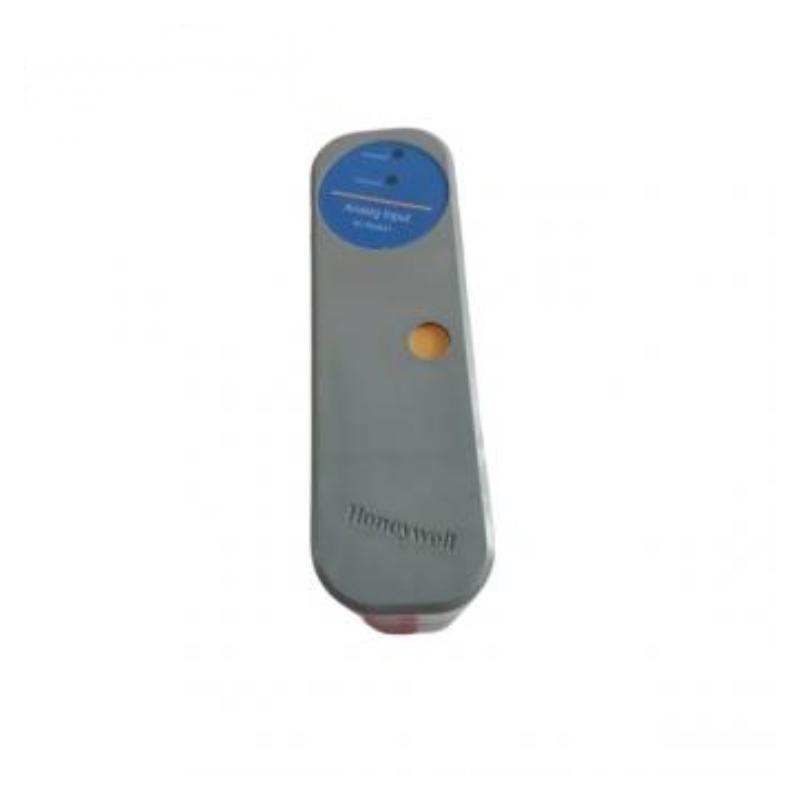

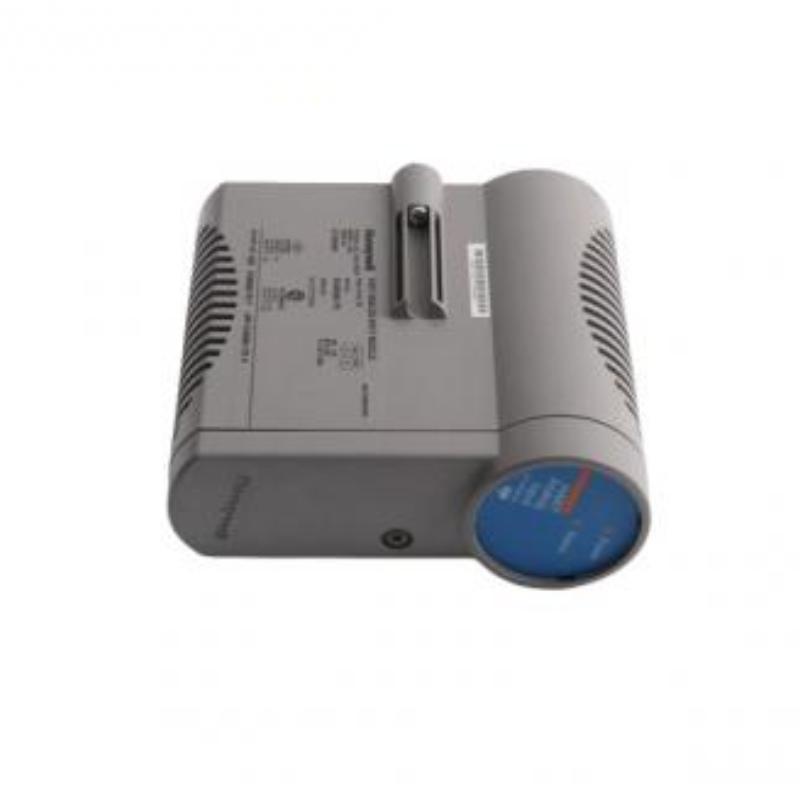

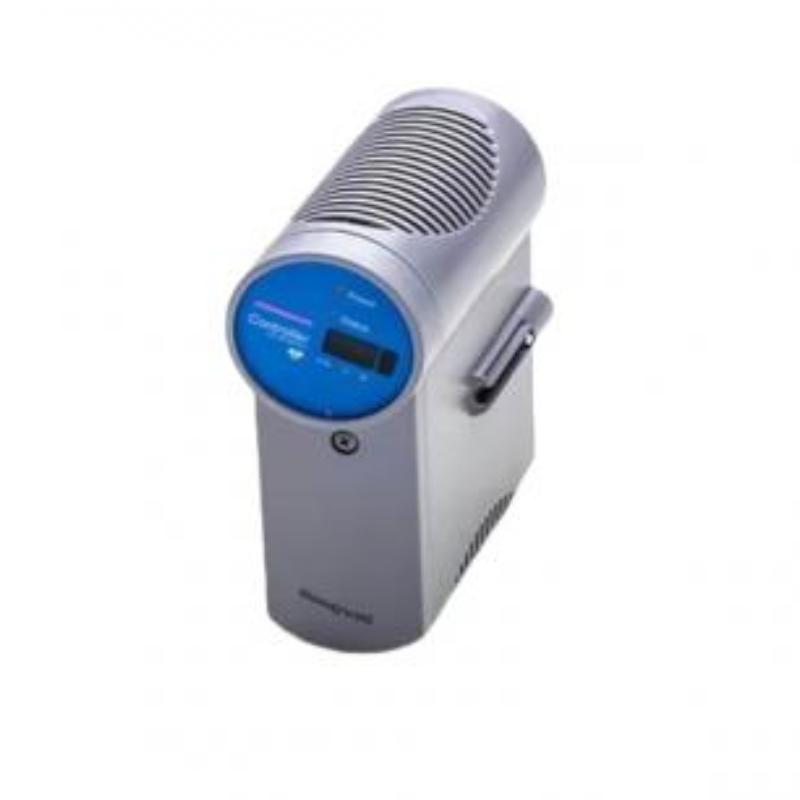

The Honeywell 8C‑PAZMA1 serves as a dedicated low‑level analog input module within Honeywell’s Series‑8 I/O ecosystem, designed to interface directly with temperature sensors such as RTDs (Resistance Temperature Detectors) and thermocouples (TC). Its role is to convert low‑level analog signals — typically millivolt thermocouple outputs or low-resistance RTD signals — into accurate digital measurements, delivering them reliably to the control system for monitoring, logging, or control action. This module is optimized for high channel density, signal integrity, and stable performance under the demanding conditions common in industrial process plants.
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Low‑Level Analog Input (RTD / Thermocouple) |
| Sensor Compatibility | RTD (2‑, 3‑, or 4‑wire), Thermocouple (various types) |
| Input Channels | Up to 16 channels, fully isolated (channel‑to‑channel, channel‑to‑common, channel‑to-shield) |
| Input Signal Range (TC) | –20 to +100 mV (nominal thermocouple input range) |
| Input Signal Range (RTD) | Low‑level resistance / millivolt range suitable for RTD bridge or direct RTD excitation circuits |
| Excitation / Sensor Drive | Internal excitation current for RTD inputs (standard RTD drive) |
| Analog-to-Digital Resolution | 16-bit A/D conversion for high measurement precision |
| Noise / Isolation Performance | High common-mode and normal-mode rejection, channel isolation, surge protection for reliability in industrial environments |
| Input Scan / Update Rate | 1-second full‑rack update (all channels) — suitable for temperature loops / monitoring |
| Power Supply | Standard Series-8 rack 24 V DC supply |
| Mounting | Rack-based insertion (Series‑8 / C300 I/O chassis) |
| Estimated Module Size | ≈ 260 × 130 × 35 mm (H × W × D) |
| Estimated Module Weight | ≈ 0.45 kg |
