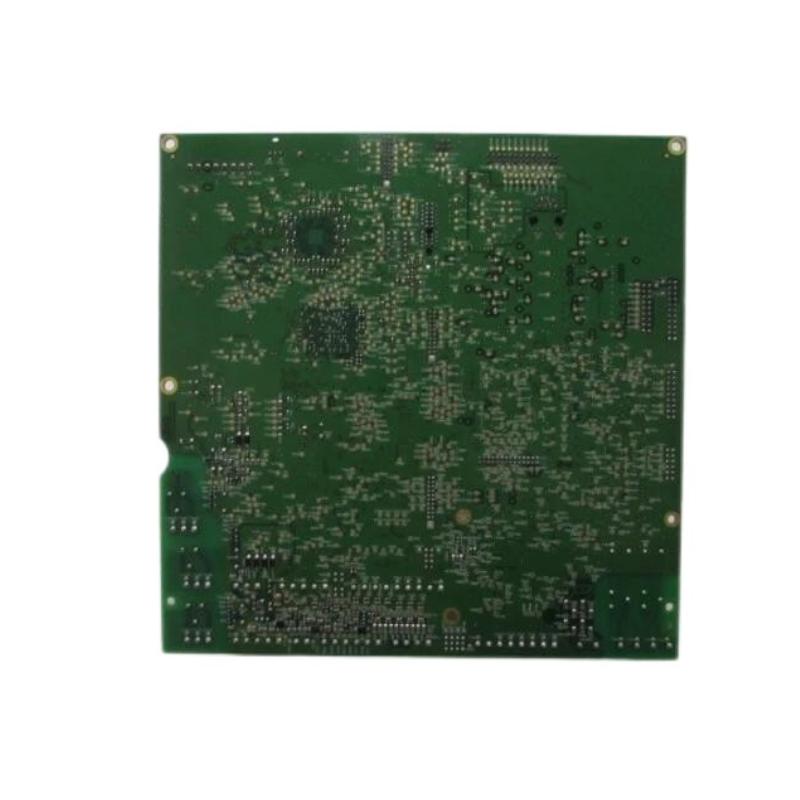

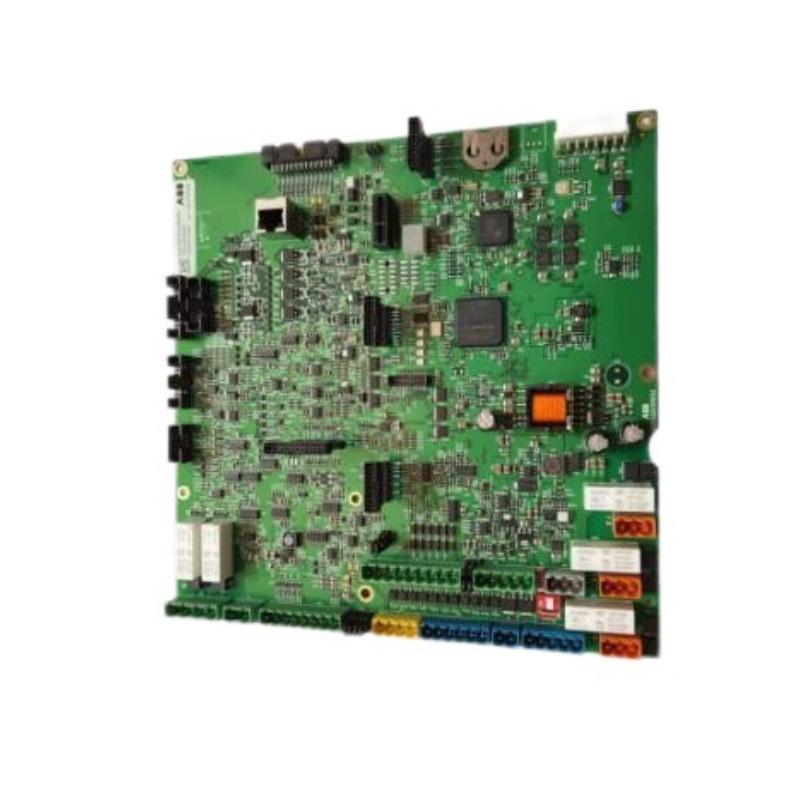

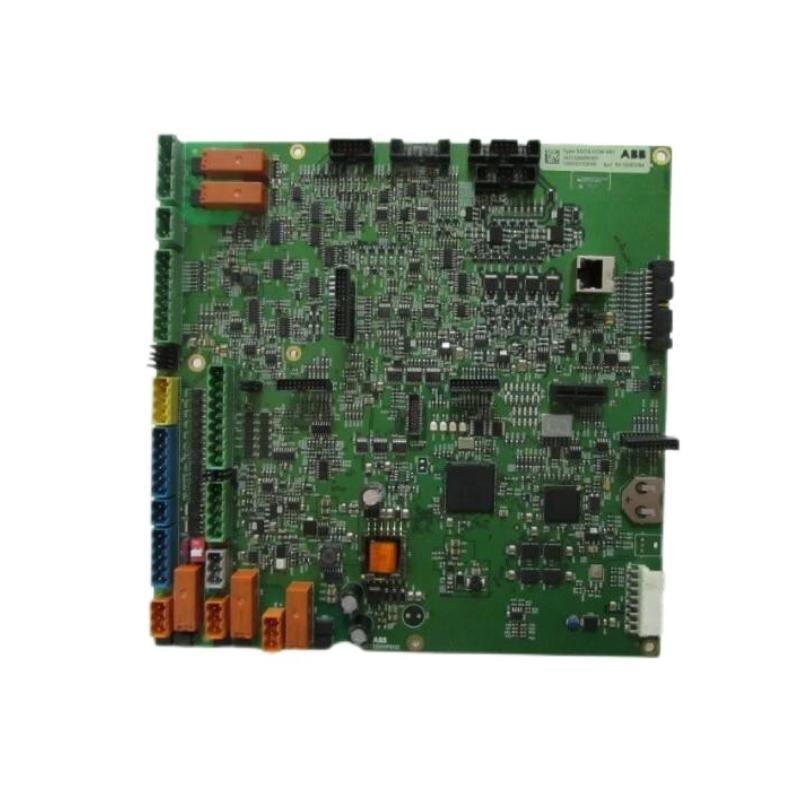

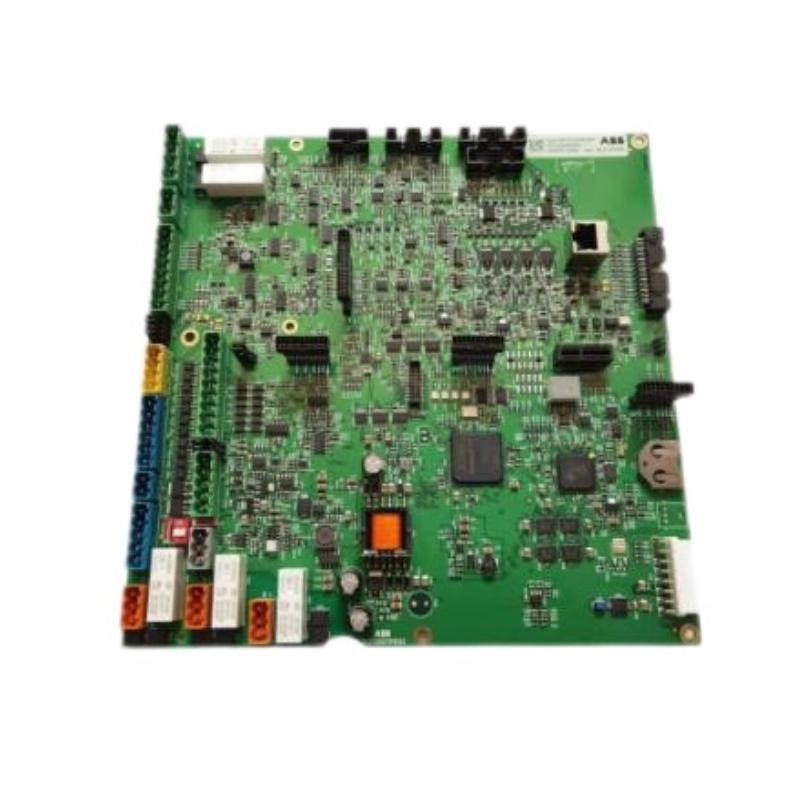

Name: ABB SDCS-CON-H01 3ADT320000R1501 Control Circuit Board Main Board
Brand: ABB PLC
SKU: 3866
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:SDCS-CON-H01 3ADT320000R1501
Product Origin:Sweden
Product Dimensions:200 mm × 150 mm × 40 mm
Product Weight:0.75kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The ABB SDCS-CON-H01 3ADT320000R1501 Control Circuit Board Main Board is a precision-engineered component designed for high-reliability industrial automation systems. Crafted to deliver consistent performance under demanding conditions, this main board provides seamless coordination of control signals, ensuring your drives and automation systems operate efficiently. Built with ABB’s hallmark durability and advanced circuitry, it is an ideal choice for system upgrades, replacements, or maintenance of high-performance drives.

Technical Specifications

Feature	Specification
Model Number	SDCS-CON-H01 3ADT320000R1501
Module Type	Control Circuit Board / Main Board
Input Voltage	24 VDC nominal
Control Signal Type	Digital and Analog Input/Output
Operating Temperature	0°C to 55°C
Storage Temperature	-40°C to 85°C
Dimensions (HxWxD)	200 mm × 150 mm × 40 mm
Weight	0.75 kg
Mounting Type	DIN rail or screw mounting
Certification	CE, UL, RoHS

Applications

ABB AC and DC drive systems
Industrial automation control panels
Motor control centers (MCC)
High-speed manufacturing machinery
Energy management and distribution systems

This main board excels where precise control and fast response times are critical, making it suitable for environments where downtime is costly and system reliability is paramount.

Advantages

Ensures precise signal coordination for advanced drive systems
Compatible with a wide range of ABB drive modules
Durable design withstands high temperature and vibration
Compact footprint simplifies installation and retrofitting
Certified to international safety and compliance standards

Technical FAQs

Which ABB drive systems is this board compatible with?
Compatible with SDCS and ACS series drives requiring a CON-H01 main board.
Can it handle both digital and analog signals?
Yes, it supports mixed input/output control signals.
What is the nominal input voltage?
24 VDC.
Does it require specific mounting hardware?
It supports standard DIN rail or screw mounting.
What is the maximum operating temperature?
55°C.
Is the board RoHS compliant?
Yes, fully compliant with RoHS standards.
Can this board be used as a direct replacement for older ABB main boards?
Yes, if the system originally used the SDCS-CON-H01 module.
What is the weight and size of the board?
Dimensions: 200 mm × 150 mm × 40 mm; Weight: 0.75 kg.
Are firmware updates needed?
Typically, the board works with pre-installed firmware; firmware may be updated via ABB service tools if required.
What certifications does the board hold?
CE, UL, and RoHS certified.
