Introduction

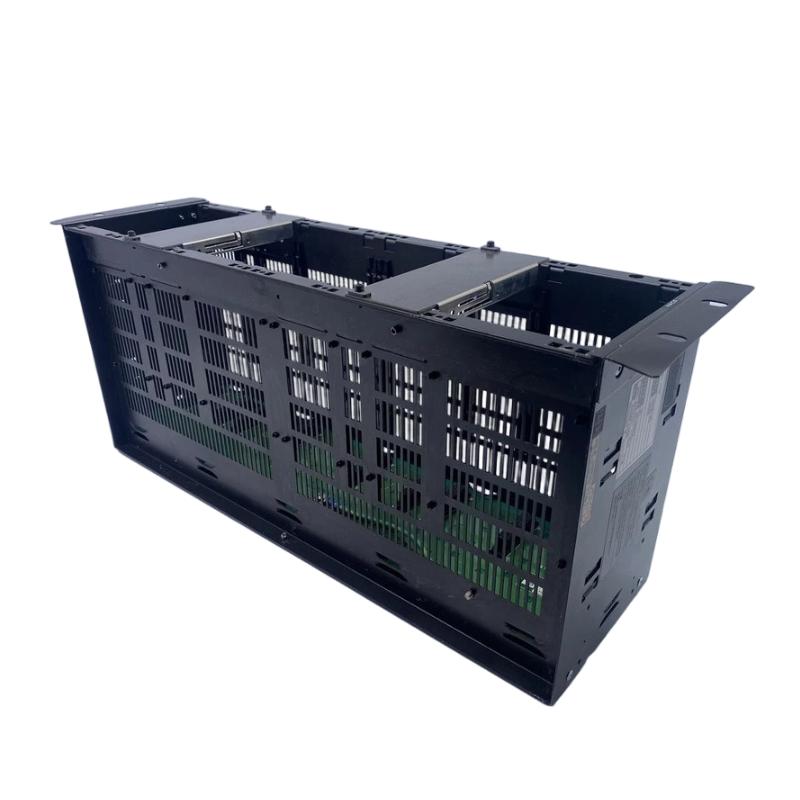

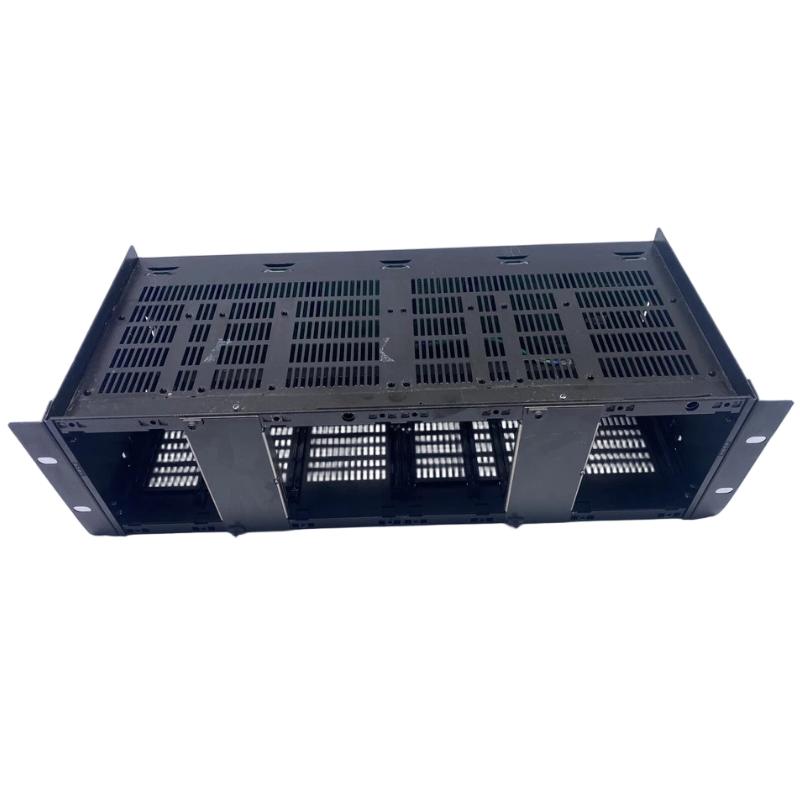

The YNT511D-V42 is a bus repeater module from Yokogawa, designed to support robust communication across distributed control systems even over long distances or in electrically noisy environments. It serves as a signal repeater and optionally supports optical-link conversion in Yokogawa’s bus network architecture. This module is often used when system designers need to extend network reach, connect remote I/O racks, or maintain communication integrity across large industrial plants.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | YNT511D-V42 |
| Module Type | Bus / Optical Bus Repeater Module |
| Compatible Systems | Yokogawa DCS architectures (e.g., V-net, RIO, CENTUM series) |
| Core Function | Signal regeneration and bus extension; electrical-to-optical or optical-to-electrical conversion where applicable |
| Bus Types Supported | Yokogawa proprietary bus standards (electrical or optical) |
| Typical Supported Nodes per Segment | Up to 32 devices per repeater-extended bus section (system configuration dependent) |
| Maximum Link Distance (Optical Segment) | Up to 4 km between repeater pairs under proper fiber-optic configuration |
| Mounting Style | Rack-mount, compatible with standard industrial control racks |
| Estimated Dimensions | ≈ 328 × 130 × 258 mm (H × W × D) |
| Typical Weight | ≈ 5.3 kg |
| Power Requirements | Standard control-system rack power supply (AC mains or system-specified supply) |
| Environmental Suitability | Industrial ambient conditions; designed for EMI/noise resilience and long-term reliability |
