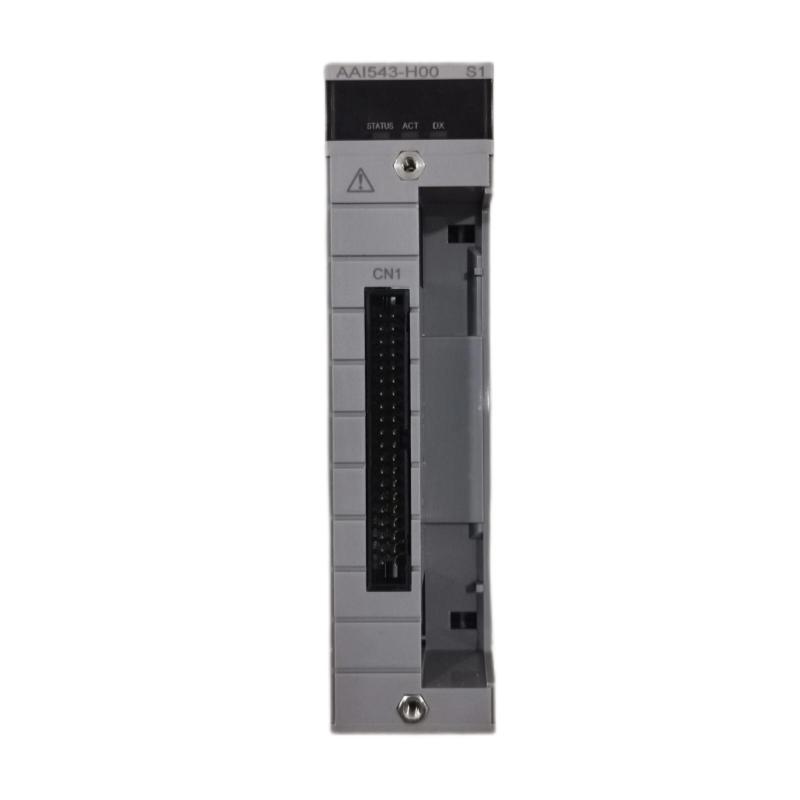

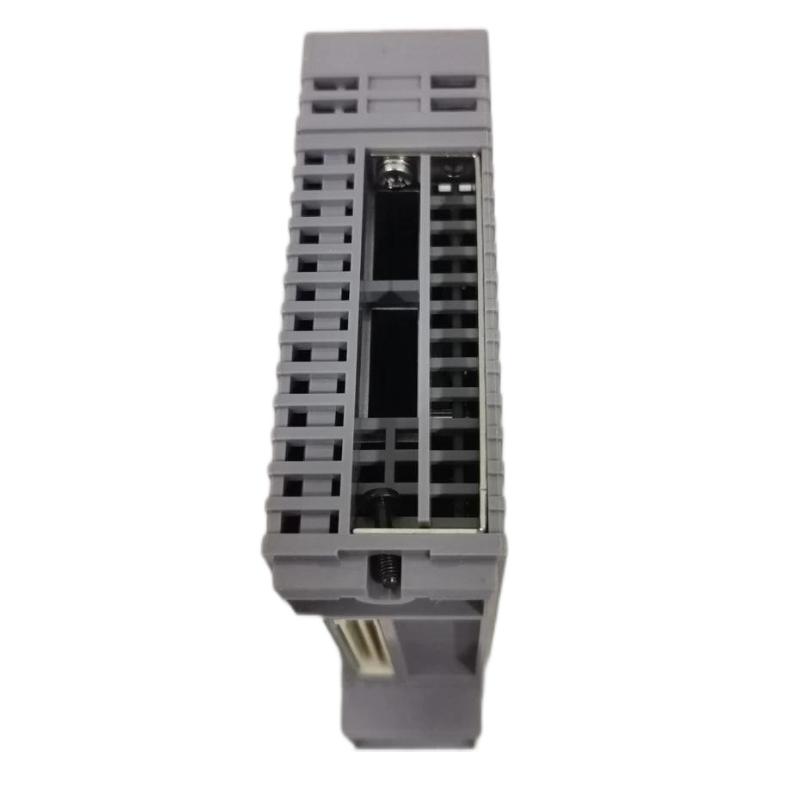

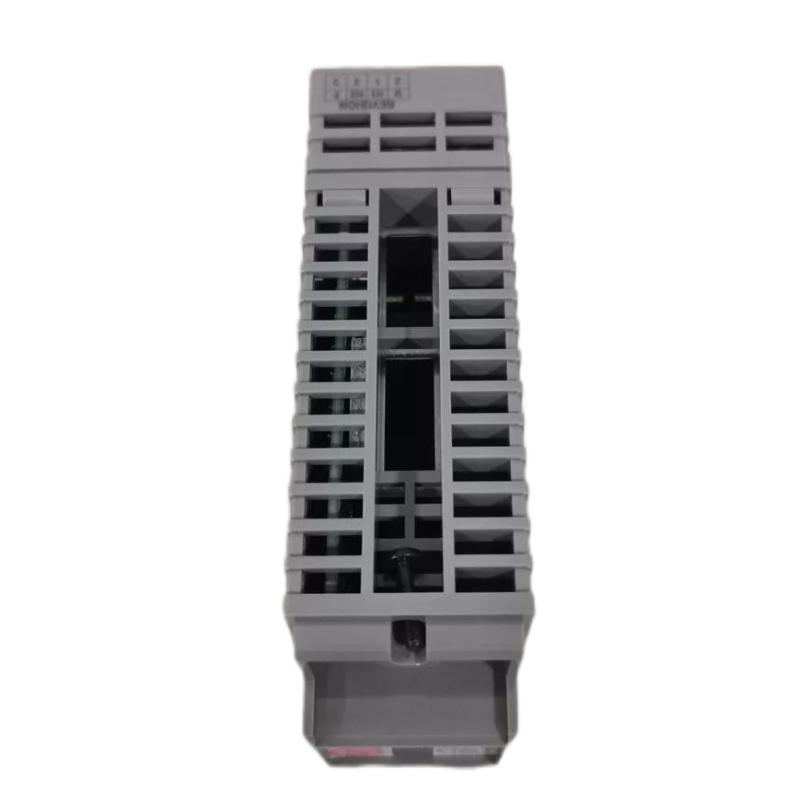

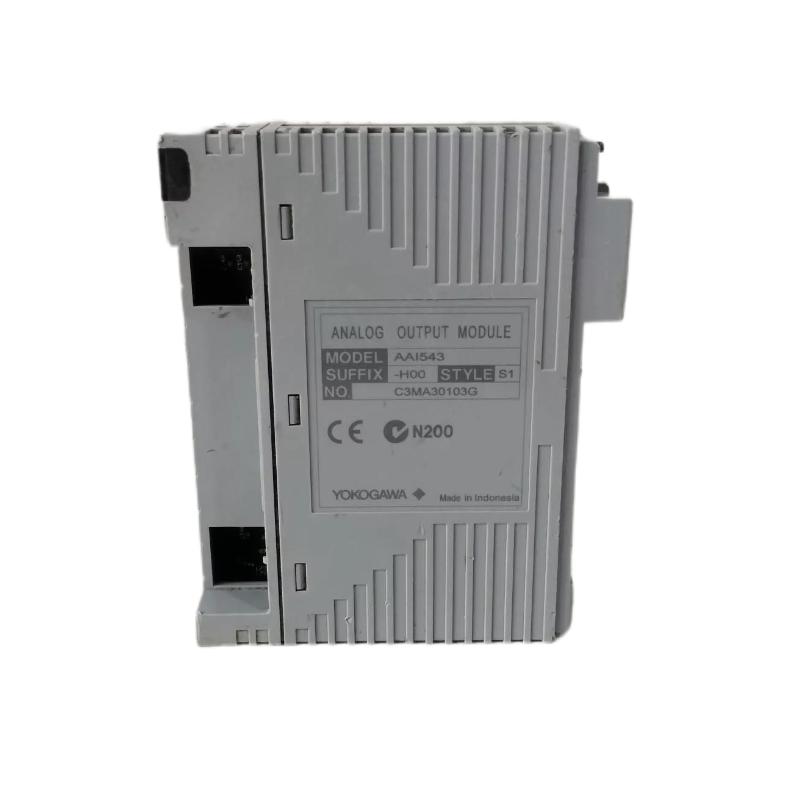

Yokogawa AAI543-H00 S1 Analog Output Module

Name: Yokogawa AAI543-H00 S1 Analog Output Module
Brand: Yokogawa Electric
SKU: 376
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Yokogawa Electric
Item No.:AAI543-H00 S1
Product Origin:Japan
Product Dimensions:130 mm × 25 mm × 180 mm
Product Weight:0.35KG
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction — Smart HART-Enabled Analog Output

The Yokogawa AAI543-H00 S1 Analog Output Module is a high-performance HART-enabled solution designed for modern distributed control systems. With 16 isolated channels delivering precise 4–20 mA output, this module ensures accurate control of valves, actuators, and field devices. The “S1” variant features enhanced configuration and diagnostics support, making it ideal for mission-critical industrial environments where both reliability and smart instrumentation capabilities are required.

Technical Specifications — Performance & Physical Profile

Specification	Description
Module Type	16-channel Isolated Analog Output Module (HART-enabled, S1 variant)
Output Signal	4–20 mA DC per channel
Number of Channels	16 isolated outputs
Load Resistance	0–750 Ω per channel
Open Circuit Detection	< 0.65 mA
Accuracy	±48 µA (~0.1% of span)
Update Rate	~10 ms per channel
Isolation Voltage	1500 V AC (output-to-system)
Power Supply	24 V DC nominal
Operating Temperature	–25°C to +75°C
Dimensions	130 mm × 25 mm × 180 mm
Weight	~0.35 kg
Communication Protocol	HART (two-way digital communication over analog loops)

Applications — Where the AAI543-H00 S1 Excels

Precise control of valves, pumps, and actuators in chemical, petrochemical, and power plants
Driving analog instrumentation such as meters and indicators with reliable 4–20 mA signals
Implementing redundant analog output configurations for high-availability systems
Leveraging HART communication for remote diagnostics, parameter adjustments, and predictive maintenance
Upgrading legacy DCS systems with modern smart instrumentation capabilities
Maintaining accurate and stable output in environments with high electrical noise

Advantages — Key Benefits

HART-enabled outputs allow remote diagnostics and two-way communication with smart field devices
High channel density with 16 isolated outputs reduces panel space and wiring complexity
Reliable isolation protects outputs from electrical noise and system surges
Fast response (~10 ms update rate) ensures real-time process control
Wide operating range suitable for harsh industrial environments
Flexible load support up to 750 Ω accommodates a wide variety of actuators and instruments
Enhanced S1 variant provides improved configuration and monitoring features

Technical FAQs — 10 Common Questions

What type of signal does this module output?
- 4–20 mA DC per channel with HART communication capability.
How many channels are available?
- 16 isolated channels.
What is the maximum load resistance per channel?
- Up to 750 Ω.
Does it detect open circuits?
- Yes, currents below 0.65 mA are flagged.
What is the update rate per channel?
- Approximately 10 ms.
Can it be used in redundant output configurations?
- Yes, redundancy is supported for critical applications.
What is the output accuracy?
- ±48 µA (~0.1% of span).
What power supply is required?
- 24 V DC nominal.
Is it suitable for harsh industrial conditions?
- Yes, operating range –25°C to +75°C.
What additional features does the S1 variant provide?
- Enhanced configuration, monitoring, and diagnostic support compared to standard H00 modules.
