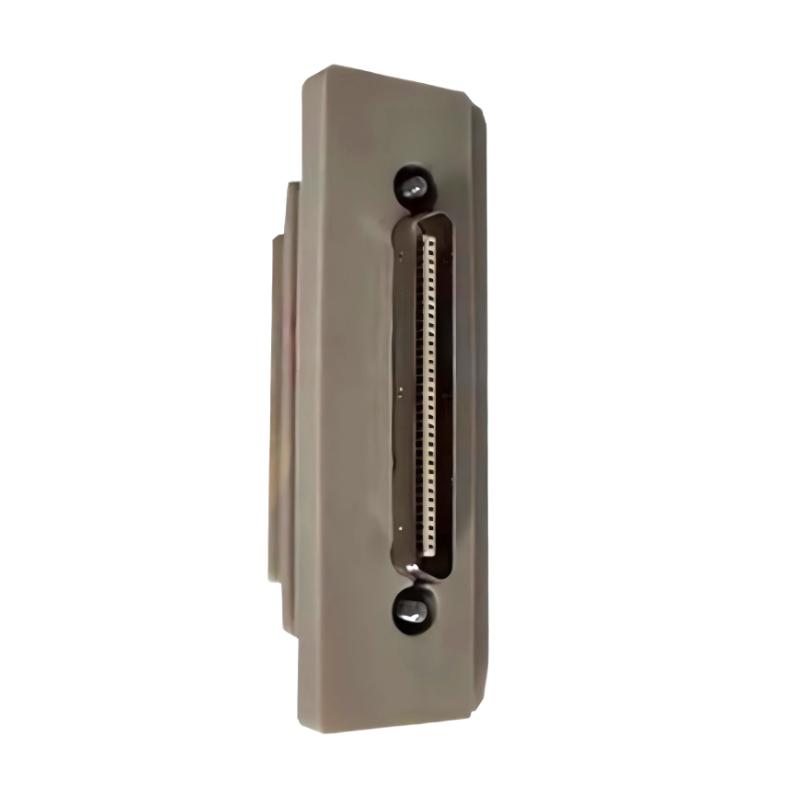

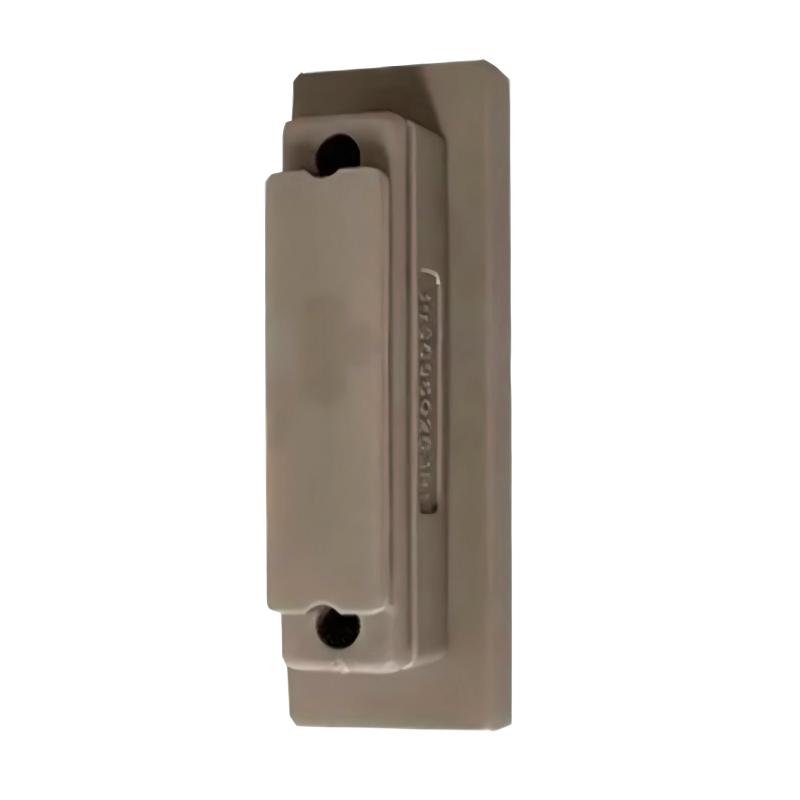

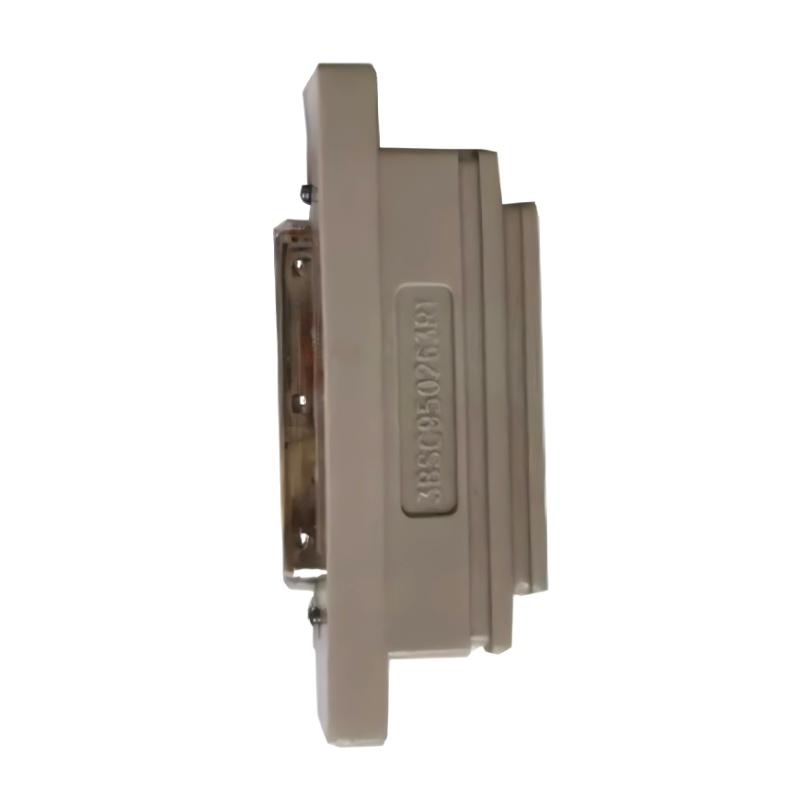

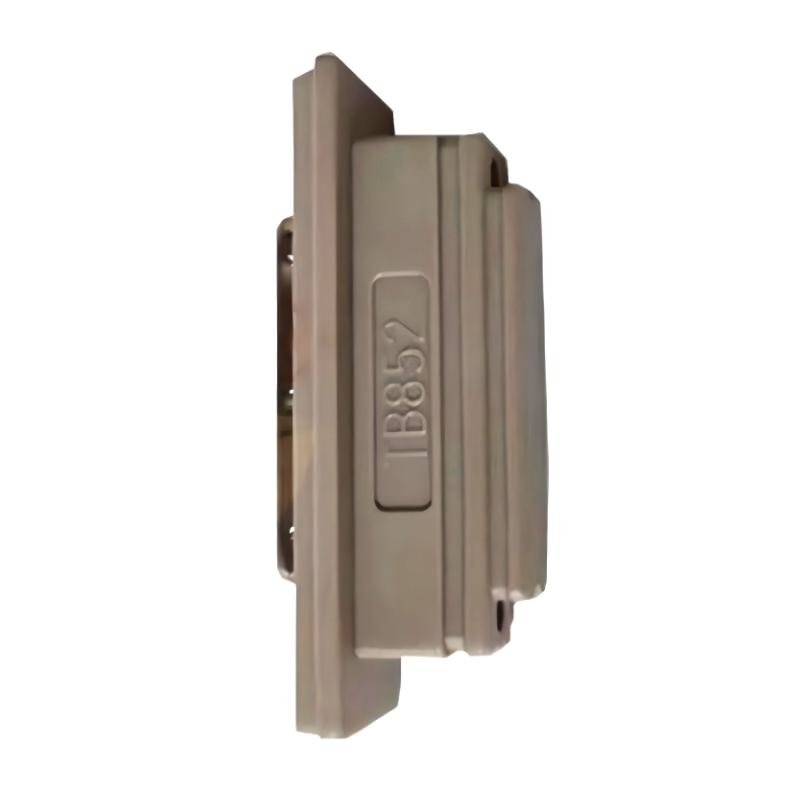

ABB TB852 3BSC950263R1 RCU Link Terminator Module

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

ABB TB852 3BSC950263R1 RCU Link Terminator Module

Name: ABB TB852 3BSC950263R1 RCU Link Terminator Module
Brand: ABB PLC
SKU: 3750
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:TB852 3BSC950263R1
Product Origin:Sweden
Product Dimensions:57 x 20 x 23 mm
Product Weight:0.02 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The ABB TB852 RCU Link Terminator Module is a dedicated termination component designed to stabilize communication on RCU link connections within ABB control architectures. Its primary role is to correctly terminate the physical link, ensuring impedance matching and preventing signal reflections that could degrade communication reliability.

From a system commissioning and diagnostics perspective, the TB852 is a small but decisive element. Correct termination at the RCU link level is essential for maintaining deterministic communication behavior, especially in systems where controller redundancy and synchronization are involved.

Technical Specifications

Parameter	Description
Product Type	RCU Link Terminator Module
Model	TB852 (3BSC950263R1)
Primary Function	Electrical termination of RCU link communication
Mechanical Dimensions	57 × 20 × 23 mm (H x W x D)
Weight	0.02 kg
Mounting Method	Direct connection to RCU link interface
Electrical Role	Impedance matching and reflection suppression
System Compatibility	ABB control systems using RCU link communication

Applications

Redundant controller systems using RCU link communication
High-availability control architectures with synchronized RCUs
End-of-line termination in RCU communication links
System commissioning to ensure stable controller interconnection
Maintenance or upgrade projects involving RCU link modifications

Advantages

Ensures stable and reflection-free RCU link communication
Supports reliable synchronization in redundant controller systems
Prevents intermittent link errors and communication dropouts
Passive design with high long-term reliability
No configuration or software setup required
Seamlessly integrates into ABB RCU-based architectures
Essential for maintaining deterministic system behavior
Simple installation with immediate operational effect

Technical FAQs

What is the main function of the TB852?
It electrically terminates an RCU communication link to stabilize signal transmission.
Is the TB852 an active communication module?
No, it is a passive terminator with no signal processing capability.
Why is termination important for RCU links?
It prevents signal reflections that can cause communication instability.
Where should the TB852 be installed?
At the end of an RCU link segment.
Can the system operate without an RCU terminator?
Operation may be unstable or unreliable without proper termination.
Does the TB852 require configuration?
No, it operates immediately upon installation.
Is it only required during commissioning?
No, it must remain installed during normal system operation.
Can it be reused if the system is reconfigured?
Yes, provided the link topology still requires termination.
Does it improve overall system reliability?
Yes, by ensuring clean and predictable physical-layer communication.
What is the main benefit for control engineers?
Stable and deterministic RCU link communication that supports reliable system operation.
