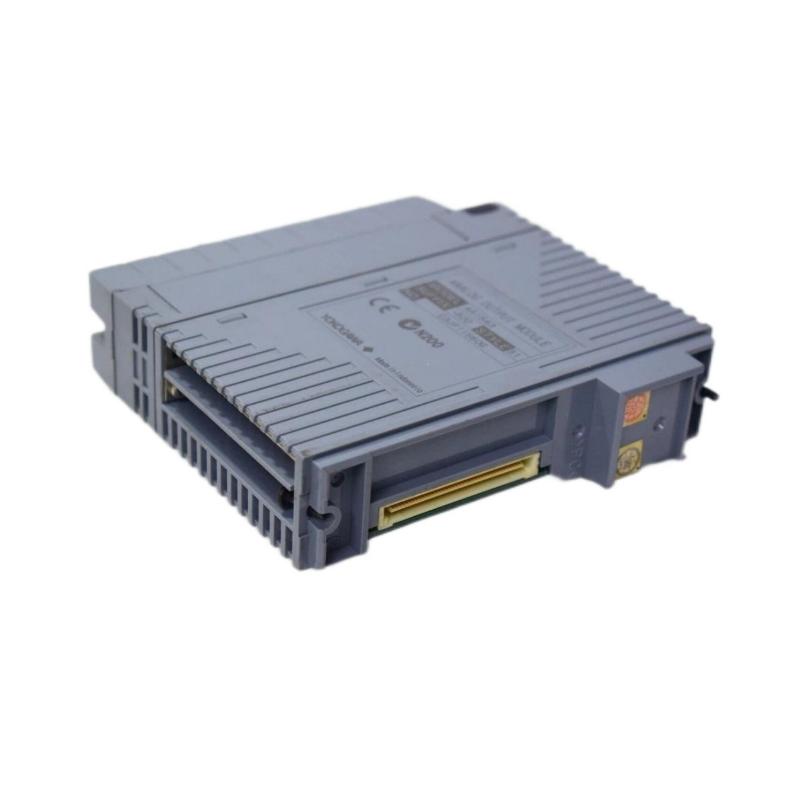

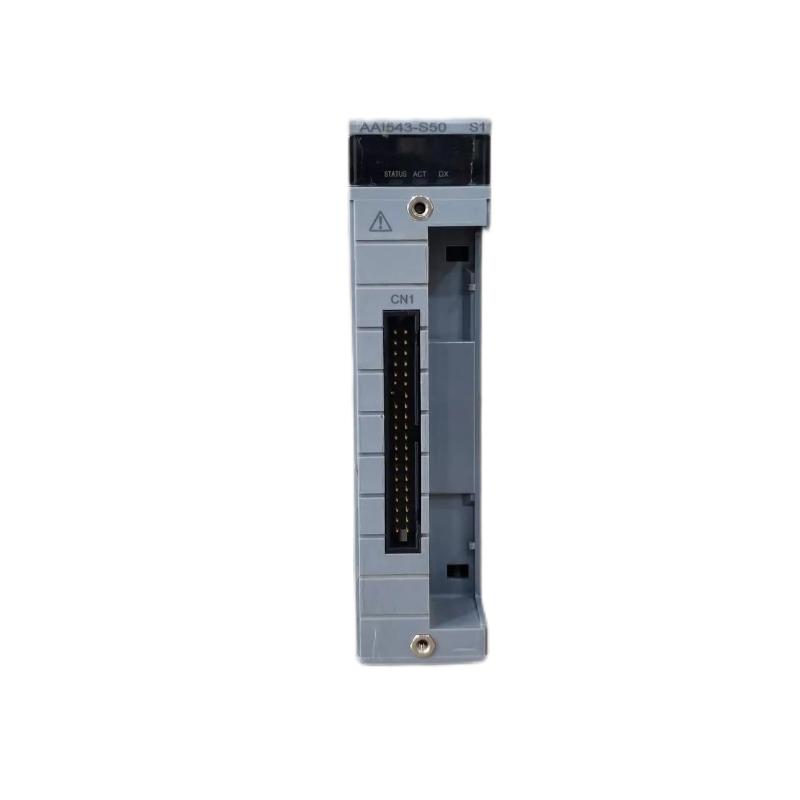

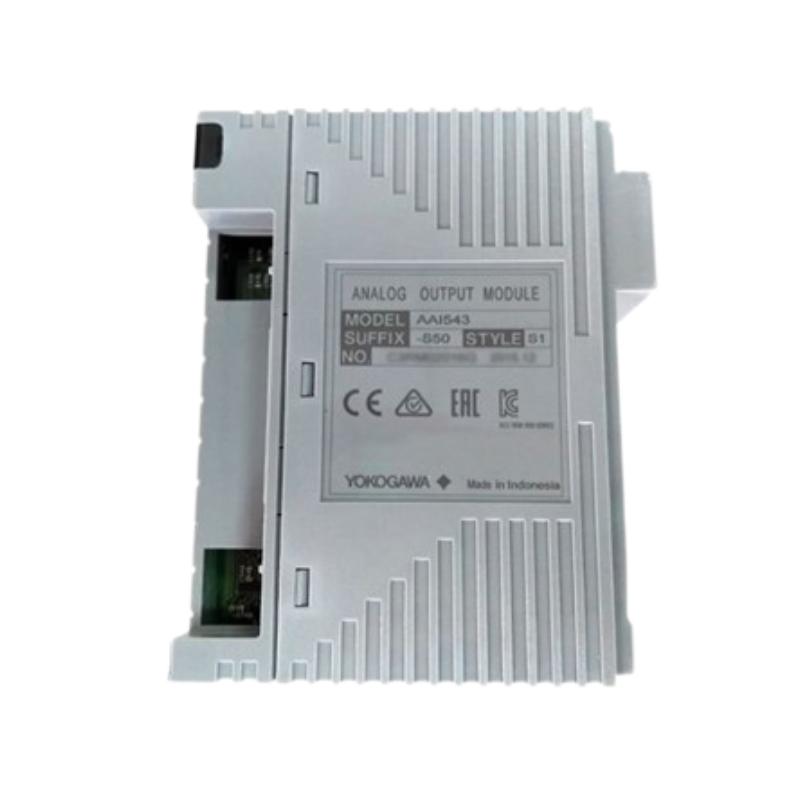

Yokogawa AAI543-S50 Analog Output Module

Introduction — Precise Control for Modern Automation

The Yokogawa AAI543-S50 Analog Output Module is designed to provide accurate and reliable analog signal output for industrial process control systems. Engineered for seamless integration with Yokogawa’s DCS platforms such as CENTUM VP, this module enables precise control of valves, actuators, and other field devices. Its robust isolation and high-channel density make it ideal for high-demand industrial environments where consistent performance and system reliability are critical.

Technical Specifications — Output & Physical Details

Specification	Description
Module Type	Analog Output Module
Number of Channels	16 isolated channels
Output Signal	4–20 mA DC
Maximum Load Resistance	0–750 Ω
Open Circuit Detection	<0.65 mA per channel
Update Rate	10 ms per channel
Output Accuracy	±48 µA typical
Temperature Drift	±16 µA per 10°C
Isolation	1500 V AC (output-to-system)
Power Supply	5 V DC @ 230 mA or 24 V DC @ 540 mA
Redundancy Support	Yes, for redundant output configurations
Dimensions	130 mm × 25 mm × 180 mm
Weight	0.40 kg

Applications — Ideal Use Cases

Controlling process valves and actuators in chemical, petrochemical, and power generation plants
Driving analog instruments, indicators, and meters
Integration with distributed control systems (DCS) for real-time process automation
Supporting redundant control loops for critical process reliability
Environments requiring high channel isolation and EMI/RFI resistance

Advantages — Key Benefits

High channel density: 16 isolated output channels in a compact module
Reliable electrical isolation: 1500 V AC isolation for safe operation
Wide load support: 0–750 Ω load accommodates various field devices
Fast response: 10 ms update rate ensures timely control
Redundancy-ready: Compatible with redundant output configurations
Stable performance: Minimal temperature drift ensures consistent control accuracy

Technical FAQs — 10 Common Questions

What type of signals does the module output?
- 4–20 mA DC per channel.
How many output channels does it have?
- 16 isolated channels.
What is the maximum load resistance supported?
- Up to 750 Ω.
Does it detect open circuits?
- Yes, currents below 0.65 mA trigger open-circuit detection.
What is the update rate?
- Approximately 10 ms per channel.
Can this module be used in redundant configurations?
- Yes, it supports redundant output setups.
What is the isolation rating?
- 1500 V AC between outputs and the system.
What power supply is required?
- 5 V DC @ 230 mA or 24 V DC @ 540 mA.
Is it temperature-stable?
- Yes, ±16 µA per 10°C temperature drift.
Can it drive field devices directly?
- Yes, suitable for actuators, valves, and analog meters.
