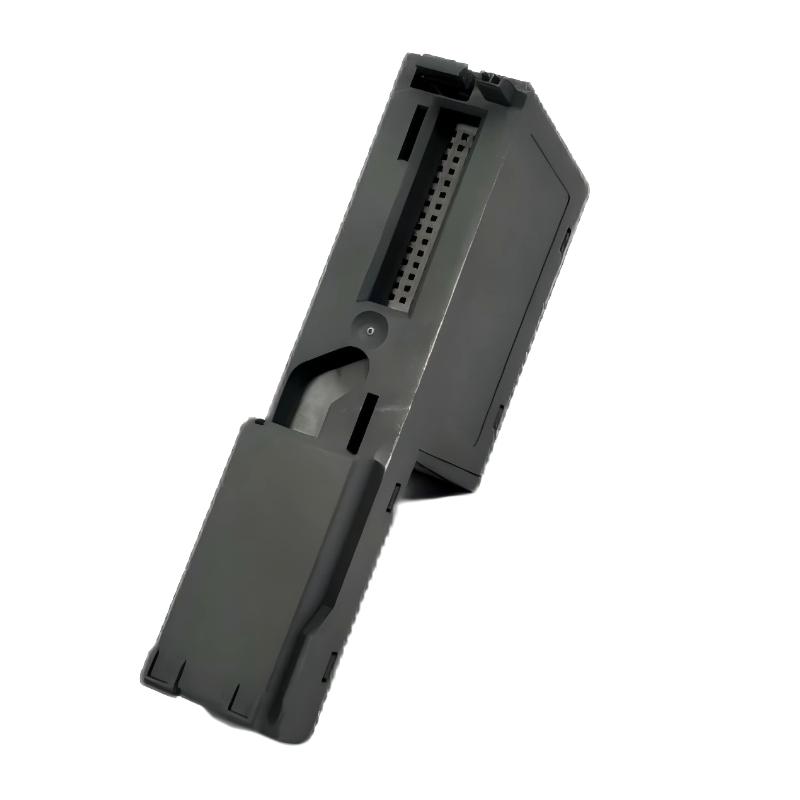

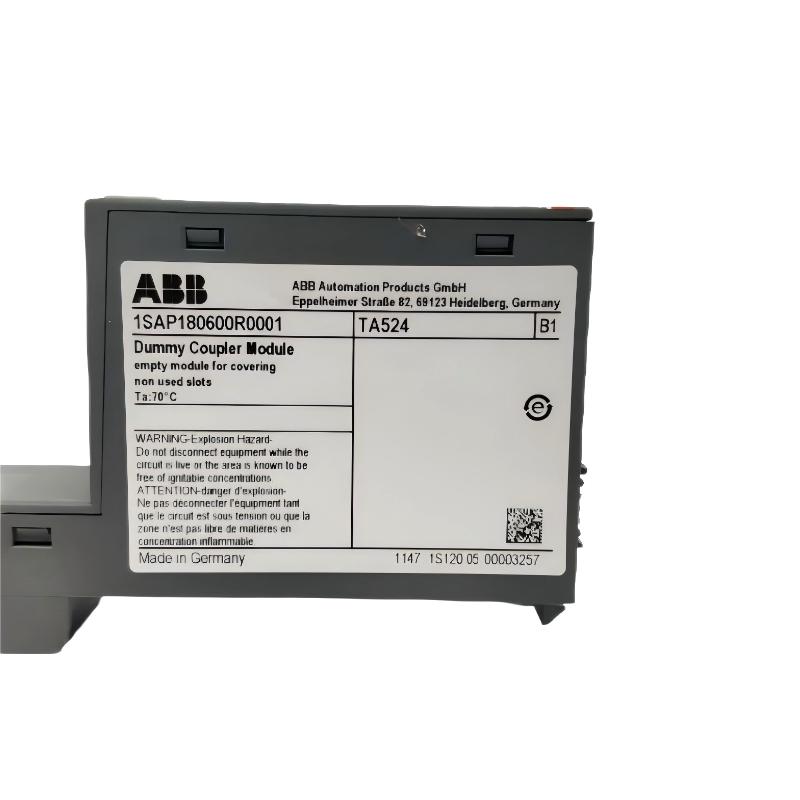

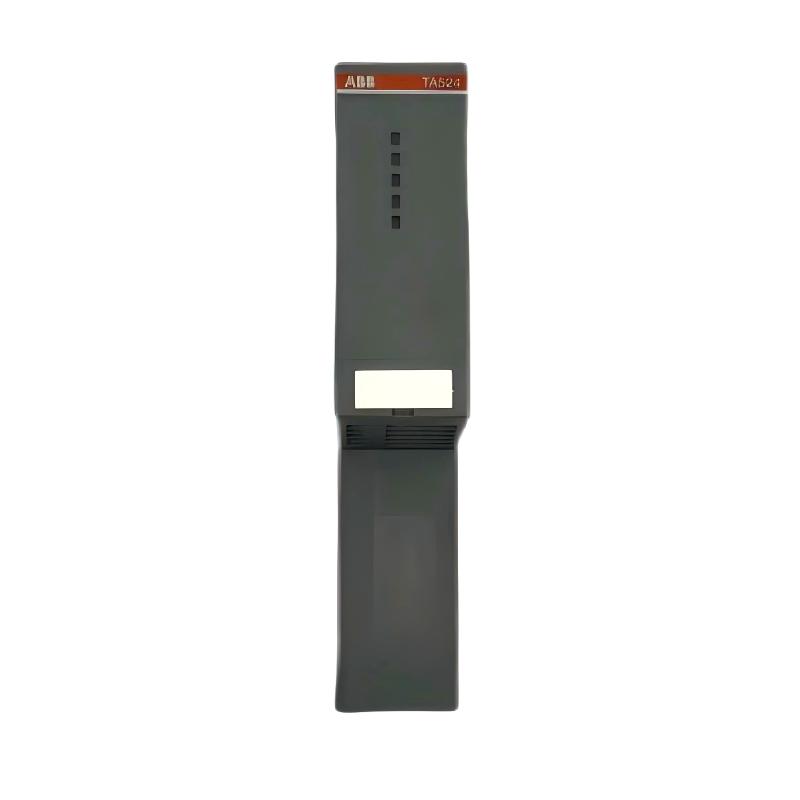

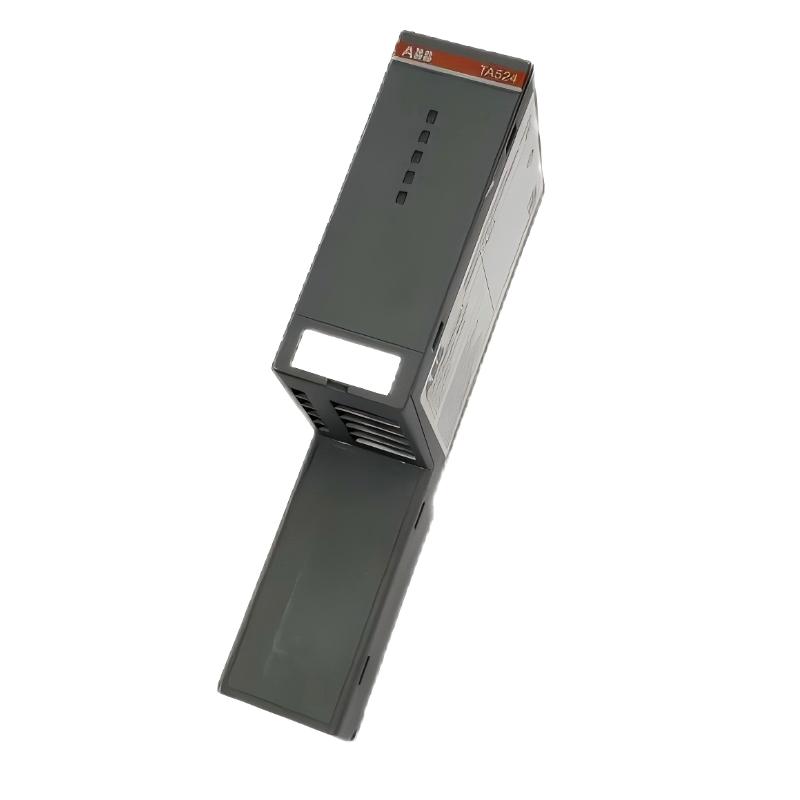

ABB TA524 1SAP180600R0001 Dummy Coupler Module

Name: ABB TA524 1SAP180600R0001 Dummy Coupler Module
Brand: ABB PLC
SKU: 3717
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:TA524 1SAP180600R0001
Product Origin:Sweden
Product Dimensions:65 x 135 x 28mm
Product Weight:0.059kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The ABB TA524 Dummy Coupler Module is a placeholder or filler component designed to occupy unused slots within modular control and automation systems. While it does not perform active signal processing, it ensures proper mechanical alignment, maintains airflow, and preserves system integrity in racks or cabinets with unpopulated positions.

From a system engineering perspective, the TA524 is essential for maintaining structured layouts, protecting connectors, and supporting reliable installation practices in modular ABB control environments. It offers a simple yet effective solution for system organization and future expansion readiness.

Technical Specifications

Parameter	Description
Product Type	Dummy Coupler Module
Model	TA524 (1SAP180600R0001)
Function	Placeholder module for unpopulated slots in modular systems
Mechanical Dimensions	65 × 135 × 28 mm (H × W × D)
Weight	0.059 kg
Mounting	Control cabinet or modular I/O rack
Signal Handling	None – passive filler component
System Compatibility	ABB modular control and automation platforms

Applications

Occupying empty slots in modular I/O racks
Maintaining airflow and thermal balance within cabinets
Protecting connectors and unused slots from dust or damage
Supporting future system expansions without reconfiguring racks
Standardizing rack layouts for maintenance and documentation purposes

Advantages

Maintains mechanical alignment and system integrity
Protects unused connectors from dust, moisture, or damage
Supports structured cabinet layouts and thermal management
Lightweight and compact, easy to install
Enables future expansion without rack reconfiguration
Reduces risk of accidental connection errors
Enhances maintenance safety and accessibility
Simple, passive component with no operational dependencies

Technical FAQs

What is the main purpose of the TA524?
It serves as a placeholder in modular systems, maintaining alignment and protecting connectors.
Does it perform any signal processing?
No, it is a passive module with no electrical function.
Can it be removed easily?
Yes, it is designed for easy insertion and removal.
Is it compatible with all ABB modular racks?
It fits standard modular ABB control and I/O platforms.
Does it contribute to system cooling or airflow?
Yes, it helps maintain proper airflow and thermal balance in populated racks.
Can it be used for future system expansion?
Yes, it allows easy replacement with an active module when needed.
Does it require maintenance?
No maintenance is needed beyond periodic inspection for dust or debris.
Is it safe to leave in the system indefinitely?
Yes, it is designed for long-term passive installation.
Does it reduce the risk of connector damage?
Yes, it physically protects empty slots from accidental contact.
What is the main benefit for engineers?
Keeps control racks organized, safe, and ready for future expansion without functional compromise.
