Introduction

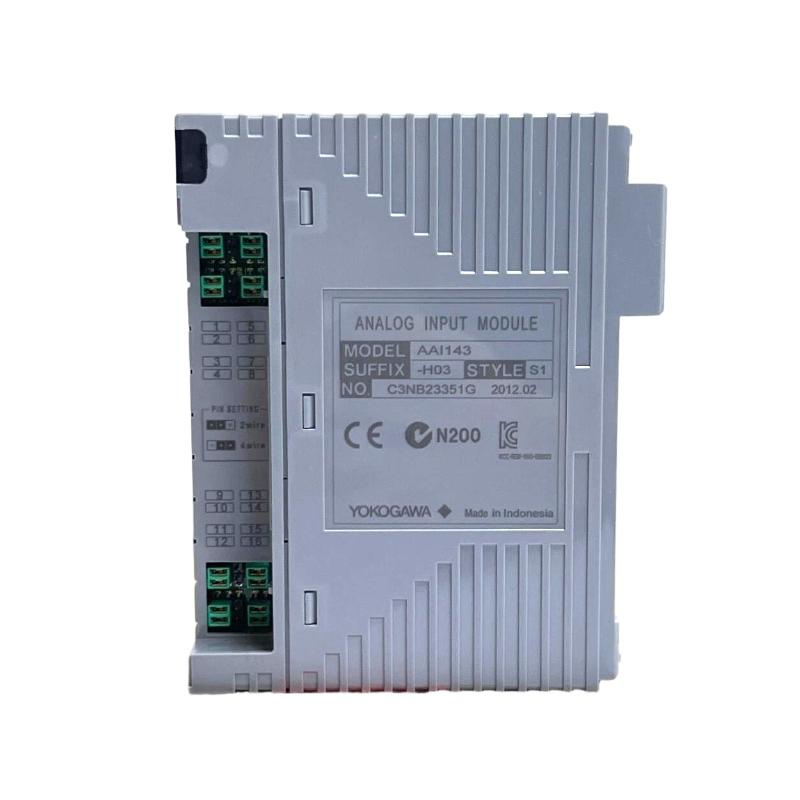

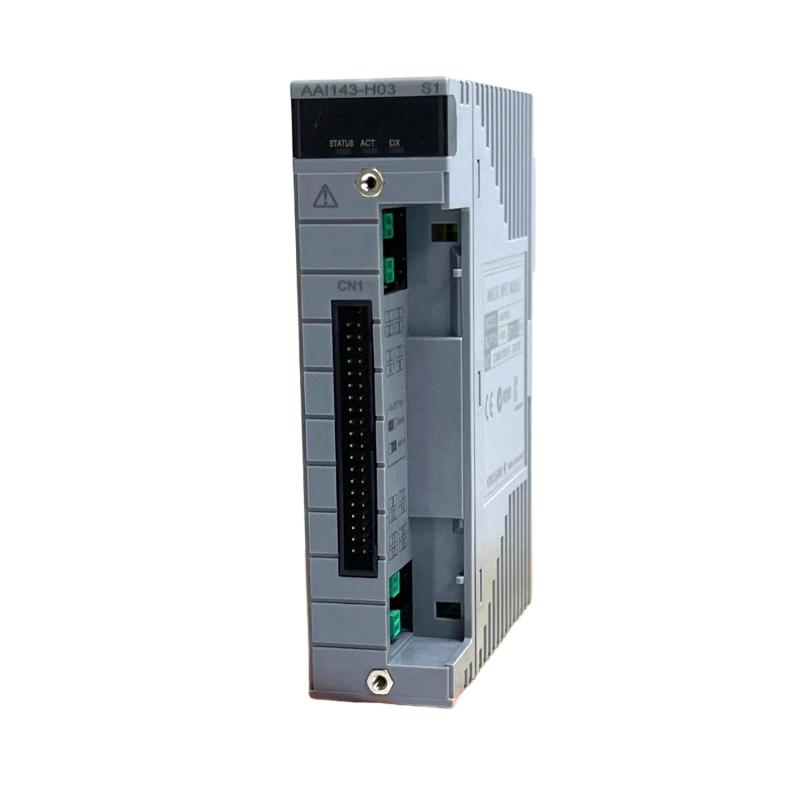

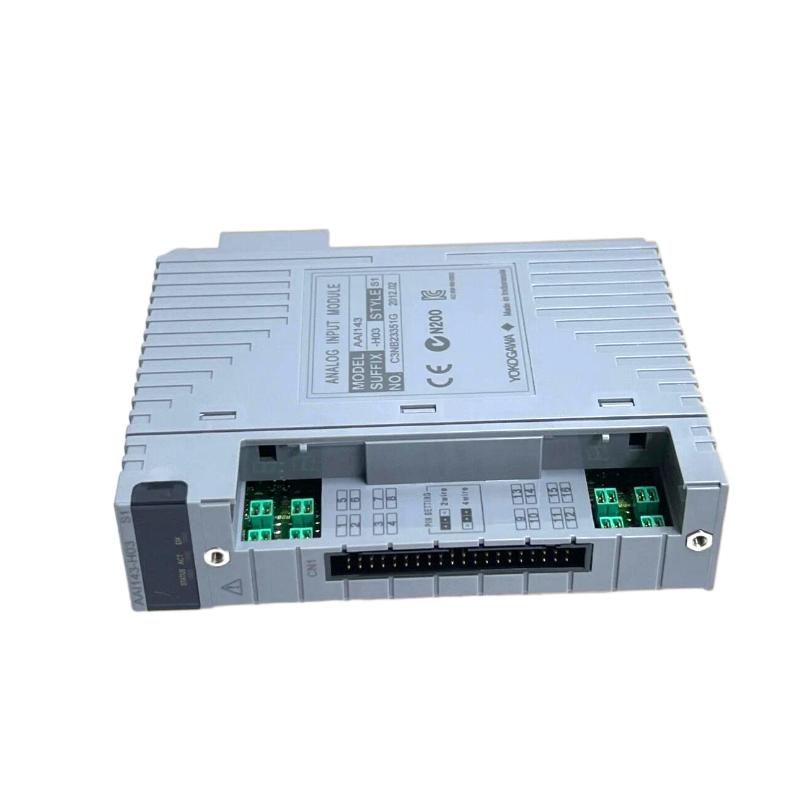

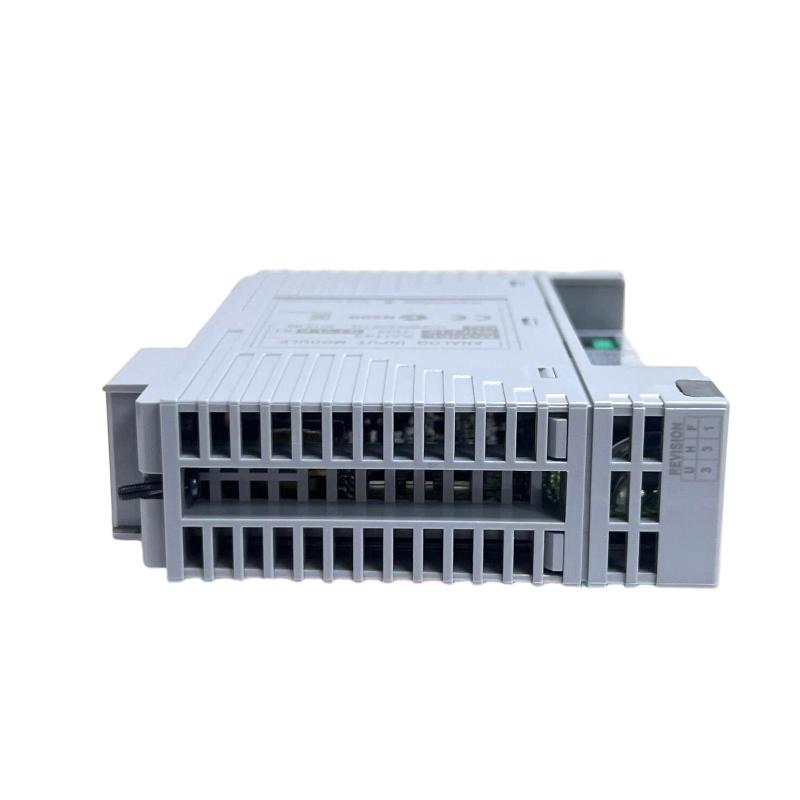

The Yokogawa AAI143-H03 Analog Input Module is a high-precision, reliable component for industrial control systems. As part of Yokogawa's Centum VP series, this module is designed for seamless integration into process control and monitoring systems. It is capable of converting a wide range of analog signals, making it essential for industries that require precise data acquisition, including power generation, petrochemical, chemical manufacturing, and oil & gas. With fast response times and high accuracy, the AAI143-H03 module supports the monitoring and control of critical parameters such as temperature, pressure, and flow. Its robust design ensures excellent performance even in harsh industrial environments, making it a dependable choice for mission-critical applications.
Technical Specifications
|
Specification |
Details |
|
Model Number |
AAI143-H03 |
|
Dimensions (L × W × H) |
107.5 × 32.8 × 130 mm |
|
Weight |
0.3 kg |
|
Input Channels |
8 (Voltage or Current Inputs) |
|
Power Supply |
24 VDC |
|
Signal Input Range |
±10 V, 0 to 20 mA, 4 to 20 mA |
|
Accuracy |
±0.1% of full scale |
|
Response Time |
10 ms |
|
Operating Temperature |
-20°C to 60°C |
|
Humidity |
5% to 95% (Non-condensing) |
|
Applications |
Industrial Automation, Process Control, Monitoring Systems |
Applications
The Yokogawa AAI143-H03 Analog Input Module is versatile and highly suitable for various industrial applications:
-
Industrial Automation: Facilitates the seamless conversion of analog signals into digital data, which can be used in automated control systems for monitoring and process optimization.
-
Process Control: Used to monitor and control key process variables such as temperature, pressure, and flow, ensuring that operations remain within safe and efficient parameters.
-
Power Generation: Critical for real-time monitoring of power generation equipment and processes, the module helps optimize operations and reduce the likelihood of failure.
-
Petrochemical Industry: A vital tool for continuously monitoring variables in petrochemical plants, ensuring smooth and efficient production.
-
Manufacturing: Collects and processes data from various field sensors, providing operators with real-time insights into manufacturing operations and improving system efficiency.
Advantages
The Yokogawa AAI143-H03 Analog Input Module offers numerous advantages for industrial applications:
-
High Precision: With an accuracy of ±0.1% of full scale, the module ensures precise measurement, contributing to better control and optimization of industrial processes.
-
Versatile Input Types: Supports a range of input signals, including ±10 V, 0 to 20 mA, and 4 to 20 mA, making it compatible with various field devices.
-
Compact and Efficient: Its compact design allows for easy installation even in tight spaces, maximizing the use of available panel space.
-
Fast Data Processing: The 10 ms response time allows the module to provide real-time feedback, making it ideal for applications where quick adjustments are needed.
-
Wide Operating Temperature Range: The module operates in temperatures between -20°C and 60°C, making it suitable for use in a variety of industrial environments.
-
Reliable Performance: Designed for durability, the AAI143-H03 module is built to withstand harsh conditions and provide long-term, maintenance-free performance.
