ABB PM783F 3BDH000364R0005 CPU Control Processor Main Unit

Brand:ABB PLC
Item No.:PM783F 3BDH000364R0005
Product Origin:Sweden
Product Dimensions:170 mm × 115 mm × 45 mm
Product Weight:0.62kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

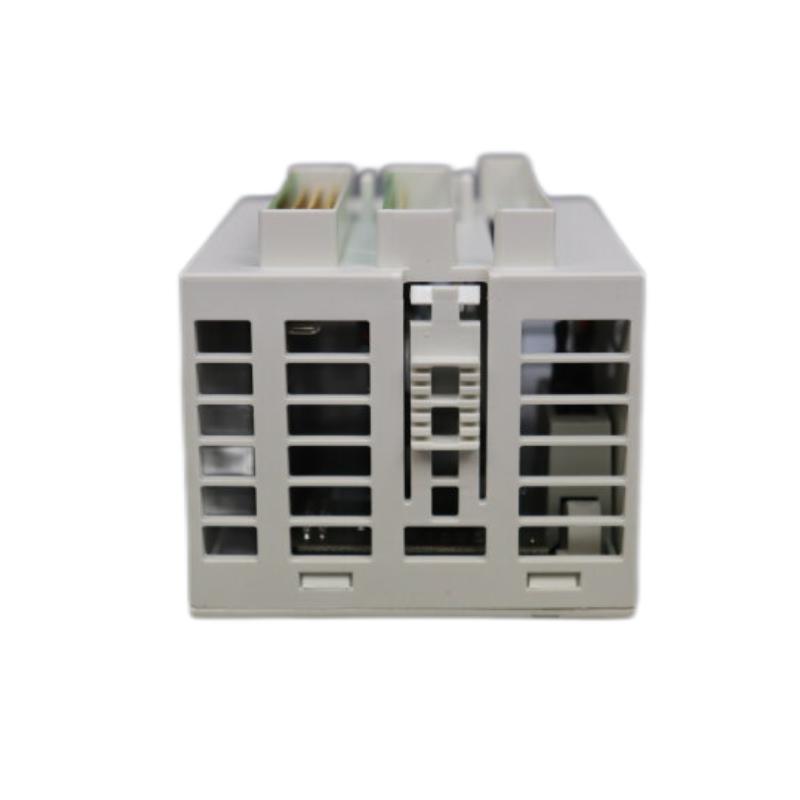

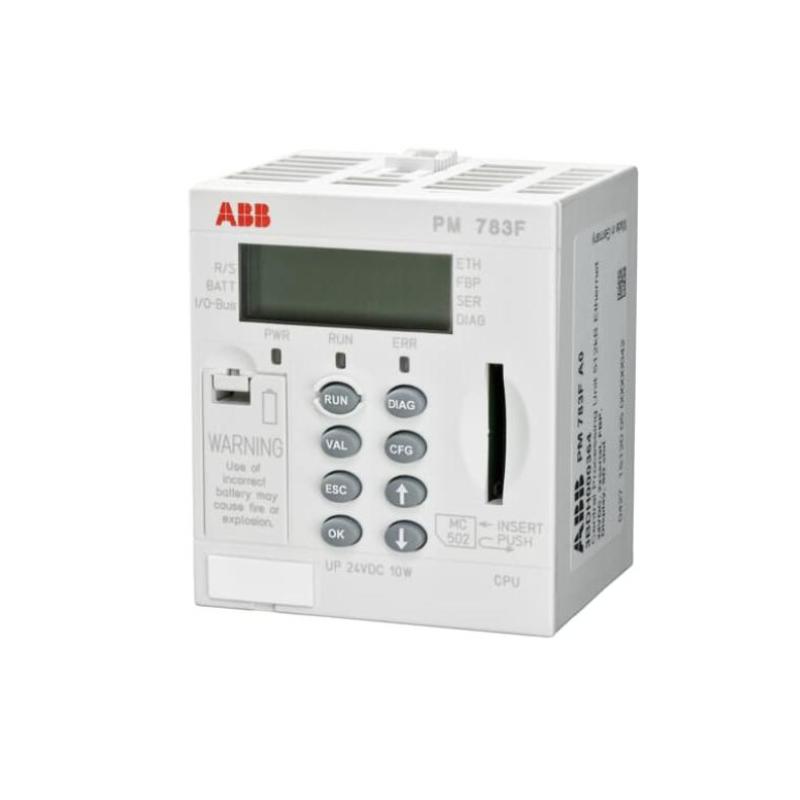

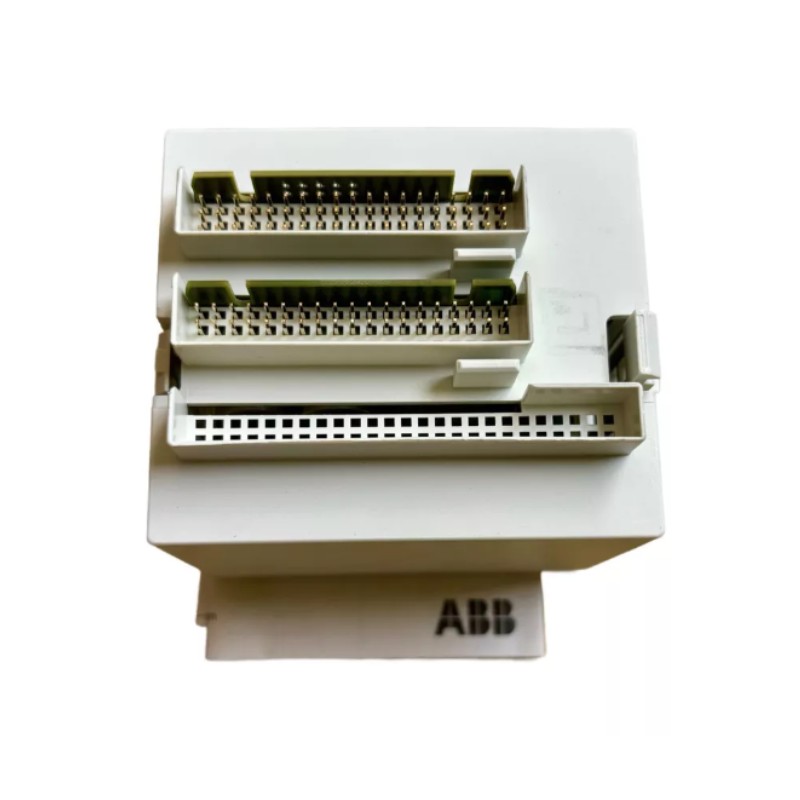

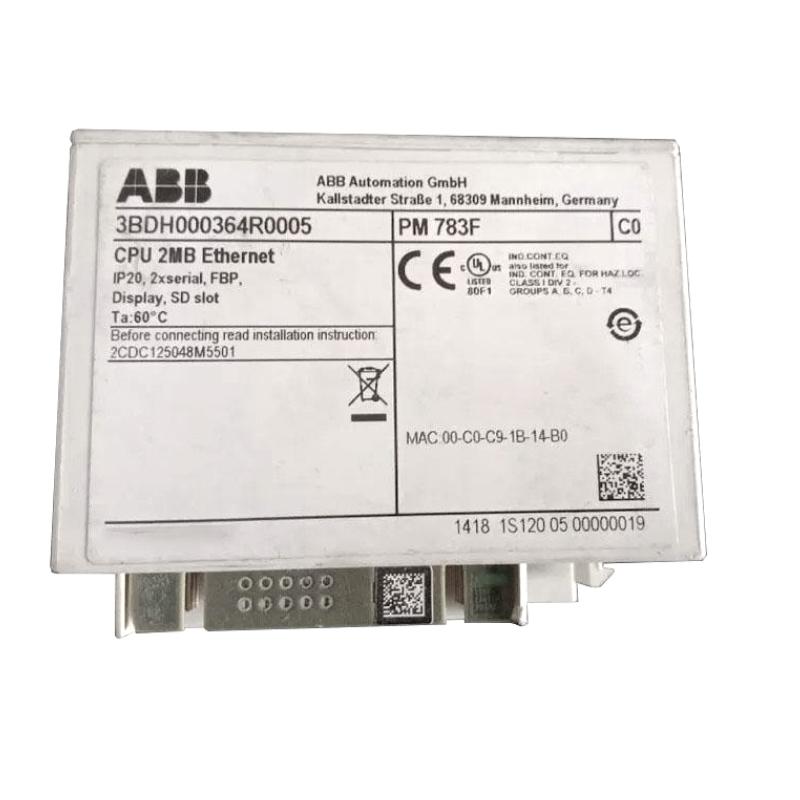

PM783F 3BDH000364R0005 (1)PM783F 3BDH000364R0005 (2)PM783F 3BDH000364R0005 (3)PM783F 3BDH000364R0005 (4)

Introduction

The ABB PM783F (3BDH000364R0005) is a high‑performance CPU control processor main unit engineered for the AC 800M / System 800xA automation platform. Designed to handle demanding applications in process, machine, and discrete automation, the PM783F delivers advanced logic execution, extended data handling, and expansive communication capabilities. With robust diagnostics and system integration support, this processor provides reliable, scalable control for industrial automation systems where uptime, determinism, and connectivity are essential.

Technical Specifications

SpecificationDetails
ModelPM783F
Part Number3BDH000364R0005
Product TypeCPU Control Processor Main Unit
BrandABB
Automation PlatformAC 800M / System 800xA
Processor CoreHigh‑capacity multitask industrial CPU
MemoryProgram and data memory sized for large applications
I/O HandlingManages distributed and local digital/analog I/O via backplane
Communication InterfacesBackplane bus; external network options via expansion cards
Status IndicatorsLEDs for power, run, fault, communication status
Operating VoltageSystem rack power supply dependent
Operating TemperatureIndustrial‑rated operational range
Mounting StyleRack‑mount within AC 800M / System 800xA cabinets
DimensionsApprox. 170 mm × 115 mm × 45 mm
WeightApprox. 0.62 kg
Environmental SuitabilityDesigned for industrial automation enclosures


Applications

The ABB PM783F CPU Processor is ideal for:

  • Large process automation systems in chemical, oil & gas, utilities, and power generation

  • Machine control with extensive I/O counts and advanced logic requirements

  • Distributed control systems (DCS) where coordination across racks and networks is needed

  • Batch and sequence‑based production systems requiring deterministic control

  • Material handling, packaging, and robotics applications

  • Safety and interlock schemes when paired with appropriate I/O and redundancy modules

This processor provides the core decision‑making power, orchestrating control logic, communication, and system synchronization.



Advantages

  • High‑Performance Control Engine: Capable of executing complex logic, multi‑task scheduling, and large program sizes with responsiveness.

  • Scalable Architecture: Designed to support expansion via distributed I/O, multiple communication interfaces, and rack‑level growth.

  • Robust Diagnostics: Integrated LEDs help engineers quickly determine processor state, communication health, and fault conditions.

  • Industrial‑Grade Reliability: Built to withstand environmental stresses including electrical noise, temperature variation, and continuous duty.

  • Seamless Integration: Native compatibility with AC 800M I/O modules, communication cards, and system tools enables a cohesive automation strategy.

  • Flexible Communication: Supports external network connections via expansion modules for Ethernet, fieldbus, and system integration.


Technical FAQs

  1. What system does the PM783F Processor support?
    It supports the ABB AC 800M / System 800xA automation platform as a main CPU unit.

  2. Can it handle large and complex automation programs?
    Yes — it has expanded program and data memory to support significant logic and system tasks.

  3. Does it integrate with distributed I/O?
    Yes — it interfaces with local and distributed I/O via backplane and networked modules.

  4. Are diagnostics available on the module?
    Yes — LEDs provide real‑time status feedback for power, run, fault, and communication conditions.

  5. Is it suitable for continuous 24/7 operation?
    Yes — it’s engineered for industrial automation environments with continuous duty requirements.

  6. What types of communication does it support?
    Native backplane communication is standard; external network protocols can be added with expansion cards.

  7. Is specific programming software required?
    Yes — ABB automation engineering tools (e.g., Control Builder) are used to configure and program the system.

  8. Can it be used in safety‑critical environments?
    When paired with appropriate safety modules and architecture, it can be part of safety‑integrated systems.

  9. How should it be mounted?
    Install within AC 800M or System 800xA racks inside industrial control cabinets following ABB specifications.

  10. What maintenance is recommended?
    Periodic visual inspection of LED status and system health checks during scheduled maintenance are advised.
