Introduction

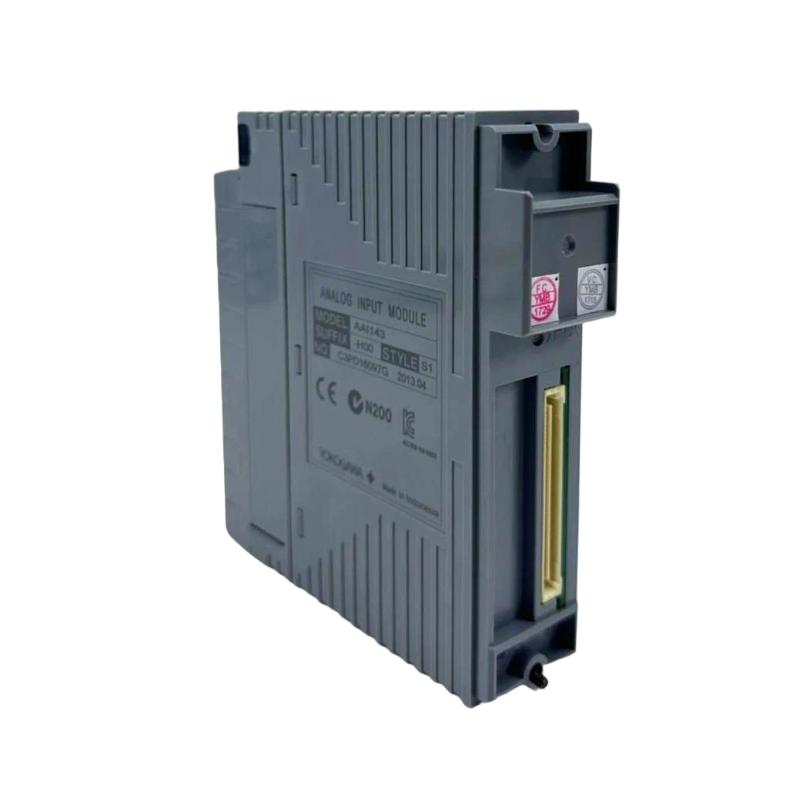

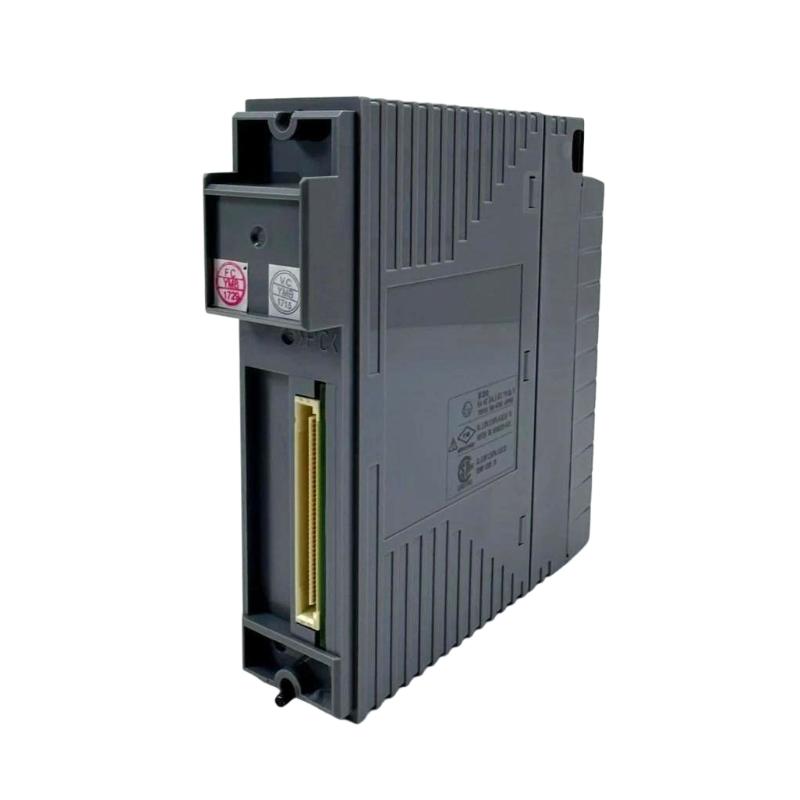

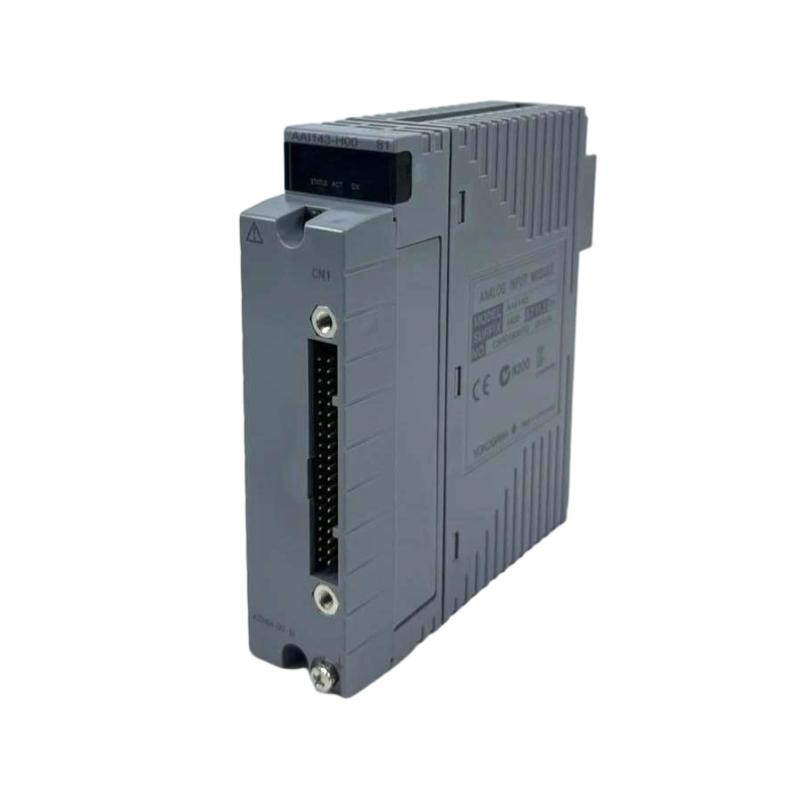

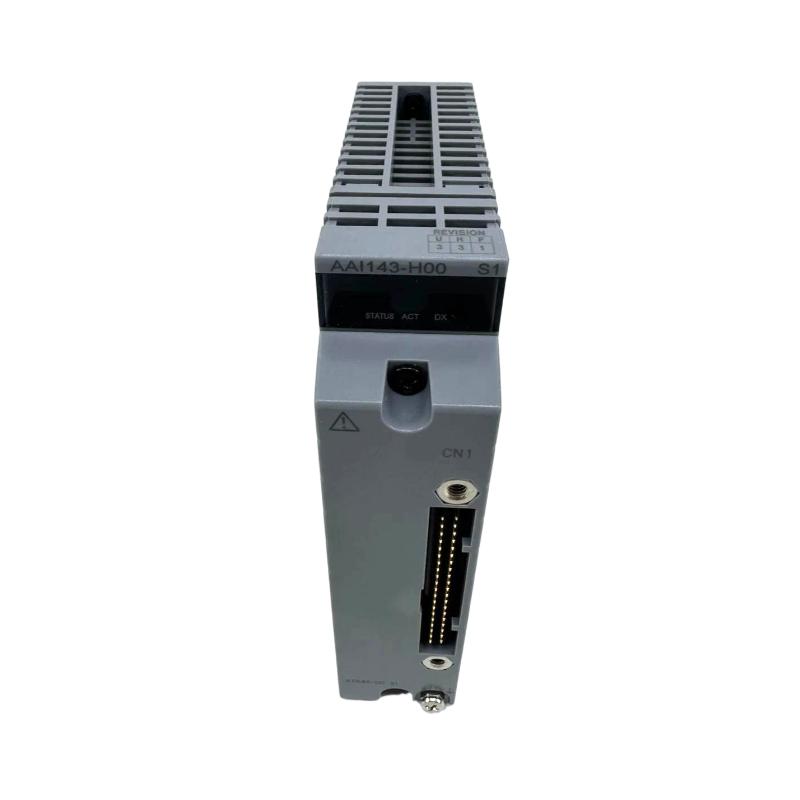

The Yokogawa AAI143-H00/K4A00 Analog Input Module is a robust and high-precision component tailored for industrial automation environments. Engineered to process a wide range of analog input signals, this module integrates seamlessly with Yokogawa's Centum VP control systems, making it a versatile solution for diverse process control applications. This module's compact form, combined with superior accuracy and fast data processing capabilities, ensures optimal performance for industries such as power generation, oil and gas, chemical manufacturing, and others that rely on precise measurement and control. Whether used for real-time monitoring or closed-loop control, the AAI143-H00/K4A00 ensures that processes run efficiently and safely.
Technical Specifications
|
Specification |
Details |
|
Model Number |
AAI143-H00/K4A00 |
|
Dimensions (L × W × H) |
107.5 × 32.8 × 130 mm |
|
Weight |
0.3 kg |
|
Input Channels |
8 (Voltage or Current Inputs) |
|
Power Supply |
24 VDC |
|
Signal Input Range |
±10 V, 0 to 20 mA, 4 to 20 mA |
|
Accuracy |
±0.1% of full scale |
|
Response Time |
10 ms |
|
Operating Temperature |
-20°C to 60°C |
|
Humidity |
5% to 95% (Non-condensing) |
|
Applications |
Industrial Automation, Process Control, Monitoring Systems |
Applications
The Yokogawa AAI143-H00/K4A00 Analog Input Module is widely used across various industries due to its versatility and reliability. Its primary applications include:
-
Industrial Automation: Converts analog signals from field devices into digital data for control systems, enhancing the automation of manufacturing processes.
-
Process Control: Used to monitor and control critical process parameters such as temperature, pressure, and flow, ensuring consistent performance.
-
Monitoring Systems: Provides real-time monitoring of industrial systems, allowing operators to detect anomalies early and optimize operational efficiency.
-
Power Generation: Ideal for monitoring critical systems and equipment in power plants, helping maintain smooth operations and reduce the risk of downtime.
-
Petrochemical Industry: Widely used in petrochemical plants to track and monitor process variables, ensuring safety and process optimization.
Advantages
The Yokogawa AAI143-H00/K4A00 module offers multiple advantages, making it a reliable choice for a variety of industries:
-
Exceptional Accuracy: With ±0.1% full-scale accuracy, the module ensures high-precision measurements, critical for accurate process control and optimization.
-
Versatile Input Options: Supporting multiple input ranges such as ±10 V, 0-20 mA, and 4-20 mA, it accommodates various types of sensors and field devices.
-
Compact Form Factor: Designed for space-constrained applications, this module’s compact size makes it easy to integrate into existing control panels or systems without occupying excessive space.
-
Fast Processing Speed: Featuring a 10 ms response time, it delivers quick data conversion and processing, ideal for applications where real-time adjustments are necessary.
-
Temperature Robustness: The module operates efficiently across a broad temperature range of -20°C to 60°C, making it reliable for use in a wide variety of environmental conditions.
-
Long-term Reliability: Designed to endure harsh industrial environments, this module provides reliable performance with minimal need for maintenance, offering low total cost of ownership over its lifespan.
