Introduction

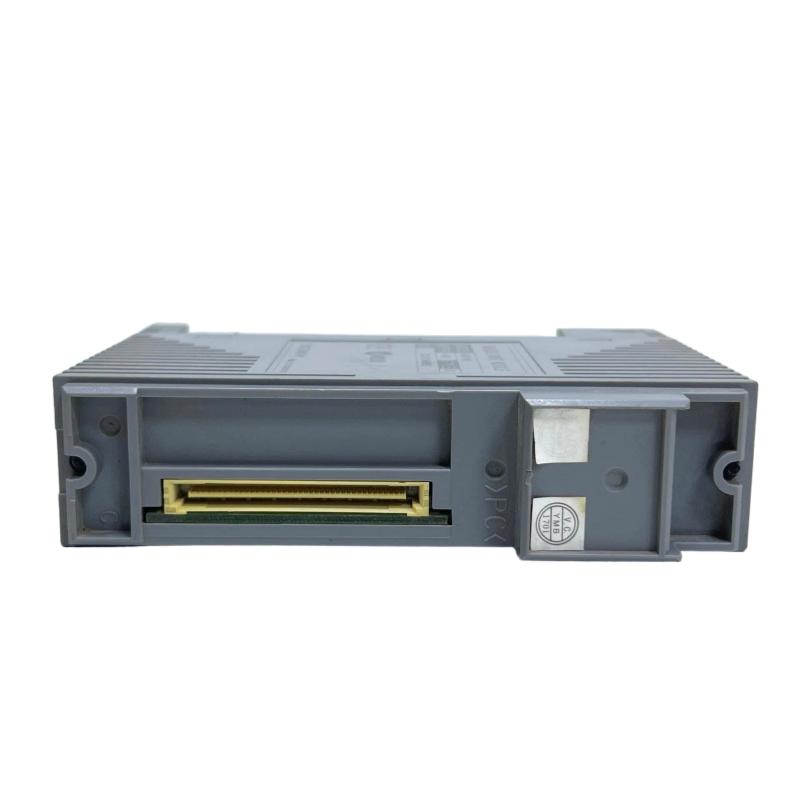

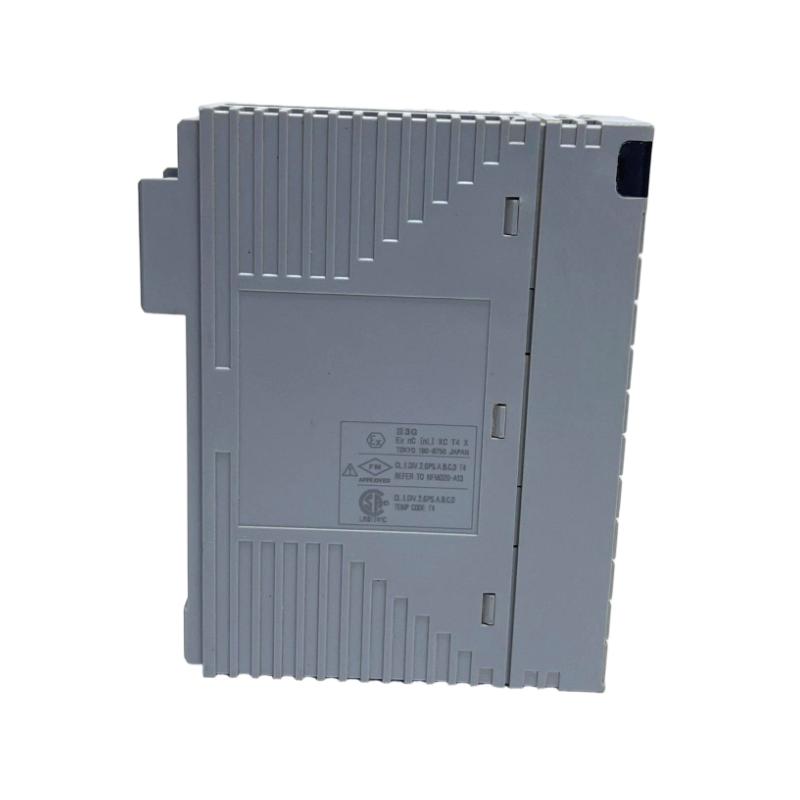

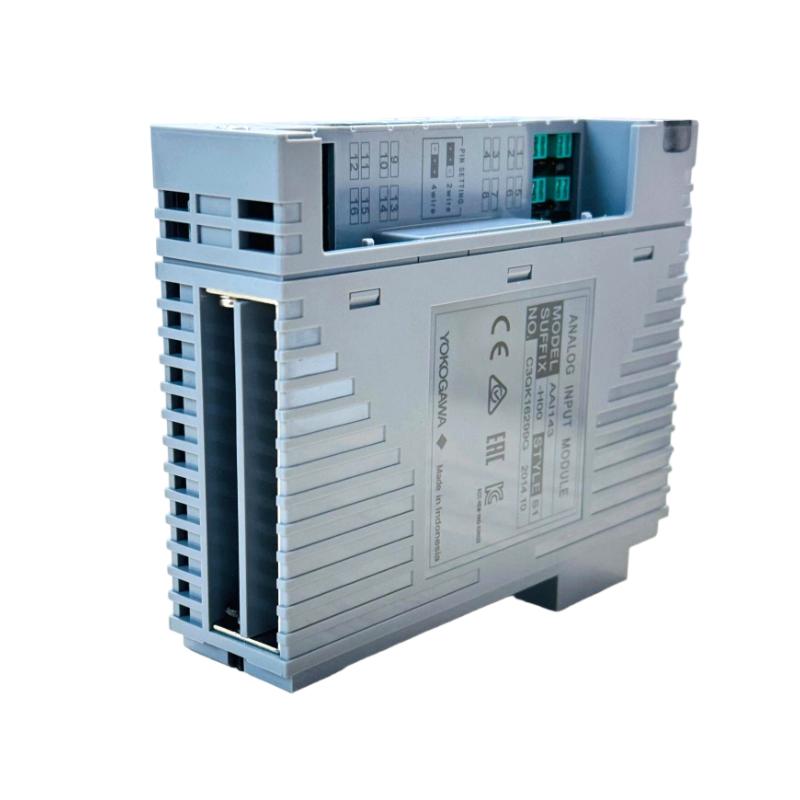

The Yokogawa AAI143-H00 Analog Input Module is an advanced, reliable, and efficient module designed for industrial automation systems. As part of Yokogawa’s Centum VP series, this module is engineered to accurately process a variety of analog input signals, providing seamless integration into control systems. It is ideal for applications requiring the measurement and monitoring of key parameters such as temperature, pressure, flow, and level. Its high accuracy and fast response time ensure that processes can be tightly controlled, providing enhanced safety and efficiency. The AAI143-H00 is particularly suited for industries like power generation, petrochemical, and manufacturing, where operational precision is critical.
Technical Specifications
|
Specification |
Value |
|
Model Number |
AAI143-H00 |
|
Dimensions (L × W × H) |
107.5 × 32.8 × 130 mm |
|
Weight |
0.3 kg |
|
Input Channels |
8 (Voltage or Current Inputs) |
|
Power Supply |
24 VDC |
|
Signal Input Range |
±10 V, 0 to 20 mA, 4 to 20 mA |
|
Accuracy |
±0.1% of full scale |
|
Response Time |
10 ms |
|
Operating Temperature Range |
-20°C to 60°C |
|
Humidity Range |
5% to 95% (Non-condensing) |
|
Application |
Industrial Automation, Process Control, Monitoring Systems |
Applications
The Yokogawa AAI143-H00 Analog Input Module is suitable for a wide range of applications, offering excellent performance in demanding industrial environments:
-
Industrial Automation: Converts analog signals into digital data, which is used in automated control systems to optimize manufacturing processes.
-
Process Control: Used to monitor and control vital parameters such as temperature, pressure, and flow in various industrial processes.
-
Monitoring Systems: Collects real-time data from field sensors to ensure that critical processes are operating within safe and optimal parameters.
-
Power Generation: Facilitates accurate monitoring of equipment and process variables in power plants, improving system reliability and performance.
-
Petrochemical Industry: Helps in continuous monitoring of processes, identifying early warning signs of failure, and reducing system downtime in petrochemical operations.
Advantages
The Yokogawa AAI143-H00 Analog Input Module offers several distinct advantages for industrial automation and control:
-
High Accuracy: With an accuracy of ±0.1% of full scale, this module ensures precise data acquisition, which is vital for ensuring high performance in process control applications.
-
Wide Input Compatibility: The module supports various input types, including ±10 V, 0 to 20 mA, and 4 to 20 mA, providing flexibility to interface with a range of field devices.
-
Compact Design: Its compact size allows for easy installation in tight spaces, making it ideal for systems with limited available space.
-
Fast Response Time: With a 10 ms response time, it provides quick feedback, making it suitable for real-time control applications that require immediate data processing.
-
Wide Temperature Range: The module is built to operate in temperatures ranging from -20°C to 60°C, making it suitable for both extreme heat and cold environments.
-
Durability: Designed to withstand harsh industrial conditions, the AAI143-H00 offers robust performance and a long service life with minimal maintenance.
