Introduction — Optimized Field Wiring for Modicon PLC Systems

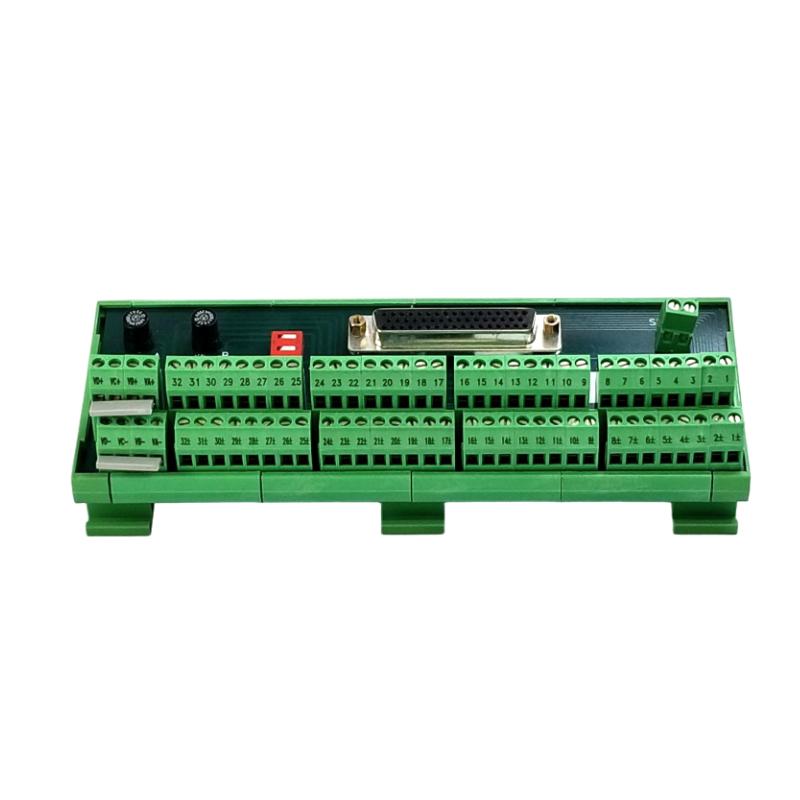

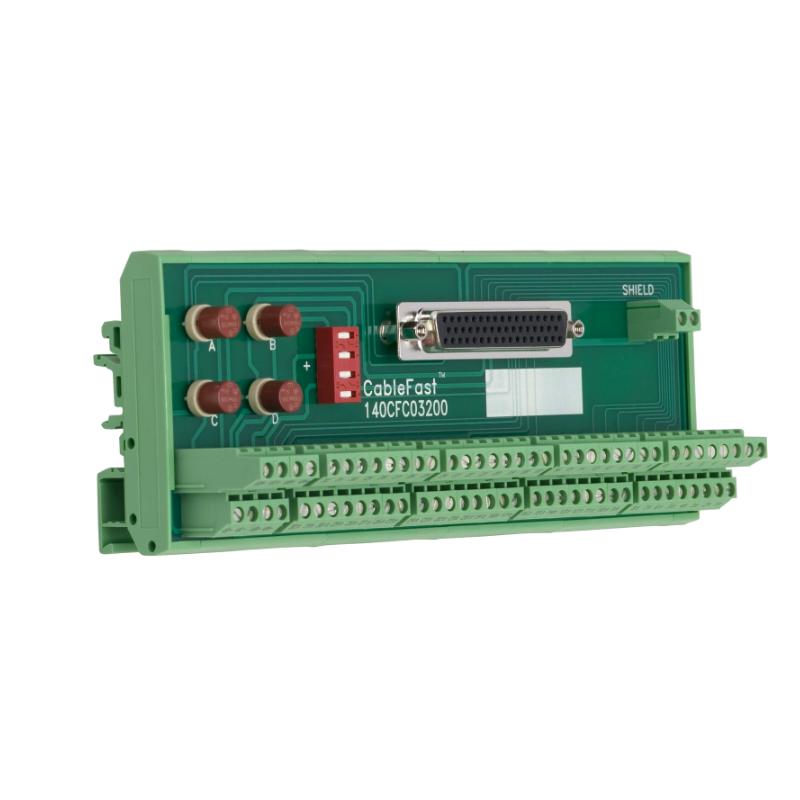

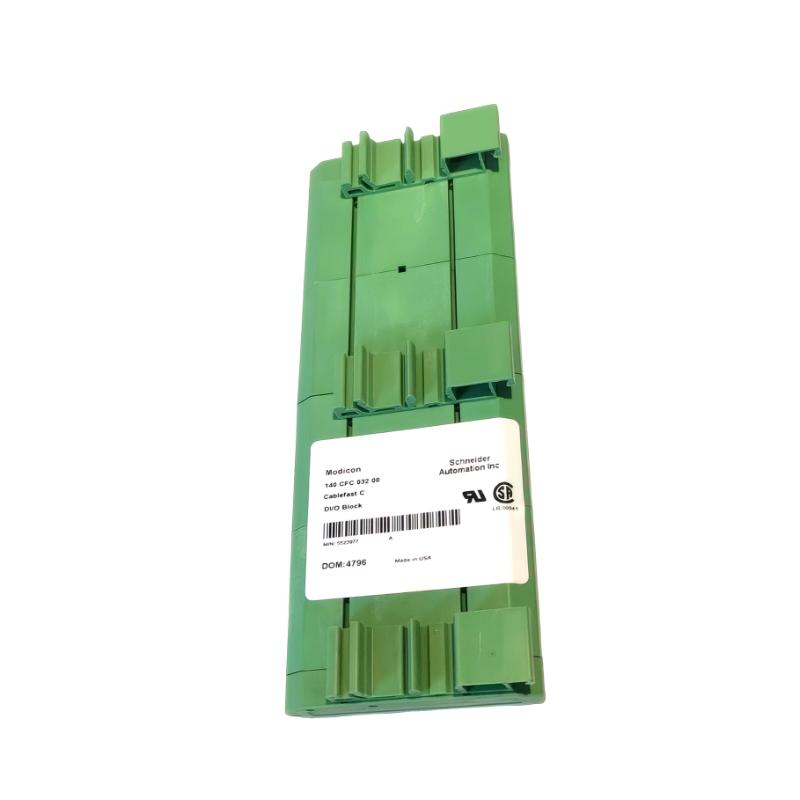

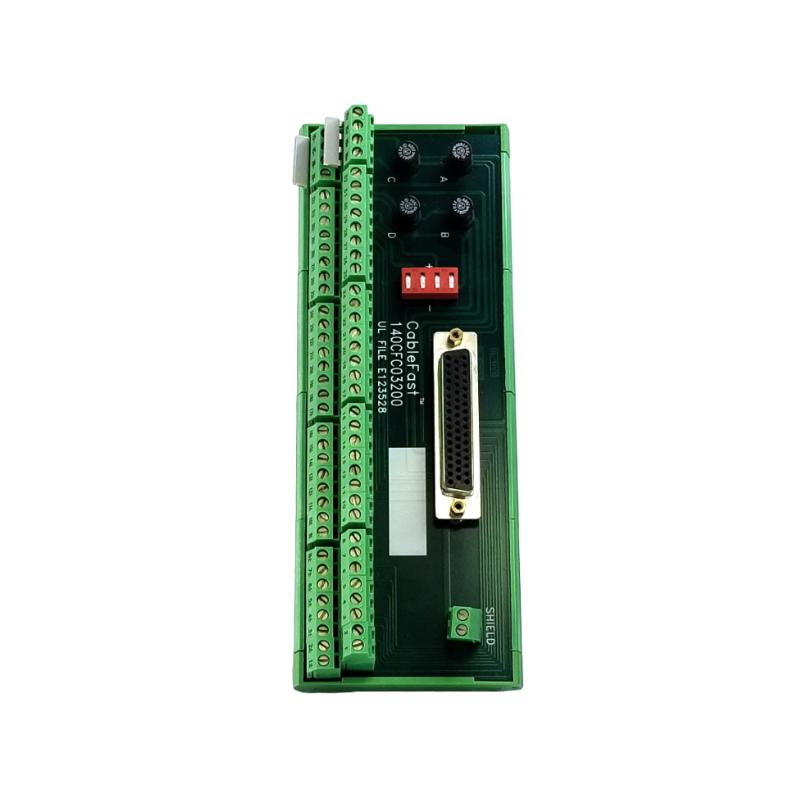

The Schneider Electric 140CFC03200 CableFast Terminal Blocks are industrial‑grade field connection accessories designed to streamline wiring between field devices and Modicon PLC I/O modules. These terminal blocks provide secure, organized connection points for analog and digital signals, reducing installation time and improving system reliability. Built for harsh industrial environments, CableFast Terminal Blocks ensure dependable signal transmission with simplified maintenance and clear channel identification.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 140CFC03200 |
| Accessory Type | CableFast Terminal Blocks |
| Compatible Platforms | Schneider Electric Modicon Quantum, M580, Premium and other compatible rack PLC systems |
| Function | Provides field‑side connection points for I/O wiring |
| Number of Positions | 32 terminal positions (standard) |
| Connection Type | Screw or spring clamp termination (application dependent) |
| Rated Voltage | 300 V AC/DC |
| Rated Current | 10 A per terminal (typical) |
| Wire Size | 0.2–2.5 mm² (24–14 AWG) |
| Mounting | DIN rail or panel‑mounted via adapter/fixture |
| Operating Temperature | –20 °C to +70 °C |
| Dimensions (W×H×D) | 250 mm × 45 mm × 35 mm (approx.) |
| Weight | ~0.85 kg (assembled) |
| Material | Industrial‑grade insulating plastic & plated copper contacts |
| Compliance | CE, UL, and industrial electrical standards |
