Introduction

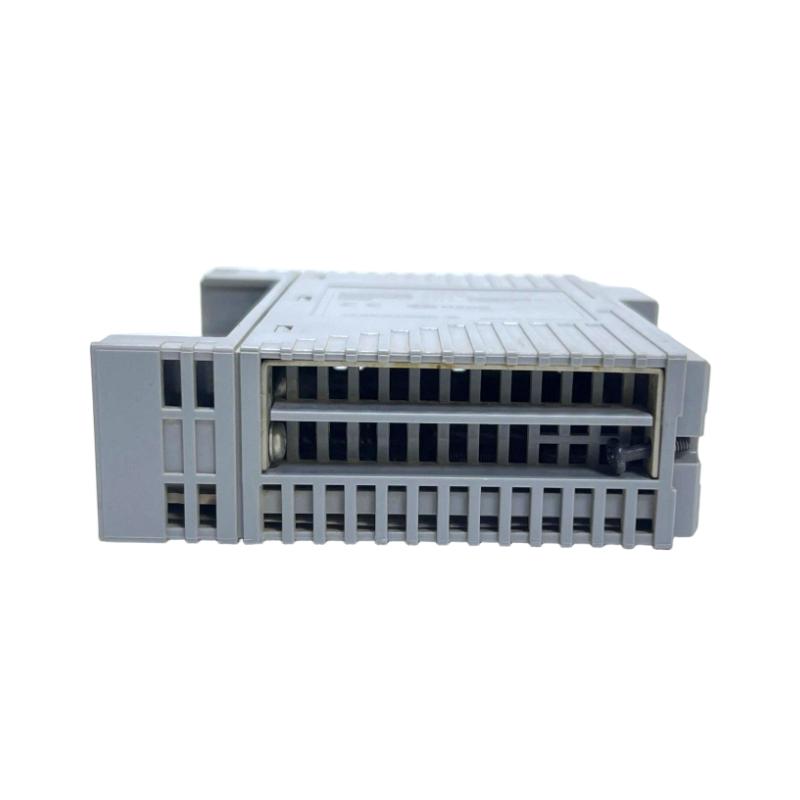

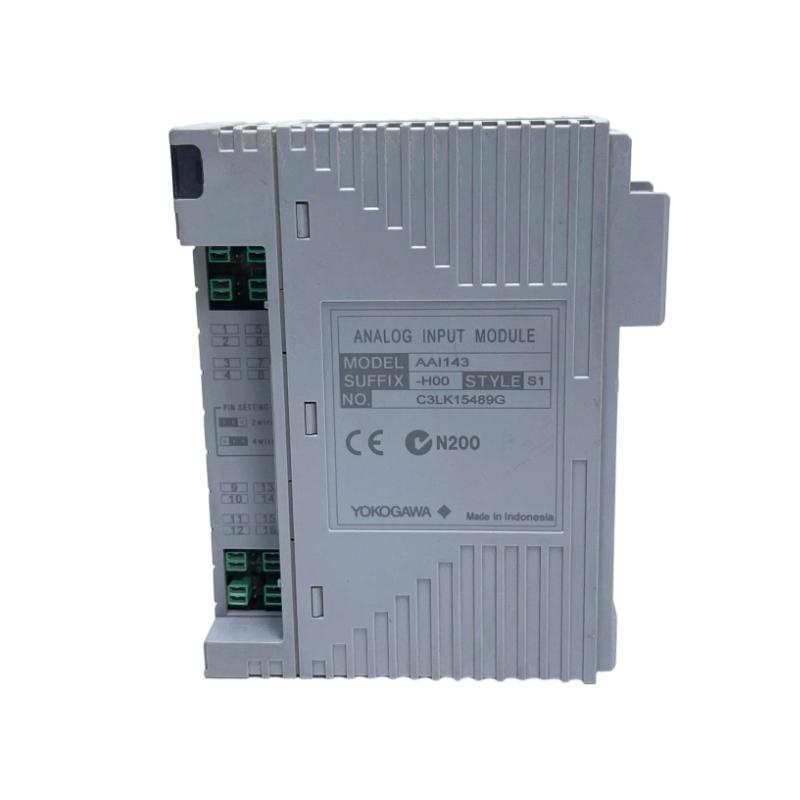

The Yokogawa AAI143-H Analog Input Module is a versatile and reliable module designed for use in industrial automation and process control systems. As part of Yokogawa's Centum VP series, this module is engineered to handle a variety of analog input signals, providing high-precision data acquisition. It is ideal for monitoring and controlling critical parameters such as temperature, pressure, and flow, ensuring the smooth and efficient operation of complex industrial systems. With its compact design and robust construction, the AAI143-H is suitable for demanding environments and integrates seamlessly into existing control systems, making it a popular choice for industries like power generation, petrochemical, and manufacturing.
Technical Specifications
|
Specification |
Value |
|
Model Number |
AAI143-H |
|
Dimensions (L × W × H) |
107.5 × 32.8 × 130 mm |
|
Weight |
0.3 kg |
|
Input Channels |
8 (Voltage or Current Inputs) |
|
Power Supply |
24 VDC |
|
Signal Input Range |
±10 V, 0 to 20 mA, 4 to 20 mA |
|
Accuracy |
±0.1% of full scale |
|
Response Time |
10 ms |
|
Operating Temperature Range |
-20°C to 60°C |
|
Humidity Range |
5% to 95% (Non-condensing) |
|
Application |
Industrial Automation, Process Control, Monitoring Systems |
Applications
The Yokogawa AAI143-H Analog Input Module is used in a wide range of applications that require high-accuracy and fast response times:
-
Industrial Automation: This module is used to convert analog signals from various sensors to digital data, which is then used in automated control systems for enhanced process efficiency.
-
Process Control: Ideal for monitoring and controlling key process variables like temperature, pressure, and flow, ensuring the optimal functioning of industrial systems.
-
Monitoring Systems: Provides real-time data collection, enabling operators to monitor critical parameters and make adjustments before any issues arise.
-
Power Generation: Utilized for monitoring and controlling equipment and process parameters in power plants, ensuring safe and efficient energy generation.
-
Petrochemical Industry: The module is widely used in petrochemical processes for continuous monitoring, helping to identify issues early and reduce downtime.
Advantages
The Yokogawa AAI143-H Analog Input Module offers numerous advantages for industrial control applications:
-
High Accuracy: With an accuracy of ±0.1% of full scale, this module ensures precise data acquisition, which is essential for accurate process control.
-
Wide Input Range: The module supports a variety of input types, including ±10 V, 0 to 20 mA, and 4 to 20 mA, providing flexibility for various sensor types.
-
Compact Design: Its small form factor allows for easy installation in space-constrained environments, optimizing available space in control panels and systems.
-
Fast Response Time: With a 10 ms response time, the module provides quick data processing, which is ideal for real-time applications requiring immediate action.
-
Wide Operating Temperature Range: The module operates reliably between -20°C to 60°C, making it suitable for use in both high and low-temperature industrial settings.
-
Long-term Durability: Built to last, the AAI143-H offers robust performance and requires minimal maintenance, ensuring long-term reliability.
