Introduction

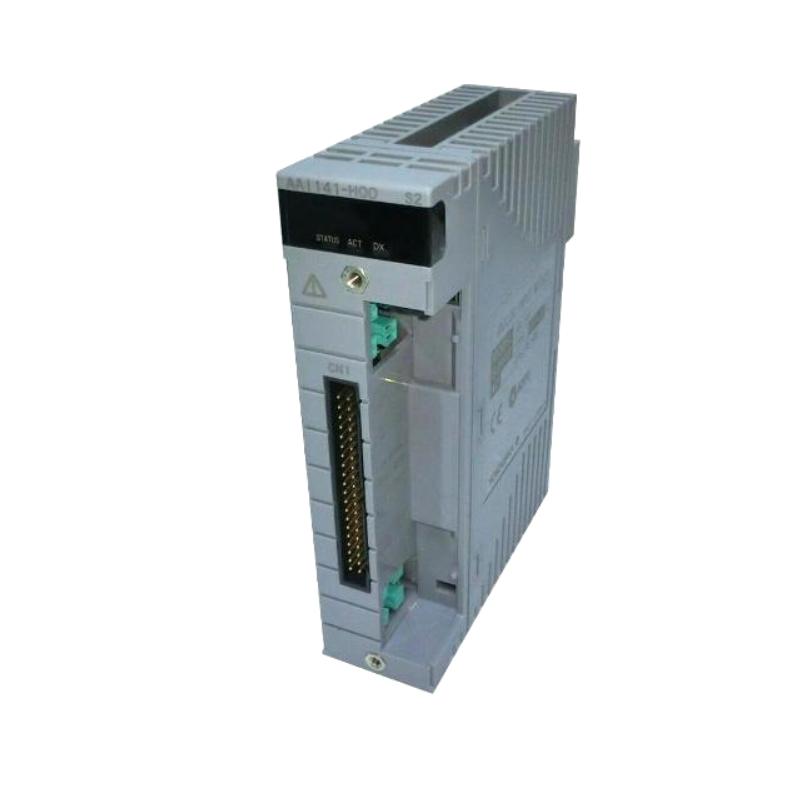

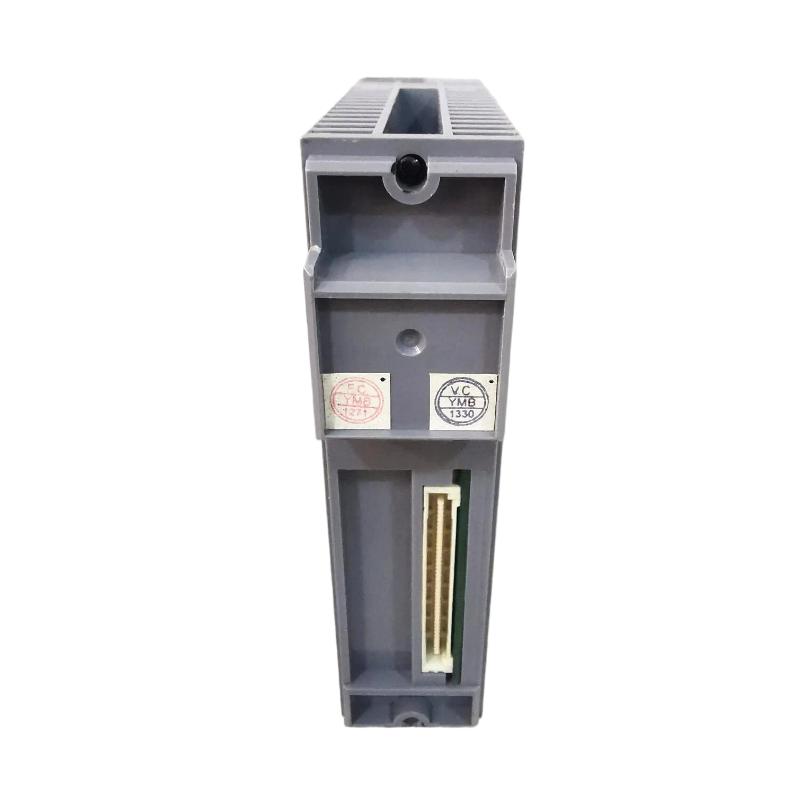

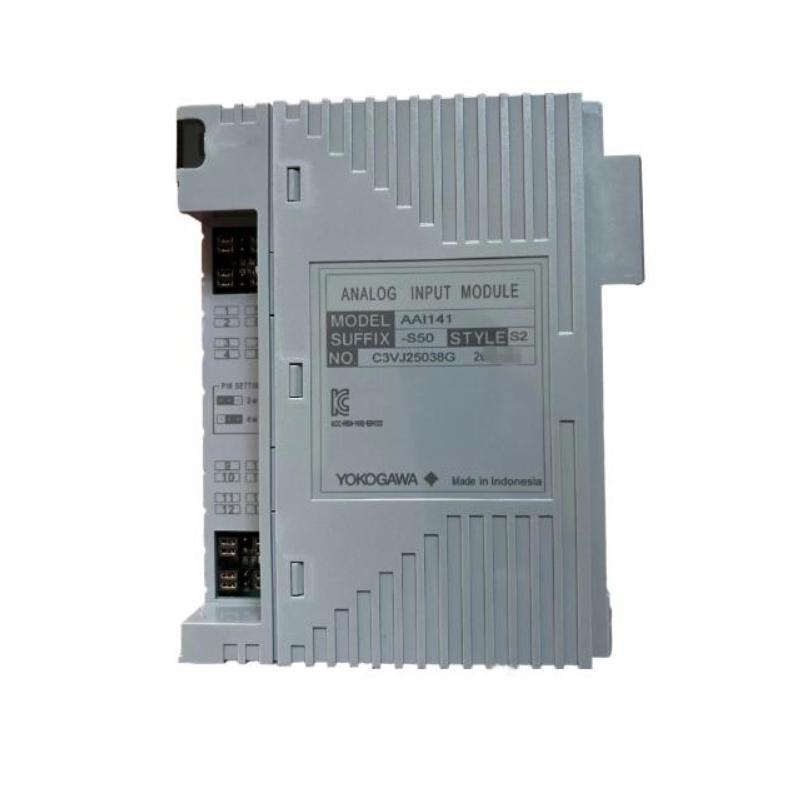

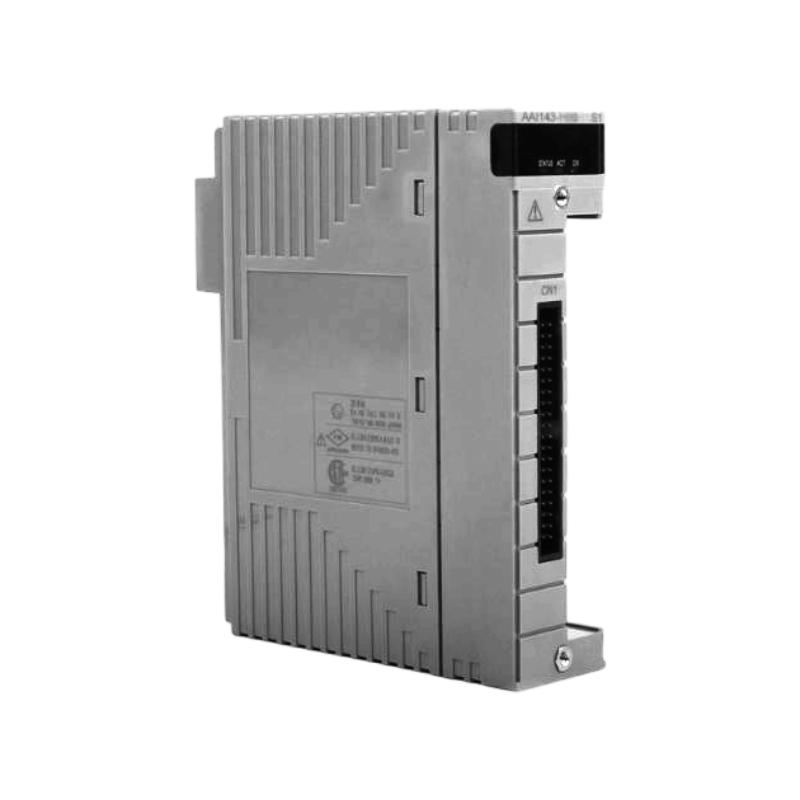

The Yokogawa AAI141-S50/K4A00 Analog Input Module is a high-performance and highly reliable component designed for industrial automation and process control systems. Part of Yokogawa’s Centum VP series, this module provides precise analog signal processing for accurate data acquisition from various sensors used in industrial applications. It ensures efficient conversion of voltage and current signals to digital form, allowing seamless integration into control systems. The module is ideal for use in industries such as power generation, petrochemical, and manufacturing, where precision and durability are critical. Offering fast response times and high accuracy, the AAI141-S50/K4A00 ensures the smooth operation of process control systems while maintaining optimal performance.
Technical Specifications
|
Specification |
Value |
|
Model Number |
AAI141-S50/K4A00 |
|
Dimensions (L × W × H) |
107.5 × 32.8 × 130 mm |
|
Weight |
0.2 kg |
|
Input Channels |
8 (Voltage or Current Inputs) |
|
Power Supply |
24 VDC |
|
Signal Input Range |
±10 V, 0 to 20 mA, 4 to 20 mA |
|
Accuracy |
±0.1% of full scale |
|
Response Time |
10 ms |
|
Operating Temperature Range |
-20°C to 60°C |
|
Humidity Range |
5% to 95% (Non-condensing) |
|
Application |
Industrial Automation, Process Control, Monitoring Systems |
Applications
The Yokogawa AAI141-S50/K4A00 Analog Input Module is ideal for use in various industrial environments where precision and reliability are crucial:
-
Industrial Automation: Converts analog signals from field sensors into digital data for use in automated control systems, enhancing overall process efficiency.
-
Process Control: Used in process control systems to monitor and regulate variables such as temperature, pressure, and flow, ensuring consistent performance and operational safety.
-
Monitoring Systems: Offers real-time monitoring of key process parameters, ensuring that operators can identify potential issues before they lead to system failures.
-
Power Generation: Facilitates the monitoring of critical equipment and processes in power plants, optimizing the efficiency and reliability of power generation operations.
-
Petrochemical Industry: Provides continuous monitoring of petrochemical processes, helping to detect abnormalities early and minimizing downtime.
Advantages
The Yokogawa AAI141-S50/K4A00 Analog Input Module provides several key benefits:
-
High Accuracy: With an accuracy of ±0.1% of full scale, the module ensures precise and reliable data acquisition, making it suitable for demanding control applications.
-
Versatile Input Range: The module supports a variety of signal inputs, including ±10 V, 0 to 20 mA, and 4 to 20 mA, providing flexibility for different sensor types.
-
Compact Size: The small form factor makes it easy to install in space-constrained systems, ensuring efficient use of available space.
-
Fast Response Time: The module features a 10 ms response time, enabling real-time data processing for quick decision-making.
-
Wide Operating Temperature Range: The module operates in a temperature range from -20°C to 60°C, making it adaptable for use in diverse environments.
-
Durability: Built to withstand harsh industrial environments, the module offers long-lasting performance and minimal maintenance requirements.
