Introduction — High-Precision Analog Output for Experion LS

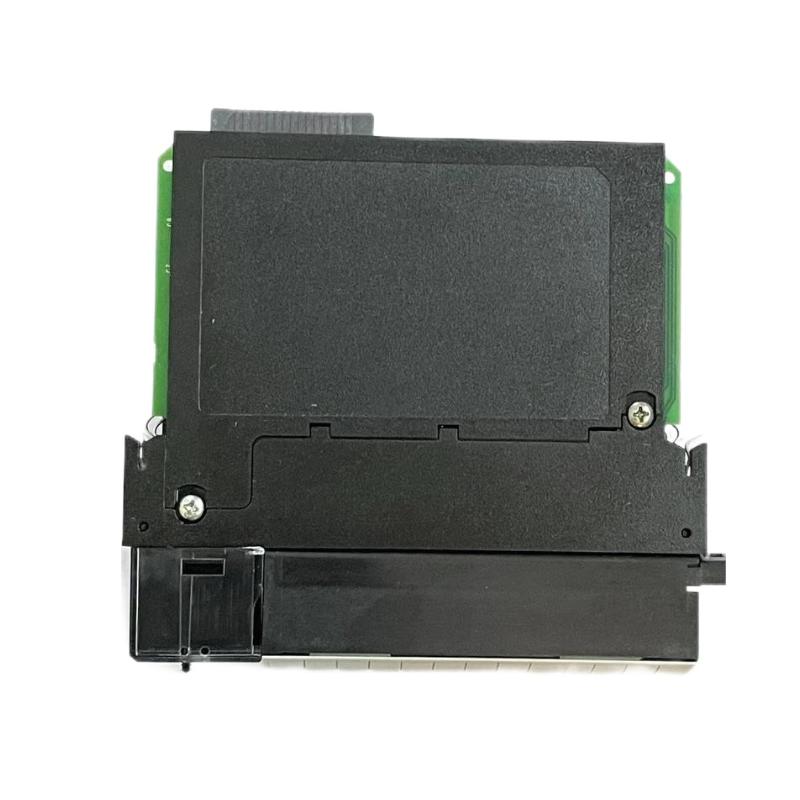

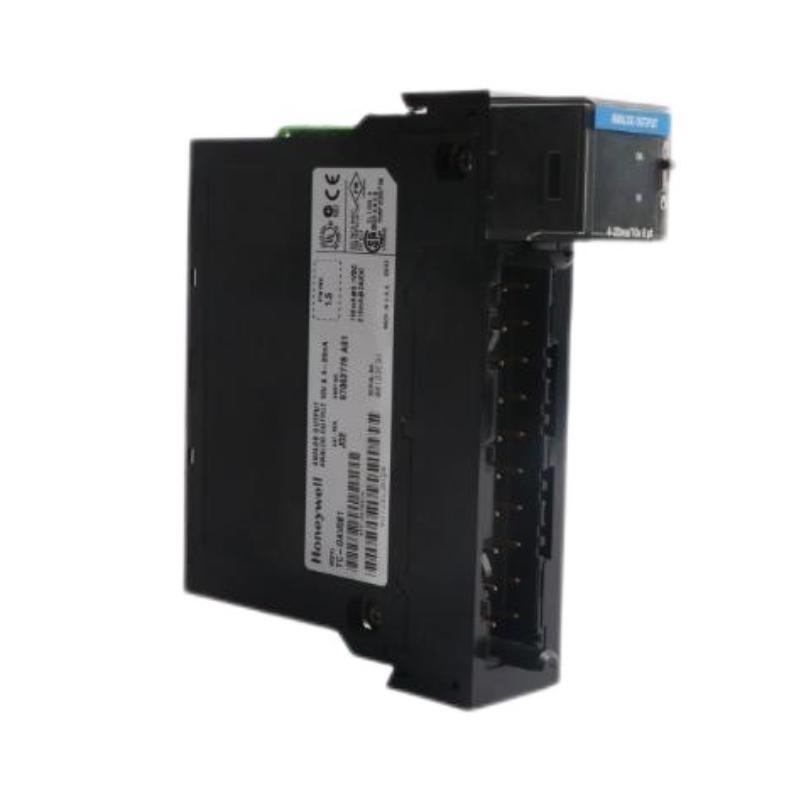

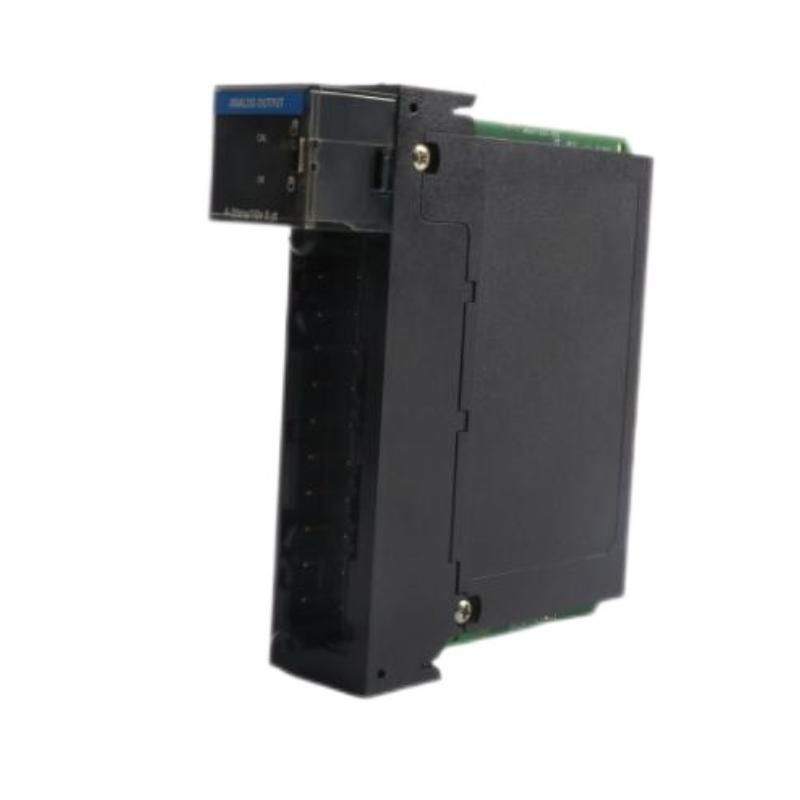

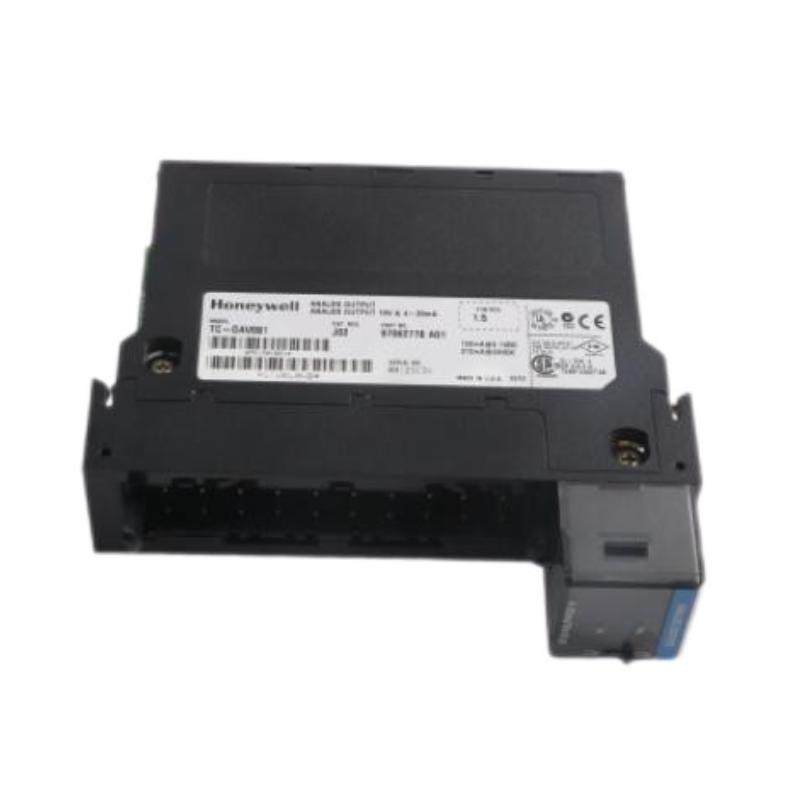

The Honeywell TC-OAV081 (97062774 A01) is a robust Analog Output Module designed for Experion LS and compatible Honeywell control systems. This module delivers accurate and reliable analog signals to field devices such as valves, actuators, and process instruments. Built for industrial-grade performance, the TC-OAV081 ensures smooth signal conversion, electrical isolation, and seamless integration into Experion LS I/O racks, optimizing process control, automation efficiency, and system safety.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TC-OAV081 |
| Part Number | 97062774 A01 |
| Module Type | Analog Output Module |
| Compatible Systems | Honeywell Experion LS, TDC 3000, FS series |
| Number of Channels | 8 analog output channels |
| Output Signal | 4–20 mA or 0–10 V DC |
| Maximum Output Current | 20 mA per channel |
| Load Resistance | 500 Ω max |
| Operating Temperature | 0 °C to +60 °C |
| Mounting | Rack-mounted in Experion LS I/O racks |
| Dimensions (W×H×D) | 120 mm × 90 mm × 35 mm |
| Weight | ~0.38 kg |
| Isolation | Electrically isolated channels for field protection |
| Material | Industrial-grade PCB with protective coating |
| Compliance | CE, UL, and industrial safety standards |
