Introduction — Precision Analog Output for Experion LS

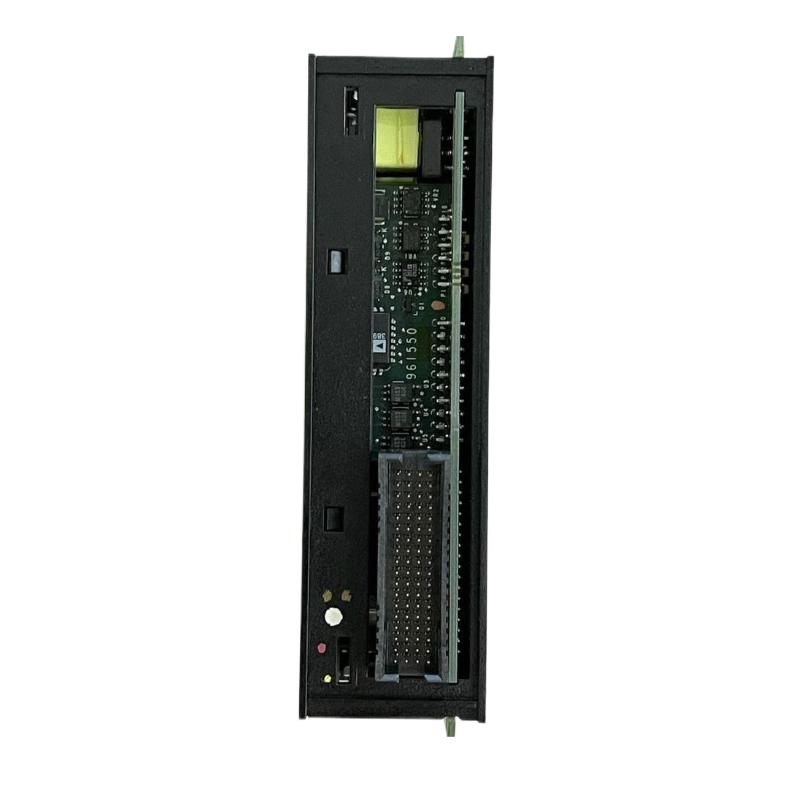

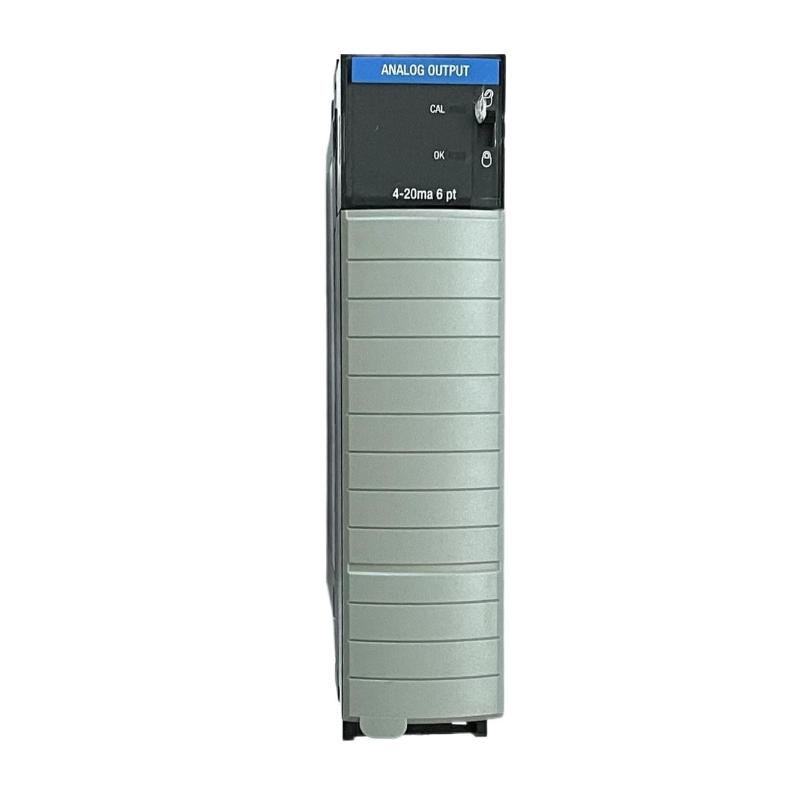

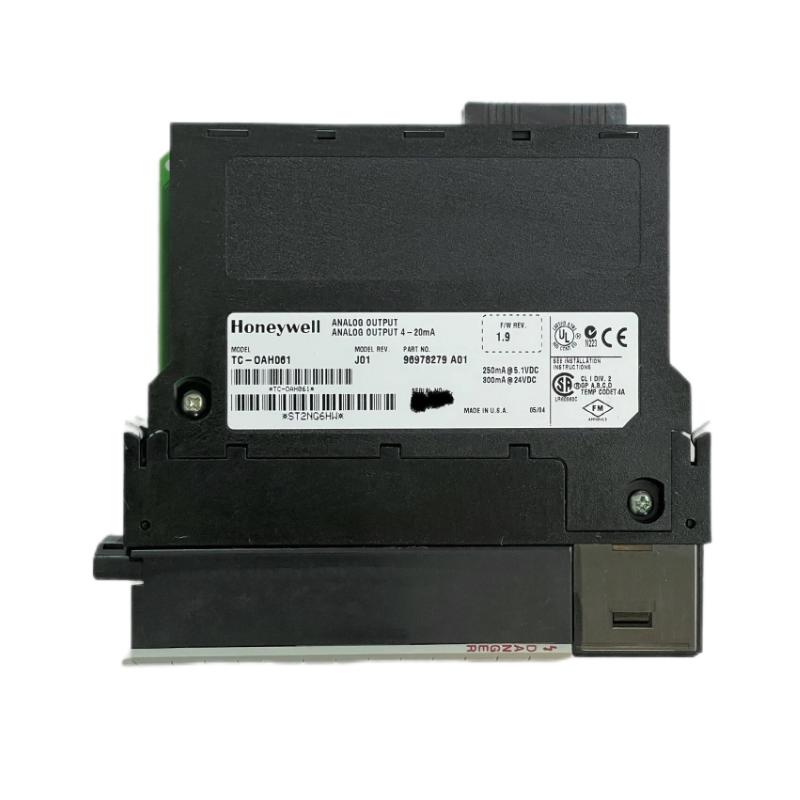

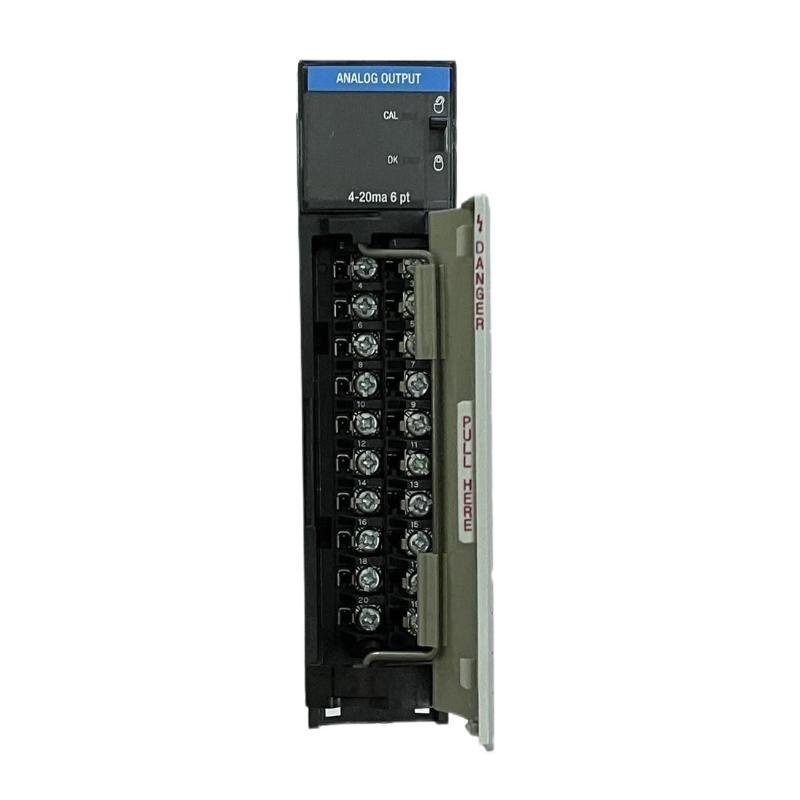

The Honeywell TC-OAH061 is a high-performance Analog Output Module designed for Experion LS and compatible Honeywell control systems. This module provides reliable, precise analog outputs to control field devices such as valves, actuators, and process instruments. Engineered for industrial applications, the TC-OAH061 ensures smooth and accurate signal conversion, electrical protection, and seamless integration into Experion LS I/O racks, optimizing process control and automation efficiency.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TC-OAH061 |
| Module Type | Analog Output Module |
| Compatible Systems | Honeywell Experion LS, TDC 3000, FS series |
| Number of Channels | 16 analog output channels |
| Output Signal | 4–20 mA or 0–10 V DC |
| Output Current | Up to 20 mA per channel |
| Load Resistance | 500 Ω maximum |
| Operating Temperature | 0 °C to +60 °C |
| Mounting | Rack-mounted in Experion LS I/O racks |
| Dimensions (W×H×D) | 120 mm × 90 mm × 35 mm |
| Weight | ~0.37 kg |
| Isolation | Electrically isolated channels for protection |
| Material | Industrial-grade PCB with protective coating |
| Compliance | CE, UL, and industrial safety standards |
