Introduction — Reliable Isolated Discrete Input for Experion LS

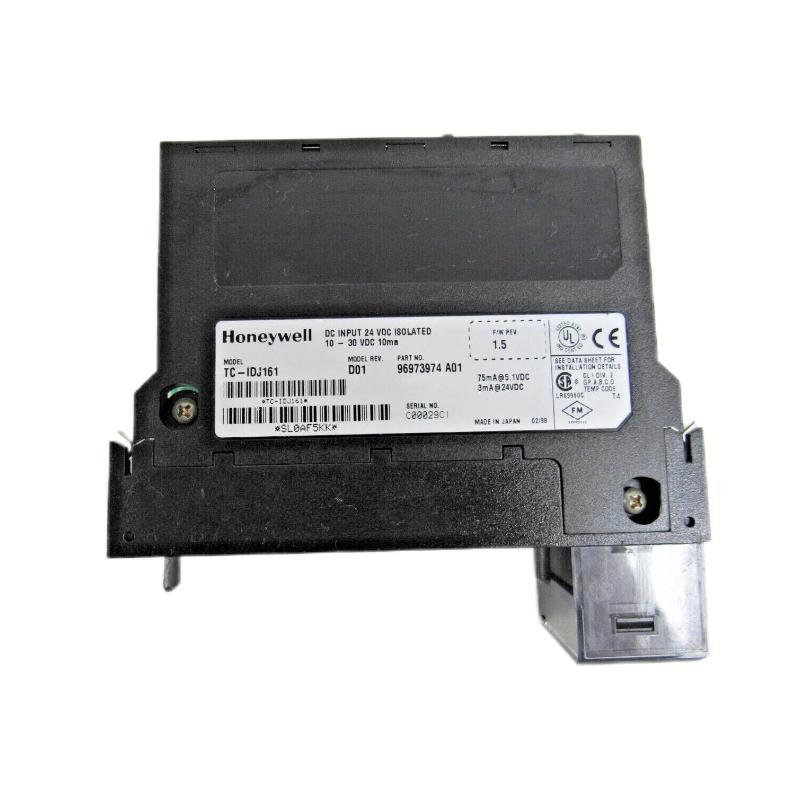

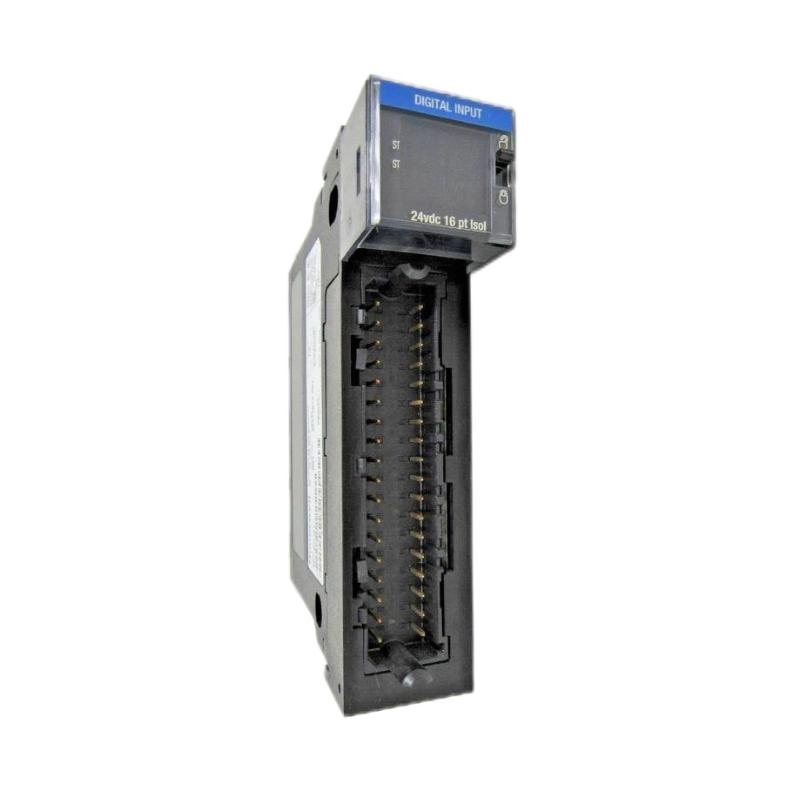

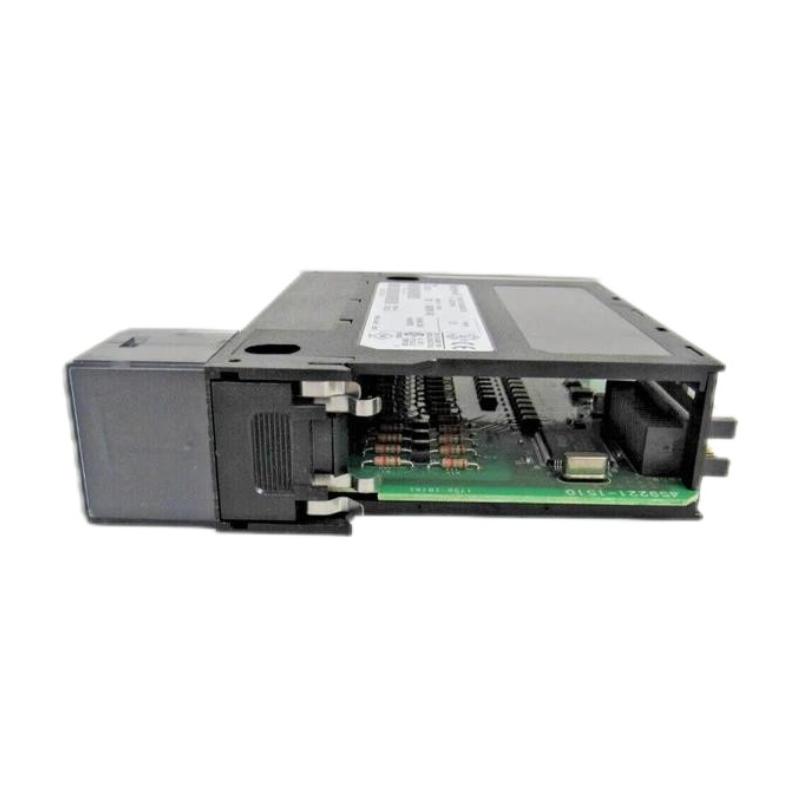

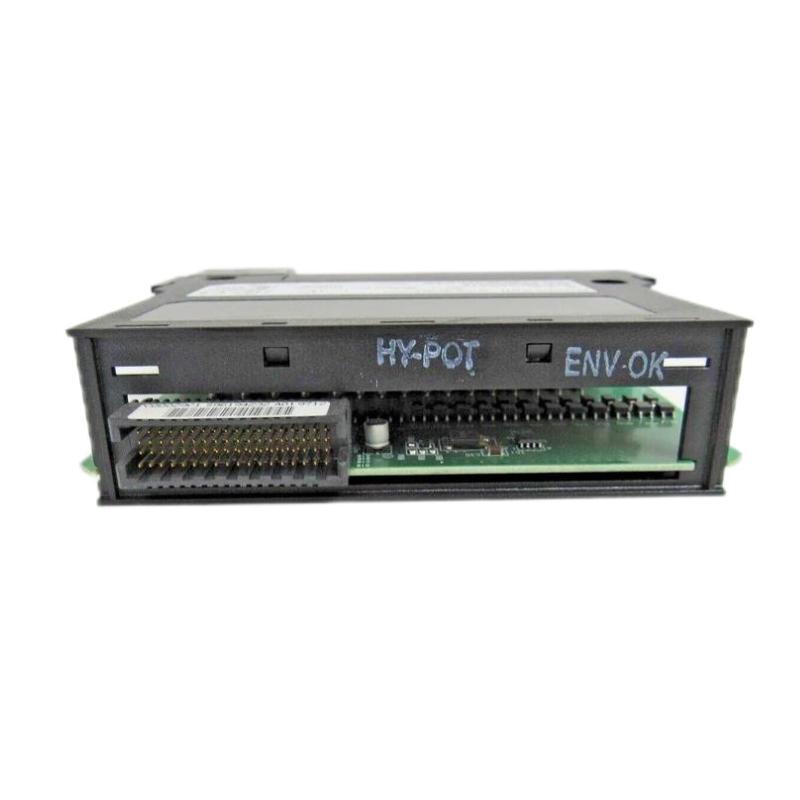

The Honeywell TC-IDJ161 is a high-performance Isolated Discrete Input Module designed for Experion LS and compatible Honeywell control systems. This module provides precise acquisition of digital signals from field devices, such as switches, sensors, and relays, with complete electrical isolation. The isolation ensures safe operation of controllers and connected equipment, making it ideal for industrial process automation, energy, and manufacturing environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TC-IDJ161 |
| Module Type | Isolated Discrete Input Module |
| Compatible Systems | Honeywell Experion LS, TDC 3000, FS series |
| Number of Channels | 16 discrete input channels |
| Input Voltage | 24 V DC nominal |
| Input Current | 5–10 mA per channel |
| Operating Temperature | 0 °C to +60 °C |
| Mounting | Rack-mounted in Experion LS I/O racks |
| Dimensions (W×H×D) | 120 mm × 90 mm × 35 mm |
| Weight | ~0.34 kg |
| Isolation | Electrically isolated channels for field protection |
| Material | Industrial-grade PCB with protective coating |
| Compliance | CE, UL, and industrial safety standards |
