Introduction

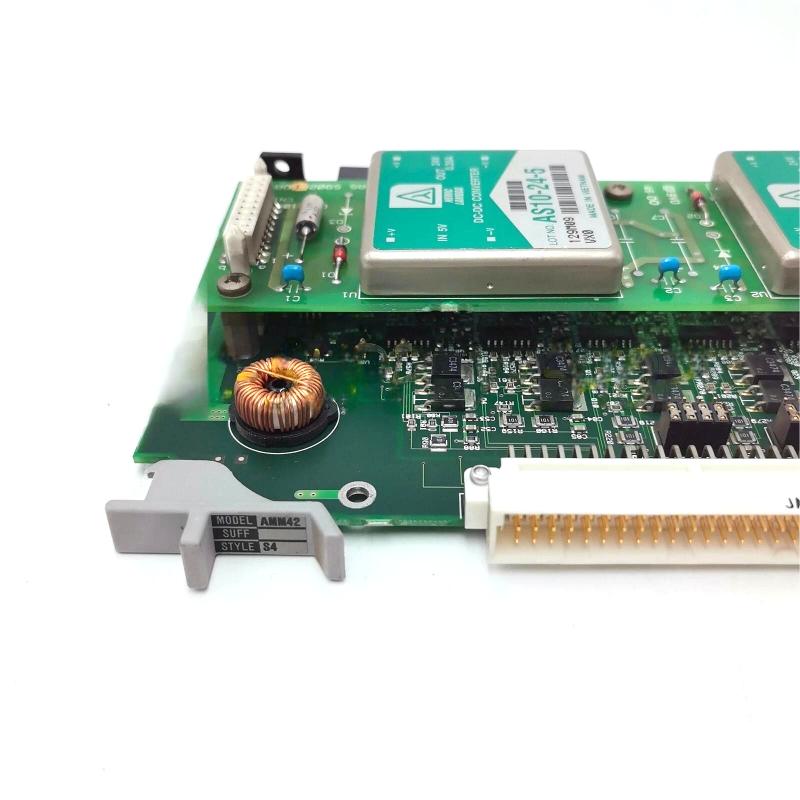

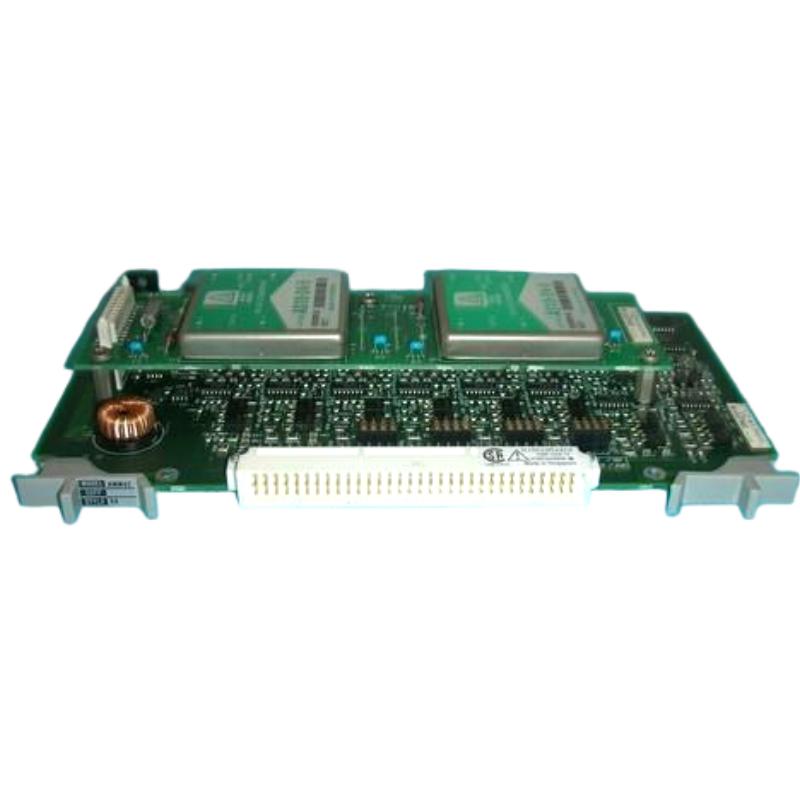

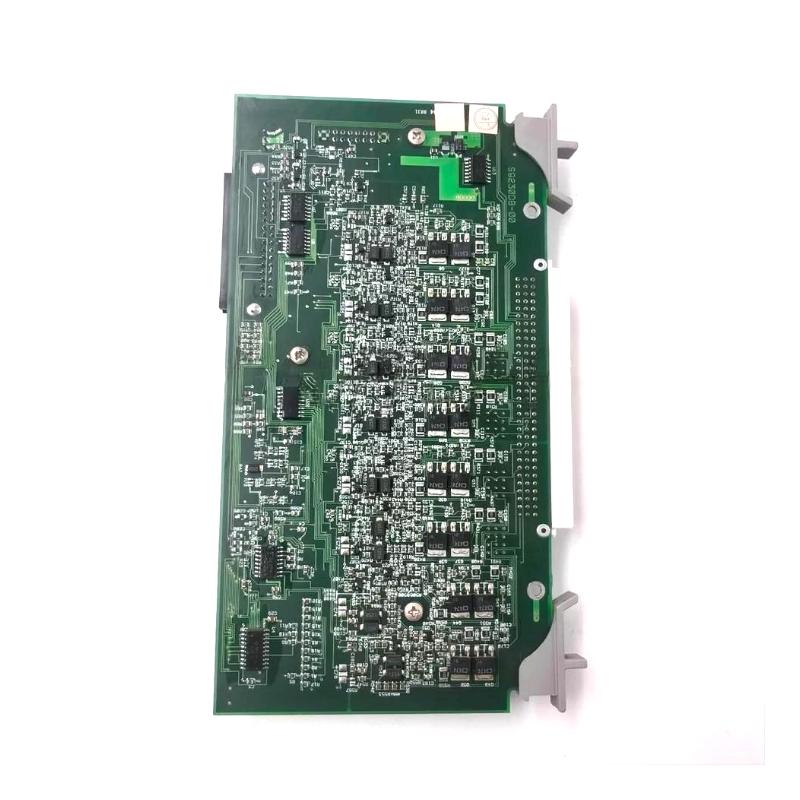

The Yokogawa AMM42 is an analog multiplexer input module designed for distributed control systems where multiple analog signals must be collected, conditioned, and forwarded to a central controller. It is frequently used in process automation environments that rely on numerous 2-wire transmitters, such as flow, temperature, level, or pressure instruments.
Its compact form factor and stable signal-handling performance make it suitable for dense I/O installations where panel space and wiring efficiency are critical.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | AMM42 |
| Module Type | Analog Multiplexer / Analog Input Module |
| Input Channels | 16 channels (2-wire transmitter compatible) |
| Supported Signals | 4–20 mA analog current signals, standard process transmitters |
| Loop Power | 24 V DC nominal for powering 2-wire transmitters |
| Input Resistance | Approx. 250 Ω standard |
| Isolation | No channel-to-channel isolation (common reference design) |
| Power Requirement | 24 V DC (module electronics + loop supply) |
| Accuracy | Typical ±0.1% of reading under nominal conditions |
| Estimated Dimensions | Approx. 130 × 160 × 60 mm (H × W × D) |
| Estimated Weight | Approx. 0.75 kg |
| Installation | Mounted within Yokogawa DCS I/O nests or racks |
