Introduction

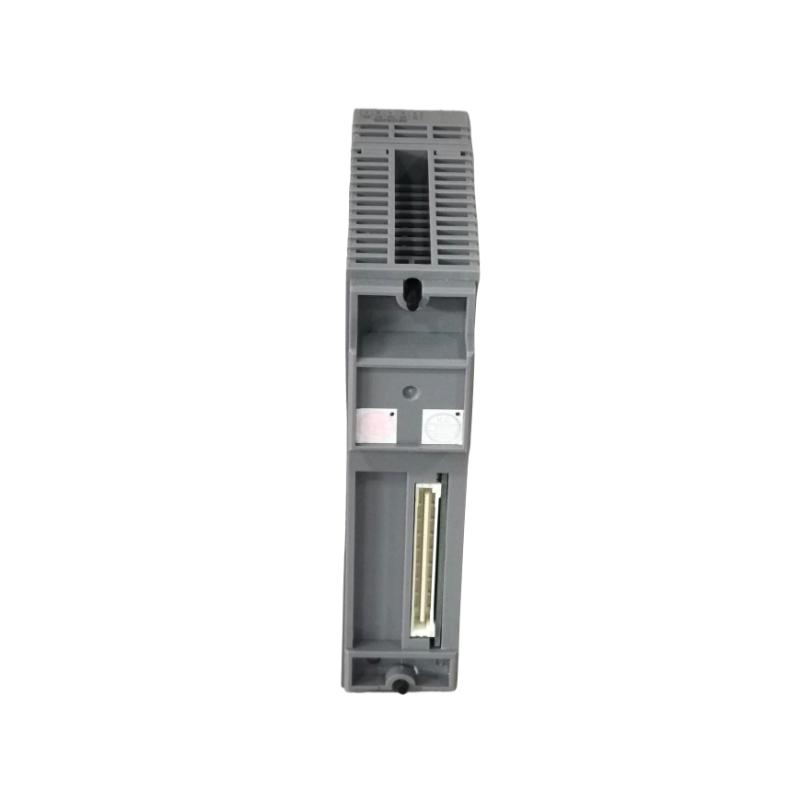

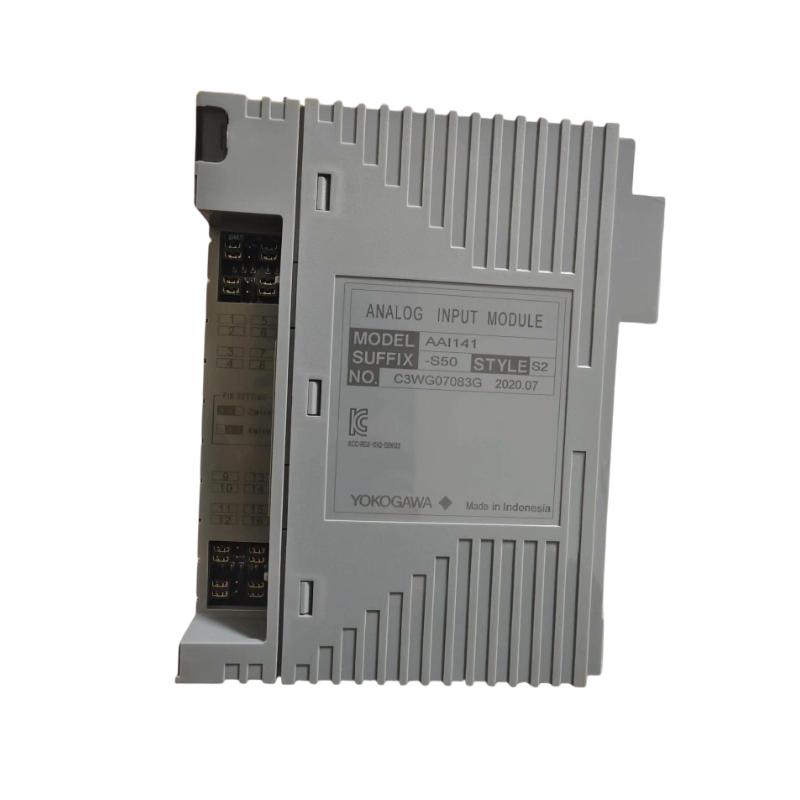

The Yokogawa AAI141-S50 Analog Input Module is a highly reliable and precise component designed for industrial automation and process control systems. It is part of Yokogawa's Centum VP series, a trusted control system used in various industrial sectors. This module efficiently handles a wide range of analog input signals, providing accurate data collection from field sensors for real-time process monitoring and control. Commonly used in industries such as power generation, petrochemical, and manufacturing, the AAI141-S50 ensures seamless integration into existing systems while maintaining high operational accuracy. With its compact design and robust construction, it offers exceptional reliability in demanding environments.
Technical Specifications
|
Specification |
Value |
|
Model Number |
AAI141-S50 |
|
Dimensions (L × W × H) |
107.5 × 32.8 × 130 mm |
|
Weight |
0.2 kg |
|
Input Channels |
8 (Voltage or Current Inputs) |
|
Power Supply |
24 VDC |
|
Signal Input Range |
±10 V, 0 to 20 mA, 4 to 20 mA |
|
Accuracy |
±0.1% of full scale |
|
Response Time |
10 ms |
|
Operating Temperature Range |
-20°C to 60°C |
|
Humidity Range |
5% to 95% (Non-condensing) |
|
Application |
Industrial Automation, Process Control, Monitoring Systems |
Applications
The Yokogawa AAI141-S50 Analog Input Module is well-suited for various industrial applications that require high-accuracy analog signal processing:
-
Industrial Automation: Converts analog signals from field instruments to digital data for use in automated control systems, improving efficiency and accuracy in industrial operations.
-
Process Control: Used to monitor and control parameters such as temperature, pressure, and flow in complex process control systems, ensuring optimal performance.
-
Monitoring Systems: Provides real-time monitoring and data acquisition from critical field devices, enabling operators to make timely adjustments to prevent system failure.
-
Power Generation: Facilitates the monitoring of equipment, electrical signals, and other critical parameters in power plants, contributing to the safety and efficiency of energy generation processes.
-
Petrochemical Industry: Essential in the petrochemical industry for continuous process monitoring, helping to identify problems early and reduce downtime.
Advantages
The Yokogawa AAI141-S50 Analog Input Module offers several key advantages for industrial control systems:
-
High Accuracy: With ±0.1% of full scale accuracy, this module ensures that measurement data is highly precise, which is crucial for controlling industrial processes.
-
Wide Input Range: The module supports a variety of input types, including ±10 V, 0 to 20 mA, and 4 to 20 mA, allowing for compatibility with different sensor types.
-
Compact Size: The module’s compact design makes it easy to integrate into existing systems, even in confined spaces.
-
Fast Response Time: With a 10 ms response time, the module processes input signals quickly, making it ideal for real-time applications where response speed is critical.
-
Wide Temperature Range: It operates in a temperature range from -20°C to 60°C, ensuring reliable performance in both high and low-temperature environments.
-
Durability: Built to last, the AAI141-S50 is designed for long-term, trouble-free operation, even in demanding industrial environments.
