Introduction

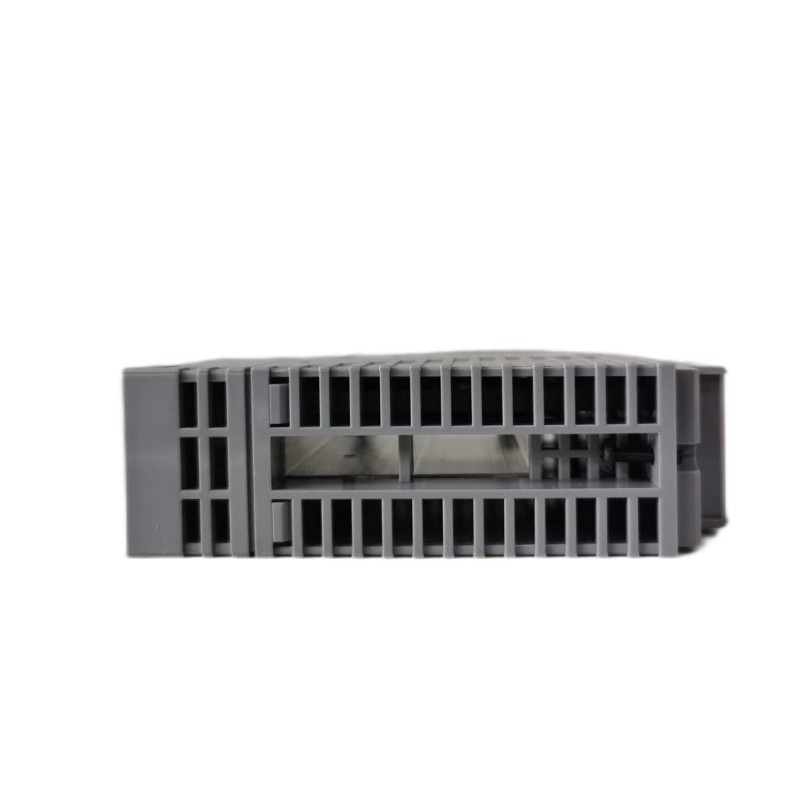

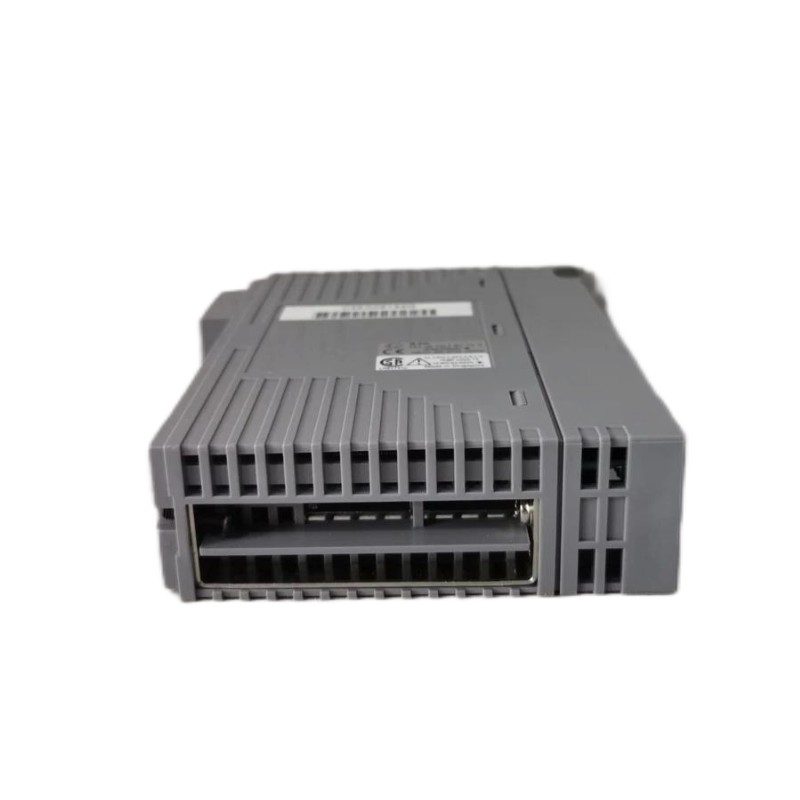

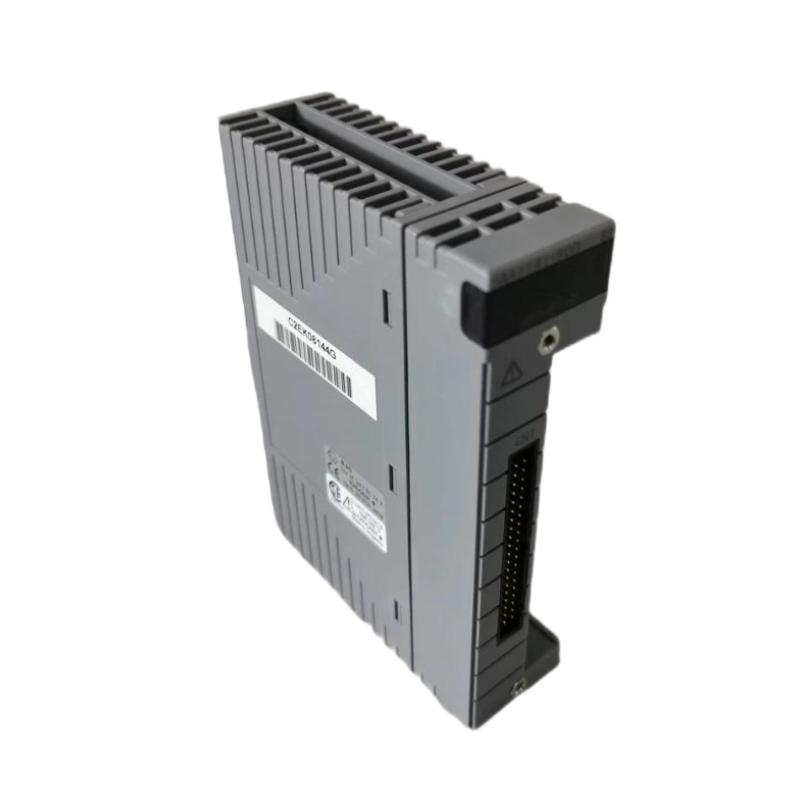

The Yokogawa AAI141-S00/K4A00 Analog Input Module is designed to provide precise and reliable analog signal processing for industrial automation and control systems. As part of Yokogawa’s Centum VP series, this module is engineered to handle a wide range of analog input signals, including voltage and current inputs, with high accuracy and fast response times. It is essential in applications that require continuous and precise monitoring of critical parameters such as temperature, pressure, and flow. Widely used in industries such as power generation, oil and gas, and manufacturing, the AAI141-S00/K4A00 module ensures optimal performance and contributes to the smooth and efficient operation of process control systems.
Technical Specifications
|
Specification |
Value |
|
Model Number |
AAI141-S00/K4A00 |
|
Dimensions (L × W × H) |
107.5 × 32.8 × 130 mm |
|
Weight |
0.2 kg |
|
Input Channels |
8 (Voltage or Current Inputs) |
|
Power Supply |
24 VDC |
|
Signal Input Range |
±10 V, 0 to 20 mA, 4 to 20 mA |
|
Accuracy |
±0.1% of full scale |
|
Response Time |
10 ms |
|
Operating Temperature Range |
-20°C to 60°C |
|
Humidity Range |
5% to 95% (Non-condensing) |
|
Application |
Industrial Automation, Process Control, Monitoring Systems |
Applications
The Yokogawa AAI141-S00/K4A00 Analog Input Module is designed for use in industrial systems requiring precise analog signal acquisition:
-
Industrial Automation: Converts analog signals from field instruments to digital data for use in automated control systems.
-
Process Control: Used for measuring key process variables such as temperature, pressure, and flow, helping maintain controlled conditions and optimize performance.
-
Monitoring Systems: Provides real-time monitoring of critical process parameters, facilitating early detection of deviations and enhancing system reliability.
-
Power Generation: Used to monitor machinery, electrical signals, and other critical parameters in power plants, ensuring safety and efficiency.
-
Petrochemical Industry: Ideal for continuous process monitoring and control, helping prevent system failures and reduce downtime in petrochemical plants.
Advantages
The Yokogawa AAI141-S00/K4A00 Analog Input Module offers several advantages for industrial applications:
-
High Accuracy: With an accuracy of ±0.1% of full scale, this module ensures highly precise data collection, essential for critical process monitoring.
-
Wide Input Range: The module supports multiple input types, including ±10 V, 0 to 20 mA, and 4 to 20 mA, making it versatile for a variety of sensor types.
-
Compact Design: The small form factor allows for easy integration into space-constrained installations, ensuring flexibility in system design.
-
Fast Response Time: The module features a 10 ms response time, which is ideal for real-time data processing and control applications.
-
Wide Operating Temperature Range: Designed to operate in environments from -20°C to 60°C, the module is suitable for use in both hot and cold industrial settings.
-
Reliability and Durability: Built to withstand harsh industrial environments, the module is designed for long-term performance with minimal maintenance requirements.
