Introduction

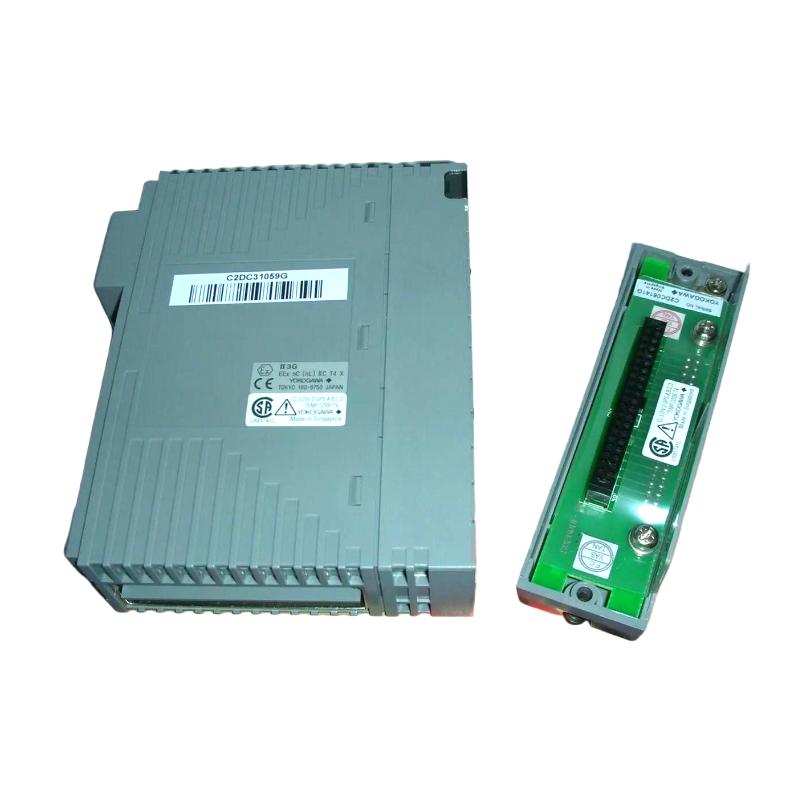

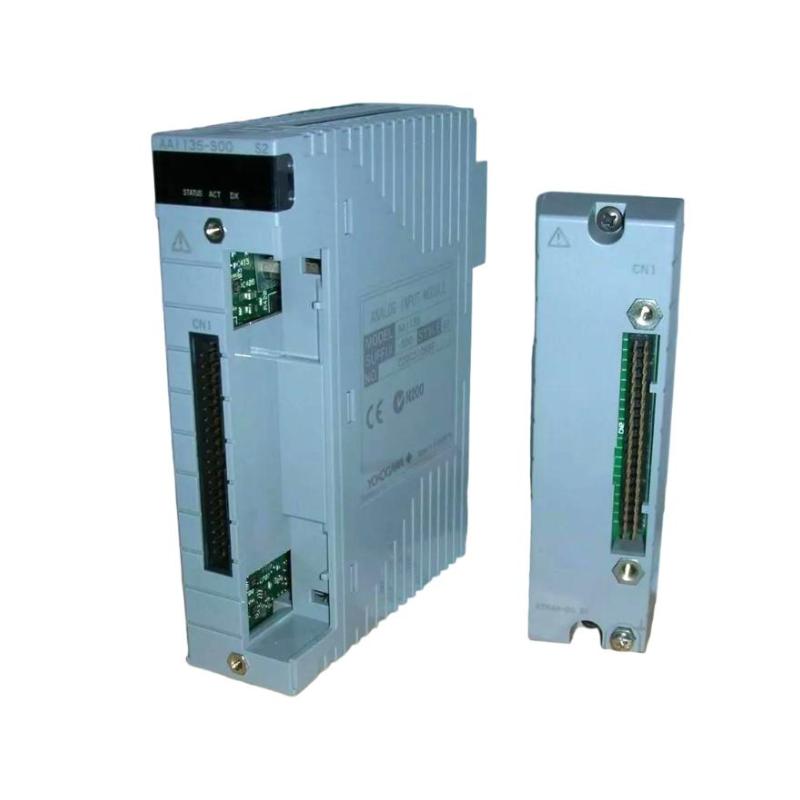

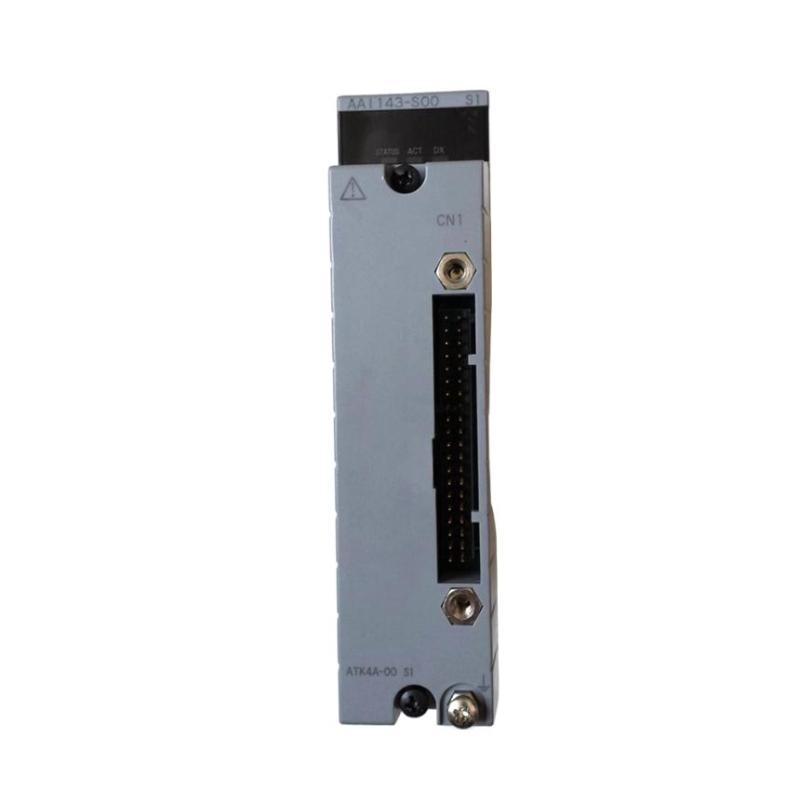

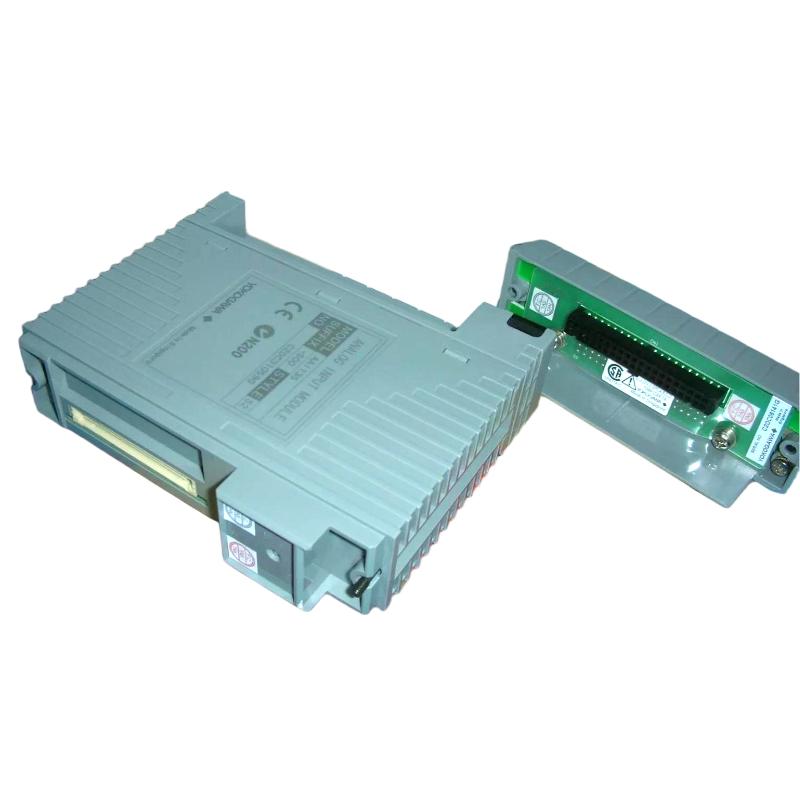

The Yokogawa AAI141-S00/K400 Analog Input Module is a high-performance module designed to provide precise and reliable analog signal processing for industrial automation and process control systems. It is part of Yokogawa’s Centum VP series, a leading control system for industrial applications. This module ensures accurate data acquisition from a variety of analog input signals, such as temperature, pressure, and flow, enabling real-time process monitoring and control. With its compact form factor, the AAI141-S00/K400 is ideal for installations in space-constrained environments, while its robust design ensures reliability and durability in demanding industrial settings. The module is widely used in sectors such as power generation, petrochemicals, and manufacturing, where high accuracy and dependable performance are crucial.
Technical Specifications
|
Specification |
Value |
|
Model Number |
AAI141-S00/K400 |
|
Dimensions (L × W × H) |
107.5 × 32.8 × 130 mm |
|
Weight |
0.2 kg |
|
Input Channels |
8 (Voltage or Current Inputs) |
|
Power Supply |
24 VDC |
|
Signal Input Range |
±10 V, 0 to 20 mA, 4 to 20 mA |
|
Accuracy |
±0.1% of full scale |
|
Response Time |
10 ms |
|
Operating Temperature Range |
-20°C to 60°C |
|
Humidity Range |
5% to 95% (Non-condensing) |
|
Application |
Industrial Automation, Process Control, Monitoring Systems |
Applications
The Yokogawa AAI141-S00/K400 Analog Input Module is ideal for use in various industrial applications that require precise analog signal processing and conversion:
-
Industrial Automation: Converts analog signals from sensors into digital data for automated control systems, enabling more efficient operation of industrial processes.
-
Process Control: Used in process control systems to measure and regulate variables such as temperature, pressure, and flow, helping maintain desired operational conditions.
-
Monitoring Systems: Provides continuous real-time monitoring of critical process parameters, enabling quick detection of abnormalities and preventing system failures.
-
Power Generation: Facilitates the monitoring of critical equipment and machinery, ensuring safe and efficient operation in power plants.
-
Petrochemical Industry: Used in petrochemical plants to ensure the accurate monitoring of process conditions, helping to reduce unplanned downtime and optimize performance.
Advantages
The Yokogawa AAI141-S00/K400 Analog Input Module offers several advantages for industrial systems:
-
High Accuracy: The module ensures precise data collection with an accuracy of ±0.1% of full scale, which is essential for critical process control applications.
-
Wide Input Signal Range: It supports a variety of input signals, including ±10 V, 0 to 20 mA, and 4 to 20 mA, making it versatile for different types of sensors.
-
Compact and Space-Saving Design: The small form factor of the module allows for easy installation even in confined spaces, offering flexibility in system layout.
-
Fast Response Time: With a 10 ms response time, the module processes data quickly, enabling real-time monitoring and control.
-
Wide Temperature Range: The module operates in a temperature range of -20°C to 60°C, ensuring reliable performance in both cold and hot industrial environments.
-
Durable and Reliable: Built to withstand the rigors of industrial environments, the AAI141-S00/K400 is designed for long-term, reliable operation, ensuring minimal downtime.
